product name

Jonsered 966416201 Street Brush T-20436, 2011

Model: 966416201

Save Part Not Listed?
product name

Jonsered 966416201

...
...
1
Mounting Frame HUS-576905901
...
2
Mounting Frame HUS-576906001
...
3
Drive Shaft HUS-576906101
...
4
Worm Gear, 7:1 HUS-576906201
...
5
Pulley A112 HUS-576906701
...
6
Roller Shaft HUS-576906801
...
7
Flange HUS-576906901
...
8
Bearing HUS-531005259
...
9
Guard, Brush Roller HUS-576907001
...
10
Guard, Drive Shaft HUS-576922901
...
11
Bearing HUS-576908001
...
12
Plate, Lock HUS-576907101
...
13
Angle Control Tube HUS-576907201
...
14
Tube, Pivot Wheel HUS-576907301
...
15
Dust Cap HUS-531005315
...
16
Support Wheel HUS-576489401
...
17
Collar HUS-576489201
...
18
Adjusting Knob HUS-535415024
...
19
Support Wheel HUS-576907401
...
20
Grip HUS-576907501
...
21
Screw, Special HUS-506982601
...
22
Washer HUS-506559701
...
23
Grip HUS-576907601
...
24
Cover HUS-576907701
...
25
Brush Ring HUS-576906301
...
26
Collar, Plastic HUS-535414804
...
27
Spring HUS-535414852
...
28
Chain Tightener HUS-576906401
...
29
Rubber Strap HUS-506599601
...
30
Collar HUS-576906501
...
31
Chain Cover HUS-576906601
...
32
Cover HUS-576919301
...
33
Support HUS-576919401
...
34
Screw HUS-531021239
...
35
Washer HUS-576491701
...
36
Nut, Lock HUS-531021130
...
37
Nut, Special HUS-577607801
...
38
Washer HUS-531021197
...
39
Hex Socket Cap HUS-576919501
...
40
Nut, Tensilock HUS-576919601
...
41
Screw, Lock HUS-576919701
...
42
Nut, Lock HUS-531021219
...
43
Screw HUS-531021144
...
44
Washer HUS-531021184
...
45
Drive Chain HUS-576919801
...
46
Chain Wheel HUS-576919901
...
47
Washer HUS-531021216
...
48
Screw HUS-531021299
...
49
Nut, Lock HUS-531021198
...
50
Plate, Upper HUS-576920101
...
51
Clamp HUS-531005182
...
52
Set Screw HUS-531021169
...
53
Screw HUS-535415036
...
54
Screw, Special HUS-531021195
...
55
Screw HUS-576920201
...
56
Screw HUS-531021146
...
57
Screw HUS-535415045
...
58
Nut HUS-531021129
...
59
Hex Socket Cap HUS-576920301
...
60
Screw, Special HUS-576923101
...
61
Adapter, Washer HUS-576923201
...
62
Nut HUS-531021226

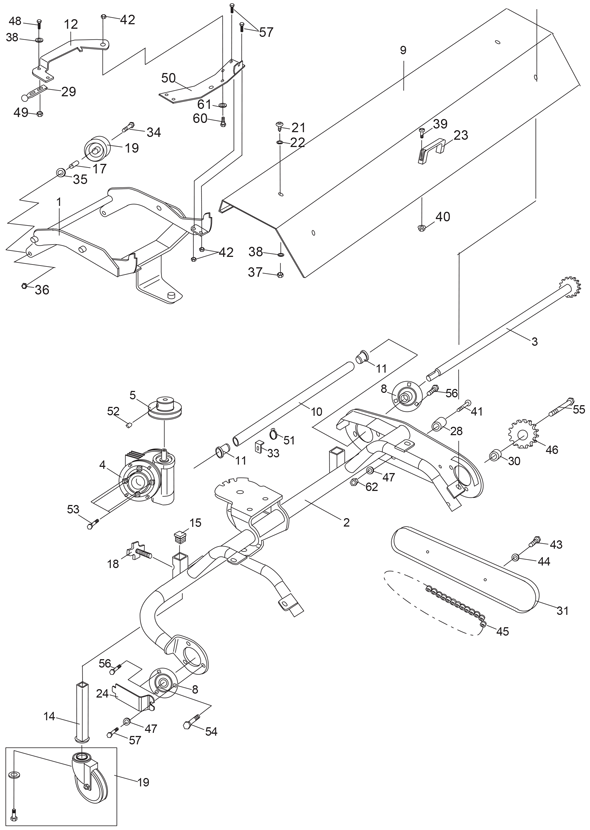

Schematic Image Zoomed
