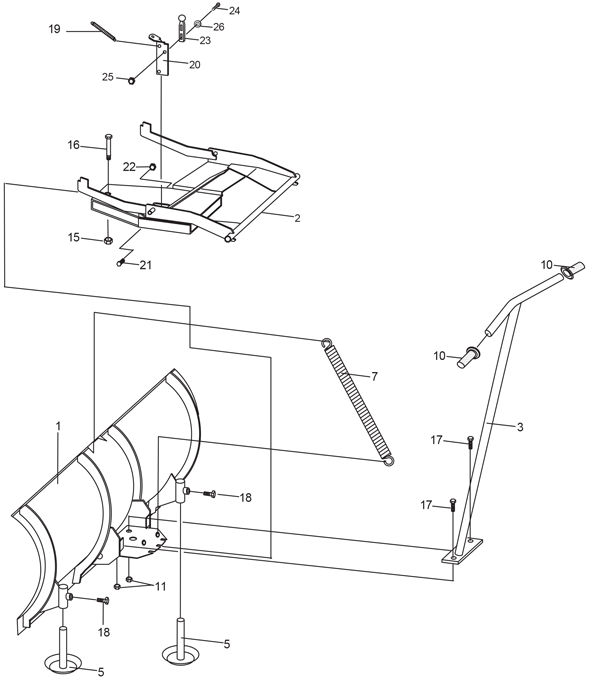

Jonsered 9664159-01 Snow Blade T-30356

Model: 9664159-01

Save Part Not Listed?
product name

Jonsered 9664159-01

...
...
1
Blade HUS-576189601
...
2
Weldment HUS-576189801
...
3
Angle Control Tube HUS-576189901
...
5
Skid HUS-531005136
...
7
Spring HUS-531005138
...
10
Grip HUS-531021250
...
11
Nut, Lock HUS-531021148
...
15
Nut, Lock HUS-531021192
...
16
Screw HUS-531021251
...
17
Screw HUS-531021252
...
18
Screw HUS-531021193
...
19
Spring HUS-531021257
...
20
Plate, Lock HUS-576190101
...
21
Screw HUS-531021259
...
22
Nut, Lock HUS-531021219
...
23
Rubber Strap HUS-506599601
...
24
Screw HUS-531021299
...
25
Nut, Lock HUS-531021198
...
26
Washer HUS-531021197
