Jonsered 96191002104 Snow Thrower ST2109E

Model: 96191002104

Save Part Not Listed?
product name

Jonsered 96191002104

...
...
1

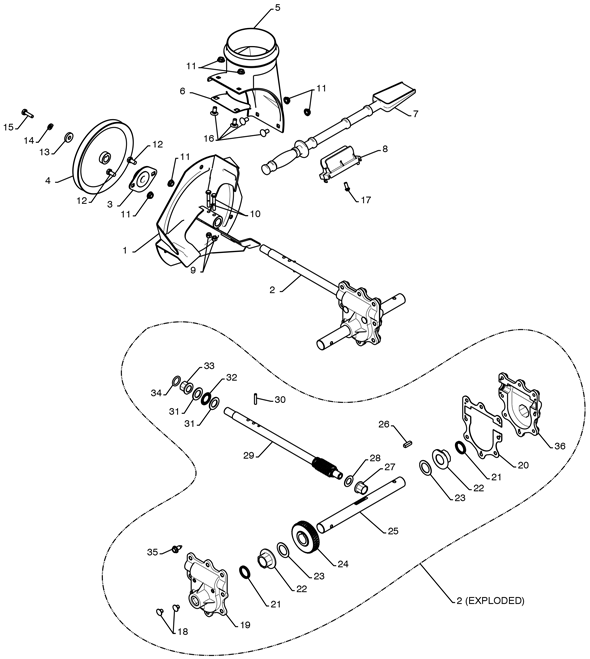

Impeller HUS532184105
...
2
Gearbox Assembly HUS532196710
...
3
Bearing HUS532188909
...
4
Impeller Pulley HUS532191079
...
5
Discharge Base HUS532175322
...
6
Corner Bracket HUS532184095
...
7
Clean Out Tool HUS532192199
...
8
Tool Clip HUS532405400
...
9
Nut 1/4?20 HUS873800400
...
10
Screw 1/4?20 X .625 HUS874780426
...
11
Nut 5/16?18 HUS532155377
...
12
Screw 5/16?18 X .625 HUS532163183
...
13
Washer HUS819111507
...
14
Lockwasher 5/16 HUS810040500
...
15
Screw 5/16?18 X 1.00 HUS874940516
...
16
Carriage Bolt HUS532180355
...
17
Screw 13?16 X .625 HUS532194189
...
18
Plug HUS532407760
...
19
Gearbox Cover Rh HUS532407761
...
20
Gasket HUS532407766
...
21
Seal HUS532407770
...
22
Bearing HUS532407762
...
23
Thrust Washer 1.00 HUS532174697
...
24
Worm Gear HUS532407763
...
25
Auger Shaft HUS532407764
...
26
Square Key HUS532189282
...
27
Bearing HUS532407758
...
28
Thrust Washer HUS532174683
...
29
Impeller Shaft HUS532407757
...
30
Roll Pin HUS53207836M
...
31
Thrust Washer HUS532174681
...
32
Thrust Bearing HUS532174684
...
33
Bearing HUS532407769
...
34
O?Ring HUS532407768
...
35
Screw 5/16?18 X .750 HUS532407767
...
36
Gearbox Cover Lh HUS532407765

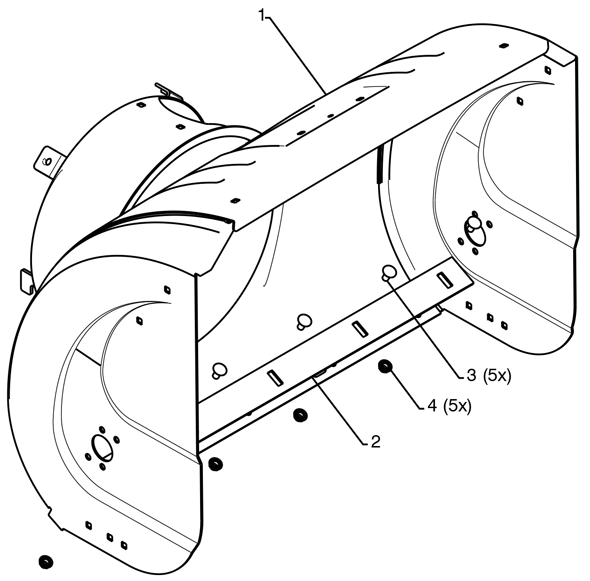

Jonsered 96191002104

...
...
1

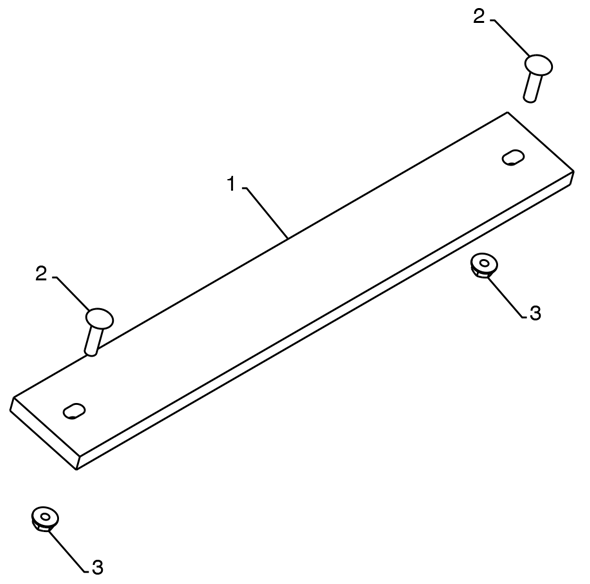

Auger Housing 27 HUS532415605
...
2
Scraper Bar HUS532407727
...
3
Carriage Bolt 5/16?18 X .625 HUS872270505
...
4
Nut 5/16?18 HUS532155377

Jonsered 96191002104

...
...
1

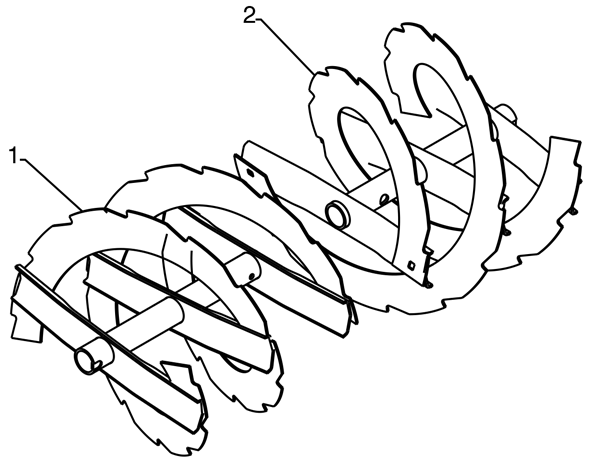

Auger 27 Lh HUS532421135
...
2
Auger 27 Rh HUS532421123

Jonsered 96191002104

...
...
1

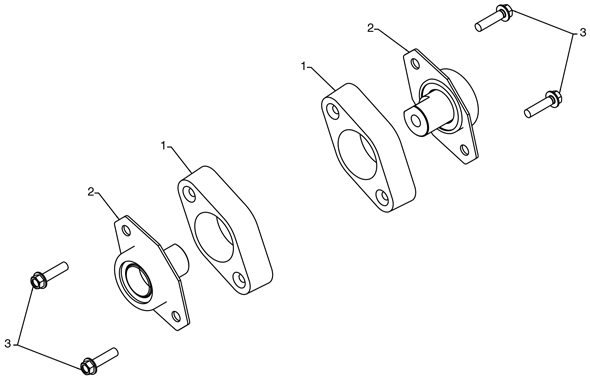

Plastic Retainer HUS532188170
...
2
Auger Ball Bearing HUS532411833
...
3
Screw 5/16?18 X 1.00 HUS532179582

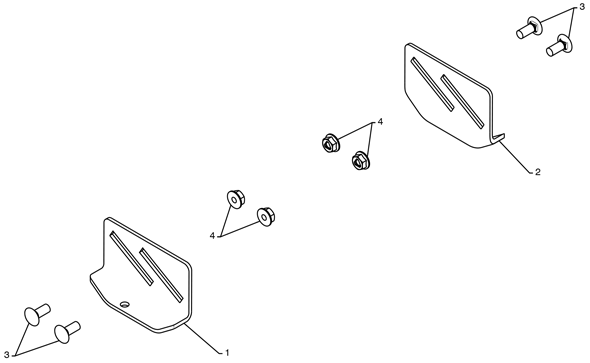

Jonsered 96191002104

...
...
1
Skid Plate Lh HUS532184093
...
2
Skid Plate Rh HUS532184094
...
3
Carriage Bolt 5/16?18 X .75 HUS872270506
...
4
Nut 5/16?18 HUS532751153

Jonsered 96191002104

...
...
1
Weight Bar HUS532182515
...
2
Carriage Bolt 5/16?18 X 1.25 HUS872110510
...
3
Nut 5/16?18 HUS532751153

Jonsered 96191002104

...
...
1

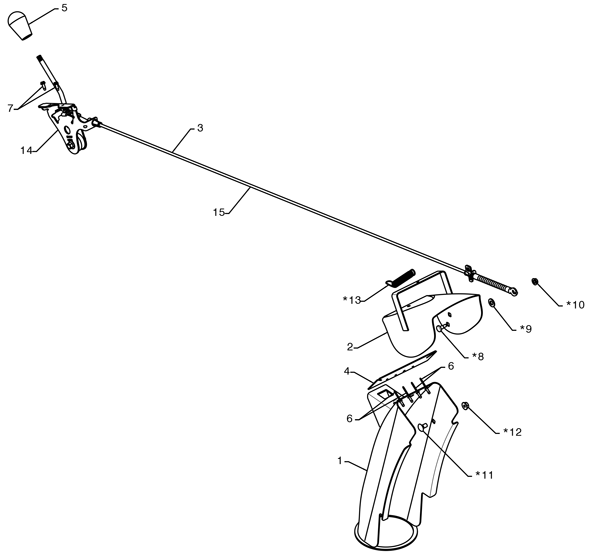

Chute Weldment HUS532407833
...
2
Deflector Weldment HUS532184534
...
3
Deflector Control Assembly HUS532420673
...
4
Deflector Seal HUS532420325
...
5

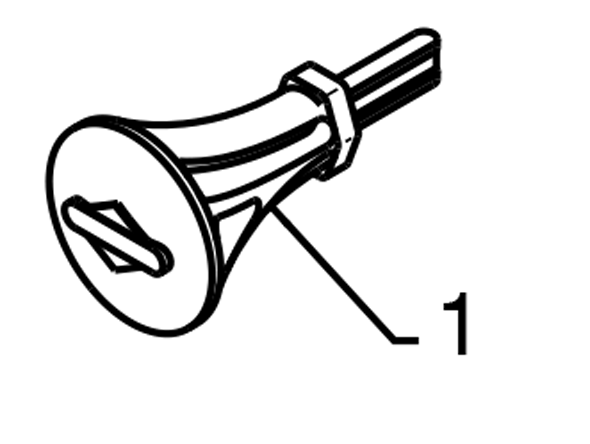

Knob Black HUS532414280
...
6
Pop Rivet HUS532128415
...
7
Screw 10?24 X .625 HUS817501010
...
8
Shoulder Screw HUS532179829
...
9
Plastic Washer HUS532179246
...
10
Nut 1/4?20 HUS532191730
...
11
Carriage Bolt 5/16?18 X .50 HUS872250505
...
12
Nut 5/16?18 HUS532751153
...
13
Deflector Spring HUS532184505
...
14
(Service Part) Deflector Control Head HUS532420679
...
15
(Service Part) Deflector Control Cable HUS532420672

Jonsered 96191002104

...
...
1

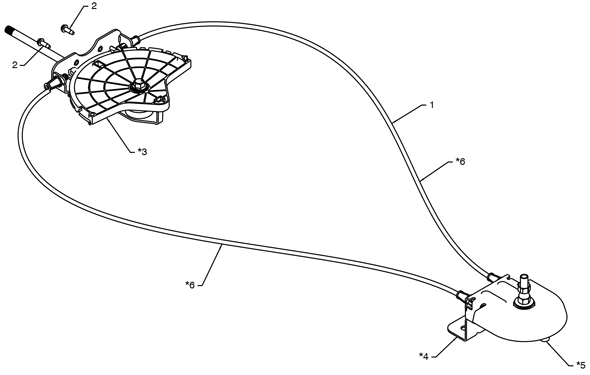

Lever/Cable Rotator Assembly HUS532420337
...
2
Screw 10?24 X .625 HUS817501010
...
3
Rotator Head HUS532420678
...
4
Rotator Pivot Bracket HUS532420677
...
5
Pulley Pivot HUS532420675
...
6
Cable Assembly HUS532420674

Jonsered 96191002104

...
...
1
Steer Cable HUS532188303
...
2
Screw 10?24 X 1.50 HUS874041024

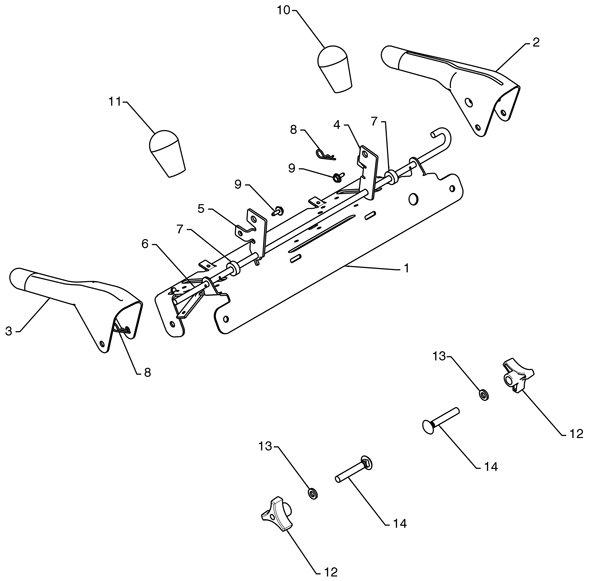

Jonsered 96191002104

...
...
1
Control Panel HUS532415539
...
2
Control Lever Lh HUS532415541
...
3
Control Lever Rh HUS532415542
...
4
Traction Rod Arm HUS532415546
...
5
Impeller Rod Arm HUS532421492
...
6
Interlock Rod HUS532412677
...
7
Spacer HUS532412680
...
8
Retainer HUS532169675
...
9
Screw 1/4?20 X .50 HUS817060408
...
10
Knob Black HUS532414280
...
11
Knob Red HUS532414281
...
12
Handle Knob HUS532178899
...
13
Washer 3/8 HUS819131316
...
14
Carriage Bolt 3/8?16 X 2.25 HUS872120618

Jonsered 96191002104

...
...
1

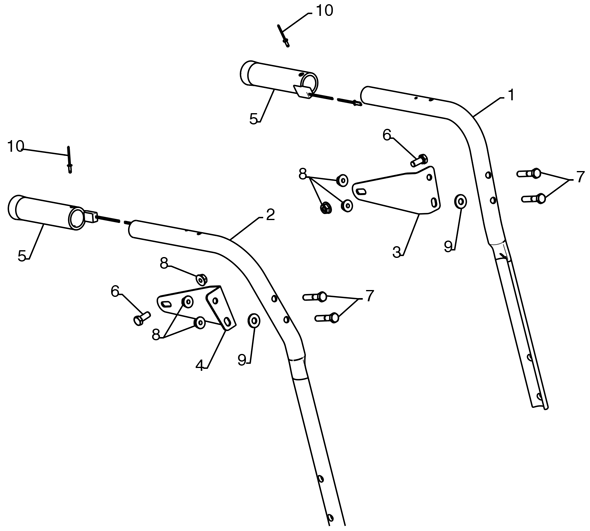

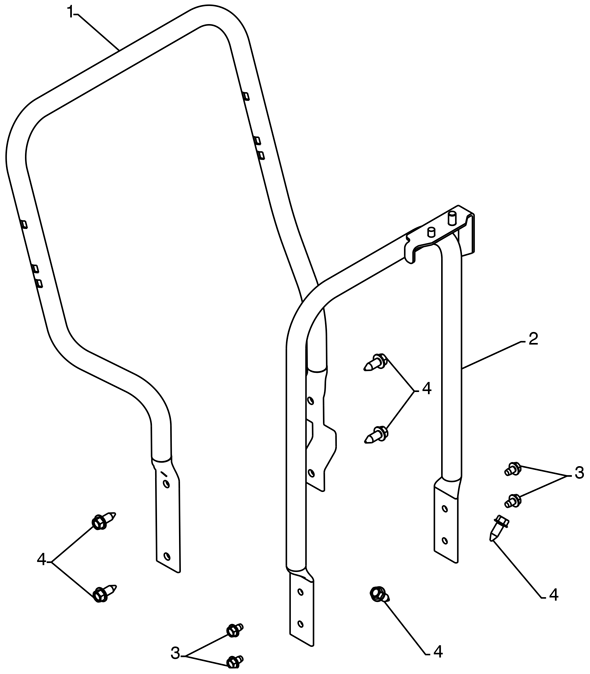

Plow Handle Lh HUS532421069
...
2
Plow Handle Rh HUS532421070
...
3
Panel Bracket Lh HUS532196944
...
4
Panel Bracket Rh HUS532196943
...
5
Heated Handle Grip HUS532414515
...
6
Crew 5/16?18 X .750 HUS874780512
...
7
Screw 5/16?18 X 1.50 HUS874780524
...
8
Nut 5/16?18 HUS532751153
...
9
Washer HUS532155415
...
10
Pop Rivet 1/8 HUS532178775

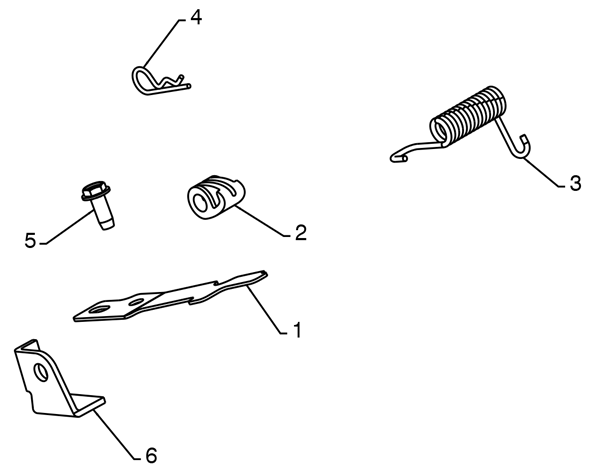

Jonsered 96191002104

...
...
1
Interlock Spring HUS532416288
...
2
Interlock Cam HUS532414572
...
3
Torsion Spring HUS532178831
...
4
Retainer HUS532169675
...
5
Screw 1/4?20 X .625 HUS817060410
...
6
Interlock Stop HUS532421252

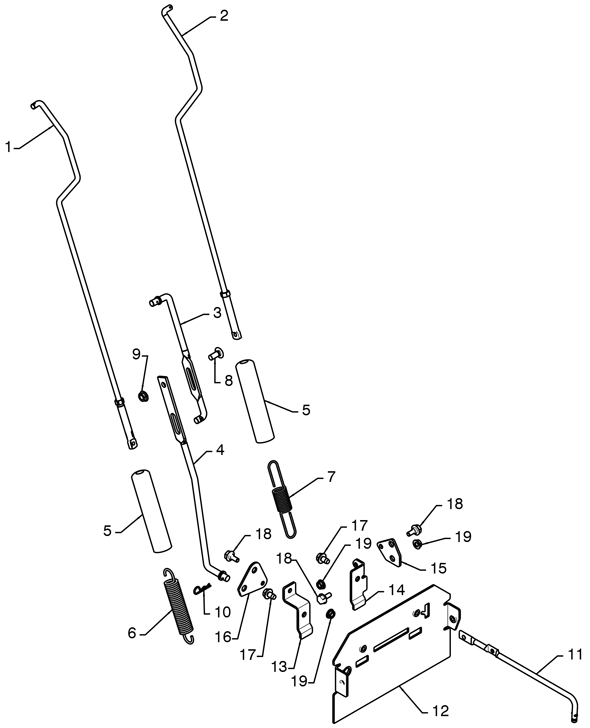

Jonsered 96191002104

...
...
1
Impeller Rod Assembly HUS532180480
...
2
Traction Rod Assembly HUS532405740
...
3
Shifter Rod Top HUS532180445
...
4
Shifter Rod Bottom HUS532187716
...
5
Spring Sleeve HUS532180447
...
6
Impeller Spring HUS532178669
...
7
Traction Spring HUS532180926
...
8
Carriage Bolt 5/16?18 X .750 HUS872270506
...
9
Nut 5/16?18 HUS532155377
...
10
Retainer HUS532169675
...
11
Clutch Rod HUS532403300
...
12
Rear Plate HUS532417539
...
13
Shifter Plate Bracket HUS532415433
...
14
Clutch Plate Bracket HUS532416864
...
15
Clutch Plate HUS532415435
...
16
Shifter Plate HUS532415450
...
17
Bolt 5/16?18 X .500 HUS817490508
...
18
Shoulder Bolt 1/4?20 X .500 HUS532402881
...
19
Nut 1/4?20 HUS532191730

Jonsered 96191002104

...
...
1
Lower Tube HUS532421059
...
2
Pivot Support HUS532407643
...
3
Bolt 5/16?18 X .500 HUS817490508
...
4
Screw 3/8?16 X 1.00 HUS817000616

Jonsered 96191002104

...
...
1

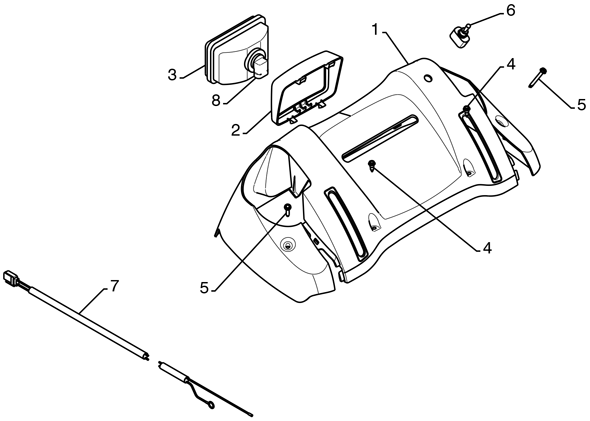

Console Panel HUS532405879
...
2
Headlight Bezel HUS532178668
...
3
Halogen Headlight HUS532178666
...
4
Shoulder Screw 10?24 X .625 HUS532184471
...
5
Screw 10?24 X 1.25 HUS532175262
...
6
Grip Switch HUS532405781
...

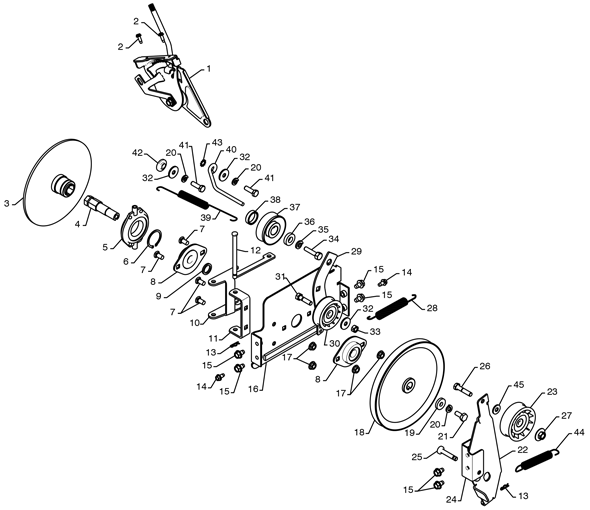

7
Wire Harness HUS532405699
...
8
Bulb HUS532401620

Jonsered 96191002104

...
...
1
Speed Selector Head Assembly HUS532198474
...
2
Screw 10?24 X .625 HUS817501010
...
3
Drive Plate Weldment HUS532197763
...
4
Hex Shaft HUS532197764
...
5
Trunnion Bearing Assembly HUS532175344
...
6
Retainer HUS812000012
...
7
Carriage Bolt 5/16?18 X .625 HUS872270505
...
8
Flange Bearing HUS532188909
...
9
Spacer HUS532182504
...
10
Lever Shifter Plate HUS532184077
...
11
Shifter Support Bracket HUS532184076
...
12
Pin HUS532178695
...
13
Retainer HUS532085179
...
14
Screw 1/4?20 X .500 HUS817490408
...
15
Bolt 5/16?18 X .500 HUS817490508
...
16
Drive Mount Plate HUS532184075
...
17
Nut 5/16?18 HUS532155377
...
18
Traction Pulley HUS532191080
...
19
Washer HUS819111507
...
20
Lockwasher 5/16 HUS810040500
...
21
Screw 5/16?18 X .750 HUS874950512
...
22
Idler Brake Arm HUS532419925
...
23
Idler Pulley HUS532180523
...
24
Idler Pivot Bracket HUS532184074
...
25
Pin HUS532175330
...
26
Screw 5/16?18 X 1.50 HUS874780524
...
27
Nut 5/16?18 HUS532166785
...
28
Traction Spring HUS532181044
...
29
Idler Traction Arm HUS532179354
...
30
Idler Pulley HUS532180522
...
31
Screw 5/16?18 X 1.25 HUS874780520
...
32
Washer HUS532059289
...
33
Nut 5/16?18 HUS873930500
...
34
Screw 3/8?24 X 1.38 HUS532851084
...
35
Lockwasher 3/8 HUS532850263
...
36
Washer HUS532400026
...
37
Engine Traction Pulley HUS532180478
...
38
Spacer HUS532409475
...
39
Return Spring HUS532179095
...
40
Belt Guide HUS532155452
...
41
Screw 5/16?18 X 1.00 HUS874610516
...
42
Bushing HUS532175331
...
43
Lockwasher 5/16 HUS811050500
...
44
Brake Spring HUS532178828
...
45
Washer HUS532155415

Jonsered 96191002104

...
...
1

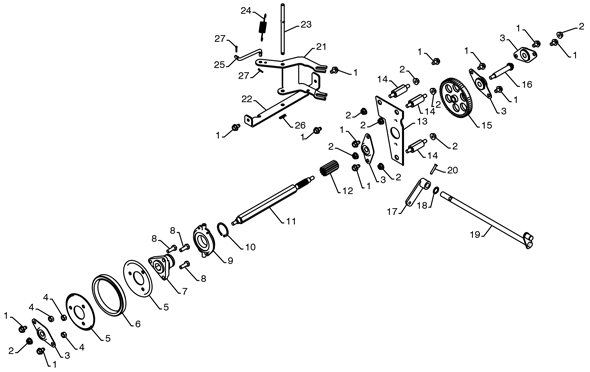

Bolt 5/16?18 X .500 HUS817490508
...
2
Nut 5/16?18 HUS532751153
...
3
Flange Bearing HUS532180017
...
4
Nut 5/16?18 HUS873930500
...
5
Rubber Wheel Plate HUS532199509
...
6
Rubber Wheel Ring HUS532179831
...
7
Rubber Wheel Hub HUS532178613
...
8
Bolt 5/16?18 X .875 HUS874760514
...
9
Trunnion Bearing Assembly HUS532175344
...
10
Retainer HUS812000012
...
11
Hex Shaft HUS532180066
...
12
Pinion Gear HUS532180065
...
13
Auxiliary Plate HUS532192907
...
14
Spacer Plate HUS532179270
...
15
Intermediate Gear HUS532180082
...
16
Auxiliary Shaft HUS532180134
...
17
Control Arm HUS532405485
...
18
Washer HUS532057079
...
19
Control Shaft Assembly HUS532406109
...
20
Clevis Pin HUS532198580
...
21
Shifter Lever HUS532184080
...
22
Pivot Bracket HUS532187857
...
23
Pivot Pin HUS532178807
...
24
Spring HUS532180135
...
25
Shifter Link HUS532187101
...
26
Retainer HUS532085179
...
27
Clip HUS532700279

Jonsered 96191002104

...
...
1

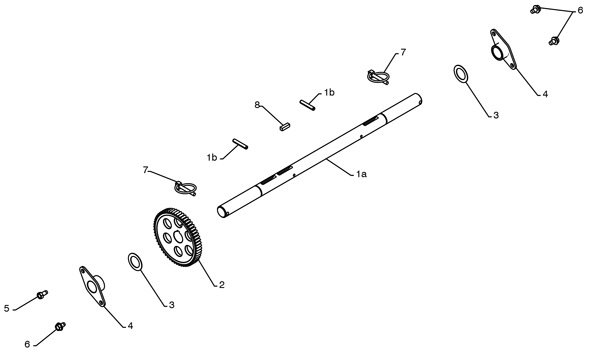

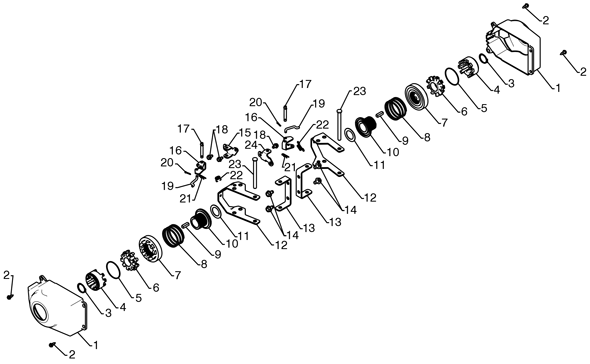

(Assembly Of 1A,1B) Axle Assembly HUS532404923
...
1a
Axle Shaft HUS532404307
...
1b
Roll Pin 3/16 HUS5329465M1
...
2
Gear HUS532180081
...
3
Thrust Washer HUS532174697
...
4
Axle Bearing HUS532179830
...
5
Screw 5/16?18 X .625 HUS532146315
...
6
Bolt 5/16?18 X .500 HUS817490508
...
7
Clik Pin HUS532155443
...
8
Square Key HUS532189282

Jonsered 96191002104

...
...
1

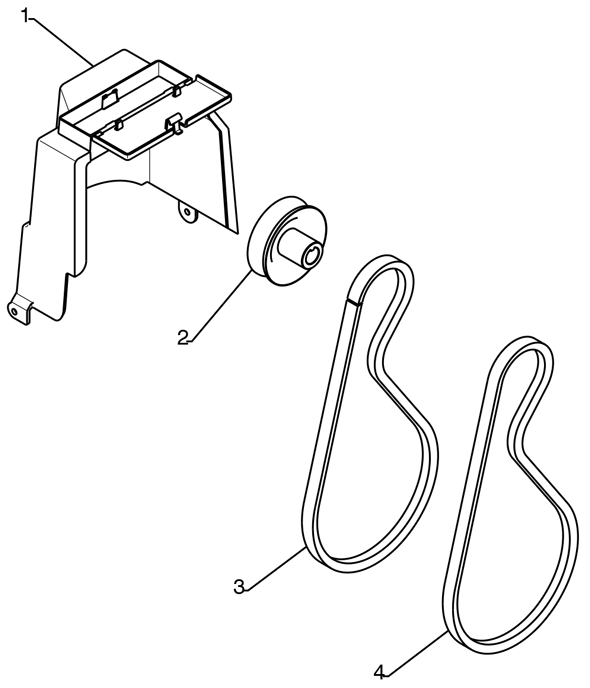

Cover Assembly HUS532409161
...
2
Pulley HUS532178813
...
3
Traction Belt HUS532419744
...
4
Impeller Belt HUS532408008

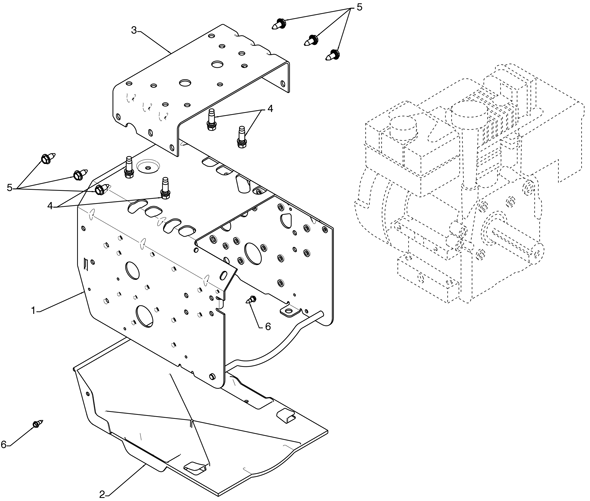

Jonsered 96191002104

...
...
1
Frame HUS532415521
...
2
Bottom Pan HUS532410877
...
3
Engine Mount Plate HUS532417079
...
4
Bolt 3/8?16 HUS532150406
...
5
Screw 5/16?18 X .750 HUS532150078
...
6
Screw 10?24 X .625 HUS532184471

Jonsered 96191002104

...
...
1
Cover HUS532405161
...
2
Shoulder Screw HUS532184471
...
3
Retainer Ring HUS812000045
...
4
Wheel Driver HUS532192126
...
5
Retainer Ring HUS532182466
...
6
Wheel Lobe HUS532187622
...
7
Clutch Slide HUS532194941
...
8
Spring HUS532179139
...
9
Square Key HUS532189282
...
10
Axle Lobe HUS532194940
...
11
Thrust Washer HUS532174697
...
12
Steering Yoke HUS532199519
...
13
Steering Bracket HUS532184197
...
14
Screw 5/16?18 X .50 HUS817490508
...
15
Pivot Bracket HUS532199511
...
16
Bellcrank HUS532199518
...
17
Bellcrank Pin HUS532181847
...
18
Screw 1/4?20 X .375 HUS817600406
...
19
Steering Link HUS532405077
...
20
Retainer HUS532700279
...
21
Retainer HUS532085179
...
22
Spring HUS532193885
...
23
Lever Pin HUS532182015
...
24
Pivot Bracket HUS532199512

Jonsered 96191002104

...
...
1

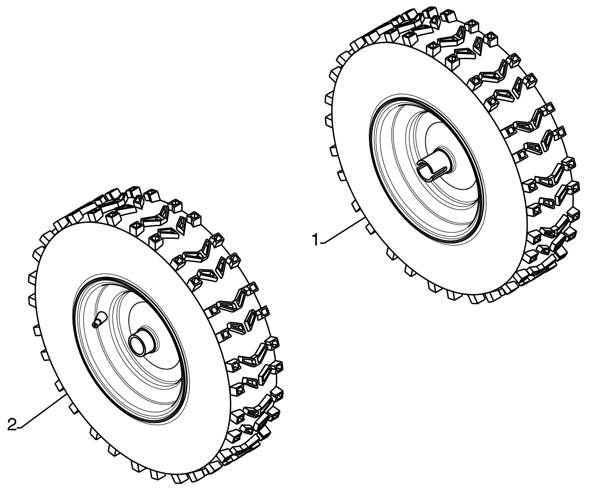

Wheel 16 X 4.80 X Lh HUS532199501
...
2
Wheel 16 X 4.80 X Rh HUS532199502

Jonsered 96191002104

...
...
1
Steer Cable Bracket Lh HUS532415263
...
2
Steer Cable Bracket Rh HUS532187859

Jonsered 96191002104

...
...
1

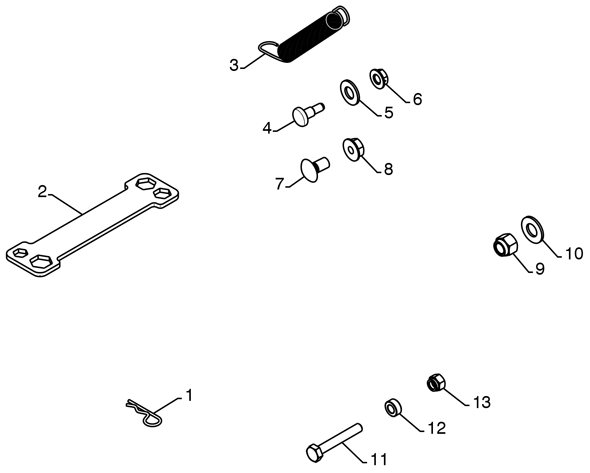

Retainer Pin HUS532169675
...
2
Wrench HUS532180684
...
3
Remote Spring HUS532184505
...
4
Shoulder Bolt 1/4?20 HUS532179829
...
5
Nylon Washer 1/4?20 HUS532179246
...
6
Locknut 1/4?20 HUS532191730
...
7
Carriage Bolt 5/16?18 X 5/8 HUS872250505
...
8
Locknut 5/16?18 HUS532751153
...
9
Locknut 3/8?16 HUS873800600
...
10
Washer 3/8 HUS819131316
...
11
Shear Bolt 1/4?20 X 1?3/4 HUS532198636
...
12
Spacer HUS532198638
...
13
Locknut 1/4?20 HUS873800400

Jonsered 96191002104

...
...
1
Safety Ignitionition Key HUS532193071

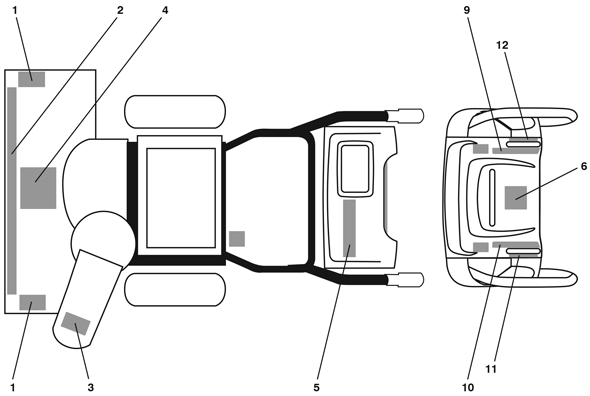

Jonsered 96191002104

...
...
xx
Operator'sManual, European HUS532406035
...
xx
Operator'sManual, Scandinavian HUS532406037
...
xx
Operator'sManual, East Bloc HUS532406033
...
xx
Operator'sManual, Baltic HUS532414568
...
1
Decal, Aug Safety Eu/Sc HUS532199683
...
2
Decal, Jonsered HUS532405809
...
3
Decal, Danger, Deflector HUS532199682
...
4
Decal, Danger HUS532184045
...
5
Decal, Jonsered, St2109E HUS532405804
...
6
Decal, Instruction HUS532184030
...
9
Decal, Speed Control HUS532415477
...
10
Decal, Remote Deflector HUS532184031
...
11
Decal, Lh Trigger HUS532415459
...
12
Decal, Rh Trigger HUS532415460
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
