Jonsered 96191002004 Snow Thrower ST2106

Model: 96191002004

Save Part Not Listed?
product name

Jonsered 96191002004

...
...
1

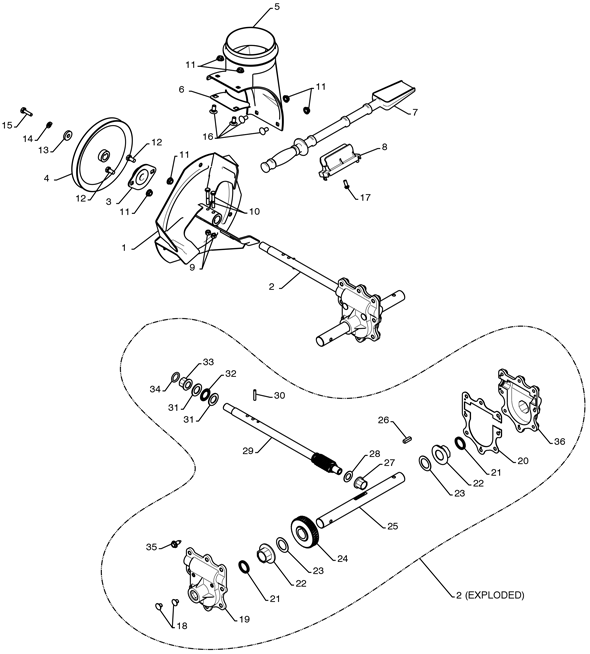

Impeller HUS532184105
...
2
Gearbox Assembly HUS532196710
...
3
Bearing HUS532188909
...
4
Impeller Pulley HUS532191079
...
5
Discharge Base HUS532175322
...
6
Corner Bracket HUS532184095
...
7
Clean Out Tool HUS532192199
...
8
Tool Clip HUS532405400
...
9
Nut 1/4?20 HUS873800400
...
10
Screw 1/4?20 X .625 HUS874780426
...
11
Nut 5/16?18 HUS532155377
...
12
Screw 5/16?18 X .625 HUS532163183
...
13
Washer HUS819111507
...
14
Lockwasher 5/16 HUS810040500
...
15
Screw 5/16?18 X 1.00 HUS874940516
...
16
Carriage Bolt HUS532180355
...
17
Screw 13?16 X .625 HUS532194189
...
18
Plug HUS532407760
...
19
Gearbox Cover Rh HUS532407761
...
20
Gasket HUS532407766
...
21
Seal HUS532407770
...
22
Bearing HUS532407762
...
23
Thrust Washer 1.00 HUS532174697
...
24
Worm Gear HUS532407763
...
25
Auger Shaft HUS532407764
...
26
Square Key HUS532189282
...
27
Bearing HUS532407758
...
28
Thrust Washer HUS532174683
...
29
Impeller Shaft HUS532407757
...
30
Roll Pin HUS532184205
...
31
Thrust Washer HUS532174681
...
32
Thrust Bearing HUS532174684
...
33
Bearing HUS532407769
...
34
O?Ring HUS532407768
...
35
Screw 5/16?18 X .750 HUS532407767
...
36
Gearbox Cover Lh HUS532407765

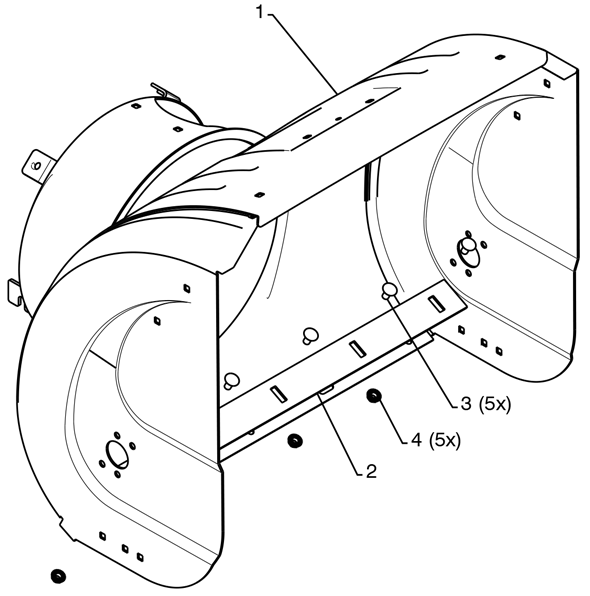

Jonsered 96191002004

...
...
1
Auger Housing HUS532407824
...
2
Scrapper Bar HUS532407825
...
3
Carriage Bolt 5/16?18 X .625 HUS872270505
...
4
Nut 5/16?18 HUS532155377

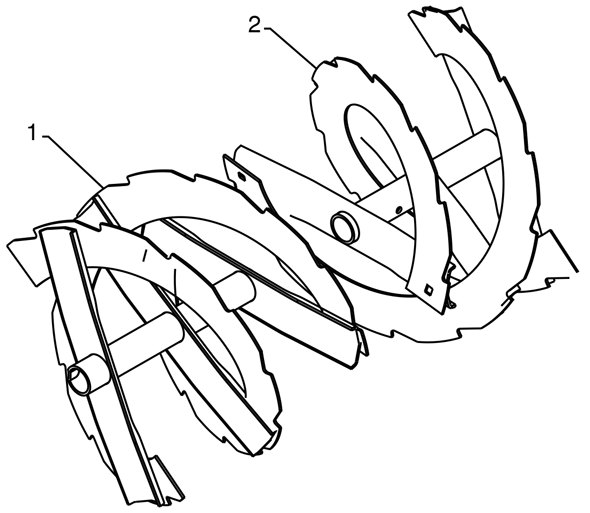

Jonsered 96191002004

...
...
1
Auger Assembly Lh 24 HUS532421072
...
2
Auger Assembly Rh 24 HUS532421073

Jonsered 96191002004

...
...
1

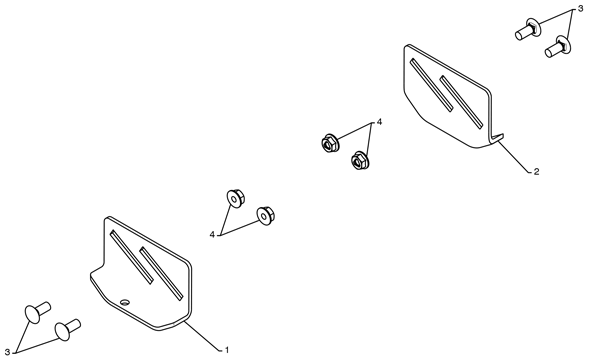

Skid Plate Lh HUS532184093
...
2
Skid Plate Rh HUS532184094
...
3
Carriage Bolt 5/16?18 X .75 HUS872270506
...
4
Nut 5/16?18 HUS532751153

Jonsered 96191002004

...
...
1
Plastic Retainer HUS532188170
...
2
Auger Ball Bearing HUS532411833
...
3
Screw 5/16?18 X 1.00 HUS532179582

Jonsered 96191002004

...
...
1

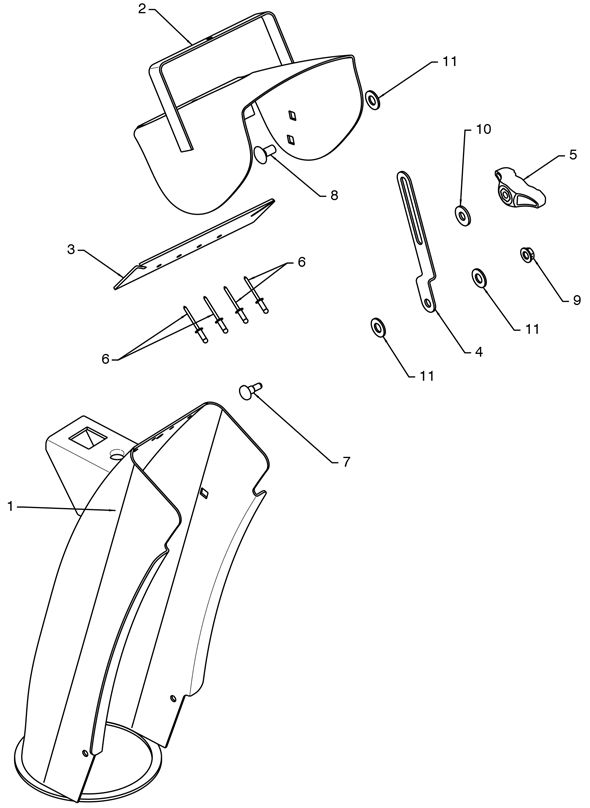

Chute Weldment HUS532407833
...
2
Deflector Weldment HUS532184534
...
3
Deflector Seal HUS532420325
...
4
Strap HUS532184114
...
5
Knob Black HUS532191938
...
6
Pop Rivet HUS532128415
...
7
Shoulder Bolt 1/4?20 X .704 HUS532185600
...
8
Carriage Bolt 5/16?18 X .625 HUS872270505
...
9
Nut 1/4?20 HUS532191730
...
10
Washer HUS532155415
...
11
Plastic Washer HUS532179246

Jonsered 96191002004

...
...
1

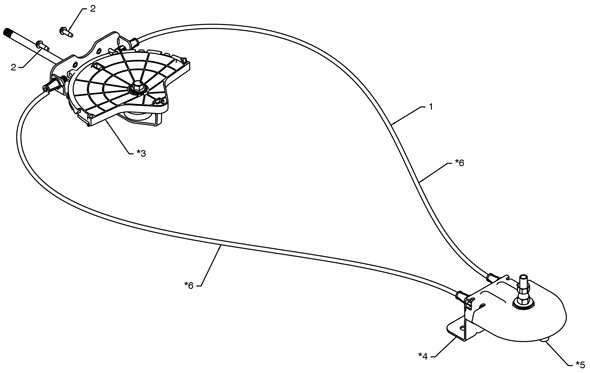

Lever/Cable Rotator Assembly HUS532420337
...
2
Screw 10?24 X .625 HUS817501010
...
3
Rotator Head HUS532420678
...
4
Rotator Pivot Bracket HUS532420677
...
5
Pulley Pivot HUS532420675
...
6
Cable Assembly HUS532420674

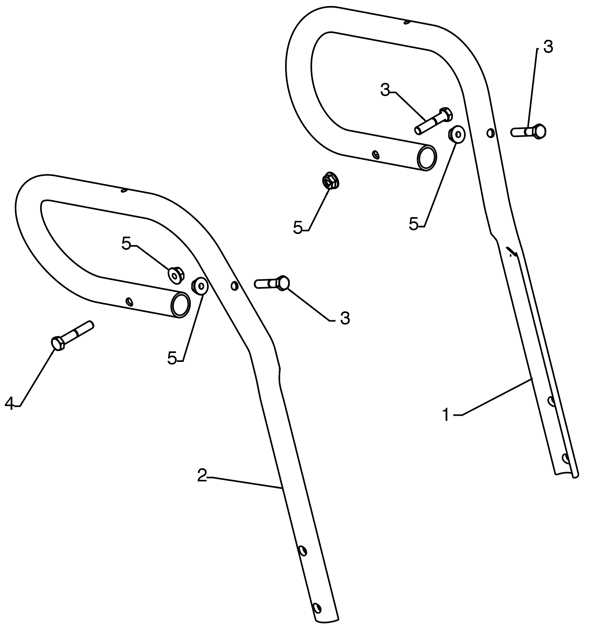

Jonsered 96191002004

...
...
1
Loop Handle Lh HUS532421120
...
2
Loop Handle Rh HUS532421121
...
3
Screw 5/16?18 X 1.50 HUS874780524
...
4
Screw 5/16?18 X 1.75 HUS874780528
...
5
Nut 5/16?18 HUS532751153

Jonsered 96191002004

...
...
1

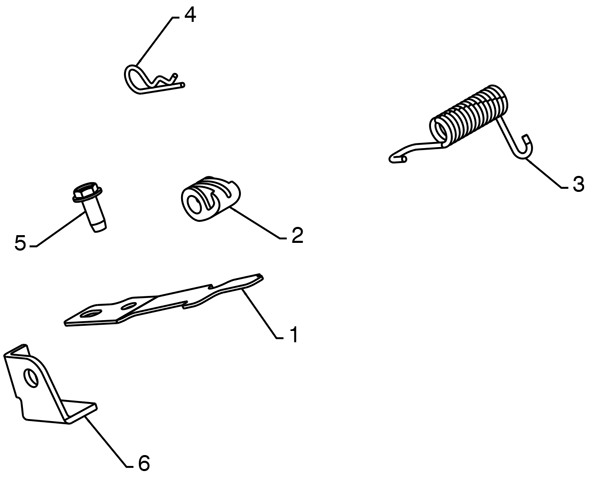

Interlock Spring HUS532416288
...
2
Interlock Cam HUS532414572
...
3
Torsion Spring HUS532178831
...
4
Retainer HUS532169675
...
5
Screw 1/4?20 X .625 HUS817060410
...
6
Interlock Stop HUS532421814

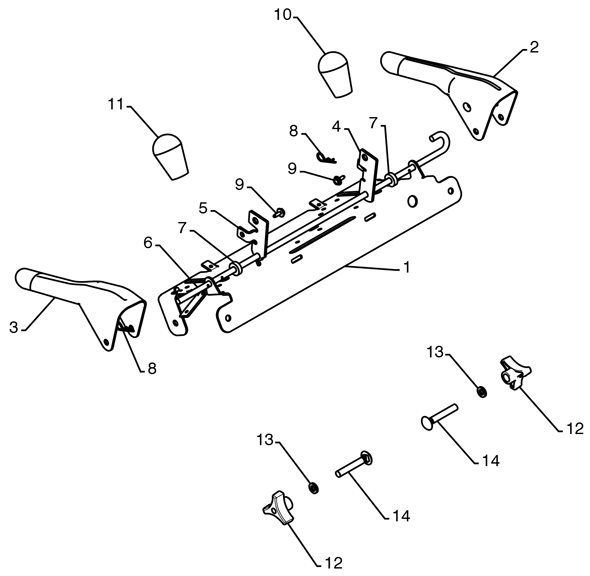

Jonsered 96191002004

...
...
1
Control Panel HUS532412683
...
2
Control Lever Lh HUS532412681
...
3
Control Lever Rh HUS532412682
...
4
Traction Rod Arm HUS532412679
...
5
Impeller Rod Arm HUS532420889
...
6
Interlock Rod HUS532412677
...
7
Spacer HUS532421613
...
8
Retainer HUS532169675
...
9
Screw 1/4?20 X .50 HUS817060408
...
10
Knob Black HUS532414280
...
11
Knob Red HUS532414281
...
12
Handle Knob HUS532178899
...
13
Washer 3/8 HUS819131316
...
14
Carriage Bolt 3/8?16 X 2.25 HUS872120618

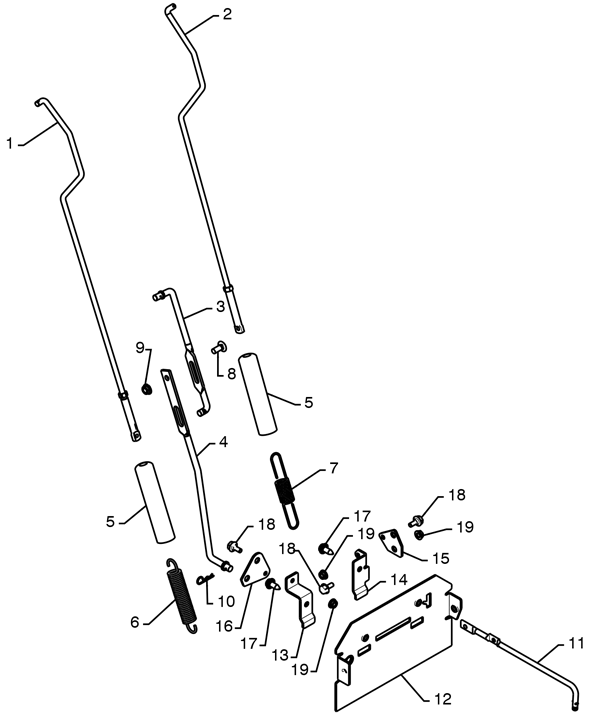

Jonsered 96191002004

...
...
1
Impeller Rod Assembly HUS532180480
...
2
Traction Rod Assembly HUS532405740
...
3
Shifter Rod Top HUS532180445
...
4
Shifter Rod Bottom HUS532187716
...
5
Spring Sleeve HUS532180447
...
6
Impeller Spring HUS532178669
...
7
Traction Spring HUS532180926
...
8
Carriage Bolt 5/16?18 X .750 HUS872270506
...
9
Nut 5/16?18 HUS532155377
...
10
Retainer HUS532169675
...
11
Clutch Rod HUS532403300
...
12
Rear Plate HUS532417539
...
13
Shifter Plate Bracket HUS532415433
...
14
Clutch Plate Bracket HUS532416864
...
15
Clutch Plate HUS532415435
...
16
Shifter Plate HUS532415450
...
17
Bolt 5/16?18 X .500 HUS817490508
...
18
Shoulder Bolt 1/4?20 X .500 HUS532402881
...
19
Nut 1/4?20 HUS532191730

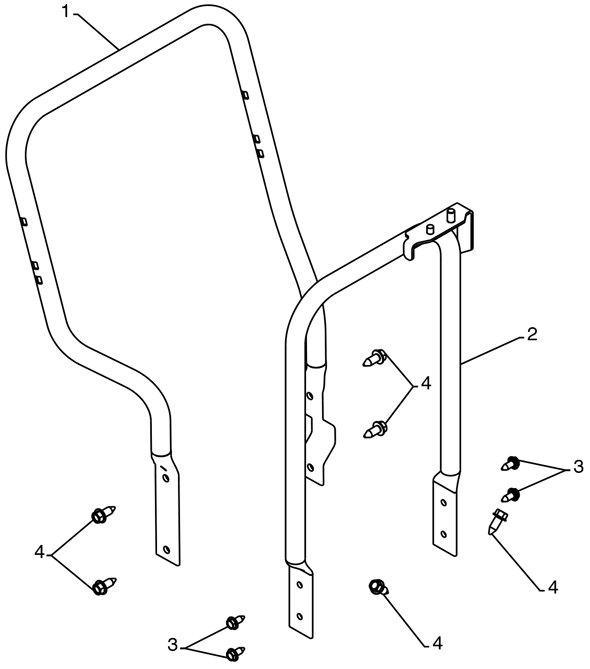

Jonsered 96191002004

...
...
1
Lower Tube HUS532419796
...
2
Pivot Support HUS532405784
...
3
Bolt 5/16?18 X .750 HUS532150078
...
4
Screw 3/8?16 X 1.00 HUS817000616

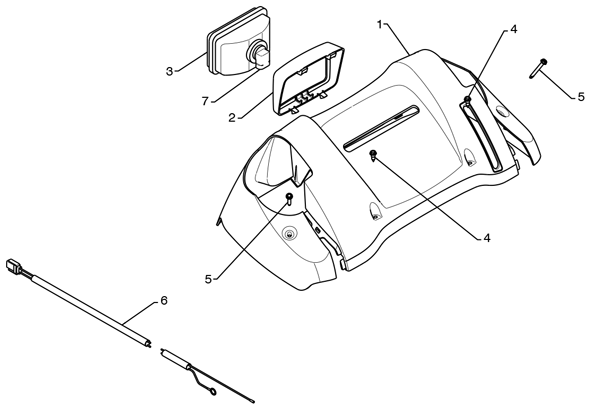

Jonsered 96191002004

...
...
1
Console Panel HUS532183346
...
2
Headlight Bezel HUS532178668
...
3
Halogen Headlight HUS532178666
...
4
Shoulder Screw 10?24 X .625 HUS532184471
...
5
Screw 10?24 X 1.25 HUS532175262
...
6
Wire Harness HUS532180964
...
7
Bulb HUS532401620

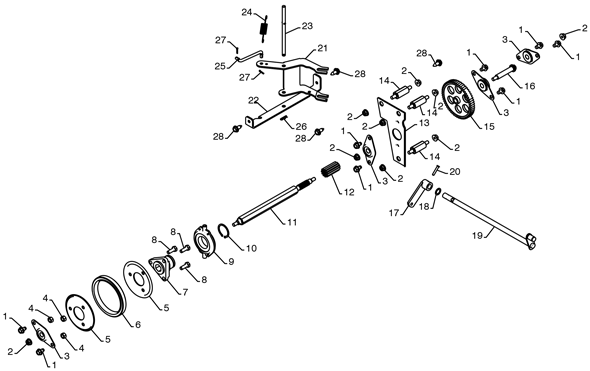

Jonsered 96191002004

...
...
1
Bolt 5/16?18 X .500 HUS817490508
...
2
Nut 5/16?18 HUS532751153
...
3
Flange Bearing HUS532180017
...
4
Nut 5/16?18 HUS873930500
...
5
Rubber Wheel Plate HUS532199509
...
6
Rubber Wheel Ring HUS532179831
...
7
Rubber Wheel Hub HUS532178613
...
8
Bolt 5/16?18 X .875 HUS874760514
...
9
Trunnion Bearing Assembly HUS532175344
...
10
Retainer HUS812000012
...
11
Hex Shaft HUS532180066
...
12
Pinion Gear HUS532180065
...
13
Auxiliary Plate HUS532192907
...
14
Spacer Plate HUS532179270
...
15
Intermediate Gear HUS532180082
...
16
Auxiliary Shaft HUS532180134
...
17
Control Arm HUS532405485
...
18
Washer HUS532057079
...
19
Control Shaft Assembly HUS532406109
...
20
Clevis Pin HUS532198580
...
21
Shifter Lever HUS532184080
...
22
Pivot Bracket HUS532187857
...
23
Pivot Pin HUS532178807
...
24
Spring HUS532180135
...
25
Shifter Link HUS532187101
...
26
Retainer HUS532085179
...
27
Clip HUS532700279
...
28
Bolt 5/16?18 X .750 HUS532150078

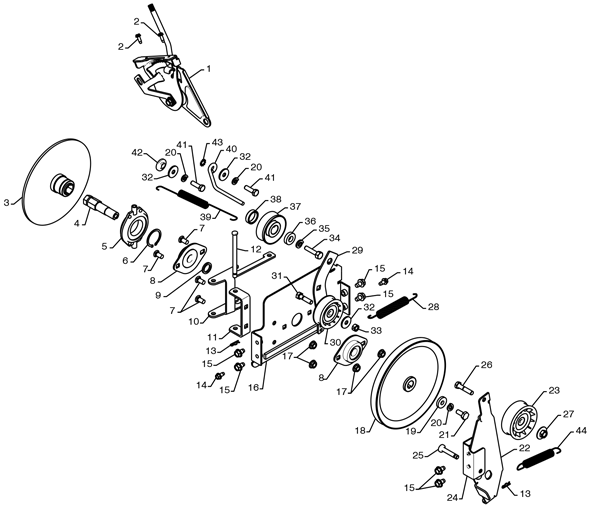

Jonsered 96191002004

...
...
1
Speed Selector Head Assembly HUS532198474
...
2
Screw 10?24 X .625 HUS817501010
...
3
Drive Plate Weldment HUS532197763
...
4
Hex Shaft HUS532197764
...
5
Trunnion Bearing Assembly HUS532175344
...
6
Retainer HUS812000012
...
7
Carriage Bolt 5/16?18 X .625 HUS872270505
...
8
Flange Bearing HUS532188909
...
9
Spacer HUS532182504
...
10
Lever Shifter Plate HUS532184077
...
11
Shifter Support Bracket HUS532184076
...
12
Pin HUS532178695
...
13
Retainer HUS532085179
...
14
Screw 1/4?20 X .500 HUS817490408
...
15
Bolt 5/16?18 X .500 HUS817490508
...
16
Drive Mount Plate HUS532184075
...
17
Nut 5/16?18 HUS532155377
...
18
Traction Pulley HUS532191080
...
19
Washer HUS819111507
...
20
Lockwasher 5/16 HUS810040500
...
21
Screw 5/16?18 X .750 HUS874950512
...
22
Idler Brake Arm HUS532421808
...
23
Idler Pulley HUS532180523
...
24
Idler Pivot Bracket HUS532184074
...
25
Pin HUS532175330
...
26
Screw 5/16?18 X 1.50 HUS874780524
...
27
Nut 5/16?18 HUS532166785
...
28
Traction Spring HUS532181044
...
29
Idler Traction Arm HUS532179354
...
30
Idler Pulley HUS532180522
...
31
Screw 5/16?18 X 1.25 HUS874780520
...
32
Washer HUS532059289
...
33
Nut 5/16?18 HUS873930500
...
34
Screw 3/8?24 X 1.38 HUS532851084
...
35
Lockwasher 3/8 HUS532850263
...
36
Washer HUS532400026
...
37
Engine Traction Pulley HUS532180478
...
38
Spacer HUS532409475
...
39
Return Spring HUS532179095
...
40
Belt Guide HUS532155452
...
41
Screw 5/16?18 X 1.00 HUS874610516
...
42
Bushing HUS532175331
...
43
Lockwasher 5/16 HUS811050500
...
44
Brake Spring HUS532178828
...
45
Washer HUS532155415

Jonsered 96191002004

...
...
1
(Assembly Of 1A,1B) Axle Assembly HUS532188226
...
1a
Axle Shaft HUS532179352
...
1b
Roll Pin 3/16 HUS532184206
...
2
Gear HUS532180081
...
3
Thrust Washer HUS532174697
...
4
Bearing HUS532179830
...
5
Bolt 5/16-18 X .500 HUS817490508
...
6
Clik Pin HUS532155443
...
7
Square Key HUS532189282

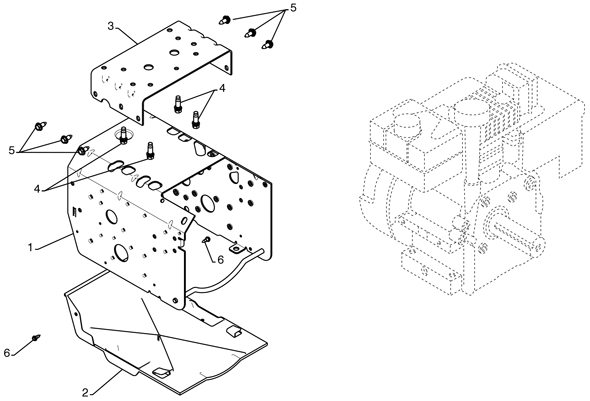

Jonsered 96191002004

...
...
1
Frame HUS532415521
...
2
Bottom Pan HUS532410877
...
3
Engine Mount Plate HUS532417079
...
4
Bolt 3/8?16 HUS532150406
...
5
Screw 5/16?18 X .750 HUS532150078
...
6
Screw 10?24 X .625 HUS532184471

Jonsered 96191002004

...
...
1

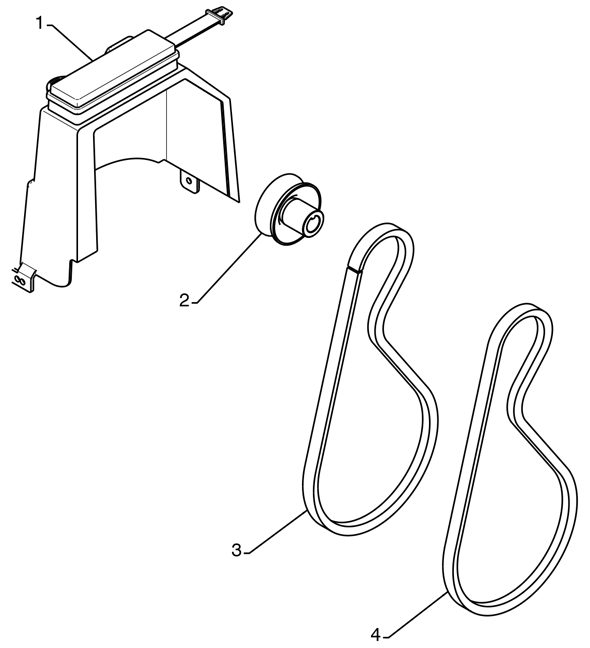

Cover Assembly HUS532192213
...
2
Pulley HUS532179157
...
3
Traction Belt HUS532419744
...
4
Impeller Belt HUS532408007

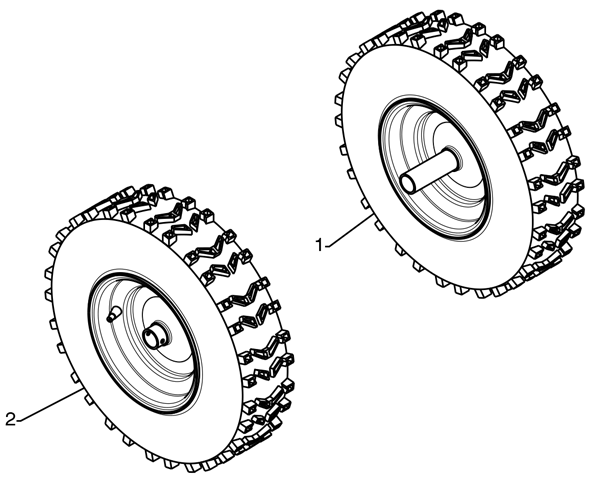

Jonsered 96191002004

...
...
1
Wheel Assembly Lh HUS532407814
...
2
Wheel Assembly Rh HUS532407822

Jonsered 96191002004

...
...
1
Retainer Pin HUS532169675
...
2
Wrench HUS532180684
...
3
Locknut 3/8?16 HUS873800600
...
4
Washer 3/8 HUS819131316
...
5
Shear Bolt 1/4?20 X 1?3/4 HUS532198636
...
6
Spacer HUS532198638
...
7
Locknut 1/4?20 HUS873800400

Jonsered 96191002004

...
...
1

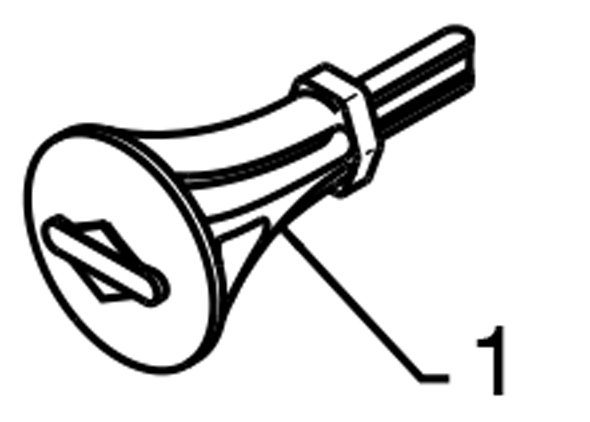

Safety Ignitionition Key HUS532193071

Jonsered 96191002004

...
...
xx
Operator'sManual, European HUS532406035
...
xx
Operator's Manual, Scandanivian HUS532406037
...
xx
Operator's Manual, East Bloc HUS532406033
...
xx
Operator's Manual, Baltic HUS532414568
...
1

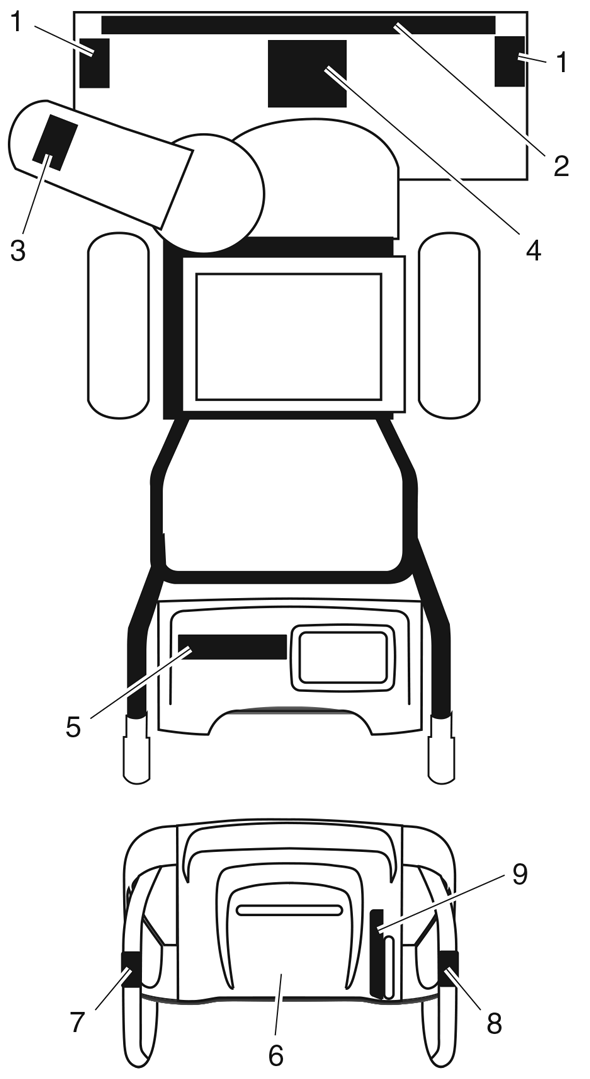

Decal, Danger HUS532199683
...
2
Decal, Jonsered, 61Cm HUS532405810
...
3
Decal, Danger, Deflector HUS532199682
...
4
Decal, Danger HUS532184045
...
5
Decal, Jonsered HUS532405803
...
6
Decal, Instruction HUS532184030
...
7
Decal, Traction Lever HUS532415393
...
8
Decal, Auger Lever HUS532415392
...
9
Decal, Speed Control HUS532415477
