Jonsered 96191002003 Snow Thrower ST2106

Model: 96191002003

Save Part Not Listed?
product name

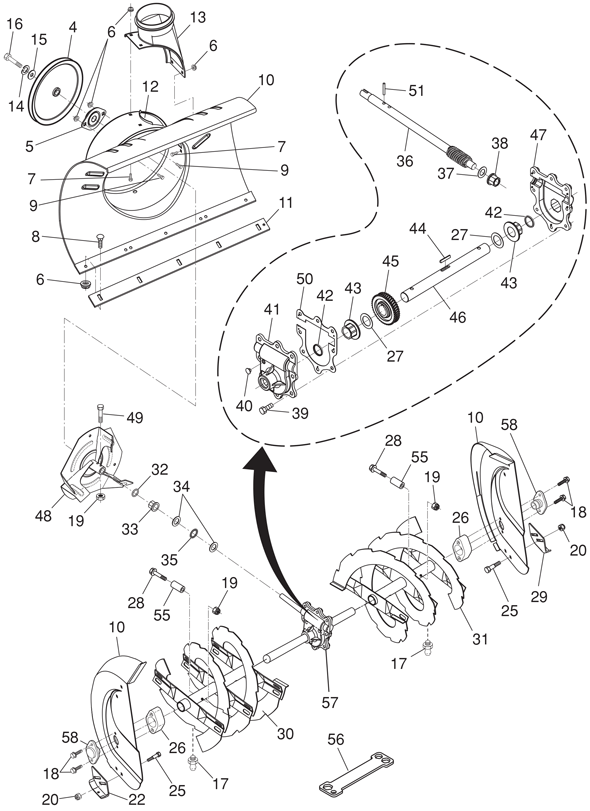

Jonsered 96191002003

...
...
4
Pulley, Impeller HUS-532191079
...
5
Bearing Assembly, Flange HUS-532188909
...
6
Nut, Hex, Flangelock 5/16-18 HUS-532155377
...
7
Bolt, Flat Head, Carriage 5/16-18 X 5/8 HUS-532180355
...
8
Bolt, Carriage 5/16-1 8 X 5/8 HUS-872270505
...
9
Bolt HUS-532163183
...
10
Housing, Auger HUS-532407824
...
11
Bar, Scraper HUS-532407825
...
12
Bracket, Corner Discharge HUS-532184095
...
13
Base, Discharge Chute HUS-532175322
...
14
Washer, Lock 5/16 HUS-810040500
...
15
Washer, Flat HUS-819111507
...
16
Screw, Hex Head 5/16-18 X 3/4 HUS-874940516
...
17
Grease Fitting HUS-532405637
...
18
Screw, Hex Head 5/16 X 1 HUS-532179582
...
19
Nut, Hex Lock 1/4-20 HUS-873800400
...
20
Nut, Hex, Flangelock 5/16-18 HUS-532155377
...
22
Skid Plate, Rh HUS-532184094
...
25
Bolt, Carriage 5/16-18 X 3/4 HUS-872270506
...
26
Bearing Retainer, Plastic HUS-532188170
...
27
Washer, Thrust, 1" HUS-532174697
...
28
Screw 25-20 X 1-3/4 HUS-532198636
...
29
Skid Plate, Lh HUS-532184093
...
30
Auger Assembly, Rh HUS-532407827
...
31
Auger Assembly, Lh HUS-532407826
...
32
O-Ring HUS-532407768
...
33
Bushing, Flange 3/4 HUS-532407769
...
34
Washer, Thrust 3/4 HUS-532174681
...
35
Bearing, Thrust 3/4 HUS-532174684
...
36
Shaft, Impeller HUS-532407757
...
37
Washer, Thrust 5/8 HUS-532174683
...
38
Bushing, Flange 5/8 HUS-532407758
...
39
Screw, Hex Head 5/16-18 X 3/4 HUS-532407767
...
40
Plug, Case HUS-532407760
...
41
Housing, Gearbox, Rh HUS-532407761
...
42
Seal, Oil HUS-532407770
...
43
Bushing, Flange, 1" HUS-532407762
...
44
Key, Square 1/4 X 1/4 X 7/8 HUS-532189282
...
45
Gear, Worm HUS-532407763
...
46
Shaft, Auger HUS-532407764
...
47
Housing, Gearbox, Lh HUS-532407765
...
48
Impeller Assembly HUS-532184105
...
49
Screw, Hex Head 1/4-20 X 1-5/8 HUS-874780426
...
50
Gasket, Gearbox HUS-532407766
...
51
Pin, Roll 3/16 X 1-1/8 HUS-532184205
...
55
Spacer HUS-532198638
...
56
Multi-Wrench HUS-532180684
...
57
Gearbox Assembly HUS-532196710
...
58
Bearing, Auger HUS-532187925

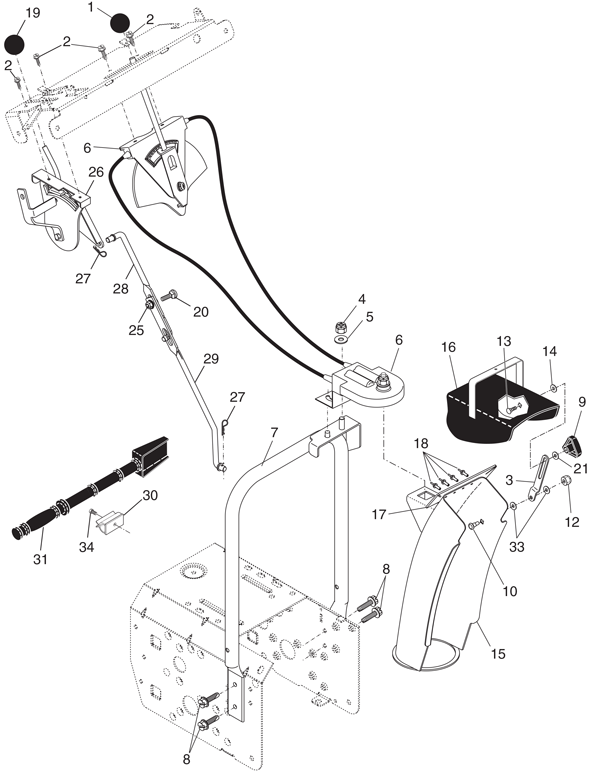

Jonsered 96191002003

...
...
1
Knob, Lever HUS-532414280
...
2
Screw 10-24 X 5/8 HUS-817501010
...
3
Strap, Slotted HUS-532184114
...
4
Nut, Lock 3/8-16 HUS-873800600
...
5
Washer, Flat 3/8 HUS-819131316
...
6
Control Assembly, Chute Rotater HUS-532404974
...
7
Support, Pivot HUS-532407643
...
8
Screw, Hex Head 5/16-18 X 3/4 HUS-532150078
...
9
Knob, Deflector HUS-532191938
...
10
Bolt, Shoulder HUS-532185600
...
12
Nut, Lock 1/4-20 HUS-532191730
...
13
Bolt, Carriage 5/16-18 HUS-872250505
...
14
Washer, Nylon HUS-532179246
...
15
Chute Assembly HUS-532407833
...
16
Deflector Assembly HUS-532184534
...
17
Seal, Deflector HUS-532179145
...
18
Rivet, Blind HUS-532128415
...
19
Knob, Speed Control Lever HUS-532414281
...
20
Bolt, Carriage 5/16-18 X 3/4 HUS-872270506
...
21
Washer, Flat 5/16 HUS-532155415
...
25
Nut, Lock 5/16-18 HUS-532155377
...
26
Lever Assembly, Speed Control HUS-532198474
...
27
Retainer, Hairpin HUS-532169675
...
28
Rod, Upper, Speed Control HUS-532180445
...
29
Rod, Lower, Speed Control HUS-532187716
...
30
Clamp, Clean-Out Tool HUS-532405400
...
31
Tool, Clean-Out HUS-532192199
...
34
Screw, Hi-Lo Thread 13-16 X 5/8 HUS-532194189

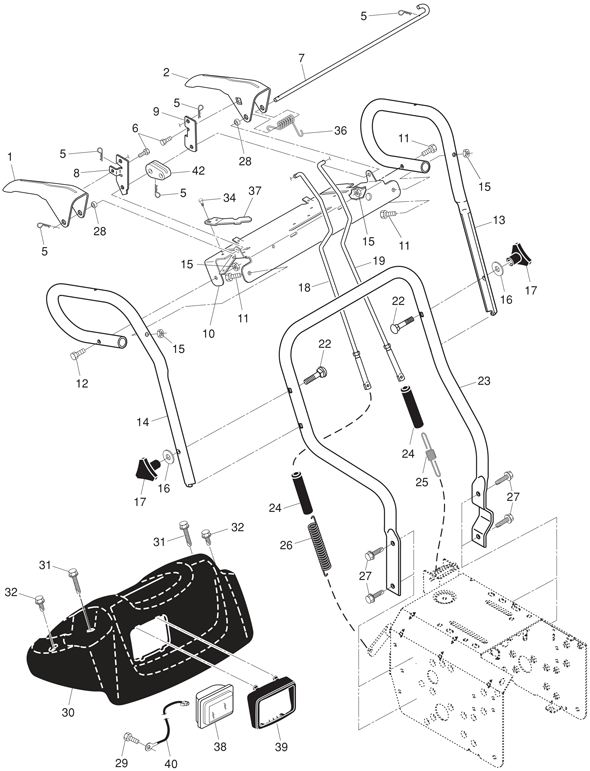

Jonsered 96191002003

...
...
xx
Bulb, Halogen HUS-532401620
...
1
Lever, Auger Control, Rh HUS-532415542
...
2
Lever, Traction Drive Control, Lh HUS-532415541
...
5
Retainer, Hairpin HUS-532169675
...
6
Screw, Hex Head HUS-817060408
...
7
Bail, Interlock HUS-532412677
...
8
Arm, Impeller Rod HUS-532199576
...
9
Arm, Traction Rod HUS-532415546
...
10
Panel, Control HUS-532415539
...
11
Screw, Hex Head 5/16-18 X 1-1/2 HUS-874780524
...
12
Screw, Hex Head 5/16-18 X 1-3/4 HUS-874780528
...
13
Handle Tube, Lh HUS-532415264
...
14
Handle Tube, Rh HUS-532415265
...
15
Nut, Lock 5/16-18 HUS-532751153
...
16
Washer, Flat 3/8 HUS-819131316
...
17
Knob, Handle HUS-532178899
...
18
Rod, Auger Control HUS-532180480
...
19
Rod, Traction Control HUS-532405740
...
22
Bolt, Carriage 3/8-16 X 2-1/4 HUS-872120618
...
23
Handle Tube, Lower HUS-532184087
...
24
Sleeve, Spring HUS-532180447
...
25
Spring, Traction Drive HUS-532180926
...
26
Spring, Auger Control HUS-532178669
...
27
Screw, Hex Head 3/8-16 X 1 HUS-817000616
...
28
Spacer HUS-532412680
...
29
Screw, Grounding HUS-532408059
...
30
Console, Panel HUS-532183346
...
31
Screw, Hex Head, Tapping 10-24 X 1-1/4 HUS-532175262
...
32
Screw, Hex Head, Tapping 10-24 X 1/2 HUS-532184471
...
34
Screw HUS-817060410
...
36
Spring, Torsion HUS-532178831
...
37
Spring, Interlock HUS-532416288
...
38
Headlight, Halogen (Includes Bulb) HUS-532178666
...
39
Bezel, Headlight HUS-532178668
...
40
Harness, Headlight (Halogen) HUS-532180964
...
42
Cam, Interlock HUS-532414572

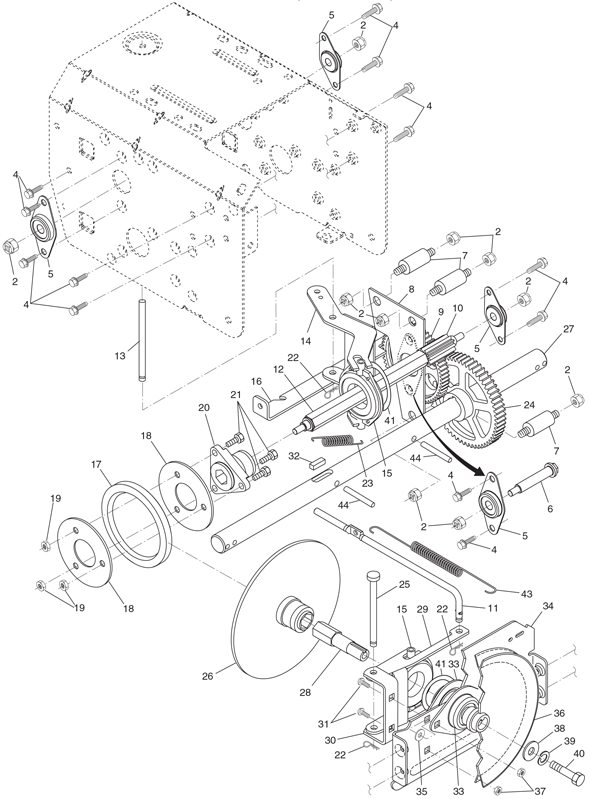

Jonsered 96191002003

...
...
2
Nut, Lock 5/16-18 HUS-532751153
...
4
Screw, Hex Head 5/16-18 X 1/2 HUS-817490508
...
5
Bearing, Flange HUS-532180017
...
6
Shaft, Auxiliary HUS-532180134
...
7
Spacer, Plate HUS-532179270
...
8
Plate, Auxiliary HUS-532192907
...
9
Gear, Intermediate (12/58) HUS-532180082
...
10
Gear, Pinion HUS-532180065
...
11
Rod, Clutch HUS-532403300
...
12
Shaft, Long, Hex HUS-532180066
...
13
Pin, Pivot HUS-532178807
...
14
Lever, Shifter / Wheel HUS-532184080
...
15
Trunnion Bearing Assembly HUS-532175344
...
16
Bracket, Pivot, Shift HUS-532187857
...
17
Ring, Rubber Wheel HUS-532179831
...
18
Plate, Rubber Wheel HUS-532199509
...
19
Nut, Lock 5/16-18 HUS-873930500
...
20
Hub, Rubber Wheel HUS-532178613
...
21
Screw, Hex Head 5/16-18 X 7/8 HUS-874760514
...
22
Retainer, Hairpin HUS-532085179
...
23
Spring, Bias HUS-532180135
...
24
Gear, Axle (58 Teeth) HUS-532180081
...
25
Pin, Pivot Lever HUS-532178695
...
26
Plate Assembly, Drive HUS-532197763
...
27
Shaft, Axle HUS-532179352
...
28
Shaft, Short Hex HUS-532197764
...
29
Lever, Shifter Plate HUS-532184077
...
30
Bracket, Shifter Support HUS-532184076
...
31
Bolt, Carriage 5/16-18 X 5/8 HUS-872270505
...
32
Key, Square 1/4 X 1/4 X 7/8 HUS-532189282
...
33
Bearing, Flange HUS-532188909
...
34
Plate, Drive Mounting HUS-532184075
...
35
Spacer, Bearing HUS-532182504
...
36
Pulley, Traction Drive HUS-532191080
...
37
Nut, Lock 5/16-18 HUS-532155377
...
38
Washer, Flat HUS-819111507
...
39
Washer, Lock 5/16 HUS-810040500
...
40
Screw, Hex Head 5/16-18 X 3/4 HUS-874950512
...
41
Ring, Retaining HUS-812000012
...
43
Spring, Return HUS-532179095
...
44
Pin, Roll HUS-532184206

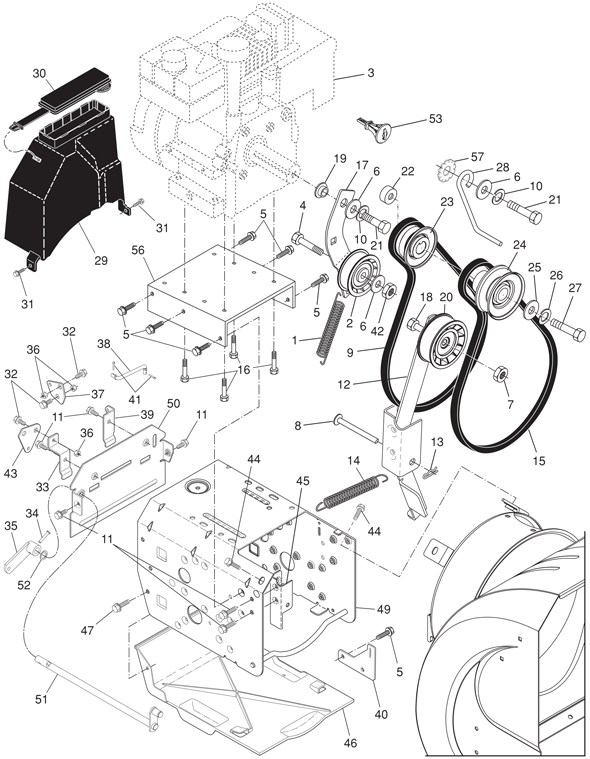

Jonsered 96191002003

...
...
1
Spring, Traction Idler HUS-532181044
...
2
Pulley, Idler (2-1/4) HUS-532180522
...
4
Screw, Hex Head 5/16-18 X 1-1/4 HUS-874780520
...
5
Screw, Hex Head 5/16-18 HUS-532150078
...
6
Washer, Flat HUS-532059289
...
7
Nut, Jam, Lock 5/16-18 HUS-532166785
...
8
Pin, Idler Pivot HUS-532175330
...
9
V-Belt, Traction Drive HUS-532407908
...
10
Washer, Lock 5/16 HUS-810040500
...
11
Screw, Hex Head 5/16-18 X 1/2 HUS-817490508
...
12
Idler Arm / Brake Pad Assembly HUS-532410420
...
13
Retainer, Hairpin HUS-532085179
...
14
Spring, Brake HUS-532178828
...
15
V-Belt, Impeller Drive HUS-532408007
...
16
Screw, Hex Head 3/8-16 X 1-1/4 HUS-532150406
...
17
Arm, Idler HUS-532184804
...
18
Screw, Hex Head 5/16-18 X 1-1/2 HUS-874780524
...
19
Bushing, Idler Pivot HUS-532175331
...
20
Pulley, Idler (2-3/4) HUS-532180523
...
21
Screw, Hex Head 5/16-18 X 1 HUS-874610516
...
22
Spacer, Engine Pulley HUS-532409475
...
23
Pulley, Engine, Traction Drive HUS-532180478
...
24
Pulley, Engine, Impeller Drive HUS-532179157
...
25
Washer, Flat 3/8 HUS-532400026
...
26
Washer, Lock, Helical 3/8 HUS-532850263
...
27
Screw, Hex Head 3/8-24 X 1-3/8 HUS-532851084
...
28
Guide, Belt HUS-532155452
...
29
Belt Cover Assembly (Includes Toolbox Cover) HUS-532192213
...
30
Cover, Toolbox HUS-532178830
...
31
Screw 1/4-20 X .50 HUS-817490408
...
32
Bolt, Shoulder 3/8-25 HUS-532402881
...
33
Bracket Shifter HUS-532415433
...
34
Clevis Pin HUS-532198580
...
35
Arm, Auger Control HUS-532405485
...
36
Nut 1/4-20 HUS-532191730
...
37
Plate Clutch HUS-532415435
...
38
Link, Speed Control HUS-532187101
...
39
Bracket Clutch HUS-532416864
...
41
Hairpin, Cotter, 3/32 X 1/2 HUS-532700279
...
42
Pin, Bellcrank HUS-532179065
...
43
Plate Shifter HUS-532415450
...
44
Screw, Hex Head HUS-817000616
...
45
Pivot Bracket, Impeller Idler Arm HUS-532184074
...
46
Pan, Frame Bottom HUS-532410877
...
47
Screw, Hex Head 10/24 X .62 HUS-532184471
...
49
Frame Assembly HUS-532415521
...
50
Plate, Frame End HUS-532417539
...
51
Shaft, Auger Control HUS-532406109
...
52
Washer, Hardened HUS-532057079
...
53
Key, Safety HUS-532193071
...
55
Ring, Crescent HUS-812000002
...
56
Mounting Plate, Engine HUS-532407864
...
57
Washer, Lock, External Tooth 5/16 HUS-811050500

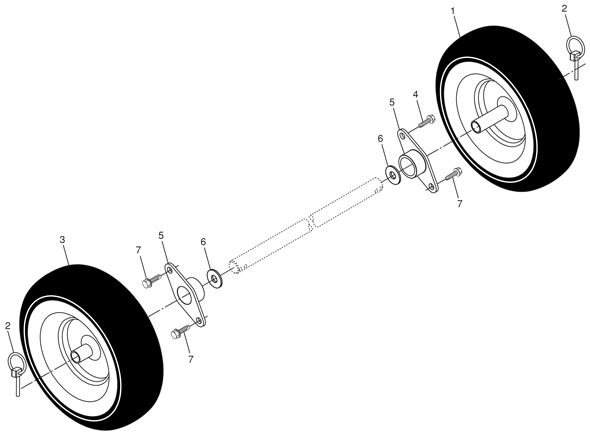

Jonsered 96191002003

...
...
1
Wheel Assembly, 16", Lh HUS-532407814
...
2
Pin, Klik 1/4 HUS-532155443
...
3
Wheel Assembly, 16", Rh HUS-532407822
...
4
Screw, Hex Head 5/16-18 X 5/8 HUS-532146315
...
5
Bearing, Axle HUS-532179830
...
6
Washer, Thrust (1") HUS-532174697
...
7
Screw, Hex Head 5/16-18 X 1/2 HUS-817490508

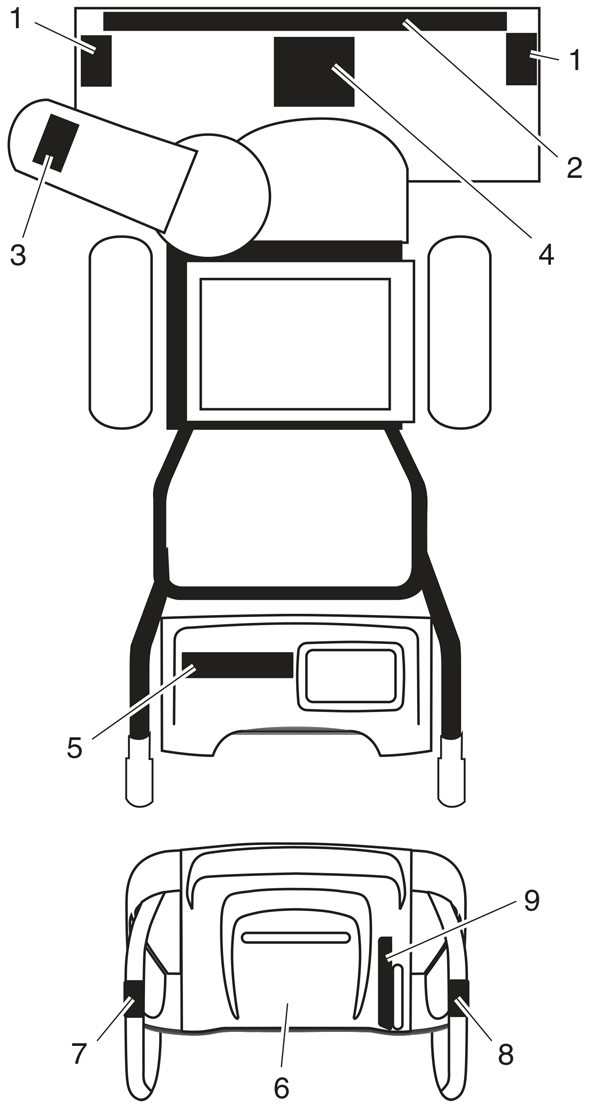

Jonsered 96191002003

...
...
xx
Operator'sManual, European HUS-532406035
...
xx
Operator's Manual, Scandanivian HUS-532406037
...
xx
Operator's Manual, East Bloc HUS-532406033
...
xx
Operator's Manual, Baltic HUS-532414568
...
1
Decal, Danger HUS-532199683
...
2
Decal, Jonsered, 61Cm HUS-532405810
...
3
Decal, Danger, Deflector HUS-532199682
...
4
Decal, Danger HUS-532184045
...
5
Decal, Jonsered HUS-532405803
...
6
Decal, Instruction HUS-532184030
...
7
Decal, Traction Lever HUS-532415393
...
8
Decal, Auger Lever HUS-532415392
...
9
Decal, Speed Control HUS-532415477
