Jonsered 96141006602 Rotary Lawn Mower LM2153CMDA

Model: 96141006602

Save Part Not Listed?
product name

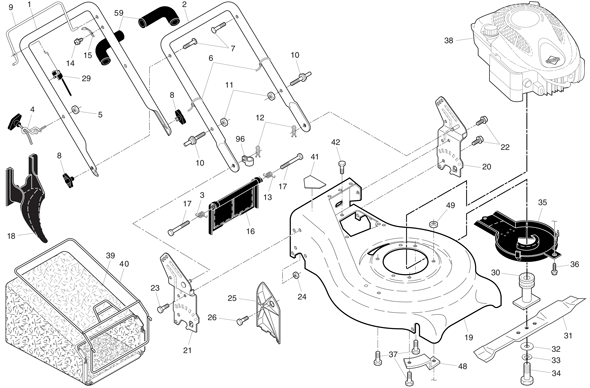

Jonsered 96141006602

...
...
xx
Operator'sManual, European HUS-532411335
...
xx
Operator'sManual, Scandinavian HUS-532411336
...
xx
Operator'sManual, East Bloc HUS-532411337
...
xx
Operator'sManual, Baltic HUS-532411338
...
1
Upper Handle Assembly (Includes Foam Grip) HUS-532402551
...
2
Handle, Lower HUS-532196005
...
3
Spring, Rear Door, Rh HUS-532405416
...
4
Guide, Rope, Side HUS-532194788
...
5
Nut, Hex, With Lockwasher Insert 1/4-20 HUS-532132004
...
6
Wire, Tie HUS-532066426
...
7
Bolt, Handle 5/16-18 X 2-5/8 HUS-532191574
...
8
Knob, Handle HUS-532191938
...
9
Control Bar HUS-532417159
...
10
Bolt, Carriage HUS-532188821
...
11
Nut, Hex, With Lockwasher Insert 5/16-18 Unc HUS-532751153
...
12
Cotter, Hairpin HUS-532051793
...
13
Spring, Rear Door, Lh HUS-532405415
...
14
Screw HUS-532750634
...
15
Bracket, Upstop HUS-532125162
...
16
Rear Door Assembly HUS-532408888
...
17
Bolt, Rear Door HUS-532184193
...
18
Plug, Mulcher HUS-532198170
...
19
Kit, Housing HUS-532408084
...
20
Handle Bracket Asembly, Lh HUS-532194029
...
21
Handle Bracket Assembly, Rh HUS-532194031
...
22
Screw, Hex Washer Head HUS-532150078
...
23
Bolt, Hex Head 5/16-18 X 5/8 HUS-532163183
...
24
Nut, Hex, With Lockwasher Insert 5/16-18 HUS-873800500
...
25
Baffle, Side HUS-532161333
...
26
Screw 12 X 5/8 HUS-532163409
...
29
Cable, Engine Zone Control HUS-532191221
...
30
Blade Adapter / Pulley HUS-532189179
...
31
Blade, 21" HUS-532199377
...
32
Washer HUS-532851074
...
33
Washer, Lock HUS-532850263
...
34
Bolt, Hex Head HUS-532851084
...
35
Debris Shield HUS-532405843
...
36
Bolt HUS-532192325
...
37
Bolt, Engine HUS-532150406
...
39
Grassbag HUS-532410684
...
40
Frame, Grassbag HUS-532407453
...
41
Danger Decal HUS-532182166
...
42
Screw HUS-532054583
...
48
Mounting Bracket, Debris Shield HUS-532190939
...
59
Grip, Foam HUS-532182748
...
96
Clip, Cable HUS-532197991

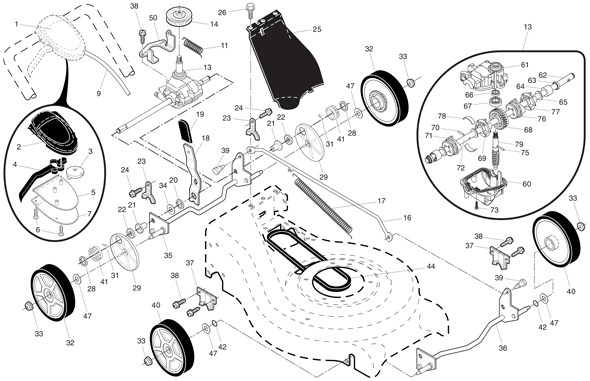

Jonsered 96141006602

...
...
1
Drive Control Assembly HUS-532406254
...
2
Cover, Upper HUS-532413542
...
3
Pulley HUS-532406262
...
4
Lever, Drive Control HUS-532188281
...
5
Cover, Lower HUS-532413541
...
6
Screw HUS-532181698
...
7
Mounting Bracket, Drive Control HUS-532400723
...
9
Cable, Drive Control HUS-532406258
...
10
Decal, Drive Control Operation HUS-532193466
...
11
Spring, Return HUS-532406558
...
13
Gearcase Assembly, Complete HUS-532404839
...
14
Pulley Assembly HUS-532193443
...
16
Rod, Connecting HUS-532407147
...
17
Spring, Extension HUS-532409616
...
18
Spring, Selector HUS-532196162
...
19
Knob, Selector Spring HUS-532190069
...
20
E-Ring HUS-812000022
...
21
Bearing, Support HUS-532412450
...
22
Bearing, Ball HUS-532191039
...
23
Retainer, Drive Assembly HUS-532164555
...
24
Screw, Tapping, Hex Head 1/4-20 X .75 HUS-532057808
...
25
Cover Drive HUS-532402807
...
26
Screw, Threaded, Rolled 10-25 X .50 HUS-532750634
...
28
E-Ring 7/16 HUS-812000058
...
29
Cover, Dust, Wheel HUS-532189403
...
31
Pawl HUS-532404845
...
32
Wheel & Tire Assembly, Rear, Driven HUS-532413143
...
33
Nut, Hex, Flangelock 3/8-16 HUS-532409148
...
34
Washer HUS-532851226
...
35
Shaft Assembly, Rear HUS-532410922
...
36
Shaft Assembly, Front HUS-532410933
...
37
Retainer, Front Shaft HUS-532161463
...
38
Screw 12 X 5/8 HUS-532163409
...
39
Bolt, Shoulder HUS-532407059
...
40
Wheel & Tire Assembly, Front HUS-532198011
...
41
Pinion, Gear HUS-532404835
...
42
O-Ring HUS-532197480
...
44
V-Belt HUS-532406580
...
47
Washer HUS-532067725
...
50
Belt Keeper HUS-532413104
...
60
Case, Lower HUS-532412747
...
61
Case, Upper HUS-532412736
...
62
Shaft, Output, Long HUS-532412757
...
63
Seal, Output Shaft HUS-532183508
...
64
Bushing HUS-532183511
...
65
Washer HUS-532183509
...
66
Seal, Worm Shaft HUS-532183514
...
67
Bearing, Ball HUS-532183506
...
68
Gear, 28 Teeth HUS-532412742
...
69
Fixed Dog Clutch, Lh HUS-532412739
...
70
Pin, Output Shaft HUS-532412741
...
71
Movable Dog Clutch, Lh HUS-532412740
...
72
Shaft, Output, Short HUS-532412756
...
73
Screw, Case HUS-532183513
...
75
Pin, Worm Shaft HUS-532412746
...
76
Fixed Dog Clutch, Rh HUS-532412744
...
77
Movable Dog Clutch, Rh HUS-532412743
...
78
Spring, Leaf HUS-532410731
...
79
Shaft, Worm HUS-532412737
