product name

Jonsered 9541200-45 Trailer

Model: 9541200-45

Save Part Not Listed?
product name

Jonsered 9541200-45

...
...
xx
Owner'sManual HUS-951007682
...
1
Cart Body HUS-531002721
...
2
Tailgate HUS-531002703
...
3
Tailgate Reinforcement Bracket HUS-531002404
...
4
Guide, Tailgate HUS-531002722
...
5
Front Panel HUS-531002707
...
6
Wheel Support HUS-531002708
...
7
Latch Stand Bracket HUS-531007676
...
8
Latch Lock Lever HUS-531007679
...
9
Hitch Bracket HUS-506621201
...
10
Draw Bar Tongue HUS-531002720
...
11
Axle, Wheel HUS-531007677
...
12
Cap, Front Corner HUS-531002714
...
13
Wheel, 16/4.00 X 8.00 HUS-531002715
...
14
Cotter Pin, 1/8" Dia X 1" HUS-721618301
...
15
Washer, Flat 3/4" HUS-531002716
...
17
Hub Cap HUS-531002717
...
18
Hex Bolt, 1/4-20 X 1/2" HUS-531002821
...
19
Hex Nut, 1/4-20 (Sems) HUS-531007649
...
20
Truss Hd. Bolt, 5/16-18 X 3/4" Lg. HUS-531002718
...
21
Hex Nut, 5/16-18 (Sems) HUS-531007681
...
22
Hex Bolt, 3/8-16 X 1" Lg HUS-874780616
...
23
Lock Washer, 3/8" HUS-735117301
...
24
Hex Nut, 3/8-16 Thread HUS-731232001
...
25
Extension Spring HUS-531007654
...
26
Spring Puller Tool HUS-531007656
...
27
Hex Bolt, 5/16-18 X 3-3/4" * HUS-531007653
...
28
Hex Lock Nut, 5/16-18 HUS-531007616
...
29
Hitch Pin HUS-506625601
...
30
Hair Cotter Pin, 1/8" * HUS-721680251
...
31
Wheel Bearing HUS-531007696

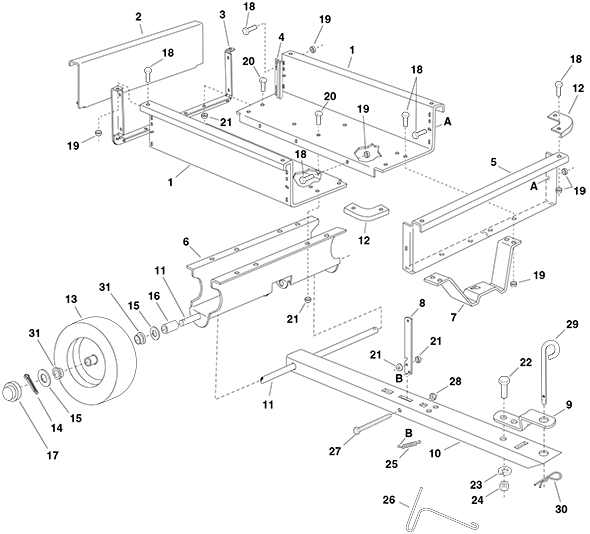

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
