Jonsered 5870246-01 Street Brush

Model: 5870246-01

Save Part Not Listed?
product name

Jonsered 5870246-01

...
...
1
Brush Ring HUS-587349801
...
2
Worm Gear, 7:1 HUS-576906201
...
3
Pulley A112 HUS-576906701
...
4
Support Wheel HUS-576907401
...
5
Collar, Plastic HUS-535414804
...
6
Roller Shaft HUS-587308501
...
7
Bearing HUS-531005259
...
8
Spring HUS-535414852
...
9
Flange HUS-576906901
...
10
Bearing HUS-576908001
...
11
Plug, Seal HUS-587349901
...
12
Mounting Frame HUS-587350001
...
13
Guard, Brush Roller HUS-587350101
...
14
Mounting Frame HUS-576905901
...
15
Plate, Upper HUS-576920101
...
16
Guard, Drive Shaft HUS-587309201
...
17
Drive Chain HUS-587350301
...
18
Collar, Lock HUS-587310001
...
19
Plate, Lock HUS-576907101
...
20
Cover HUS-587309601
...
21
Dust Cap HUS-531005315
...
22
Chain Cover HUS-587350401
...
23
Drive Shaft HUS-587309801
...
24
Angle Control Tube HUS-576907201
...
25
Collar HUS-576906501
...
26
Grip HUS-576907501
...
27
Support Wheel HUS-576489401
...
28
Collar HUS-576489201
...
29
Adjusting Knob HUS-535415024
...
30
Grip HUS-576907601
...
31
Chain Tightener HUS-576906401
...
32
Cover HUS-587350501
...
33
Tube, Pivot Wheel HUS-576907301
...
34
Screw HUS-576920201
...
35
Screw HUS-531005191
...
36
Screw HUS-531021146
...
37
Nut, Tensilock HUS-576919601
...
38
Chain Wheel HUS-587350801
...
39
Screw HUS-587310101
...
40
Washer HUS-531021184
...
41
Nut, Lock HUS-531021219
...
42
Screw HUS-531021144
...
43
Washer HUS-506559701
...
44
Screw, Special HUS-506982601
...
45
Nut, Serrated Flange HUS-577607801
...
46
Screw HUS-531021173
...
47
Screw HUS-535415045
...
48
Screw HUS-531021239
...
49
Washer HUS-531021147
...
50
Nut, Lock HUS-531021130
...
51
Hex Socket Cap Screw HUS-576919501
...
52
Screw HUS-535415036
...
53
Hex Socket Cap Screw HUS-576920301
...
54
Nut HUS-531021129
...
55
Screw, Special HUS-576923101
...
56
Rubber Strap HUS-506599601
...
57
Screw HUS-531021299
...
58
Washer HUS-531021197
...
59
Nut, Lock HUS-531021198
...
60
Set Screw HUS-531021169
...
61
Nut, Special HUS-578854001
...
62
Support HUS-576919401
...
63
Clamp HUS-531005182
...
64
Washer HUS-531021137
...
65
Key HUS-531005220
...
66
Screw HUS-587310301
...
67
Adapter, Washer HUS-576923201
...
68
Cover HUS-587691801
...
70
Support HUS-587310401
...
71
Tarpaulin HUS-587310501
...
72
Rod HUS-587310601
...
73
Pin, Spring HUS-580937501
...
74
Washer HUS-535466655
...
75
Pop Rivet HUS-535466654

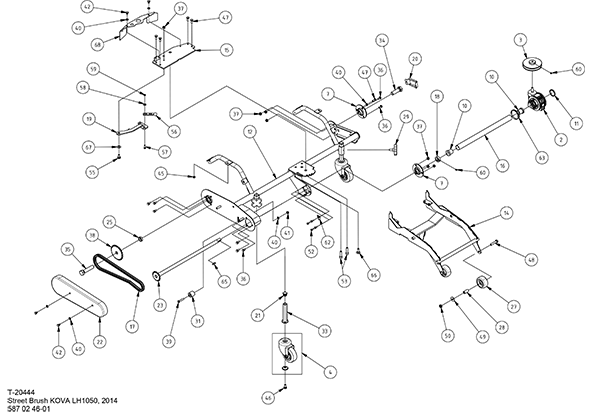

Schematic Image Zoomed
