Jonsered 5449218-01 42" Snow Thrower

Model: 5449218-01

Save Part Not Listed?
product name

Popular Parts

Popular Parts

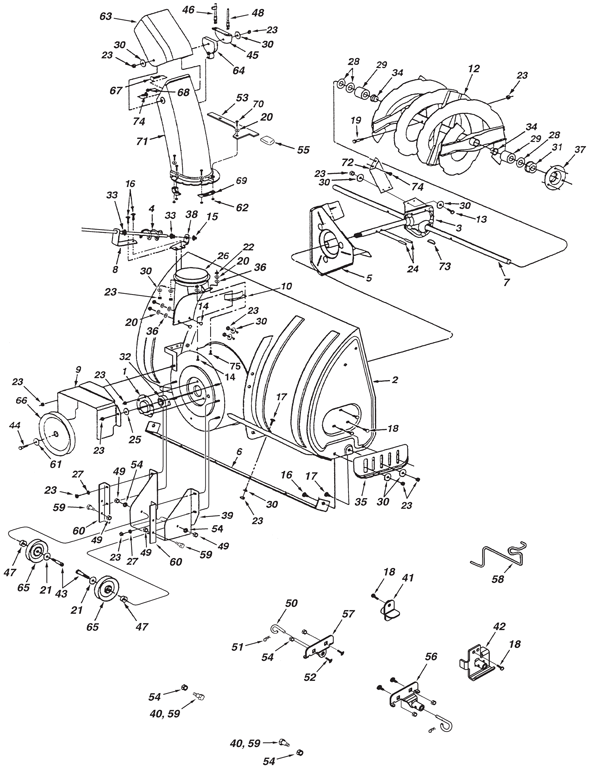

Jonsered 5449218-01

...
...
xxx
Ownersmanual HUS-42318
...
1
Housing,Bearing HUS-501335301
...
2
Housingassembly HUS-501335401
...
3
Gearassembly HUS-501335501
...
4
Chutecrankrodassembly HUS-501335601
...
5
Impellerassembly HUS-501335701
...
6
Scraperplate HUS-501335801
...
7
Shaft,Augergearbox HUS-501335901
...
8
Bracket,Chutecrank HUS-501336001
...
9
Cover,Belt HUS-501336101
...
10
Chutereinforcement HUS-501336201
...
11
L.H.Spiralassembly(Notshown) HUS-501336301
...
12
R.H.Spiralassembly HUS-501336401
...
13
Hexbolt,5/1618X11/4"Lg. HUS-531008117
...
14
Carriagebolt,1/420X3/4" HUS-531007637
...
15
Palnut,3/8" HUS-531002840
...
16
Carriagebolt,5/1618X1"Lg. HUS-522770201
...
17
Carriagebolt,5/1618X3/4"Lg. HUS-522756301
...
18
Bolt,Selftap5/16"X3/4" HUS-501336501
...
19
Bolt,Shear5/1618X11/2" HUS-501336601
...
20
Washer,1/4" HUS-522835901
...
21
Washer,3/8" HUS-734117201
...
22
Hexnut,1/420Nylock HUS-504066001
...
23
Hexnut,5/1618Nylock HUS-501021101
...
24
Spiralpin,1/4"X11/2"Lg. HUS-501336701
...
25
Bushing HUS-501336801
...
26
Chuteadapter HUS-501336901
...
27
Lockwasher,5/16" HUS-531004656
...
28
Washer,.785"X1.57"X.057" HUS-531002716
...
29
Spacer,.75Idx1.25Odx.5L HUS-501337101
...
30
Washer,5/16"Std.Wrt. HUS-522770301
...
31
Bearing,Flange HUS-531007655
...
32
Bearing,Ball HUS-501337201
...
33
Bushing,Plastic3/8" HUS-501337301
...
34
Bearing,Split,3/4" HUS-501337401
...
35
Skidshoe HUS-501337501
...
36
Washer,Nylon HUS-501337601
...
37
Housing,Bearing HUS-501337701
...
38
Bracket,Chutecrank HUS-501337801
...
39
Bracket,Idler HUS-584273901
...
40
Shoulderbolt,Roundhead HUS-501338001
...
41
Hangerbracketassembly,L.H. HUS-501338101
...
42
Hangerbracketassembly,R.H. HUS-501338201
...
43
Hexbolt,3/816X13/4" HUS-725250151
...
44
Hexbolt,3/824X1" HUS-531007625
...
45
Bracket,Cable HUS-501338301
...
46
Cable,Chutecontrolwithclip HUS-501338401
...
47
Spacer HUS-501338501
...
48
Cable,Chutecontrol HUS-501338601
...
49
Hexnut,3/816Nylock HUS-501332701
...
50
Pin,Pivotlock HUS-501338701
...
51
Pin,Haircotter4(1/8") HUS-580744401
...
52
Carriagebolt,3/816X1" HUS-501332301
...
53
Bracket,Chuteantirotation HUS-501338801
...
54
Hexlocknut,3/816Flanged HUS-501338901
...
55
Plasticcap HUS-501339001
...
56
Hangerbracketassembly,R.H. HUS-501339101
...
57
Hangerbracketassembly,L.H. HUS-501339201
...
58
Keeper,Enginepulley HUS-501339301
...
59
Bolt,Shoulder HUS-501339401
...
60
Bracket,Downstop HUS-501339501
...
61
Washer, HUS-501339601
...
62
Hexlocknut,1/4"Flanged HUS-501339701
...
63
Chute,Upper HUS-577779001
...
64
Guide,Cable HUS-501339901
...
65
Pulley,Vtype4" HUS-501340001
...
66
Pulley,Vtype HUS-501340101
...
67
Hexbolt,5/1618X11/2" HUS-501332101
...
68
Screw,1/414X5/8" HUS-501340201
...
69
Chutekeeper HUS-501340301
...
70
Hexbolt,1/420X1" HUS-531007626
...
71
Chute,Lower HUS-501340401
...
72
Centerbrace,Gearbox HUS-501340501
...
73
61Woodruffkey HUS-501340601
...
74
Hexbolt,5/1618X3/4" HUS-522759901
...
75
Carriagebolt,1/420X3/4" HUS-531007637

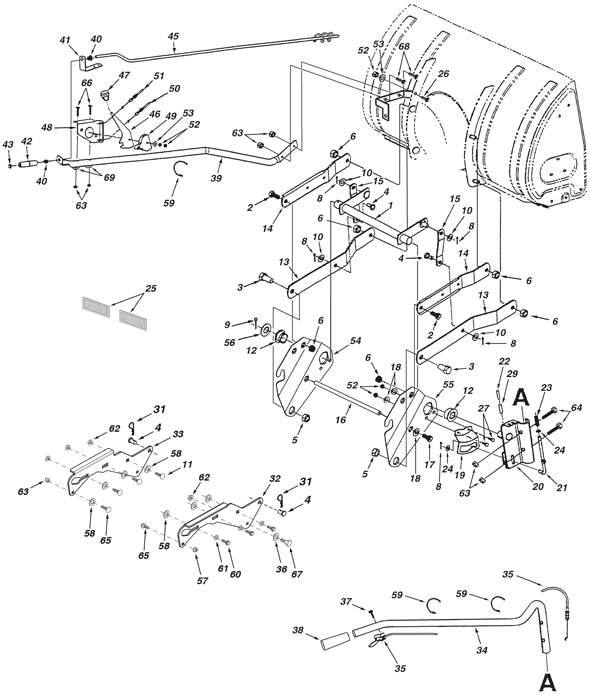

Jonsered 5449218-01

...
...
1
Liftshaftassembly HUS-501340801
...
2
Hexbolt,1/213X1" HUS-501340901
...
3
Hexbolt,5/811X11/2" HUS-501341001
...
4
Pin,Clevis,1/2"X7/8" HUS-501341101
...
5
Nut,Hexlock5/811Thread HUS-501341201
...
6
Nut,Hexlock1/213 HUS-501334101
...
8
Pin,Cotter1/8"X3/4" HUS-501341301
...
9
Pin,Cotter1/8"X11/2" HUS-577776801
...
10
Washer,17/32"X1" HUS-501334501
...
11
Carriagebolt,3/816X1" HUS-501332301
...
12
Bearing,Flangewithflats HUS-501341401
...
13
Link,15.80"Long HUS-501341501
...
14
Link,11.75"Long HUS-501341601
...
15
Link,4.88"Long HUS-501341701
...
16
Rod,Spacer HUS-501341801
...
17
Hexbolt,5/1618X1"(Locking) HUS-501341901
...
18
Lockwasher,5/16" HUS-531004656
...
19
Bracket,Lift HUS-501342001
...
20
Assembly,Handleliftbracket HUS-501342101
...
21
Rod,Indexlift HUS-501342201
...
22
Pin,Spring3/16"X13/4" HUS-501342301
...
23
Spring,Compression HUS-501342401
...
24
Washer,13/32"X13/16" HUS-501342501
...
25
Reflector,Rear HUS-501342601
...
26
Carriagebolt,5/1618X3/4" HUS-522756301
...
27
Hexbolt,5/1618X3/4" HUS-522759901
...
29
Pin,Spring5/16"X13/4" HUS-501342801
...
31
Pin,Haircotter4(1/8") HUS-580744401
...
32
Plate,Side(R.H.) HUS-501343001
...
33
Plate,Side(L.H.) HUS-501343101
...
34
Tube,Lifthandle HUS-501343201
...
35
Triggerandliftcableassembly HUS-501343301
...
36
Washer,3/8" HUS-734117201
...
37
Screw,Oval1024X1" HUS-501343401
...
38
Grip,Handle HUS-501343501
...
39
Tube,Crankrodsupport HUS-501343601
...
40
Bushing,3/8"Plastic HUS-501337301
...
41
Bracket,Chutecrank HUS-501336001
...
42
Knob,Crank HUS-501343701
...
43
Palnut,3/8" HUS-31002840
...
45
Assembly,Chutecrankrod HUS-501335601
...
46
Handle,Chutetilt HUS-501343801
...
47
Knob HUS-577159001
...
48
Assembly,Chutetiltbracket HUS-501344001
...
49
Guide,Cable HUS-501339901
...
50
Cable,Chutecontrol HUS-501338601
...
51
Cable,Chutecontrolwithclip HUS-501338401
...
52
Nut,Hexlock5/1618 HUS-531007616
...
53
Washer,5/16" HUS-522770301
...
54
Plate,Mounting(L.H.) HUS-501344101
...
55
Plate,Mounting(R.H.) HUS-501344201
...
56
Washer,1.59"X1.032"X.060" HUS-501344301
...
57
Nut,Whizlock,5/1618 HUS-531008109
...
58
Washer,1/2" HUS-501332001
...
59
Tie,Nylon HUS-501331401
...
60
Hexbolt,3/816X1"Selftap HUS-501332201
...
61
Lockwasher,3/8" HUS-577157101
...
62
Nut,Flangedlock3/816 HUS-501338901
...
63
Nut,Nylockhex5/1618 HUS-501021101
...
64
Hexbolt,5/1618X13/4" HUS-531002838
...
65
Carriagebolt,5/1618X1" HUS-522770201
...
66
Carriagebolt,5/1618X13/4" HUS-501344501
...
67
Bolt,Shoulder HUS-501339401
...
68
Carriagebolt,5/1618X11/4" HUS-501344601
...
69
Washer,Bowed HUS-531002816

Jonsered 5449218-01

...
...
xx
Belt,Vtypedrive(56") HUS-501346201
...
1
Carriagebolt,5/1618X3/4" HUS-522756301
...
2
Hexbolt,5/1618X3/4" HUS-522759901
...
3
Hexnut,5/1618 HUS-522758701
...
4
Lockwasher,5/16" HUS-531004656
...
5
Washer,5/16"Std.Wrt. HUS-522770301
...
6
Frame,Clutchandpulley HUS-501344701
...
7
Idlerarmassembly HUS-501344801
...
8
Spacer,Pivot HUS-501344901
...
9
Idlerbracketassembly HUS-501345001
...
10
Hexnut,3/816 HUS-531004664
...
11
Pulley,Vtype9" HUS-501345101
...
12
Nut,Hexlock,3/816 HUS-501345201
...
13
Pulley,Vtype51/2" HUS-584245301
...
14
Shaft HUS-501345301
...
15
Spacer HUS-501345401
...
16
Spacer HUS-501345501
...
17
Lockwasher,3/8" HUS-577157101
...
18
Key HUS-501345601
...
19
Bearing,Ball HUS-501345701
...
20
Housing,Bearing HUS-501345801
...
21
Housing,Openbearing HUS-501345901
...
22
Spacer,Spindle HUS-501346001
...
23
Hexbolt,3/824X1" HUS-531007625
...
24
Washer HUS-501339601
...
25
Hexbolt,5/1618X1" HUS-531007426
...
26
Belt,Vtypedrive(55") HUS-501346101
...
27
Belt,Vtypeauger HUS-501346301
...
28
Pulley,Vtype4" HUS-501340001
...
29
Hexbolt,5/1618X31/2" HUS-501346401
...
30
Hexbolt,3/816X21/2" HUS-531008114
...
31
Hexbolt,3/816X2" HUS-531002732
...
32
Spacer HUS-501346501
...
33
Spacer,Pivot HUS-501346601
...
34
Washer,3/8" HUS-734117201
...
35
Spring HUS-501346701
...
36
Chain HUS-501346801
...
37
Pin,Haircotter,3/32" HUS-531002843
...
38
Spacer HUS-501346901
...
39
Washer,1/4" HUS-522835901
...
40
Pin,Haircotter#4(1/8") HUS-580744401
...
41
Pin,Haircotter5/64" HUS-501347001
...
42
Trunnion HUS-501347101
...
43
Rod,Engagement HUS-501347201
...
44
Spring HUS-501347301
...
45
Spring,Torsion HUS-501347401
...
46
Spacer HUS-522591701
...
47
Hexbolt,3/816X23/4"Lg. HUS-501347501
...
48
Washer,Flat3/8" HUS-501347601
...
49
Cablebracket HUS-501347701
...
50
Hexbolt,1/420X21/2" HUS-501347801
...
51
Hexnut,1/420 HUS-731231601
...
52
Lockwasher,1/4" HUS-577161801
...
53
Pulley,Flat35/8" HUS-501347901
...
54
Rearpulleyframebracket HUS-501348001
...
55
Hexbolt,3/816X31/4" HUS-501348101
...
56
Spacer HUS-501348201
...
57
Hexnut,5/1618Nylock HUS-501021101
