Jonsered 5449217-01 Snow Blade

Model: 5449217-01

Save Part Not Listed?
product name

Jonsered 5449217-01

...
...
1
Hanger Bracket Lh HUS-501330601
...
2
Hanger Bracket Rh HUS-501330701
...
6
Blade Pivot Rod HUS-501330801
...
7
Lift Handle Tube Assembly. HUS-501330901
...
8
Lift Handle Rod Assembly. HUS-501331001
...
9
Control Cable Assembly. HUS-501331101
...
10
Cable End Fitting HUS-501331201
...
11
Blade Pivot Shaft HUS-501331301
...
12
Plastic Tie HUS-501331401
...
13
Blade Adjust Spring HUS-501331501
...
14
Plastic Grip HUS-501331601
...
15
Channel Pivot Pin HUS-501331701
...
16
Release Grip Assembly. HUS-501331801
...
17
Spacer HUS-501331901
...
18
1/4-20 X 1 1/2 Hex Bolt HUS-725237871
...
19
3/8-16 X 1 Hex Bolt HUS-874780616
...
20
5/16-18 X 1 Carriage Bolt HUS-872110508
...
21
1/2" Washer (Large) HUS-501332001
...
22
Small Hairpin 3/32 HUS-531004637
...
23
1/8" X 1 1/4 Cotter Pin HUS-721618301
...
24
5/16-18 X 1 1/2 Hex Bolt HUS-501332101
...
25
3/8 X 1 Hex Bolt Thd Forming HUS-501332201
...
26
3/8-16 X 1 Carriage Bolt HUS-501332301
...
27
Hex Jam Nut 5/16-24 Thread HUS-501332401
...
28
1/4 Nylock Hex Nut HUS-531008164
...
29
3/8 Std Washer HUS-734117201
...
30
Flat Washer 1/2 HUS-501332501
...
31
5/16-18 Nylock Nut HUS-501332601
...
32
3/8 Nylock Hex Nut HUS-501332701
...
33
3/8 Lock Washer HUS-735117301
...
34
Spring Mount Rod HUS-501332801
...
35
3/8 Palnut HUS-531002840
...
36
48" Blade HUS-501332901
...
37
Angle Lock Spring HUS-501333001
...
38
48" Wear Plate HUS-501333101
...
39
Reinforcement Plate Assembly HUS-501333201
...
40
Grip Handle HUS-501333301
...
41
5/16-18 X 3/4 Carriage Bolt HUS-872140506
...
42
Spacer .28 Id X 1 HUS-501333401
...
43
5/16 Washer HUS-734116401
...
44
Cable Mount Bracket HUS-501333501
...
45
Skid Shoe HUS-501333601
...
46
Angle Support Bracket HUS-501333701
...
47
3/8-16 X 1 1/4 Carriage Bolt HUS-501333801
...
48
Push Channel HUS-501333901
...
49
Lift Link Assembly HUS-501334001
...
50
1/2-12 Hex Lock Nut HUS-501334101
...
51
Special Pivot Bolt HUS-501334201
...
52
Plate Pivot 7Ga. HUS-501334301
...
53
Spring Mount Bracket HUS-501334401
...
54
Washer HUS-501334501
...
55
1/4-20 X 3 1/4 Hex Bolt Gr 5 HUS-501334601
...
56
1/4 X 1 Spring Pin HUS-501334701
...
57
Plastic Cap HUS-501334801
...
58
Angle Lock Bar HUS-501334901
...
59
3/8-16 Hex Nut HUS-731232001
...
60
3/8-16 X 3 1/2 Hex Bolt HUS-501335001
...
61
Pivot Support Bracket HUS-501335101

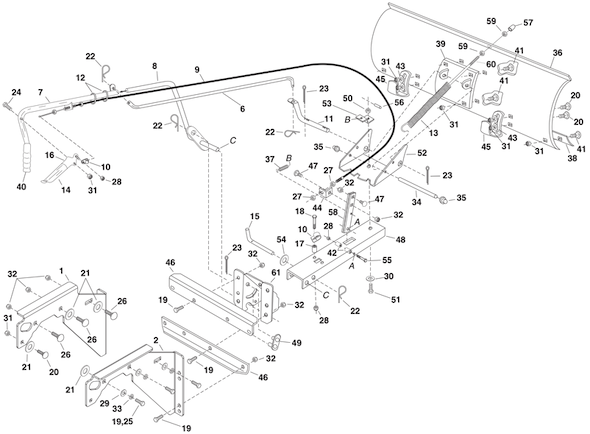

Schematic Image Zoomed
