Jonsered 544921601 Kova Rotary Broom, 2008-08, 522 02 18-01

Model: 544921601

Save Part Not Listed?
product name

Jonsered 544921601

...
...
1
Frame HUS-531021116
...
2
Weldment HUS-535466648
...
3
Roller Shaft HUS-531005152
...
4
Brush Ring HUS-531005153
...
5
Collar, Plastic HUS-531005154
...
6
Flange HUS-531005155
...
7
Bearing, Flange HUS-531005108
...
8
Chain Tightener HUS-531005157
...
9
Chain Wheel HUS-531005158
...
10
Collar HUS-531021118
...
11
Circlip HUS-531021151
...
12
Chain Wheel HUS-531005160
...
13
Drive Shaft HUS-531005161
...
14
Key HUS-531005220
...
15
Frame HUS-535466656
...
16
Belt Guard HUS-531021120
...
17
Chain Guard HUS-531021121
...
18
Chain Wheel HUS-531021122
...
19
Support Shaft, Wheel HUS-531005167
...
20
Screw, Special HUS-531021123
...
21
Bushing, Plastic HUS-531005169
...
22
Support, Wheel HUS-531005170
...
23
Pin, Split HUS-531005171
...
24
Support Wheel HUS-531005172
...
25
Guard, Support Wheel HUS-531005173
...
26
Drive Chain HUS-531021124
...
27
Pulley HUS-531005175
...
28
Circlip HUS-531005176
...
29
Bearing HUS-531005112
...
30
Screw HUS-531005177
...
31
Pin HUS-531005178
...
32
Universal Joint HUS-531005179
...
33
Guard, Drive Shaft HUS-531005180
...
34
Bearing HUS-531005181
...
35
Clamp HUS-531005182
...
36
Support HUS-531005183
...
38
Weldment, Lift HUS-535466659
...
40
Screw HUS-531021127
...
41
Screw HUS-531021128
...
42
Nut HUS-531021129
...
43
Nut, Lock HUS-531021130
...
44
Screw HUS-531021131
...
45
Screw, Special HUS-531005187
...
46
Screw HUS-535466640
...
47
Washer HUS-531021255
...
48
Belt Tightener HUS-531005280
...
49
Spring HUS-531005203
...
50
Screw HUS-531021133
...
51
Pin HUS-531021134
...
52
Pin, Spring HUS-531005143
...
53
Collar HUS-531021135
...
54
Collar HUS-531021136
...
55
Washer HUS-531021137
...
56
Pulley HUS-531005261
...
57
Collar HUS-531025197
...
58
Bearing HUS-531021138
...
59
Circlip HUS-531005198
...
60
Collar HUS-531005289
...
61
Collar HUS-531005290
...
62
Support HUS-531005283
...
63
Guide, Belt HUS-531005285
...
64
Collar HUS-531005286
...
65
Pulley HUS-531021139
...
66
Screw HUS-531021140
...
67
Collar HUS-531005265
...
68
Weldment, Lift HUS-535466660
...
69
Nut HUS-531021142
...
70
V-Belt HUS-535466630
...
71
Grip HUS-531005141
...
72
Screw HUS-531005212
...
73
Screw HUS-531021144
...
74
Washer HUS-531021145
...
75
Screw HUS-531021146
...
76
Screw, Lock HUS-531005291
...
77
Washer HUS-531021147
...
78
Nut, Lock HUS-531021148
...
79
Screw HUS-531021149
...
80
Mounting Frame HUS-535466634
...
81
Mounting Frame HUS-535466633
...
82
Washer HUS-531021184
...
84
Washer HUS-531021185
...
85
Nut, Lock HUS-531021219
...
87
Pin, Spring HUS-531005216
...
89
Screw HUS-531021174
...
91
Washer HUS-531021186
...
92
Circlip HUS-531021187
...
93
Bearing HUS-531021188
...
94
Shaft HUS-531005221
...
95
Rubber HUS-531005227
...
96
Plate HUS-531005229
...
97
Frame HUS-531005226
...
98
Screw HUS-531005228
...
99
Pulley HUS-531005166
...
100
Drive Chain HUS-531021190
...
101
Decal HUS-531021233
...
102
Decal, Street Brush HUS-531021234
...
104
Mounting Plate HUS-535466662
...
106
Screw (Carriage Bolt HUS-531021172
...
107
Spring HUS-531021268
...
108
Kit For Cable Clutch HUS-531021270
...
109
Screw HUS-535415045
...
110
Mounting Plate HUS-535466637
...
111
Screw HUS-531021199
...
112
Mounting Plate HUS-535466661
...
113
Screw, Lock HUS-535415043
...
114
Screw HUS-531021259
...
115
Collar HUS-535466663
...
116
Screw, Lock HUS-531021252
...
117
Collar HUS-535466666

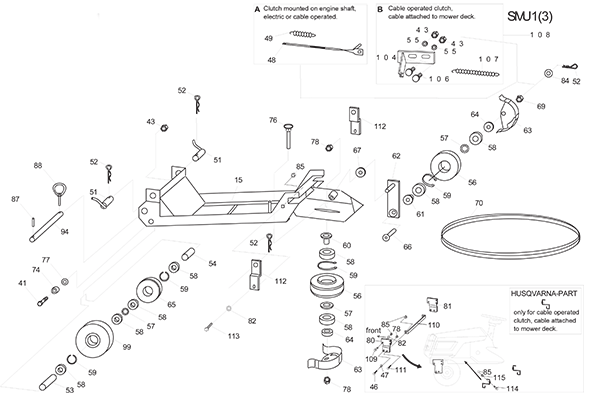

Schematic Image Zoomed
