product name

Jonsered 537183324 Pole Saw Attachment PA1100

Model: 537183324

Save
 Part Not Listed?Part Not Listed?
product name

Jonsered 537183324

...
...
1
Tank Cap Assembly HUS-505415206
...
2
Cover HUS-525613102
...
3
Oil Screen HUS-510044301
...
4
Oil Tank HUS-577667001
...
5
Oil Hose HUS-525490601
...
6
Circlip HUS-735311100
...
7
Cover HUS-574829801
...
8
Ball Bearing HUS-738219904
...
9
Shaft HUS-525490401
...
10
Gear Wheel HUS-575355601
...
11
Ball Bearing HUS-738210004
...
12
Knob HUS-525481602
...
13
O-Ring HUS-740431014
...
14
Needle Roller HUS-503240911
...
15
Pump Piston HUS-540057901
...
16
Pump Cylinder HUS-537154801
...
17
Fastener HUS-576395901
...
18
Screw HUS-501819201
...
19
Lock Nut HUS-501452702
...
20
Nut HUS-501454101
...
21
Gear Housing HUS-523853702
...
22
Screw Ihscm HUS-576831001
...
23
Screw Itxscft HUS-573925801
...
24
Bushing HUS-525490701
...
25
Rubber HUS-574404701
...
26
Cover HUS-525481402
...
27
Hexagon Nut HUS-503220007
...
28
Screw Itxscm HUS-525760905
...
29
Screw Itxscfm HUS-525755104
...
33
Screw Itxscfm HUS-525755105
...
34
Pinion HUS-575355502
...
35
Worm Gear HUS-525489701
...
36
Circlip HUS-735312510
...
37
Sprocket, "For 1/4"" Chain " HUS-585483101
...
38
Nut HUS-580760401
...
39
Disc Spring HUS-581126101
...
40
Washer HUS-576740002
...
41
Sprocket, "For 1/4"" Chain" HUS-582872201
...
42
Washer HUS-576740001
...
43
Pole Saw Head, "For 1/4"" Chain" HUS-575784308

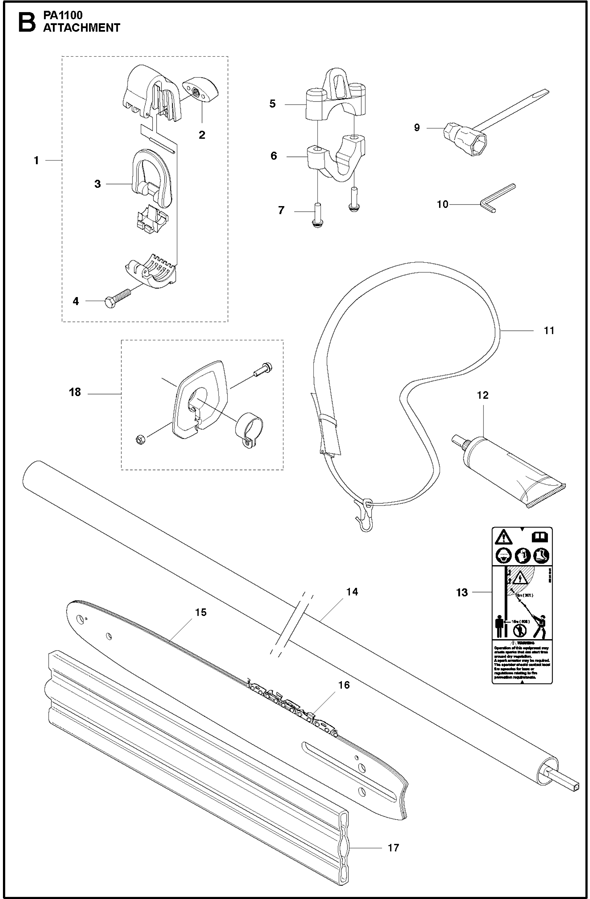

Jonsered 537183324

...
...
1
Loop HUS-537353602
...
2
Knob HUS-537130403
...
3
Loop HUS-537350102
...
4
Screw HUS-725233151
...
5
Clamp 1" HUS-545113301
...
6
Clamp 1" HUS-545056601
...
7
Screw HUS-530015940
...
9
Combination Wrench HUS-501691701
...
10
Spanner HUS-503558601
...
10
Spanner, T27 Torx HUS-576426401
...
11
Harness HUS-537216201
...
12
Grease HUS-579064901
...
13
Decal HUS-585944001
...
14
Tube Assembly HUS-587972104
...
15
Bar, "10"", 1/4"" - 1,3 Mm" HUS-587004358
...
16
Saw Chain, "10"", 1/4"" - 1,3Mm. 58Dl" 1 HUS-501844058
...
17
Bar Guard HUS-537129903
...
18
Hand Guard Assembly HUS-579488602
...
...
...
