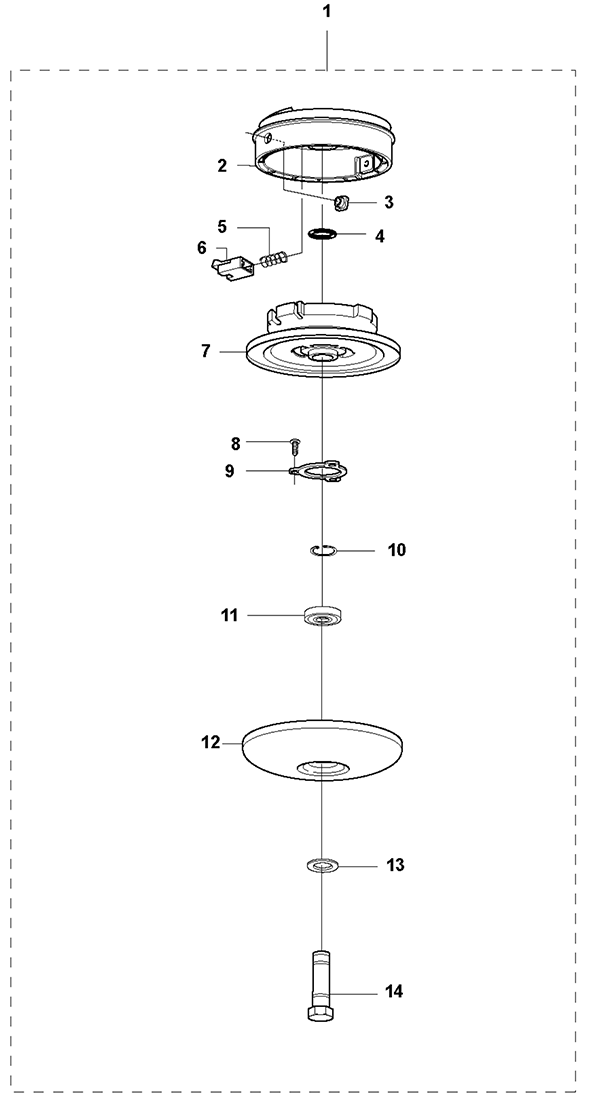

Jonsered 502260816 Trimmy SII

Model: 502260816

Save Part Not Listed?
product name

Jonsered 502260816

...
...
1
Trimmer Assembly, M12. Not For Sale - Order No 502 26 08-16 HUS-502255006
...
2
Reel Housing HUS-502260403
...
3
Grommet HUS-502262401
...
4
O-Ring HUS-740431400
...
5
Spring HUS-502255601
...
6
Lock HUS-502255301
...
7
Reel HUS-502255201
...
8
Screw Crpant HUS-729532771
...
9
Bearing Cage HUS-502260101
...
10
Circlip HUS-735311900
...
11
Ball Bearing HUS-738210304
...
12
Baseplate HUS-502260301
...
13
Washer HUS-502270701
...
14
Centre Nut HUS-502268601
