Jonsered 501008202 Trailer Utility Cart

Model: 501008202

Save Part Not Listed?
product name

Jonsered 501008202

...
...
1
Cart Body HUS-531002721
...
2
Tailgate HUS-531002703
...
3
Tailgate Reinforcement Bracket HUS-531002404
...
4
Tailgate Guide HUS-531002722
...
5
Front Panel HUS-531002707
...
6
Wheel Support HUS-504065501
...
7
Latch Stand Bracket HUS-531007676
...
8
Latch Lock Lever HUS-530007679
...
9
Hitch Bracket HUS-506621201
...
10
Draw Bar Tongue HUS-504065601
...
11
Axle, Wheel 3/4" Dia HUS-531007677
...
12
Front Corner Cap HUS-531002714
...
13
Wheel 16/4.00 X 8.00 HUS-531002715
...
14
1/8" Dia X 1" Cotter Pin HUS-721618301
...
15
3/4" Flat Washer HUS-531002716
...
16
Wheel Bearing HUS-531007696
...
17
Hub Cap HUS-531002717
...
18
1/4-20 X 5/8" Hex Bolt HUS-504065701
...
19
1/4-20 Nylock Nut HUS-504066001
...
20
5/16-18 X 3/4" Truss Hd Bolt HUS-531002718
...
21
5/16-18 Hex Nut (Sems) HUS-531007681
...
22
3/8-16 X 1" Hex Bolt HUS-874780616
...
23
1/8" Hair Cotter Pin HUS-721680251
...
24
3/8-16 Nylock Nut HUS-501332701
...
25
Extension Spring HUS-531007654
...
26
Spring Puller Tool HUS-531007656
...
27
5/16-18 X 3 3/4" Hex Bolt HUS-531007653
...
28
5/16-18 Nylock Nut HUS-501021101
...
29
Hitch Pin HUS-506625601
...
30
Flanged Bearing HUS-504066301
...
31
Axle Clip HUS-504066501

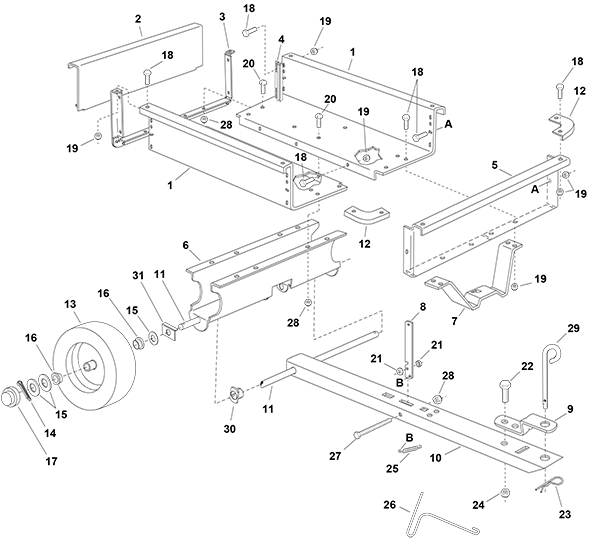

Schematic Image Zoomed
