product name

Jonsered 45-02941 Tine de-thatcher

Model: 45-02941

Save Part Not Listed?
product name

Jonsered 45-02941

...
...
xx
Owners Manual HUS-531007667
...
1
Hitch Arm Mount Bracket HUS-531004631
...
2
Hitch Bracket HUS-531004642
...
3
Spring Tine HUS-531004626
...
4
Spring AlIgnitionment Wire HUS-531008119
...
5
Wheel HUS-531004628
...
6
Tine Shield (40") HUS-531007641
...
7
Hitch Mount Arm HUS-531004630
...
8
Lift Plate HUS-531008102
...
9
Axle Bracket HUS-531008111
...
10
Lift Handle HUS-531008112
...
11
Shoulder Bolt HUS-531004627
...
12
Angle Bracket HUS-531008115
...
13
Hex Lock Nut, 3/8-16 HUS-873680600
...
14
Hex Bolt, 5/16-18 X 1-1/4" HUS-531008117
...
15
Hex Bolt, 5/16" X 3/4" HUS-874780512
...
16
Lock Washer 5/16" HUS-735116405
...
17
Hex Nut, 5/16-18 HUS-873220500
...
18
Hex Lock Nut, 5/16-18 HUS-531007616
...
19
Carriage Bolt, 5/16" X 1" HUS-872110508
...
20
Handle Grip HUS-506626401
...
21
Hex Bolt, 5/16-18 X 2" HUS-874760532
...
22
Hitch Pin, 3/8" (Flat Head) HUS-531008118
...
23
Hair Cotter Pin, 1/8" HUS-721680251

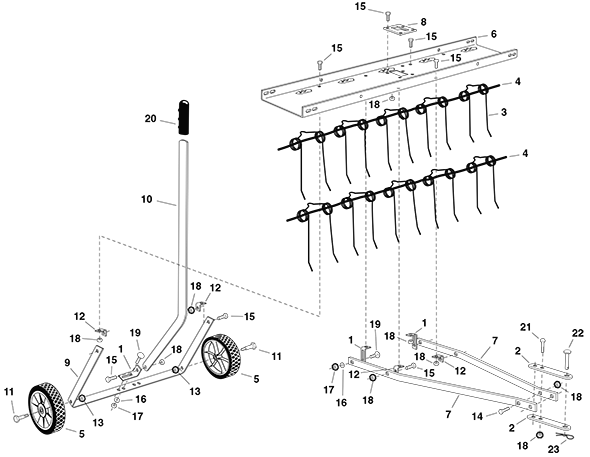

Schematic Image Zoomed
