Jonsered 45-01972 High Performance Lawn Sweeper 38"

Model: 45-01972

Save Part Not Listed?
product name

Jonsered 45-01972

...
...
xx
Tube, Upper Hopper Frame R.H. HUS-506623801
...
xx
Hitch Tube, R.H. HUS-531007410
...
xx
Tube, Upper Hopper Frame L.H. HUS-506623901
...
xx
Hitch Tube, L.H. HUS-531007412
...
xx
Tube, Lower Hopper Frame R.H. HUS-506624201
...
xx
Tube, Lower Hopper Frame L.H. HUS-506624301
...
xx
Strap, Bag Frame HUS-506621501
...
xx
Wrapper HUS-531007414
...
xx
Hopper Bag, 38" HUS-531007669
...
xx
Brace, Rear Support HUS-531007416
...
xx
Rod, Hopper Bag Pivot HUS-531007425
...
xx
Brush, 38" HUS-531007421
...
xx
Brush Shaft, 38" HUS-506620501
...
xx
Height Adjustment Ass'Y. HUS-531007419
...
1
Hitch Tube, R.H. HUS-531007409
...
2
Hitch Tube, L.H. HUS-531007411
...
3
End Plate, L.H. HUS-531002808
...
4
End Plate, R.H. HUS-531002809
...
5
Wrapper HUS-531007413
...
6
Brace, Rear Support HUS-531007415
...
7
Rivet, Pop HUS-722787003
...
8
Bolt, Carriage 5/16-18 X 3/4" HUS-872140506
...
9
Nut, Hex 5/16-18 (Sems) HUS-531007616
...
10
Height Adjustment Ass'Y. HUS-531007418
...
11
Bolt, Cv. Hd. 5/16-18 X 1-5/8" Lg. HUS-531002815
...
12
Washer, Bowed 1" X .32" X .06" HUS-531002816
...
13
Lock Washer, 5/16" HUS-735116405
...
14
Nut, Hex 5/16-18 Thread HUS-873220500
...
15
Brush Bushing Ass'Y. HUS-506620201
...
16
Ball Bearing HUS-531002817
...
17
Retainer, Dust Cover HUS-506620401
...
18
Brush Shaft, 32" HUS-531007615
...
19
Brush, 32" HUS-531007420
...
20
Bolt, Hex 1/4-20 X 3/4" Lg. HUS-725237051
...
21
Nut, Hex Lock 1/4-20 Thread HUS-531007629
...
22
Retainer, Brush (Double) HUS-506620601
...
23
Retainer, Brush (Single) HUS-06620701
...
24
Washer, Flat 1-1/8" X .78" X .025" HUS-531002741
...
25
Sprocket / Gear HUS-506621701
...
26
Dust Cover HUS-506621801
...
27
Dowel Pin (Drive) HUS-531007650
...
28
Ring, Retaining 3/4" HUS-506622301
...
29
Ring, Retaining .594" HUS-506622401
...
30
Washer, Shim 1-1/8" X .594" X .025" HUS-506622501
...
31
Bolt, Hex 5/16-18 X 3/4" Lg. HUS-874780512
...
32
Washer, Flat 1-1/2" X .375" X .062" HUS-734117341
...
33
Washer, 3/8" Std. Wrt HUS-734117201
...
34
Washer, Flat .78" X 1.25" X .06" HUS-506624701
...
35
Bolt, Hex 5/16-18 X 1-3/4" Lg. HUS-531002838
...
36
Nut, Hex Lock 3/8-24 Thread HUS-506622901
...
37
Hub Cap HUS-506623001
...
38
Ring, Retaining 1/2" HUS-506623101
...
39
Bolt, Hex 3/8-24 X 3-1/2" Lg. HUS-506623301
...
40
Bushing, Spacer HUS-506626601
...
41
Sprocket, Ratchet R.H. (Not Shown) HUS-531002799
...
42
Sprocket, Ratchet L.H. HUS-506623501
...
43
Washer, 1/2" X 1" X .02" HUS-506623601
...
44
Chain, Roller HUS-531002745
...
45
Bolt, Hex 1/4-20 X 1/2" Lg. HUS-531002821
...
46
Bolt, Hex 1/4-20 X 1" Lg. HUS-531007626
...
47
Housing, Wheel Drive Ass'Y. L.H. HUS-531002744
...
48
Housing, Wheel Drive Ass'Y. R.H. HUS-531002743
...
49
Tube, Upper Hopper Frame R.H. HUS-531007603
...
50
Tube, Upper Hopper Frame L.H. HUS-531007602
...
51
Tube, Lower Hopper Frame R.H. HUS-531007604
...
52
Tube, Lower Hopper Frame L.H. HUS-531007605
...
53
Strap, Bag Frame HUS-531007614
...
54
Rod, Hopper Support HUS-506624401
...
55
Hopper Rope HUS-531002734
...
56
Hopper Bag, 32" HUS-531007668
...
57
Strap, Height Adjustment HUS-531002828
...
58
Bracket, Hitch HUS-531002772
...
59
Bracket, Hitch HUS-506621201
...
60
Handle, Height Adjustment HUS-531002831
...
61
Bag Arm HUS-531007423
...
62
Rod, Hopper Bag Pivot HUS-531007424
...
63
Wheel & Tire Ass'Y. (White) HUS-531002746
...
64
Wheel Bearing HUS-531002740
...
65
Bolt, Hex 5/16-18 X 3" Lg. HUS-531002834
...
66
Bolt, Hex 5/16-18 X 2-1/4" Lg. HUS-531002835
...
67
Nut, Hex Lock 5/16-18 Thread HUS-531007616
...
68
Bushing, Spacer HUS-531002836
...
69
Washer, Flat 11/32" X 11/16" HUS-735116450
...
70
Knob, Wing 5/16-18 Thread HUS-506626001
...
71
Bolt, Carriage 5/16-18 X 3/4" Lg. HUS-872140506
...
72
Washer, Flat 5/16" Std. Wrt. HUS-734116401
...
73
Bolt, Hex 5/16-18 X 1" Lg. HUS-531007426
...
74
Grip, Height Adjust HUS-506626401
...
75
Washer, Tooth Lock 5/16" HUS-531002839
...
76
Pin, Hitch HUS-506625601
...
77
Tube, Hitch Spacer HUS-506626501
...
78
Hairpin Cotter, 1/8" 4 HUS-721680251
...
79
Clamp, Hopper Mount HUS-506626701
...
80
Palnut, 3/8" HUS-531002840
...
81
Plug, 1/4" HUS-531007683
...
82
Pin, Clevis 1/4" X 1-1/8" (Special) HUS-531007684
...
83
Pin, Clevis 3/8" X 1/2" (Special) HUS-531007685
...
84
Pin, Hair Cotter 3/32" 3 HUS-531002843
...
85
Pin, Clevis 3/8" X 3/4" Lg. HUS-531004638

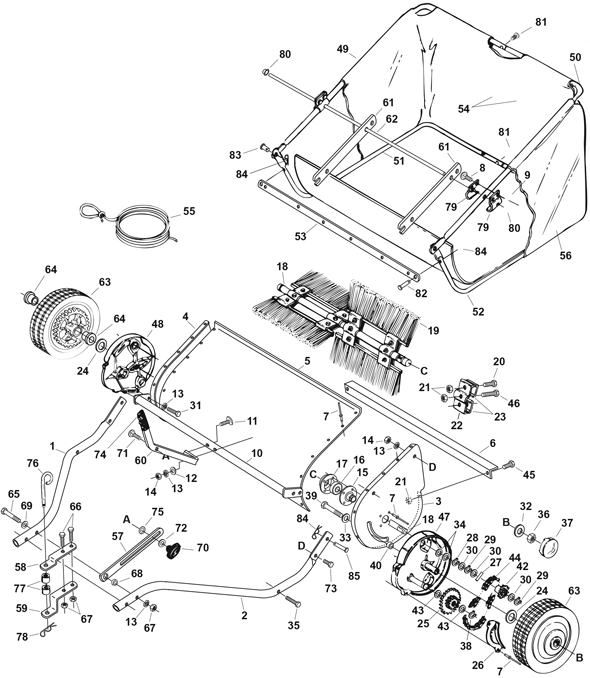

Schematic Image Zoomed
