Jonsered 45-01872 Spreader

Model: 45-01872

Save Part Not Listed?
product name

Jonsered 45-01872

...
...
xxx
Owner'S Manual HUS-531007681
...
1
Hopper HUS-531004601
...
2
Rivet, Stainless HUS-531002766
...
3
Ass'Y, Guide Closure HUS-531002750
...
4
Tube, Frame HUS-531004602
...
5
Slide Gate Angle Bracket HUS-531004603
...
6
Slide Gate Bracket HUS-531004604
...
7
Nut, Hex Lock 3/8-16 Thd.* HUS-873680600
...
8
Flow Control Link HUS-531007643
...
9
Nut, Hex Lock 1/4-20 Thd.* HUS-531007629
...
10
Tube, Crossover HUS-531002770
...
11
Bolt, Hex 5/16-18 X 1-3/4" Lg. HUS-531002838
...
12
Lock Washer, 5/16" HUS-735116405
...
13
Nut, Hex Lock, 5/16-18 Thd.* HUS-531007616
...
14
Tube, Hitch HUS-531004606
...
15
Wheel, Idler HUS-531002715
...
16
Wheel, Drive HUS-531004608
...
17
Bracket, Hitch HUS-531002772
...
18
Shaft, Axle HUS-531007675
...
19
Pin, Spring 3/16" Dia. X 1-1/4" Lg. HUS-531002774
...
20
Bushing, Axle Shaft HUS-531002753
...
21
Washer, Flat .78 I.D. HUS-506625201
...
22
Washer, Flat 1/2" HUS-531002792
...
23
Bearing, Flange HUS-531007655
...
24
Tube, Spacer HUS-531004610
...
25
Shaft, Sprocket HUS-531004611
...
26
Spreader Plate HUS-531002755
...
27
Pin, Spring 1/8" Dia. X 5/8". HUS-531007678
...
28
Sprocket, 6 Tooth HUS-531004612
...
29
Bushing, Delrin HUS-531004619
...
30
Sleeve, Agitator HUS-531004613
...
31
Wire, Agitator HUS-531002758
...
32
Washer, Flat 3/8" * HUS-734117201
...
33
Bolt, Hex 3/8-16 X 1-3/4" Lg.* HUS-725250151
...
34
Rod, Flow Control HUS-531004614
...
35
Brace, Hitch HUS-531002781
...
36
Shaft Support Plate HUS-531004615
...
37
Bolt, Hex 1/4-20 X 1-3/4" HUS-725237951
...
38
Nut, Hex 3/8-16 HUS-731232001
...
39
Washer, Nylon HUS-531002783
...
40
Washer, Flat 1/4" Std. HUS-734115201
...
41
Stop, Adjustable HUS-531007644
...
42
Bracket,Flow Control Mount HUS-531007642
...
43
Gear Assembly HUS-531002759
...
44
Flow Control Arm HUS-531007645
...
45
Cotter Pin 3/32" X 3/4" Lg.* HUS-721616701
...
46
Plate, Closure HUS-531002763
...
47
Grip, Flow Control Arm HUS-531002787
...
48
Bolt, Hex 3/8-16 X 1-1/4" Lg.* HUS-506626101
...
49
Pin, Cotter 1/8" X 1-1/2" HUS-721618501
...
50
Washer, Flat 1-5/8" O.D. HUS-531002716
...
51
Wing Nut, Nylon HUS-531007651
...
52
Bolt, Hex 3/8-16 X 2" Lg.* HUS-531002732
...
53
Lock Washer, 3/8" * HUS-735117301
...
54
Washer, 5/16 Sae HUS-531007476
...
55
Hitch Pin HUS-531008118
...
56
Hair Cotter Pin, 1/8" HUS-721680251
...
57
Spring, Torsion HUS-531004620
...
58
Bolt, Hex 1/4-20 X 3/4" Lg.* HUS-725237051
...
59
Pin, Spring 1/8" Dia. X 1" Lg. HUS-531002777
...
60
Bolt, Carriage 1/4-20 X 3/4" HUS-531007637
...
61
Strap, Hopper HUS-531002769
...
62
Vinyl Cover (Optional) HUS-531002790

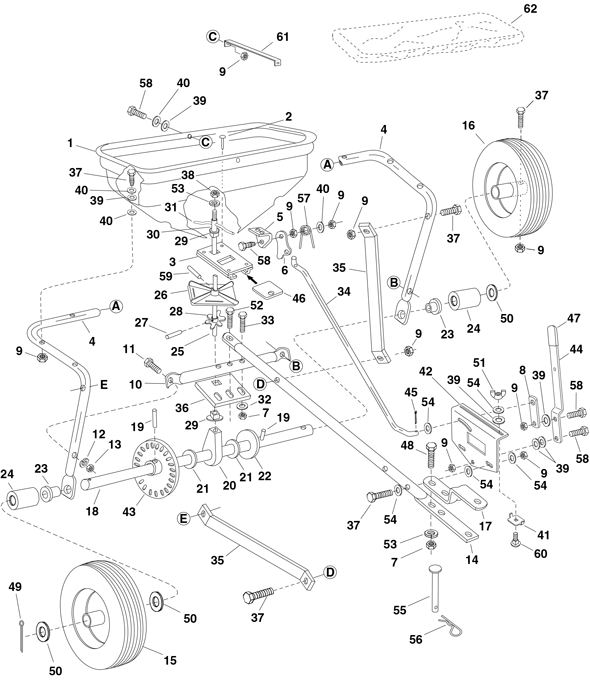

Schematic Image Zoomed
