Jonsered 2009-02 Trailer Prom , 504795401

Model: 2009-02

Save Part Not Listed?
product name

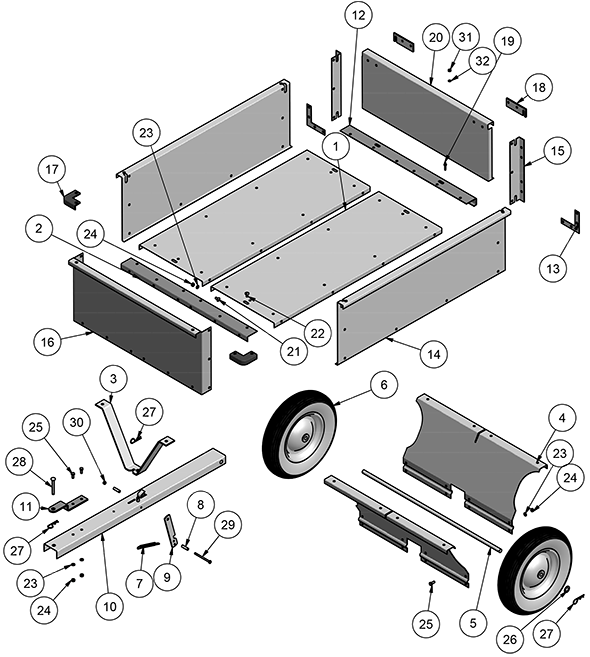

Jonsered 2009-02

...
...
1
Bottom Panel HUS-522752101
...
2
Front Cross Brace HUS-522752301
...
3
Tongue Support HUS-522752401
...
4
Wheel Axle Support HUS-522752501
...
5
Wheel Axle HUS-522752601
...
6
Wheel/Tire Assembly HUS-522752801
...
7
Latch Spring HUS-522752901
...
8
Latch Spacer HUS-522753001
...
9
Tongue Latch HUS-522753101
...
10
Hitch Tongue HUS-522753201
...
11
Hitch Pin Bracket HUS-522753301
...
12
Rear Cross Brace HUS-522753401
...
13
Rear Corner Bracket HUS-522753501
...
14
Side Panel HUS-522753601
...
15
Rear Corner Brace HUS-522753701
...
16
Front Panel HUS-522753801
...
17
Front Corner Brace HUS-522753901
...
18
Tailgate Latch HUS-522754001
...
19
Tailgate Pin HUS-522754101
...
20
Tailgate HUS-522754201
...
21
M8 X 16 Truss Head Bolt HUS-522754301
...
22
M8 X 20 Truss Head Bolt HUS-522754401
...
23
8Mm Lock Washer HUS-522754501
...
24
8Mm Hex Nut HUS-522754601
...
25
M8 X 20 Hex Bolt HUS-522754701
...
26
20Mm Flat Washer HUS-522754801
...
27
3Mm Hairpin HUS-522754901
...
28
Hitch Pin HUS-522755001
...
29
M6 X 90 Hex Bolt HUS-522755101
...
30
6Mm Nylon Nut HUS-522755201
...
31
6Mm Hex Nut HUS-522755301
...
32
6-8Mm Flat Washer HUS-522755401
