Jenn-Air YJMHF730RBL00

Model: YJMHF730RBL00

Save Part Not Listed?
product name

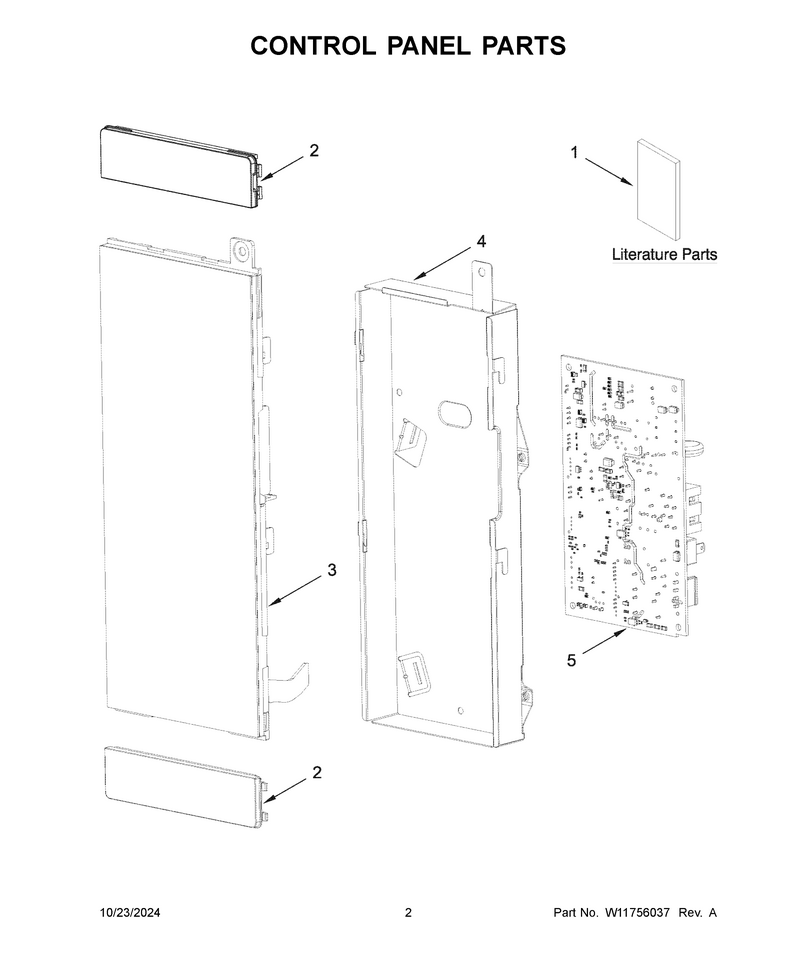

02 - Control Panel Parts

...
...
1
Manual, Owner's WPL-W11646004
...
1B
Sheet, Tech WPL-W11646009
...
1A
Guide, Quick Start WPL-W11582074
...
2
Cover, Console WPL-W11593035
...
3
Assembly, Console WPL-W11731153
...
4
Brkt-Cntrl WPL-W11707269
...
5
Cntrl-Elec WPL-W11731700

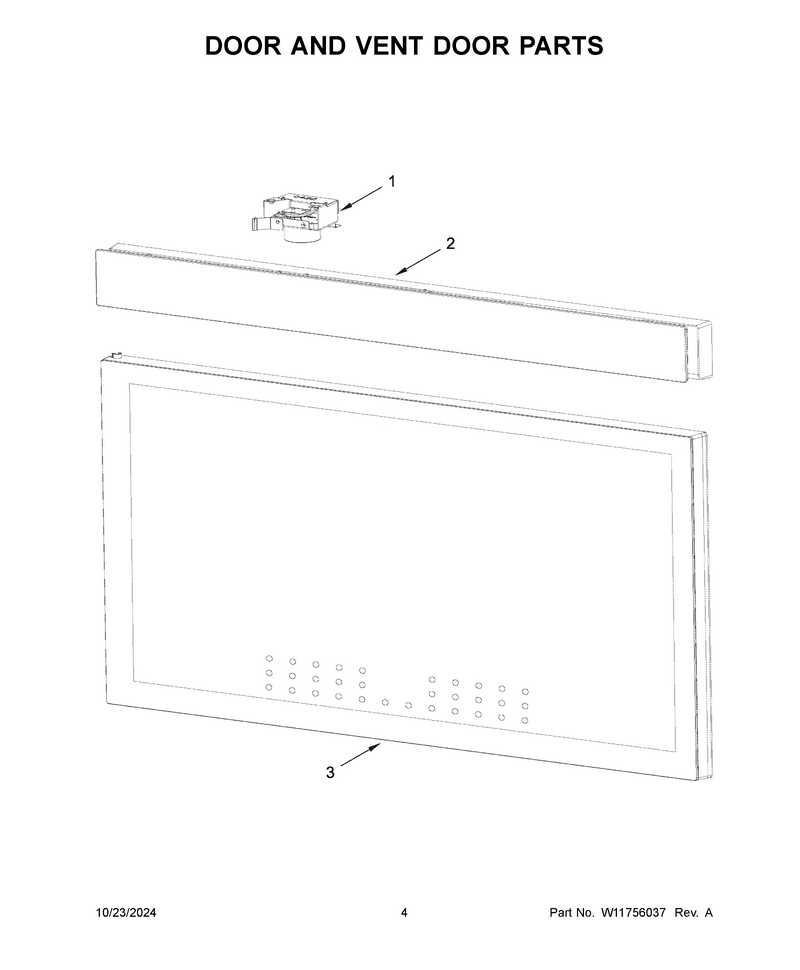

03 - Door And Vent Door Parts

...
...
1
Motor-Fan WPL-W11662713
...
2
Door, Venting (Stainless) WPL-W11686478
...
3
Door, Complete (Black) WPL-W11731167

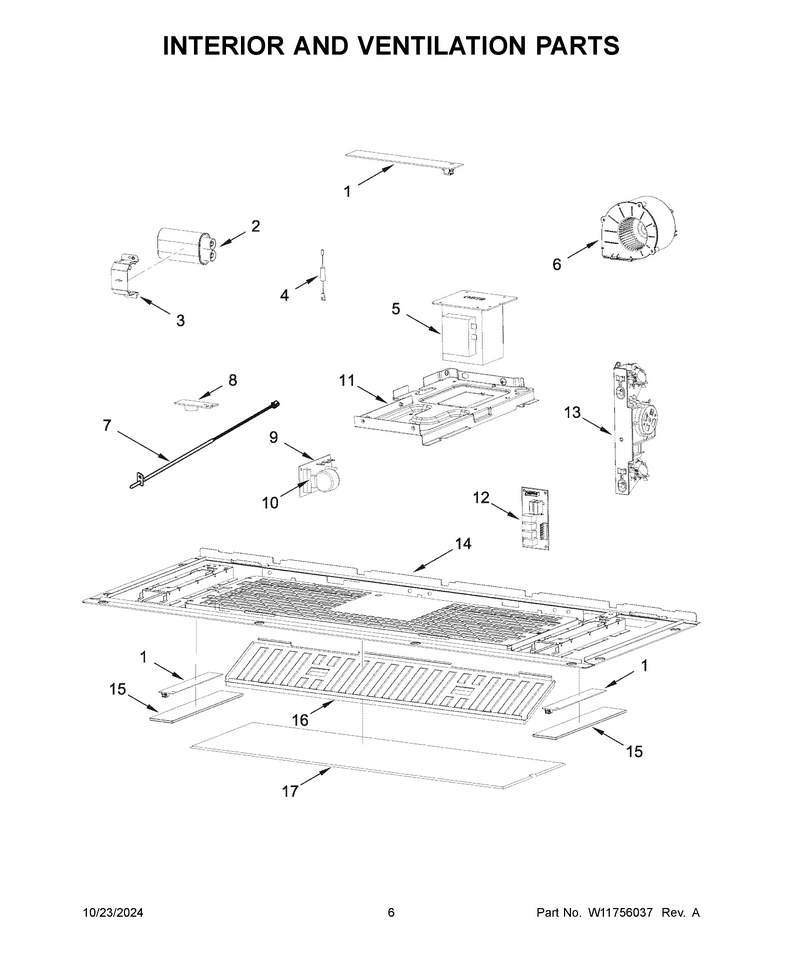

04 - Interior And Ventilation Parts

...
...
1
Light WPL-W11662697
...
2
Capactr-Mg WPL-W11707301
...
3
Bracket, Capacitor WPL-W11095808
...
4
Diode WPL-W11256462
...
5
Transformer, High Voltage WPL-W11619624
...
6
Motor-Fan WPL-W11662648
...
7
Thrmst-Fix WPL-W11707563
...
8
Thermistor WPL-W10163422
...
9
Filter WPL-WPW10531156
...
10
Fuse-Thrml WPL-W11707984
...
11
Plate, Hvt Support WPL-W11586579
...
12
Cntrl-Elec WPL-W11707312
...
13
Interlock WPL-W11662685
...
14
Plate, Bottom WPL-W11706994
...
15
Glass, Light WPL-W11593189
...
16
Filter WPL-W11707349
...
17
Filter WPL-W11707185

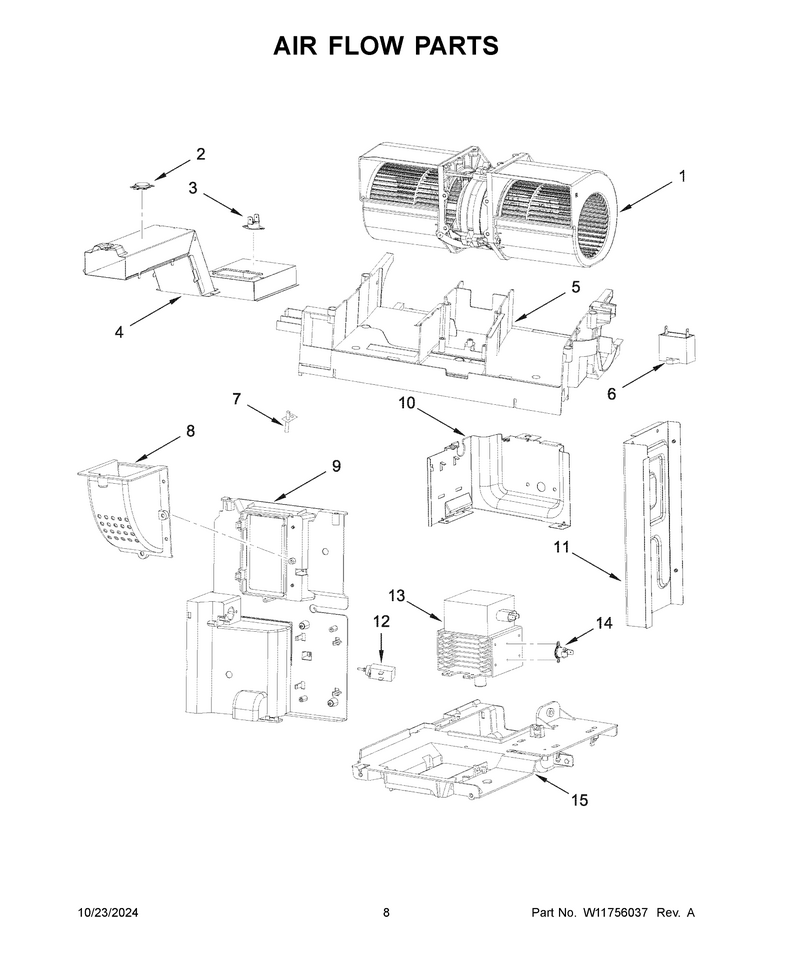

05 - Air Flow Parts

...
...
1
Motor-Fan WPL-W11662638
...
2
Sensor, Humidity WPL-W10557536
...
3
Thrmst-Fix WPL-W11707360
...
4
Guide-Air WPL-W11707361
...
5
Duct-Air WPL-W11707358
...
6
Capacitor, Motor WPL-W11405831
...
7
Sensor, Convection WPL-W10557537
...
8
Guide-Air WPL-W11662646
...
9
Guide-Air WPL-W11707310
...
10
Channel, Right Hood WPL-W11586584
...
11
Guide-Air WPL-W11662662
...
12
Actuator WPL-W10458325
...
13
Magnetron WPL-W11391712
...
14
Thrmst-Fix WPL-W11707308
...
15
Support WPL-W11662695

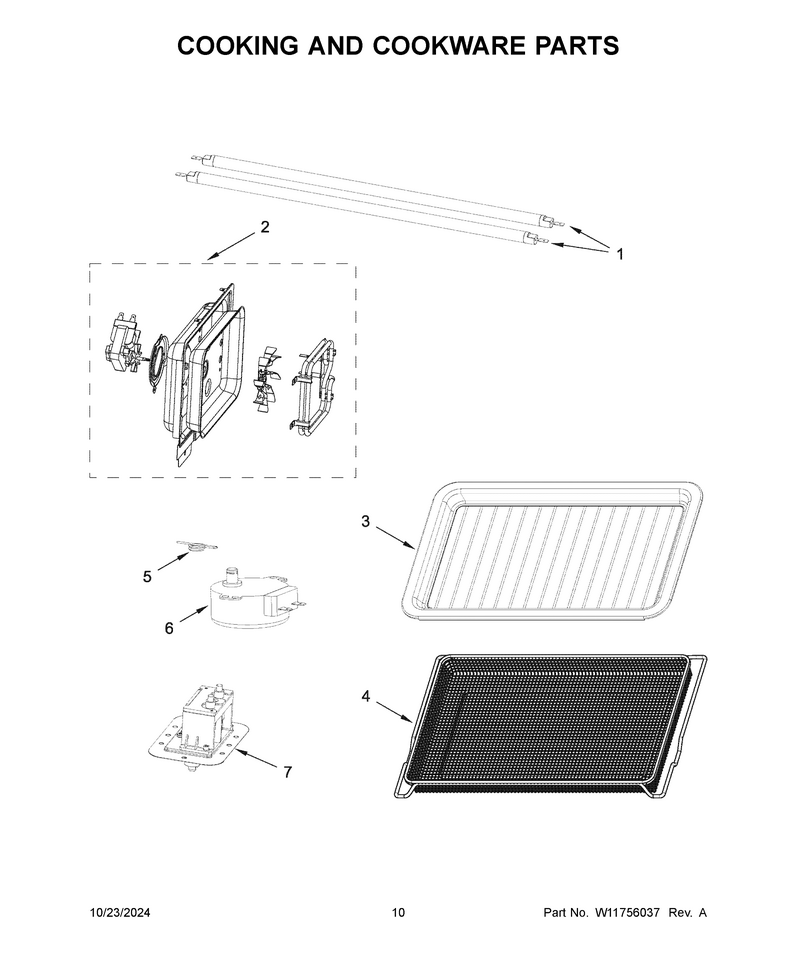

06 - Cooking And Cookware Parts

...
...
1
Heater WPL-W11707351
...
2
Assembly, Convection WPL-W11593984
...
3
Rack WPL-W11707190
...
4
Fry-Basket WPL-W11707191
...
5
Spring WPL-W11707330
...
6
Motor, Stirring WPL-W11658672
...
7
Heater WPL-W11707338

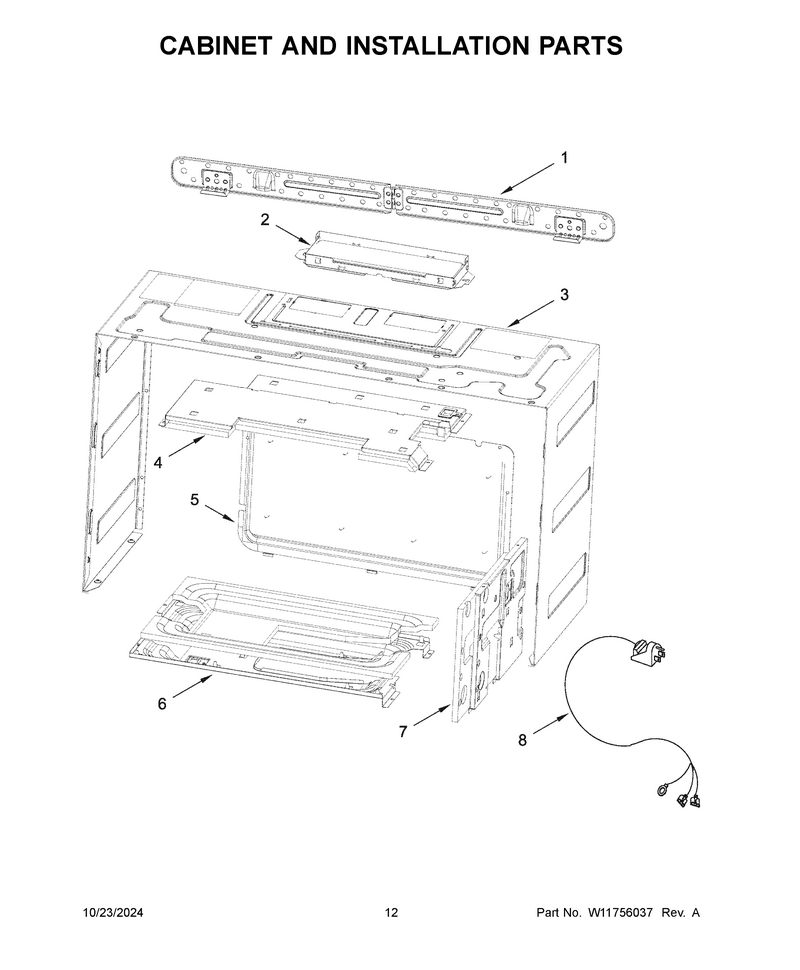

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Hood Led To Acu WPL-W11353989
...
1
Plate, Mounting WPL-W11593197
...
2
Damper WPL-W10843943
...
3
Case, Outer (Black) WPL-W11593183
...
4
Insulation WPL-W11707376
...
5
Insulation WPL-W11707555
...
6
Insulation WPL-W11707564
...
7
Insulation WPL-W11707566
...
8
Cord, Power WPL-W11340990
