Jenn-Air WM2720W

Model: WM2720W

Save Part Not Listed?
product name

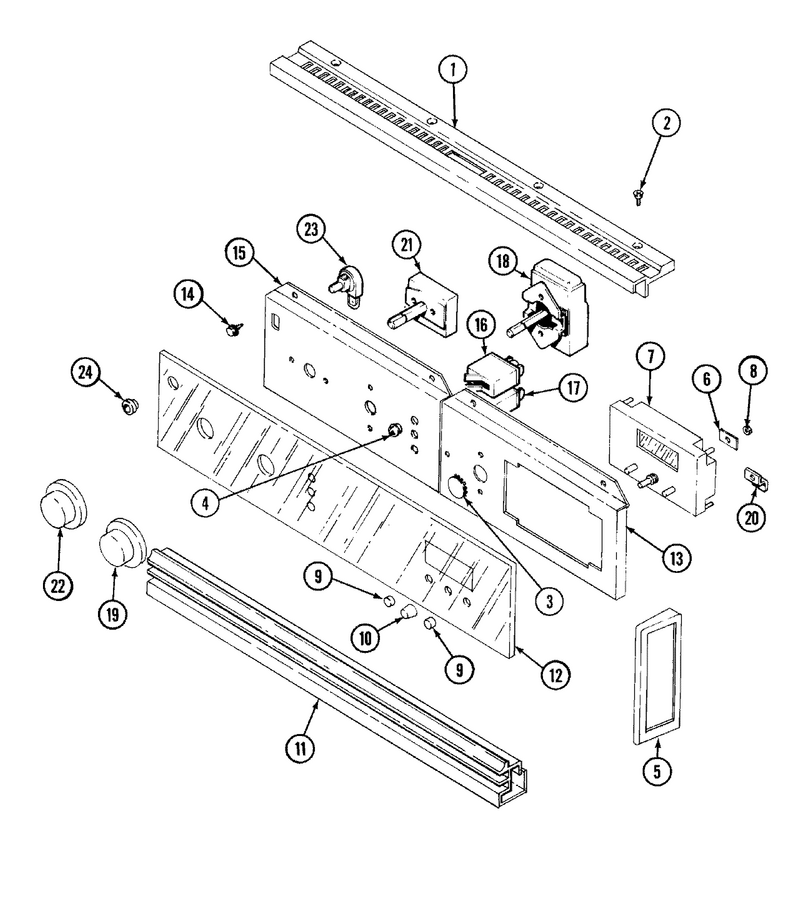

04 - Control Panel (lower)

...
...
NI
Guide, Quick Ref - Jenn-Air WPL-16000326
...
1
Extrusion, Top (Wht) WPL-04100541
...
2
Screw WPL-712066
...
3
Plug, Hole WPL-702286
...
4
Lens-Light WPL-WPY700630
...
5
Cap, End-Right (Wht) WPL-04100644
...
6
Bracket, Timer WPL-703676
...
7
Clock Kit, Electronic WPL-12200028
...
8
Palnut WPL-703679
...
9
Knob- Cloc WPL-WP7711P492-60
...
10
Knob- Cloc WPL-WP7711P492-60
...
11
Extrusion, Bottom (Chr) WPL-704874--
...
12
Glass, Control Panel WPL-705129
...
13
Motor WPL-676372
...
14
Pad, Spacer WPL-705331
...
15
Panel, Control (Lt) WPL-705337
...
16
Light, Indicator 240v WPL-Y702394
...
17
Light-Ind WPL-WP903115
...
18
Thermostat WPL-Y04100575
...
19
Knob, Thermostat (Wht) WPL-Y704482
...
20
Angle, Attachment WPL-701609
...
21
Switch, Selector (Upper) WPL-703078
...
22
Screw WPL-71002058
...
23
Switch, Push WPL-704878
...
24
Wire, Wire WPL-703370

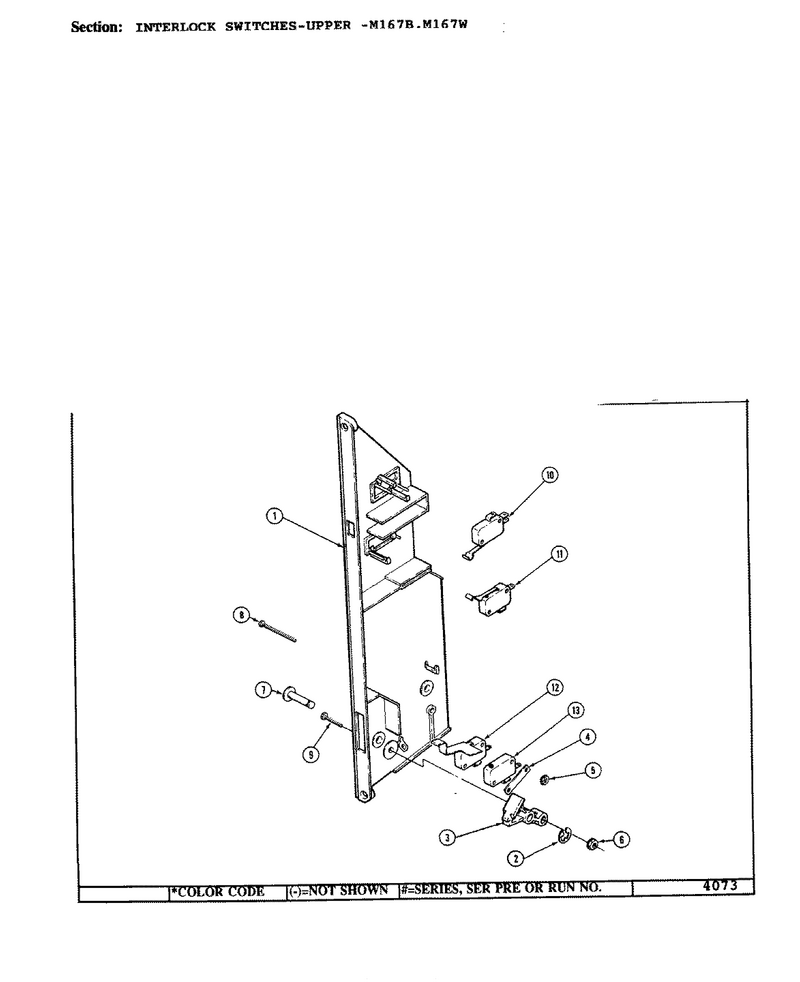

07 - Interlock Switches-Upper (m167b, M167w)

...
...
1
Bracket, Interlock WPL-Y02030133
...
2
Clip, Retainer WPL-03110040
...
3
Latch, Door Interlock WPL-02190049
...
4
Insulator, Switch WPL-Y01100043
...
5
Nut WPL-Y03050001
...
6
Nut WPL-03050003
...
7
Pin, Lever & Pivot Latch WPL-Y03070031
...
8
Screw WPL-03010117
...
9
Screw WPL-03010114
...
10
Switch, Tertiary (Logic) WPL-Y01140086
...
11
Switch, Monitor WPL-Y01140084
...
12
Switch, Primary Interlock WPL-01140068
...
13
Switch, Logic Interlock WPL-Y01140043

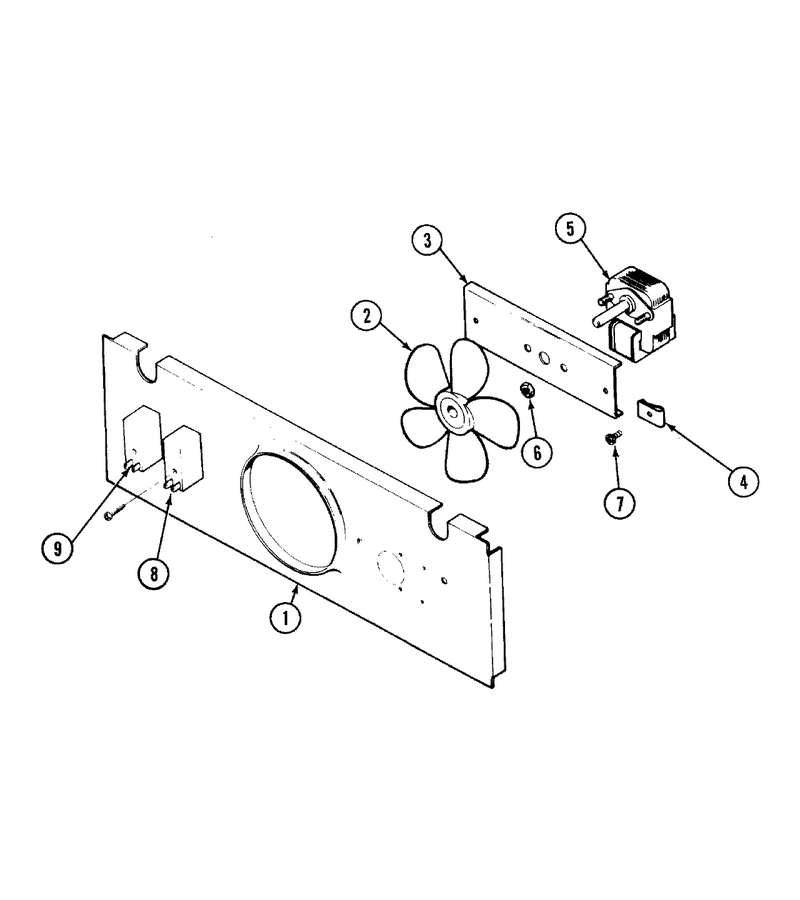

01 - Blower Motor (cooling)

...
...
1
Screw WPL-WP90767
...
2
Blade, Fan WPL-702944
...
3
Mount, Motor WPL-Y704732
...
4
Clip, J WPL-Y700556
...
5
Motor, Fan WPL-Y701721
...
6
Nut K WPL-M0282005
...
7
Screw WPL-WP90767
...
8
Insert WPL-706080
...
9
Screw WPL-704335

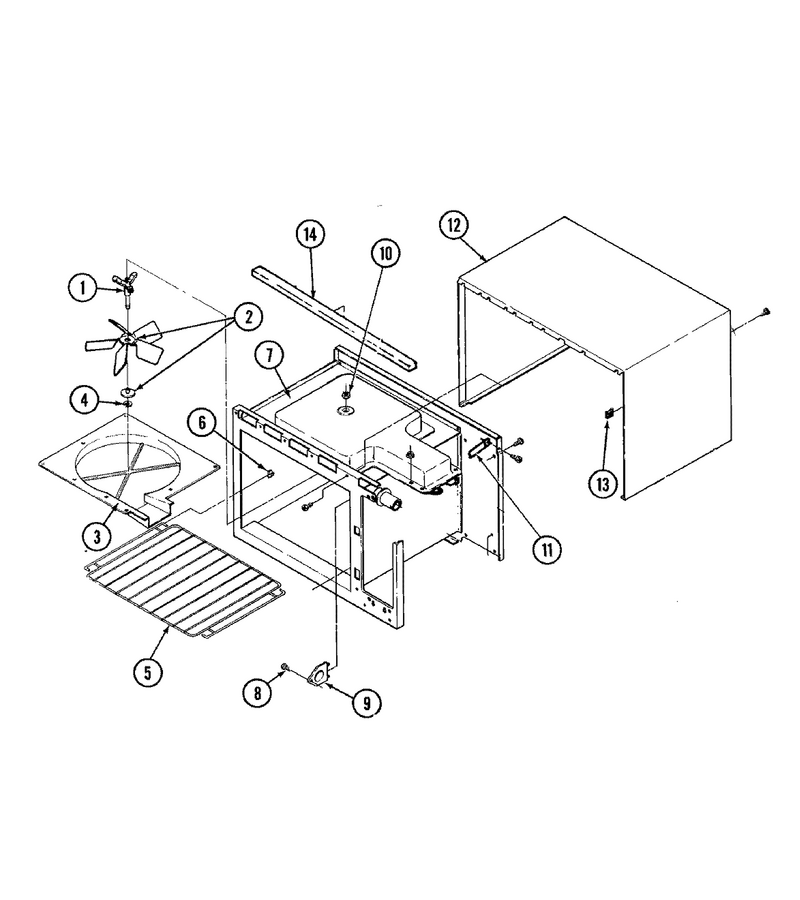

03 - Body (upper M167b/m167w)

...
...
1
Shaft, Stirrer WPL-02360058
...
2
Blade, Bushing Assembly WPL-04021190
...
3
Cover, Stirrer WPL-Y02300045
...
4
Clip, Stirrer WPL-03110066
...
5
Shelf, Bottom (Plastic) WPL-Y02280041
...
6
Support, Rack WPL-02010031
...
7
Cavity WPL-04021553
...
8
Screw WPL-03010098
...
9
Lens, Bulb WPL-Y02400007
...
10
Nut, Shaft Stirrer WPL-03050007
...
11
Brace, Upper Right Support WPL-02020020
...
12
Cabinet (White) WPL-02140065
...
13
Clip, Cabinet (Lt) WPL-03110046
...
14
Label, Cook Code (W) WPL-02240827

08 - Internal Controls (lower)

...
...
1
Panel, Inner Top WPL-04100559
...
2
Latch Assy. WPL-Y703357
...
3
Pin, Cotter WPL-Y701686
...
4
Wire, Gray WPL-703767
...
5
Screw WPL-WP12990527
...
6
Thermostat WPL-701687
...
7
Shield, Switch WPL-701706
...
8
Lever, Latch (Wht) WPL-Y703848
...
9
Washer WPL-Y700862
...
10
Knob (Wht) WPL-704460
...
11
Switch, Solenoid WPL-Y702360
...
12
Switch, Door WPL-702806
...
13
Switch, Door WPL-702805
...
14
Insulator WPL-Y702350
...
15
Insulator WPL-703264
...
16
Screw WPL-702807
...
17
Tube, Vent (Upr Oven) WPL-04100539
...
18
Screw WPL-WP71001171
...
19
Bracket, Vent Tube WPL-701680
...
20
Limit, Fan WPL-Y702750
...
21
Screw WPL-WP59002061

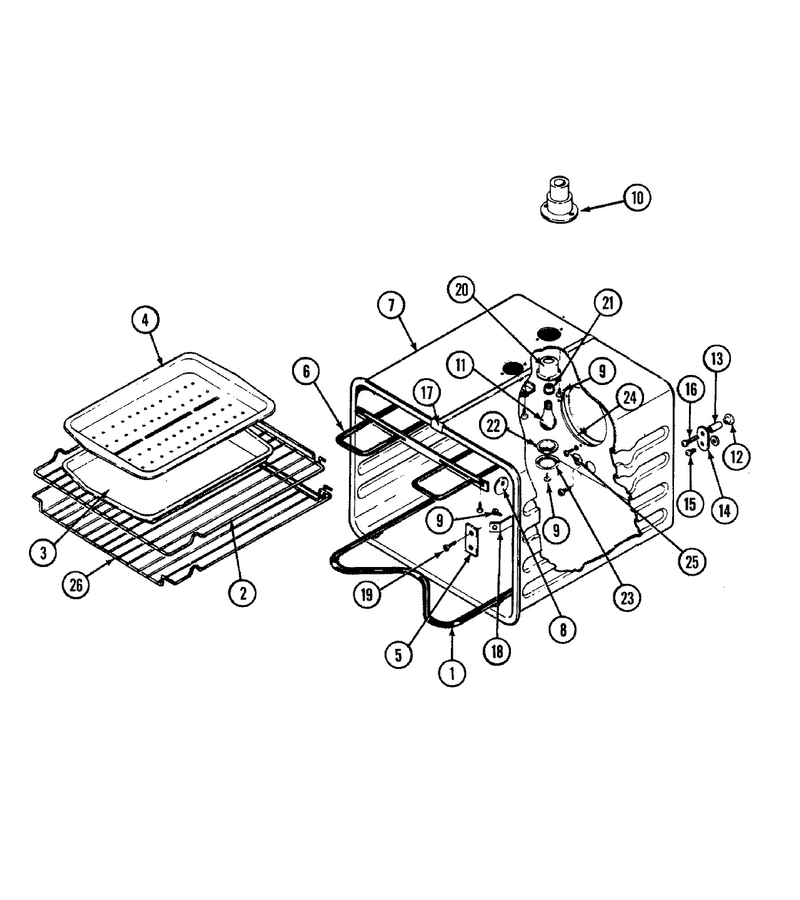

10 - Oven (lower)

...
...
1
Element, Bake WPL-Y04100387
...
2
Rack, Oven WPL-Y704660
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Cover, Sensor Hole WPL-Y705342
...
6
Element- B WPL-WPY04100514
...
7
Screw WPL-WP7101P434-60
...
8
Standoff WPL-703007
...
9
Screw WPL-WP1163283
...
10
Tube, Vent WPL-701738
...
11
Light Bulb WPL-8009
...
12
Nut, Tee WPL-715294
...
13
Spacer, Oven WPL-701741
...
14
Plate, Grounding WPL-701742
...
15
Screw WPL-WP71001171
...
16
Insulation-Back WPL-702283
...
17
Clip, Oven WPL-Y702618
...
18
Clip, Bulb WPL-Y701541
...
19
Screw WPL-WP59002061
...
20
Receptacle, Holder WPL-704142
...
21
Sockt-Lite WPL-WP74003387
...
22
Lens, Light WPL-Y704143
...
23
Retainer, Lens WPL-Y704144
...
24
Plate, Non-Convect WPL-705343
...
25
Screw WPL-WP74003976
...
26
Rack, Oven (Offset) WPL-Y704662

05 - Control Panel/upper (m167b, M167w)

...
...
1
Board, Control WPL-01210107
...
2
Switch Panel WPL-02060376
...
3
Insert, White WPL-02100259
...
4
Screw WPL-03020041
...
5
Insert, Control/door WPL-Y02100196

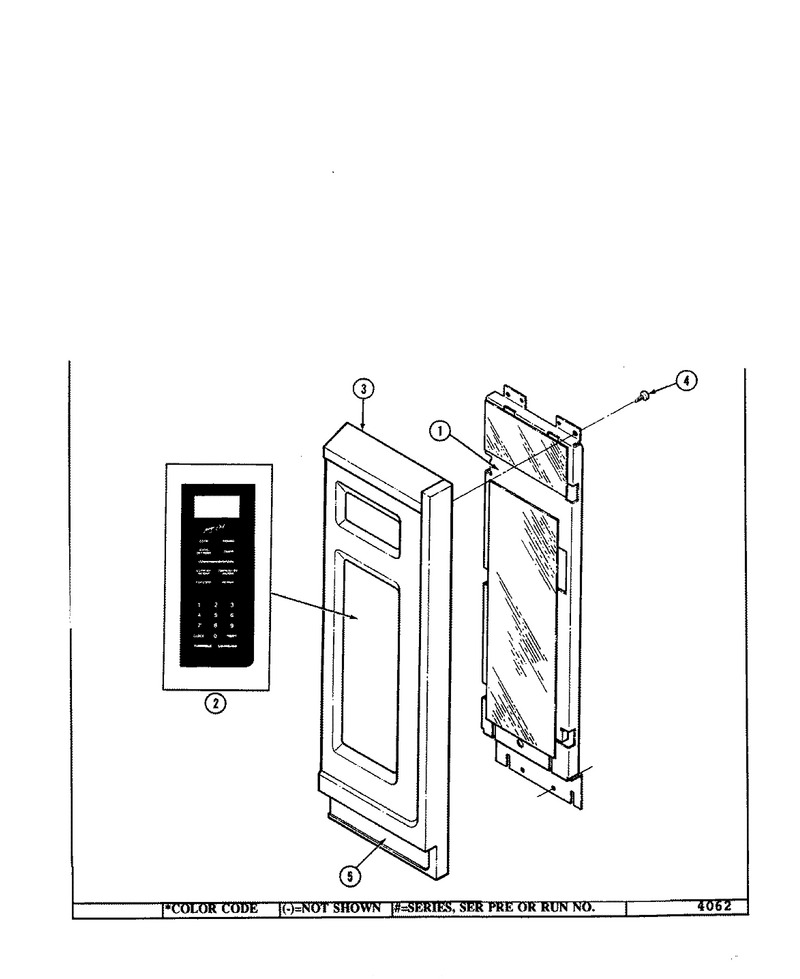

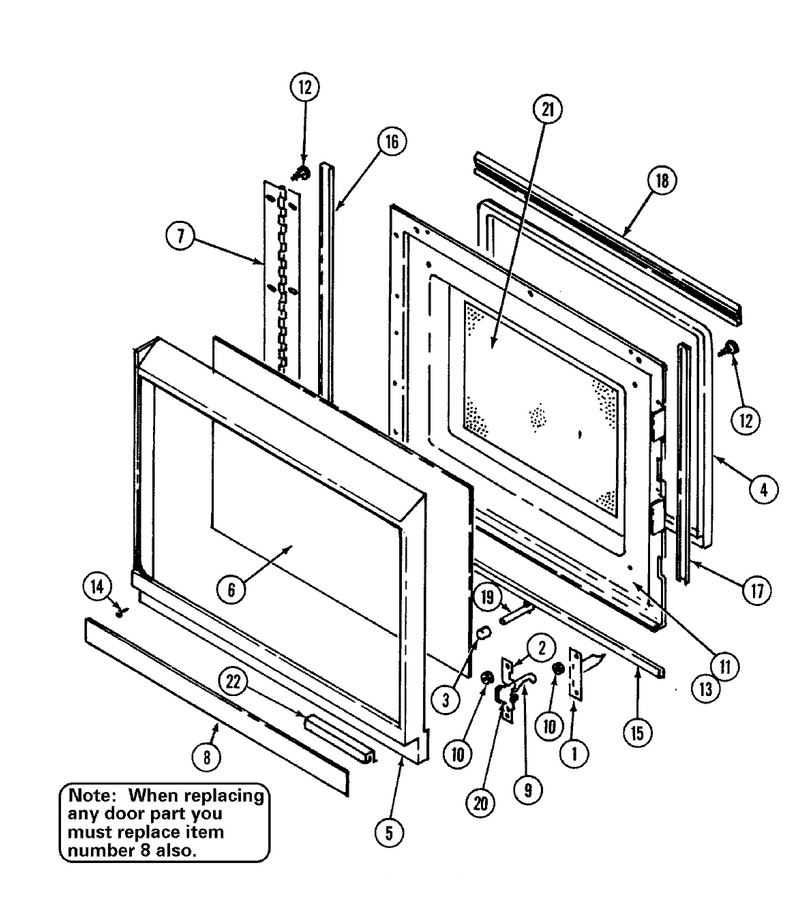

06 - Door-Upper (m167b)

...
...
1
Activator, Monitor WPL-Y02030117
...
2
Bracket, Door Latch WPL-Y02030116
...
3
Bumper WPL-Y02100135
...
4
Choke, Filler (Wht) WPL-Y02100080
...
5
Frame, Door(W) WPL-04021590
...
6
Glass, Door (W) WPL-02220116
...
7
Hinge, Door WPL-02200016
...
8
Insert, Control/door WPL-Y02100196
...
9
Screw WPL-Y03010113
...
10
Nut K WPL-M0282005
...
11
Panel, Inner Door WPL-04021461
...
12
Screw, Burner Mtg WPL-7101P286-60
...
13
Screw WPL-Y03010118
...
14
Screw WPL-WP74004005
...
15
Seal, Bottom WPL-02120114
...
16
Seal, Hinge Side WPL-Y02120121
...
17
Seal, Latch Side WPL-Y02120122
...
18
Shim WPL-Y03120064
...
19
Spacer, Door Window WPL-Y03120069
...
20
Spring, Door Latch WPL-Y03180023
...
21
Window, Polyester WPL-Y02220073
...
22
Extrusion, Handle (Wht) WPL-02120166

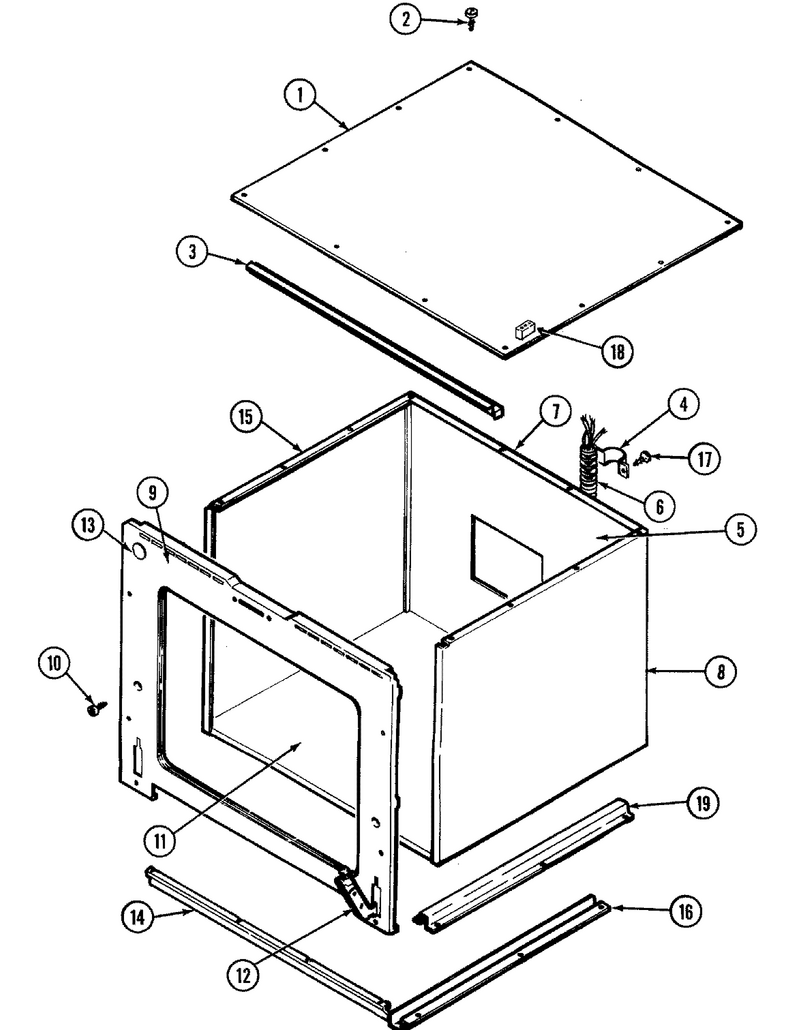

02 - Body (lower)

...
...
1
Top, Unit (Outer) WPL-04100567
...
2
Screw WPL-WP12990527
...
3
Support, Top WPL-703095
...
4
Clamp, Conduit WPL-70169-2
...
5
Back, Inner WPL-04100561
...
6
Wire Cable Assy WPL-04100579
...
7
Angle, Oven Support WPL-702336
...
8
Panel, Side (Rh) WPL-04100558
...
9
Closure, Front WPL-04100571
...
10
Screw WPL-W11233072
...
11
Panel, Bottom WPL-04100562
...
12
Kit- Hinge WPL-12200038
...
13
Button, Plug WPL-703688
...
14
Trim, Oven (Lt/wht) WPL-71001456
...
15
Panel, Side (Lh) WPL-04100557
...
16
Motor WPL-675835
...
17
Screw WPL-WP7101P126-60
...
18
Outlet, Appliance WPL-701704
...
19
Rail, Support WPL-04100563

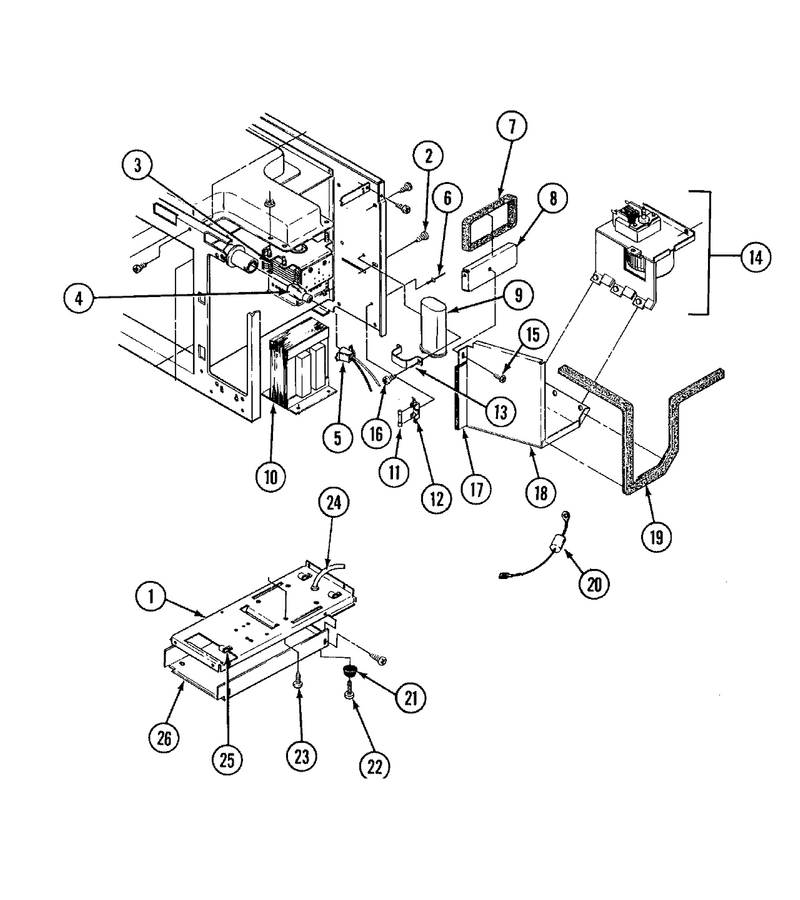

09 - Internal Controls-Upper (m167b, M167w)

...
...
1
Plate, Component Mounting WPL-Y02040101
...
2
Screw WPL-WP8281227
...
3
Magnetron WPL-01040004
...
4
Light, Oven WPL-01060029
...
5
Receptacle, Light WPL-01100045
...
6
Rivet WPL-WP210720
...
7
Tape, Foam WPL-02310109
...
8
Support, Duct Magnetron WPL-Y02170111
...
9
Resistor, Bleeder WPL-01010008
...
10
Transformer, H.v. WPL-01130028
...
11
Fuse 15a 2 WPL-WPY01050009
...
12
Not Required Part Or See Note WPL-W10124350
...
13
Bracket WPL-02030123
...
14
Wheel, Blower WPL-Y01110016
...
15
Screw WPL-03010098
...
16
Screw WPL-Y03020076
...
17
Tape, Foam WPL-02310071
...
18
Duct Assembly, Magnetron WPL-Y04020842
...
19
Tape, Foam WPL-02310070
...
20
Diode WPL-Y04010206
...
21
Foot, Base WPL-Y02230008
...
22
Screw WPL-W11233072
...
23
Screw WPL-03010094
...
24
Cord, Power (Wht) WPL-01080055
...
25
Clip, Wire Harness WPL-03110022
...
26
Hv Lead Wire (8 ``) WPL-Y04060532
