Jenn-Air W246-C

Model: W246-C

Save Part Not Listed?
product name

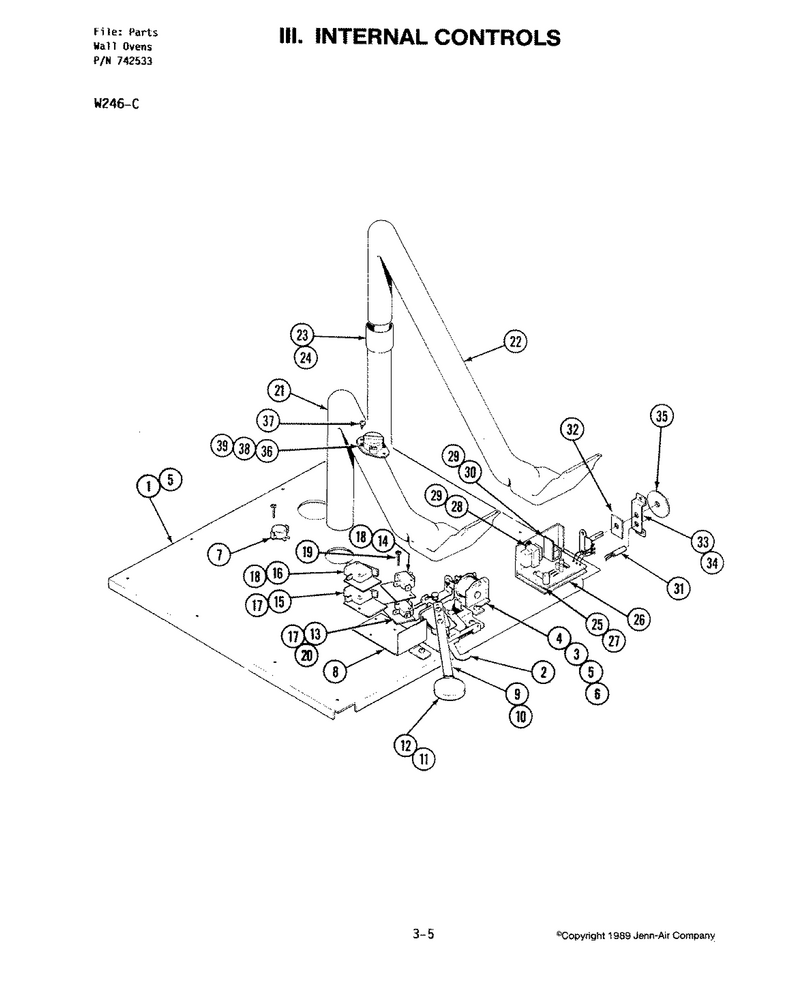

06 - Internal Controls

...
...
1
Panel-Top WPL-704155
...
2
Latch Assy. WPL-Y703357
...
3
Pin, Cotter WPL-Y701686
...
4
Solenoid WPL-Y702526
...
5
Screw WPL-WP12990527
...
6
Wire, Gray WPL-703767
...
7
Limit, Thermostat WPL-703259
...
8
Shield, Switch WPL-701706
...
9
Lever, Latch (Blk) WPL-Y704227
...
10
Screw WPL-707407
...
11
Spring, Knob WPL-701671
...
12
Knob (Blk) WPL-Y703932
...
13
Switch, Solenoid WPL-Y702360
...
14
Switch, Latch-Top Front WPL-Y703351
...
15
Switch, Door WPL-702805
...
16
Switch, Door WPL-702806
...
17
Insulator WPL-Y702350
...
18
Insulator WPL-703264
...
19
Screw WPL-702807
...
20
Screw WPL-702380
...
21
Tube, Vent-Top Offset WPL-703381
...
22
Tube, Vent-Top (Upper) WPL-703067
...
23
Tube, Vent-Rear WPL-703068
...
24
Bracket, Anti Short WPL-704922
...
25
Harness, P.c. Board WPL-703268
...
26
Bracket, Mount WPL-701630
...
27
Support, P.c. Board WPL-700893
...
28
Transformer WPL-701629
...
29
Screw WPL-703534
...
30
Relay WPL-Y703274
...
31
Light, Indicator WPL-703075
...
32
Insulator, Control WPL-703093
...
33
Bracket, Control WPL-703092
...
34
Screw WPL-WP74004005
...
35
Dial, Temp Control WPL-703094
...
36
Limit, Oven WPL-Y702107
...
37
Screw WPL-71002058
...
38
Terminal WPL-Y702711
...
39
Screw WPL-703773

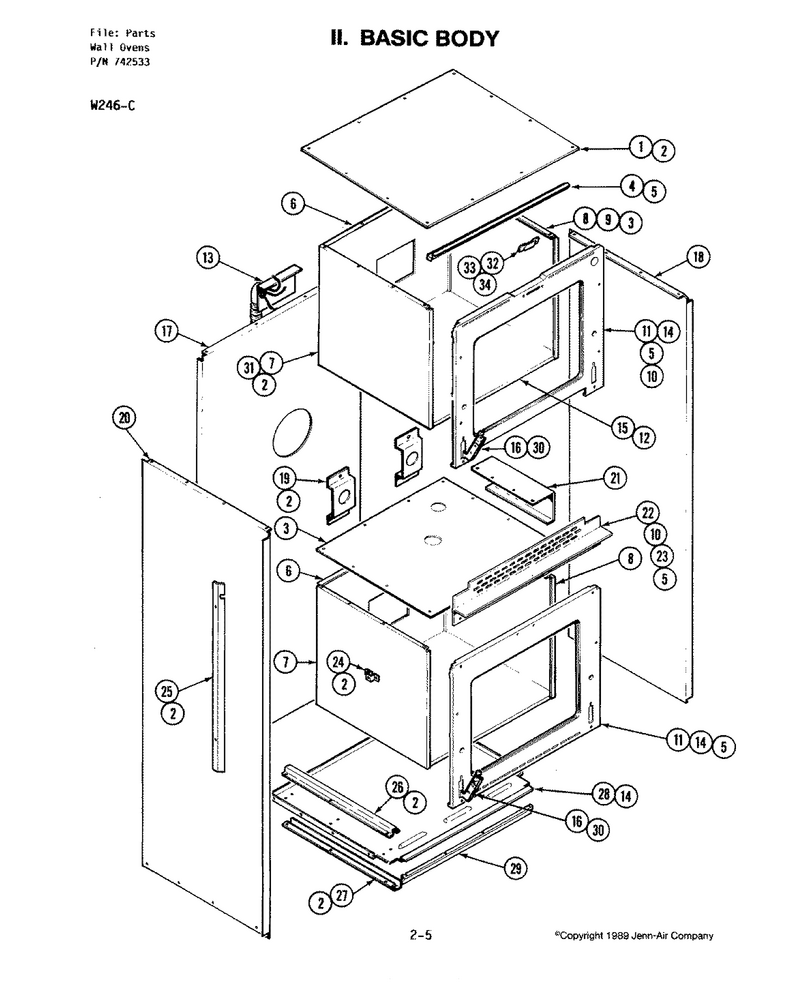

03 - Body

...
...
1
Top (Outer) WPL-701681
...
2
Screw WPL-WP12990527
...
3
Panel, Top WPL-703768
...
4
Support, Top WPL-703095
...
5
Clip, J WPL-Y700556
...
6
Panel, Back WPL-701700
...
7
Panel, Side (Lt) WPL-701697
...
8
Panel, Side (Rt) WPL-701676
...
9
Grommet, Flexible WPL-Y703352
...
10
Switch, Oven Light WPL-866294
...
11
Closure, Front (Lower) WPL-703255
...
12
Angle, Oven Support WPL-701701
...
13
Cable, Wire WPL-712210
...
14
Screw WPL-W11233072
...
15
Panel, Bottom WPL-701669
...
16
Kit- Hinge WPL-12200038
...
17
Panel, Outer (Rear) WPL-703097
...
18
Panel, Outer (Rt) WPL-703098
...
19
Spacer, Rear (Lower Oven) WPL-703252
...
20
Panel, Outer (Lt) WPL-703099
...
21
Spacer, Side WPL-703253
...
22
Extrusion, Center WPL-704261
...
23
Screw WPL-WPY706189
...
24
Bracket, Hat (Side) WPL-712072
...
25
Shield, Capillary Tube WPL-703251
...
26
Support, Bottom WPL-701667
...
27
Motor WPL-675835
...
28
Panel, Bottom (Outer) WPL-701668
...
29
Trim, Oven (Lower) WPL-701848
...
30
Screw WPL-WP3196183
...
31
Bracket, Hat (Rear) WPL-701683
...
32
Bracket, Vent Tube WPL-701680
...
33
Shield, Vent WPL-703353
...
34
Screw WPL-WP90767

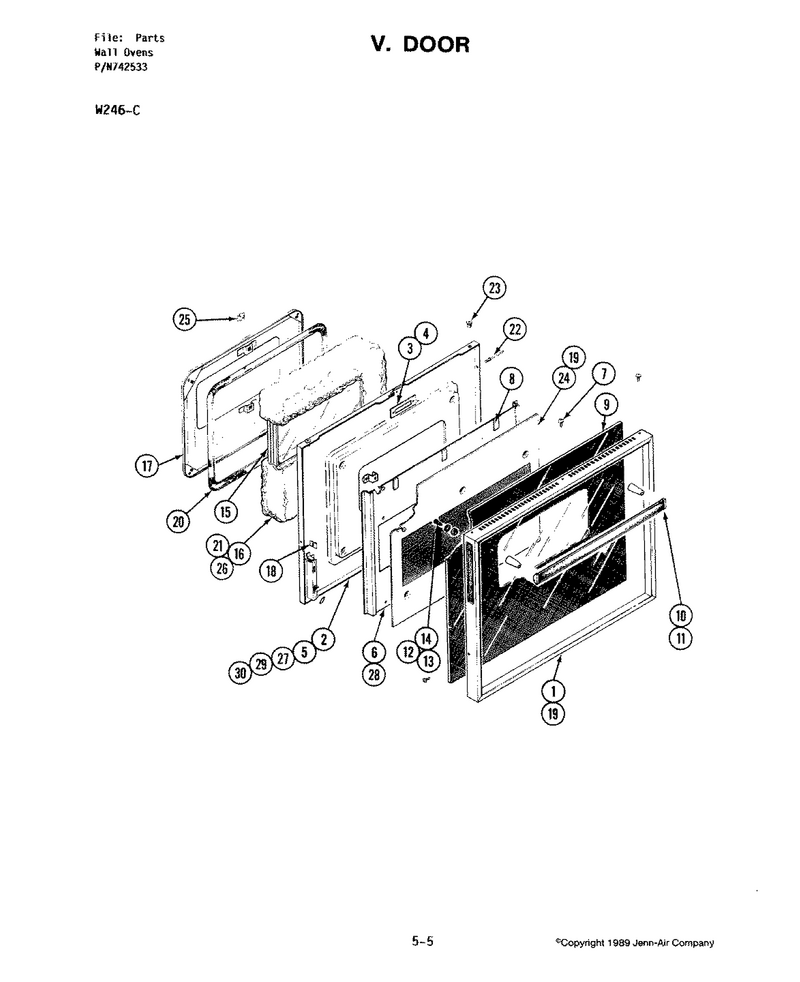

05 - Door

...
...
1
Frame WPL-704318
...
2
Liner, Door WPL-712188
...
3
Plate, Latch (Upper) WPL-Y712010
...
4
Rivet WPL-WP210720
...
5
Bracket, Stand-Off WPL-701652
...
6
Baffle WPL-712250
...
7
Screw WPL-WPY706189
...
8
Spacer WPL-W10840861
...
9
Glass, Lower Door WPL-Y704287
...
10
Handle WPL-Y704225
...
11
End Cap (Blk) WPL-Y704224
...
12
Washer WPL-Y704230
...
13
Washer WPL-Y700446
...
14
Screw WPL-Y704231
...
15
Pack, Window WPL-703804
...
16
Insulation, Bottom WPL-701658
...
17
Door Plug Weld WPL-Y04100664
...
18
Clip, Retainer WPL-Y700503
...
19
Screw WPL-W11233072
...
20
Seal- Oven WPL-WP701650
...
21
Insulation, Side WPL-701659
...
22
Rivet, Accordion WPL-70164-1
...
23
Nut, Push-In WPL-702657
...
24
Panel, Perforated (Upr) WPL-703784
...
25
Hinge-Door WPL-WP74008014
...
26
Insulation, Top WPL-701660
...
27
Screw WPL-WPY706189
...
28
Bumper, Button WPL-Y704223
...
29
Screw WPL-715870
...
30
Washer WPL-Y703449

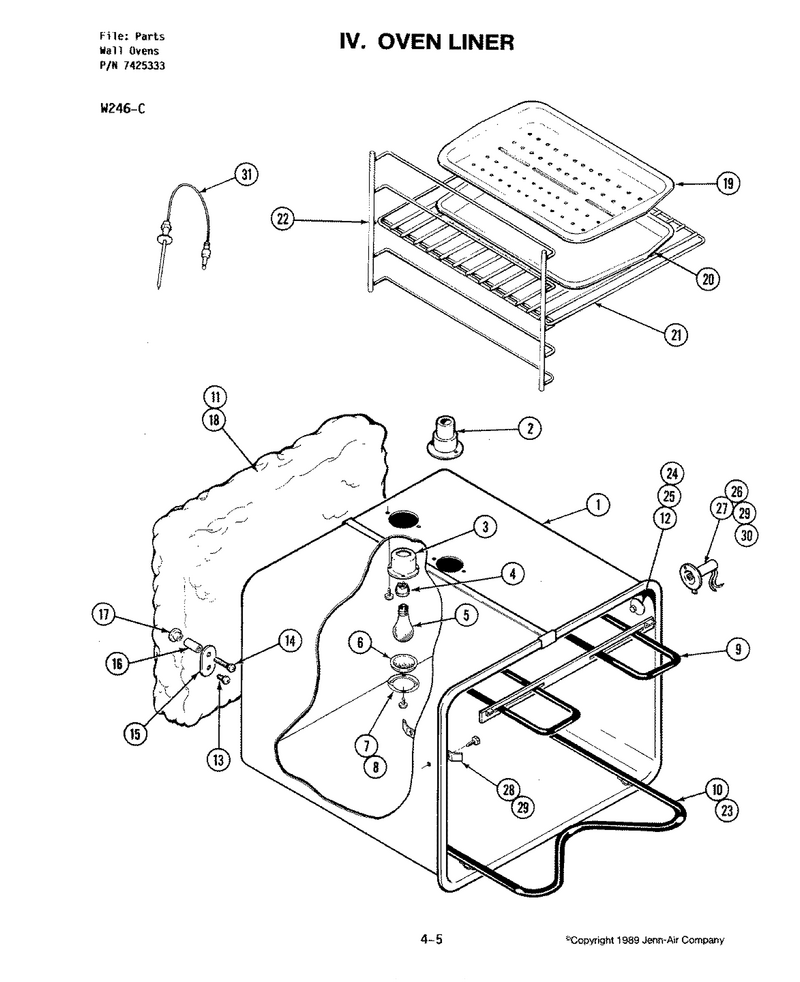

07 - Oven

...
...
1
Oven Liner WPL-12001401
...
2
Tube, Vent WPL-701738
...
3
Receptacle, Holder WPL-704142
...
4
Sockt-Lite WPL-WP74003387
...
5
Light Bulb WPL-8009
...
6
Lens, Light WPL-Y704143
...
7
Retainer, Lens WPL-Y704144
...
8
Screw WPL-WP1163283
...
9
Element- B WPL-WPY04100016
...
10
Element- B WPL-WPY04100020
...
11
Insulation, Wrap WPL-701702
...
12
Cover (Upper) WPL-701732
...
13
Screw WPL-WP71001171
...
14
Screw WPL-701744
...
15
Plate, Grounding WPL-701742
...
16
Spacer, Oven WPL-701741
...
17
Nut, Tee WPL-715294
...
18
Insulation, Rear WPL-701703
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Procelain Broiler (Pan And Grid) WPL-4396923
...
21
Rack, Oven WPL-Y701725
...
22
Support, Rack WPL-Y701728
...
23
Screw WPL-WP179051
...
24
Screw WPL-703773
...
25
Standoff WPL-703007
...
26
Harness, Probe WPL-703262
...
27
Jack, Probe WPL-703263
...
28
Clip, Bulb WPL-Y701541
...
29
Screw WPL-WP1163283
...
30
Mount, Meat Probe WPL-Y701731
...
31
Probe- Tem WPL-WP71001870

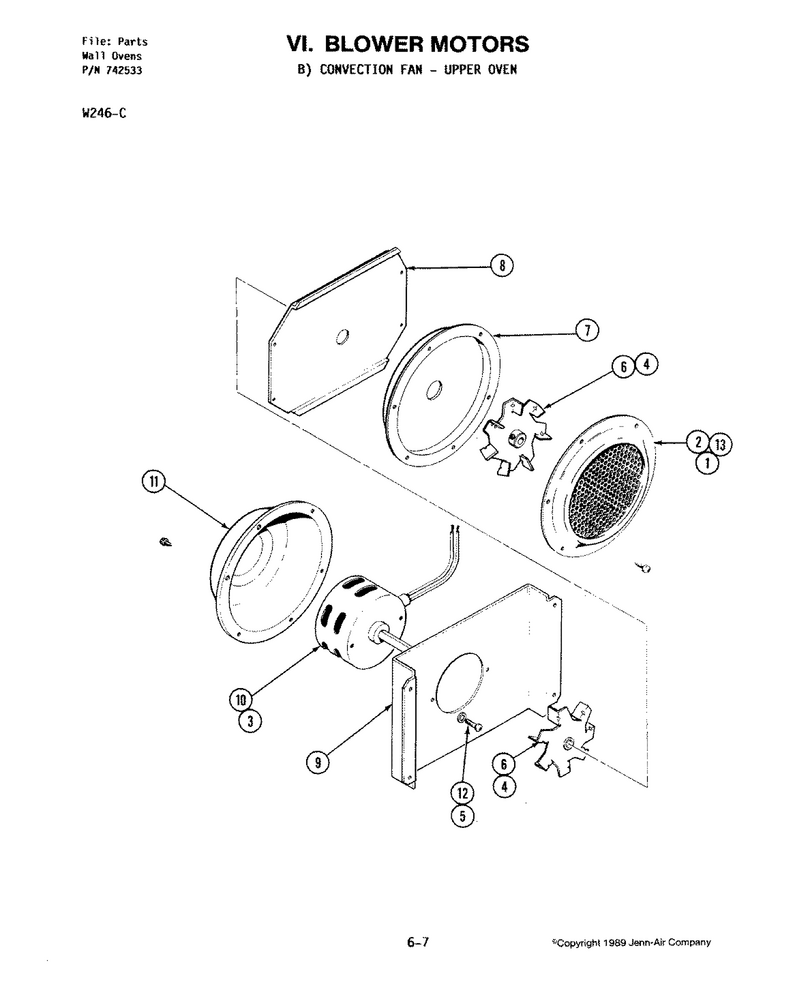

01 - Blower Motor (convection Fan Upper)

...
...
1
Screw WPL-WP1163283
...
2
Plate, Convection Front WPL-701707
...
3
Screw WPL-WP488234
...
4
Screw, Set WPL-701709
...
5
Washer, Lock WPL-715910
...
6
Wheel, Convection WPL-701711
...
7
Plate, Convection Back WPL-701712
...
8
Cover, Motor Front WPL-701713
...
9
Plate, Motor Mount WPL-Y700601
...
10
Motor, Convect WPL-Y704972
...
11
Cover, Motor WPL-701716
...
12
Screw WPL-WP12990527
...
13
Screw WPL-WP74003976

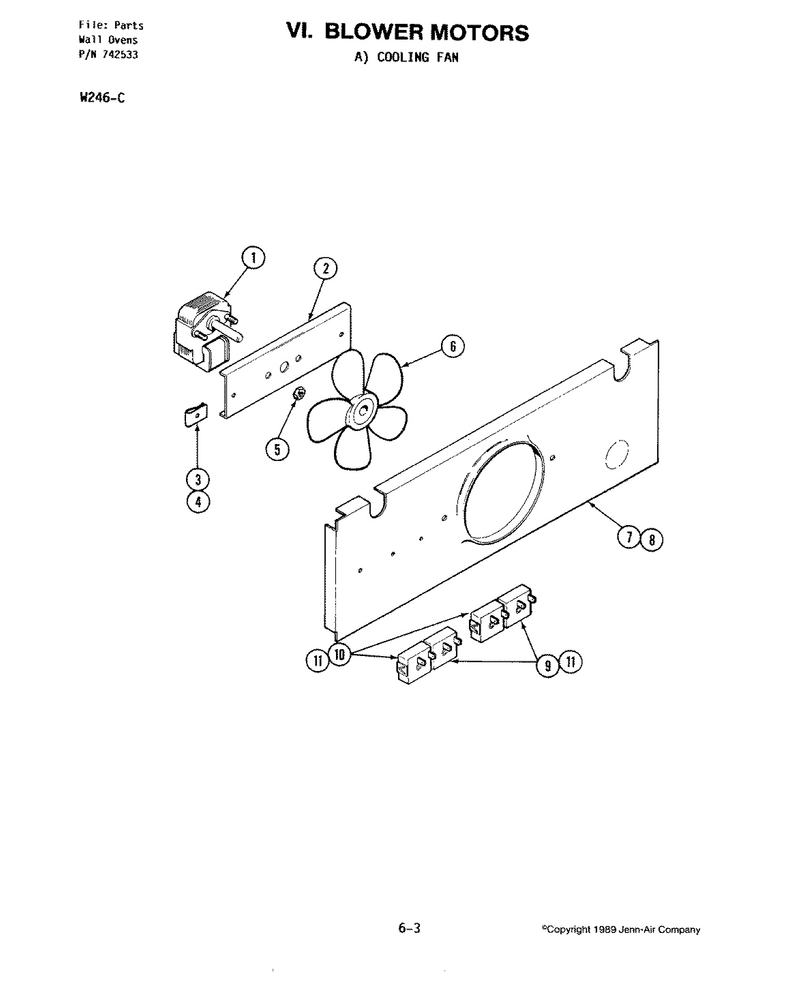

02 - Blower Motor (cooling Fan)

...
...
1
Motor, Fan WPL-Y701721
...
2
Mount, Motor WPL-Y704732
...
3
Clip, J WPL-Y700556
...
4
Screw WPL-WP90767
...
5
Nut K WPL-M0282005
...
6
Blade, Fan WPL-701718
...
7
Plate, Motor WPL-704336
...
8
Plenum, Upper WPL-7-12025
...
9
Switch, Broil Cycle WPL-701698
...
10
Switch, Bake Cycle WPL-701699
...
11
Screw WPL-704335

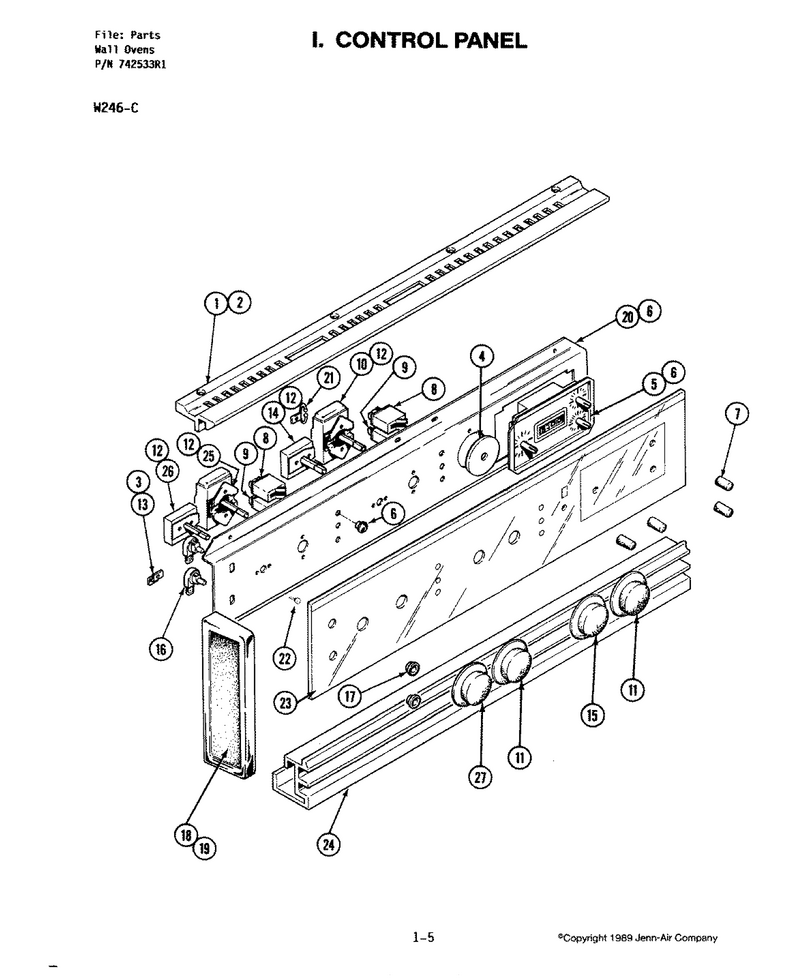

04 - Control Panel

...
...
1
Extrusion, Top WPL-704251
...
2
Screw, Trim WPL-704714
...
3
Screw WPL-WP12990527
...
4
Dial, Temp Control WPL-703094
...
5
Clock WPL-704246
...
6
Lens-Light WPL-WPY700630
...
7
Knob- Cloc WPL-WP7711P492-60
...
8
Light, Indicator 240v WPL-Y702394
...
9
Light-Ind WPL-WP903115
...
10
Thermostat-Upper WPL-703080
...
11
Knob, Thermostat WPL-703917
...
12
Screw WPL-71002058
...
13
Angle, Attachment WPL-701609
...
14
Switch, Selector Upper WPL-703077
...
15
Knob, Selector Switch (Blk) WPL-703901
...
16
Switch, Light (Push) WPL-700558
...
17
Bezel, Switch WPL-704323
...
18
End Cap (Lt-Blk) WPL-704257
...
19
End Cap (Rt-Blk) WPL-704258
...
20
Motor WPL-676439
...
21
Tie, Mount Cable WPL-702746
...
22
Pad, Spacer WPL-705331
...
23
Glass, Control Panel WPL-704263
...
24
Extrusion, Bottom WPL-704250
...
25
Thermostat, Lower Oven WPL-703082
...
26
Switch, Selector (Upper) WPL-703078
...
27
Knob, Selector (Blk) WPL-Y703911
