Jenn-Air W188-C

Model: W188-C

Save Part Not Listed?
product name

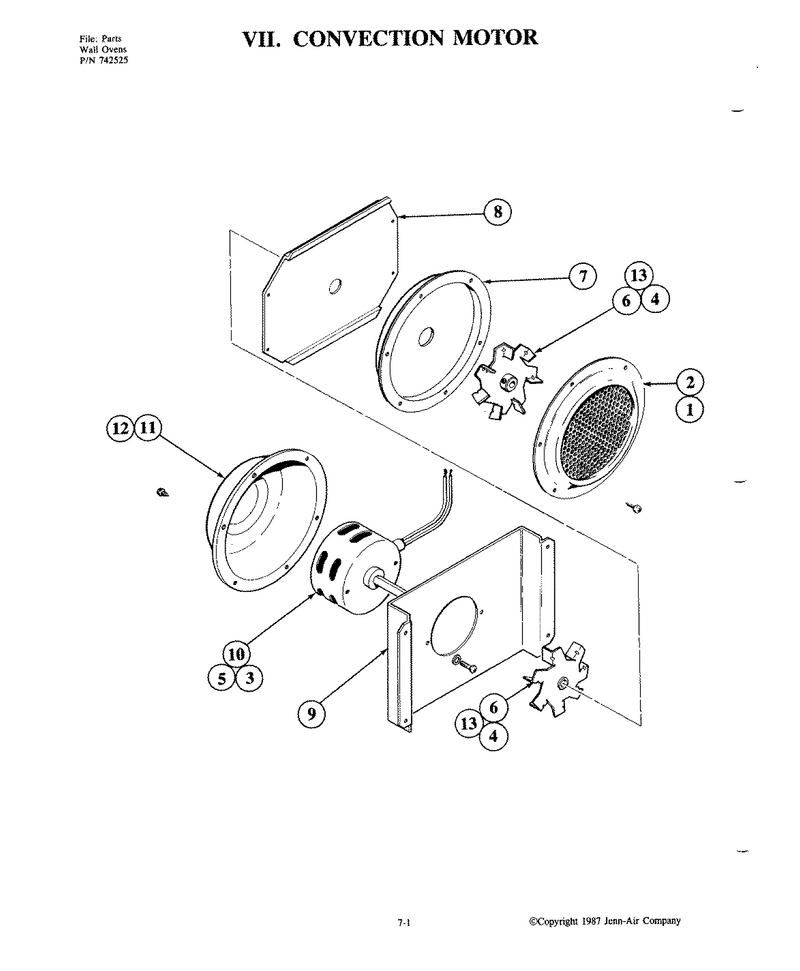

01 - Convection Motor

...
...
2
Plate, Convection Front WPL-701707
...
3
Screw WPL-WP488234
...
4
Screw, Set WPL-701709
...
5
Washer, Lock WPL-715910
...
6
Wheel, Convection WPL-701711
...
7
Plate, Convection Back WPL-701712
...
8
Cover, Motor Front WPL-701713
...
9
Plate, Motor Mount WPL-Y700601
...
10
Motor, Convection WPL-701715
...
11
Cover, Motor WPL-701716
...
12
Screw WPL-WP12990527
...
13
Hub WPL-701708
