Jenn-Air W146-C

Model: W146-C

Save Part Not Listed?
product name

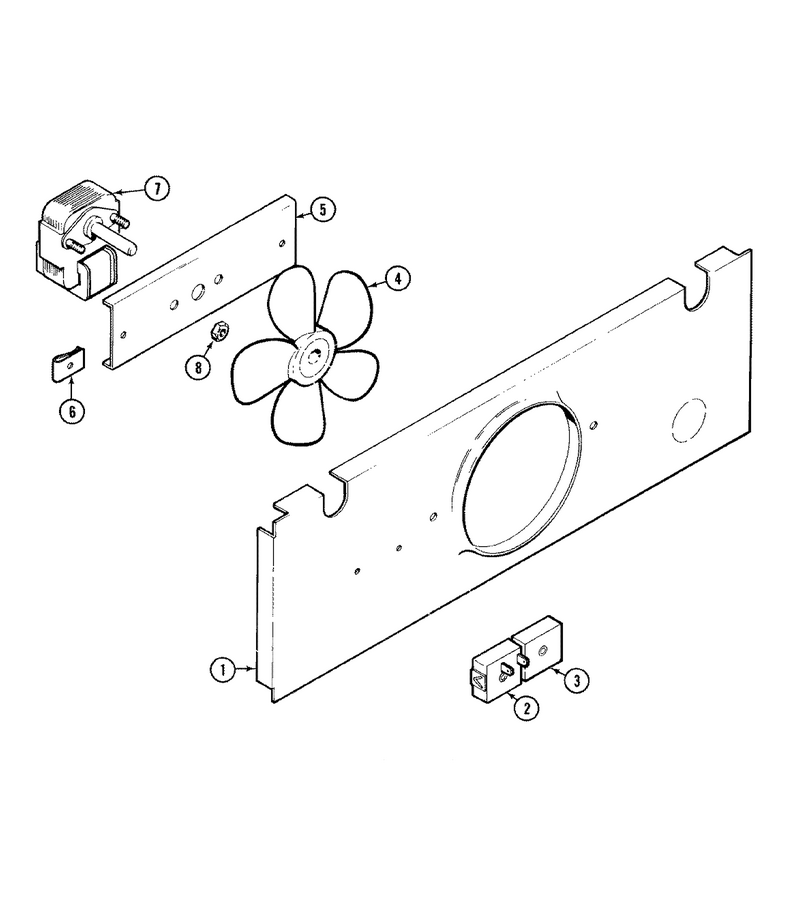

02 - Blower Motor (cooling)

...
...
1
Plate, Motor WPL-704336
...
2
Insert WPL-706080
...
3
Screw WPL-704335
...
4
Blade, Fan WPL-701718
...
5
Mount, Motor WPL-Y704732
...
6
Clip, J WPL-Y700556
...
7
Motor, Fan WPL-Y701721
...
8
Nut K WPL-M0282005

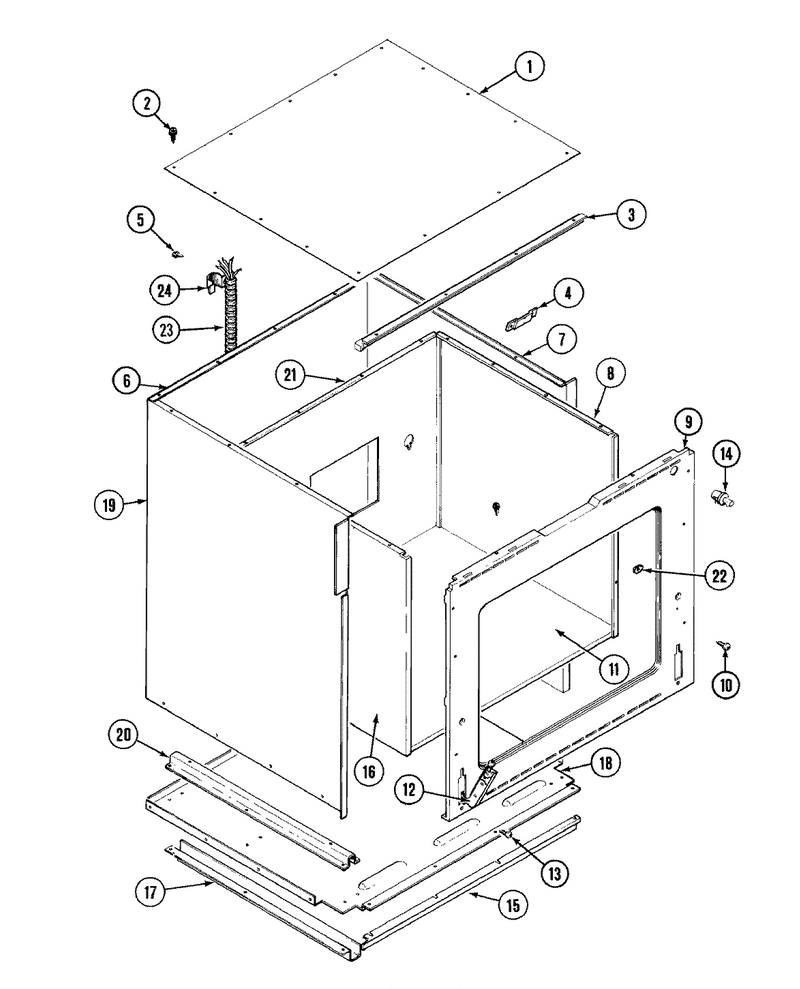

03 - Body

...
...
1
Top (Outer) WPL-701681
...
2
Screw WPL-WP12990527
...
3
Support, Top WPL-703095
...
4
Bracket, Vent Tube WPL-701680
...
5
Screw WPL-WP7101P126-60
...
6
Panel, Rear (Outer) WPL-70169-1
...
7
Panel, Outer (Rt) WPL-701672
...
8
Panel, Side (Rt) WPL-701676
...
9
Closure, Front WPL-703609
...
10
Screw WPL-W11233072
...
11
Panel, Bottom WPL-701669
...
12
Kit- Hinge WPL-12200038
...
13
Screw WPL-WP3196183
...
14
Switch, Oven Light WPL-866294
...
15
Trim, Oven (Lwr-Blk) WPL-704642
...
16
Panel, Side (Lt) WPL-701697
...
17
Motor WPL-675835
...
18
Panel, Bottom (Outer) WPL-701668
...
19
Panel, Outer (Lt) WPL-701695
...
20
Support, Bottom WPL-701667
...
21
Panel, Back WPL-701700
...
22
Clip, J WPL-Y700556
...
23
Cable Assy. WPL-703811
...
24
Screw WPL-WPW10068250

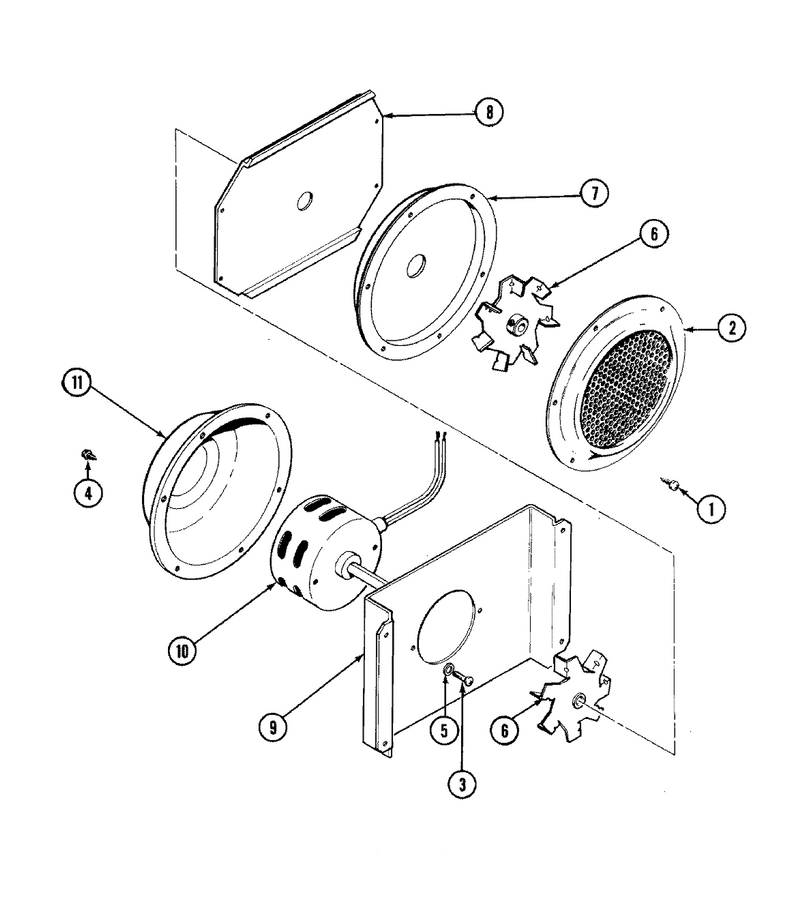

01 - Blower Motor (convection)

...
...
1
Screw WPL-WP1163283
...
2
Plate, Convection Front WPL-701707
...
3
Screw WPL-WP488234
...
4
Screw WPL-WP12990527
...
5
Washer, Lock WPL-715910
...
6
Screw, Set WPL-701709
...
7
Plate, Convection Back WPL-701712
...
8
Cover, Motor Front WPL-701713
...
9
Plate, Motor Mount WPL-Y700601
...
10
Motor, Convect WPL-Y704972
...
11
Cover, Motor WPL-701716

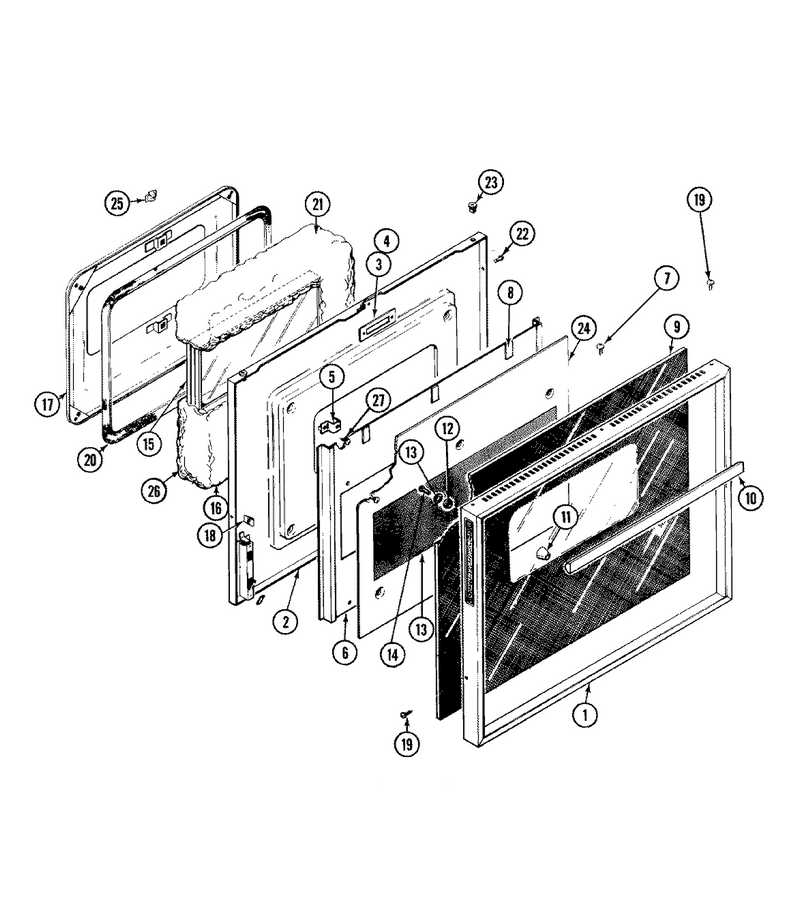

05 - Door

...
...
1
Frame WPL-704318
...
2
Washer WPL-Y703449
...
3
Plate, Latch (Upper) WPL-Y712010
...
4
Rivet WPL-WP210720
...
5
Bracket, Stand-Off WPL-701652
...
6
Bumper, Button WPL-Y704223
...
7
Screw WPL-WPY706189
...
8
Spacer WPL-W10840861
...
9
Glass, Door WPL-704241
...
10
Handle WPL-Y704225
...
11
End Cap (Blk) WPL-Y704224
...
12
Washer WPL-Y704230
...
13
Washer WPL-Y700446
...
14
Screw WPL-Y704231
...
15
Pack, Window WPL-703804
...
16
Insulation, Bottom WPL-701658
...
17
Door Plug Weld WPL-Y04100664
...
18
Hinge-Door WPL-WP74008014
...
19
Screw WPL-W11233072
...
20
Seal- Oven WPL-WP701650
...
21
Insulation, Side WPL-701659
...
22
Rivet, Accordion WPL-70164-1
...
23
Nut, Push In WPL-701643
...
24
Panel, Perforated (Upr) WPL-703784
...
25
Clip, Retainer WPL-Y700503
...
26
Insulation, Top WPL-701660
...
27
Screw WPL-703958

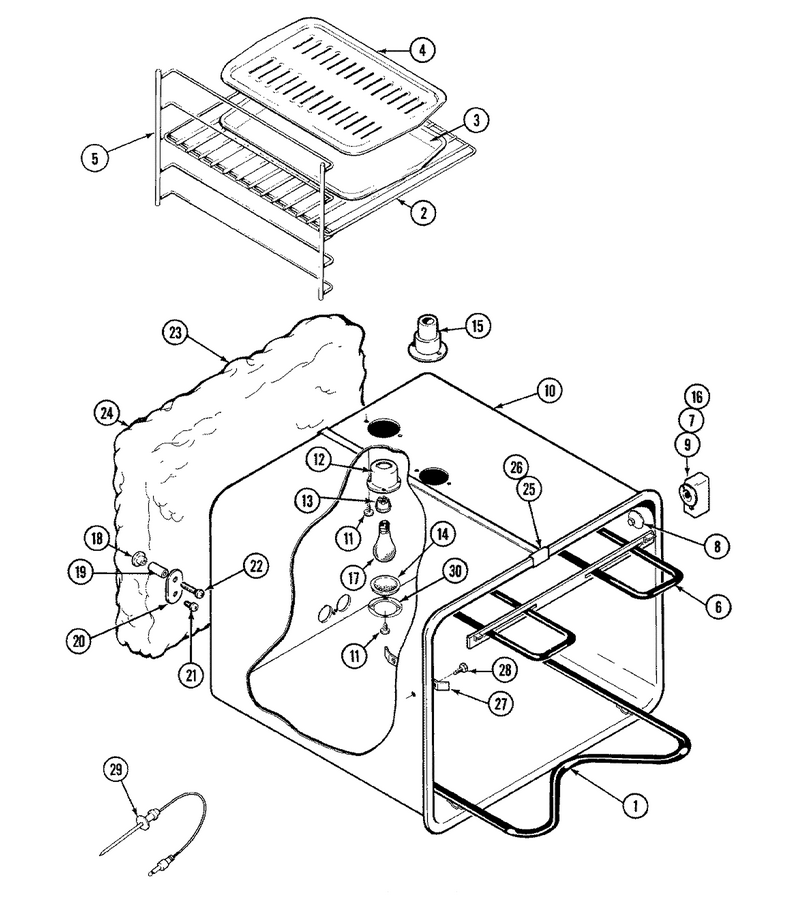

07 - Liner

...
...
1
Element- B WPL-WPY04100020
...
2
Rack, Oven WPL-Y701725
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Not Required Part Or See Note Support, Rack WPL-W10124350
...
6
Element- B WPL-WPY04100016
...
7
Connector, Harness WPL-703517
...
8
Cover (Upper) WPL-701732
...
9
Jack, Probe WPL-Y700883
...
10
Oven Liner WPL-12001401
...
11
Screw WPL-WP1163283
...
12
Receptacle, Holder WPL-704142
...
13
Sockt-Lite WPL-WP74003387
...
14
Lens, Light WPL-Y704143
...
15
Tube, Vent WPL-701738
...
16
Nut, Hex 3/8`` WPL-Y703356
...
17
Light Bulb WPL-8009
...
18
Nut, Tee WPL-715294
...
19
Spacer, Oven WPL-701741
...
20
Plate, Grounding WPL-701742
...
21
Screw WPL-WP71001171
...
22
Screw WPL-701744
...
23
Insulation, Rear WPL-701703
...
24
Insulation, Wrap WPL-701702
...
25
Clip, Oven WPL-Y702618
...
26
Rivet WPL-WP210720
...
27
Clip, Bulb WPL-Y701541
...
28
Screw WPL-WP179051
...
29
Probe- Tem WPL-WP71001870
...
30
Retainer, Lens WPL-Y704144

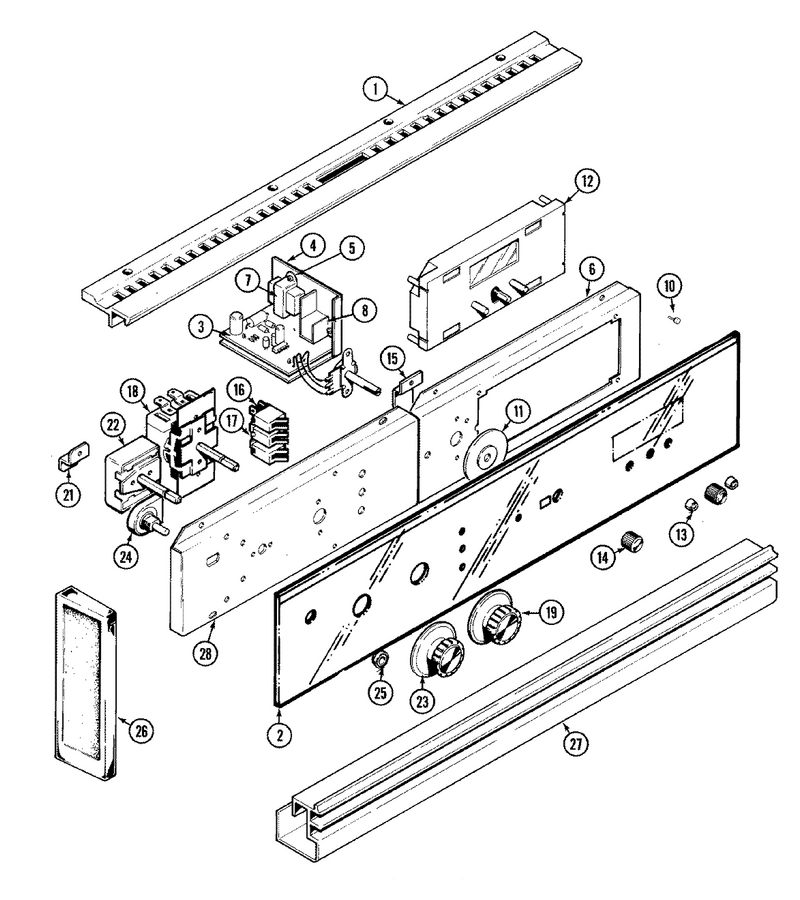

04 - Control Panel

...
...
1
Extrusion, Top WPL-704256
...
2
Glass WPL-704262
...
3
Board, Circuit WPL-704242
...
4
Shield, C.b. WPL-701844
...
5
Screw WPL-703534
...
6
Motor WPL-676372
...
7
Transformer WPL-701629
...
8
Relay WPL-703765
...
9
Harness, P.c. Board WPL-703729
...
10
Pad, Spacer WPL-705331
...
11
Dial, Temperature WPL-704319
...
12
Clock Kit, Electronic WPL-12200028
...
13
Knob- Cloc WPL-WP7711P492-60
...
14
Knob- Cloc WPL-WP7711P492-60
...
15
Bracket, Hat WPL-701754
...
16
Light, Indicator 240v WPL-Y702394
...
17
Led WPL-701627
...
18
Wire, Resistor WPL-703290
...
19
Knob, Thermostat WPL-703917
...
20
Screw WPL-71002058
...
21
Angle, Attachment WPL-701609
...
22
Switch, Selector Upper WPL-703077
...
23
Knob, Selector Switch (Blk) WPL-703901
...
24
Switch, Light (Push) WPL-700558
...
25
Bezel, Switch WPL-704323
...
26
End Cap (Rt-Blk) WPL-704258
...
27
Extrusion, Bottom (Blk) WPL-704255
...
28
Lens-Light WPL-WPY700630

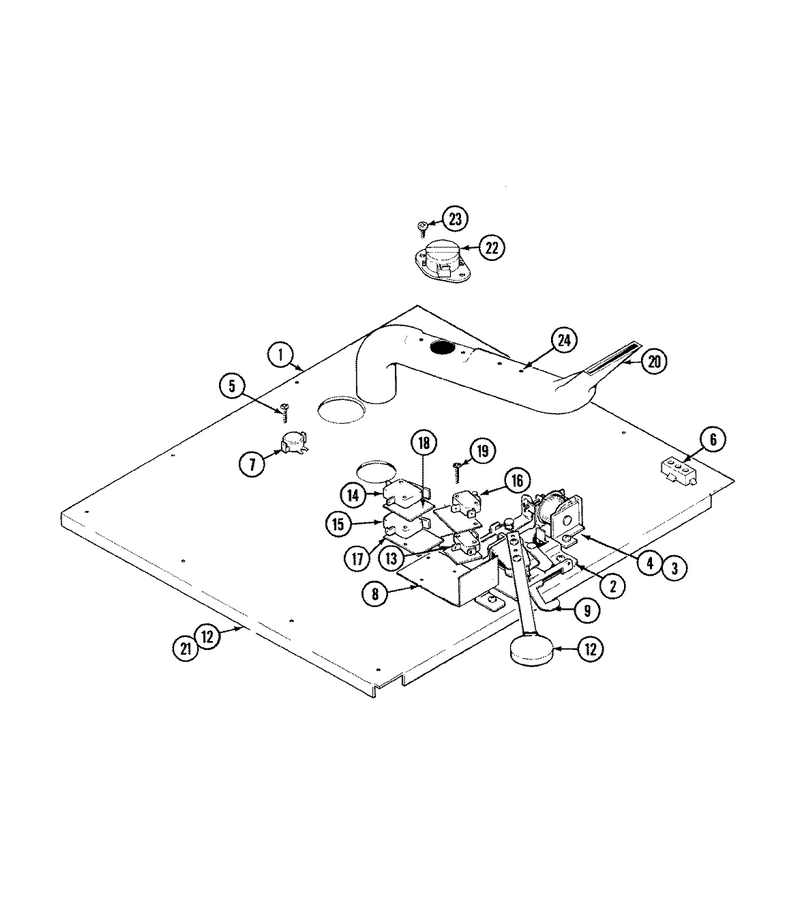

06 - Internal Controls

...
...
1
Panel-Top WPL-704155
...
2
Latch Assy. WPL-793357
...
3
Pin, Cotter WPL-Y701686
...
4
Wire, Gray WPL-703767
...
5
Screw WPL-WP12990527
...
6
Connector, Harness WPL-703517
...
7
Thermostat WPL-701687
...
8
Shield, Switch WPL-701706
...
9
Lever, Latch (Blk) WPL-Y704227
...
10
Screw WPL-707407
...
11
Spring, Knob WPL-701671
...
12
Knob (Blk) WPL-Y703932
...
13
Switch, Solenoid WPL-Y702360
...
14
Switch, Door WPL-702806
...
15
Switch, Door WPL-702805
...
16
Switch, Latch WPL-Y703732
...
17
Insulator WPL-Y702350
...
18
Insulator WPL-703264
...
19
Screw WPL-702807
...
20
Tube, Vent WPL-701684
...
21
Screw WPL-WP71001171
...
22
Limit, Oven WPL-Y702107
...
23
Terminal WPL-Y702711
...
24
Screw WPL-WP59002061
