Jenn-Air W142-C

Model: W142-C

Save Part Not Listed?
product name

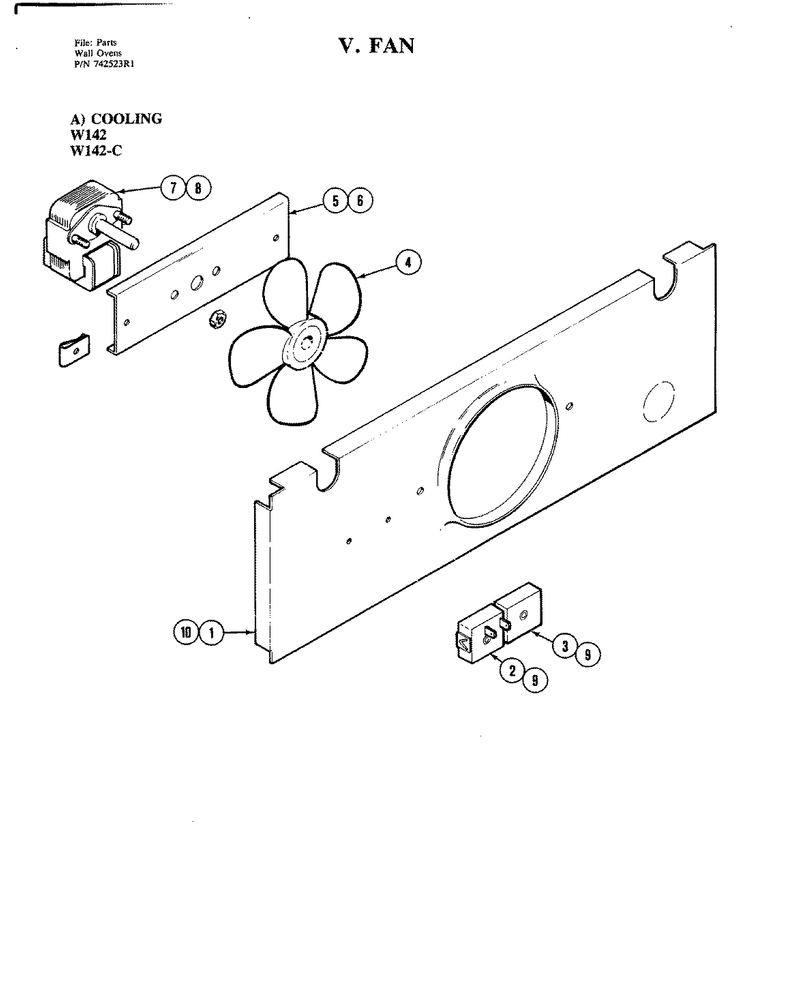

06 - Fan (cooling)

...
...
1
Plate, Motor WPL-703096
...
2
Switch, Bake Cycle WPL-701699
...
3
Switch, Broil Cycle WPL-701698
...
4
Blade, Fan WPL-701718
...
5
Mount, Motor WPL-Y704732
...
6
Tinnerman WPL-712038
...
7
Motor, Fan WPL-Y701721
...
8
Nut K WPL-M0282005
...
9
Screw WPL-WP12990527
...
10
Screw WPL-WP90767

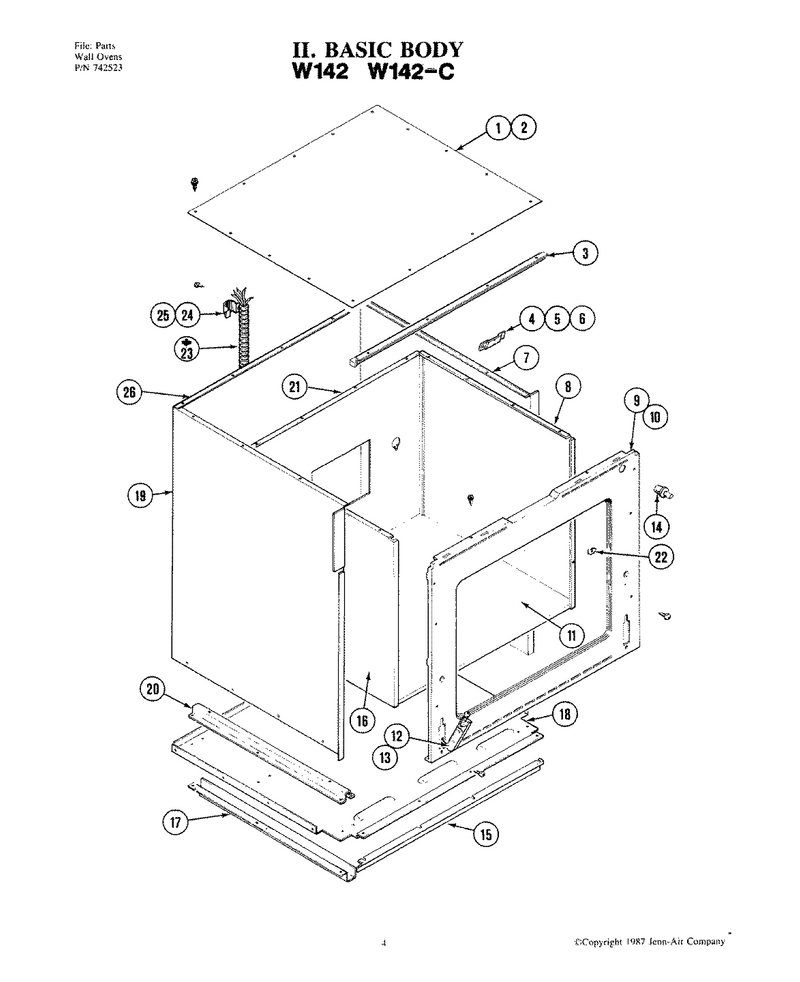

01 - Body

...
...
1
Top (Outer) WPL-701681
...
2
Screw WPL-WP12990527
...
3
Support, Top WPL-703095
...
4
Bracket, Vent Tube WPL-701680
...
5
Shield, Vent WPL-703353
...
6
Screw WPL-WP90767
...
7
Panel, Outer (Rt) WPL-701672
...
8
Spacer WPL-702594
...
9
Screw WPL-WPW10068250
...
10
Screw WPL-W11233072
...
11
Panel, Bottom WPL-701669
...
12
Kit- Hinge WPL-12200038
...
13
Screw WPL-WP3196183
...
14
Switch, Oven Light WPL-866294
...
15
Trim, Oven (Lower) WPL-701848
...
16
Panel, Side (Lt) WPL-701697
...
17
Motor WPL-675835
...
18
Panel, Bottom (Outer) WPL-701668
...
19
Panel, Outer (Lt) WPL-701695
...
20
Support, Bottom WPL-701667
...
21
Panel, Back WPL-701700
...
22
Clip, J WPL-Y700556
...
23
Cable Assy WPL-703736
...
24
Clamp, Conduit WPL-70169-2
...
25
Screw WPL-WP7101P126-60
...
26
Panel, Rear (Outer) WPL-70169-1

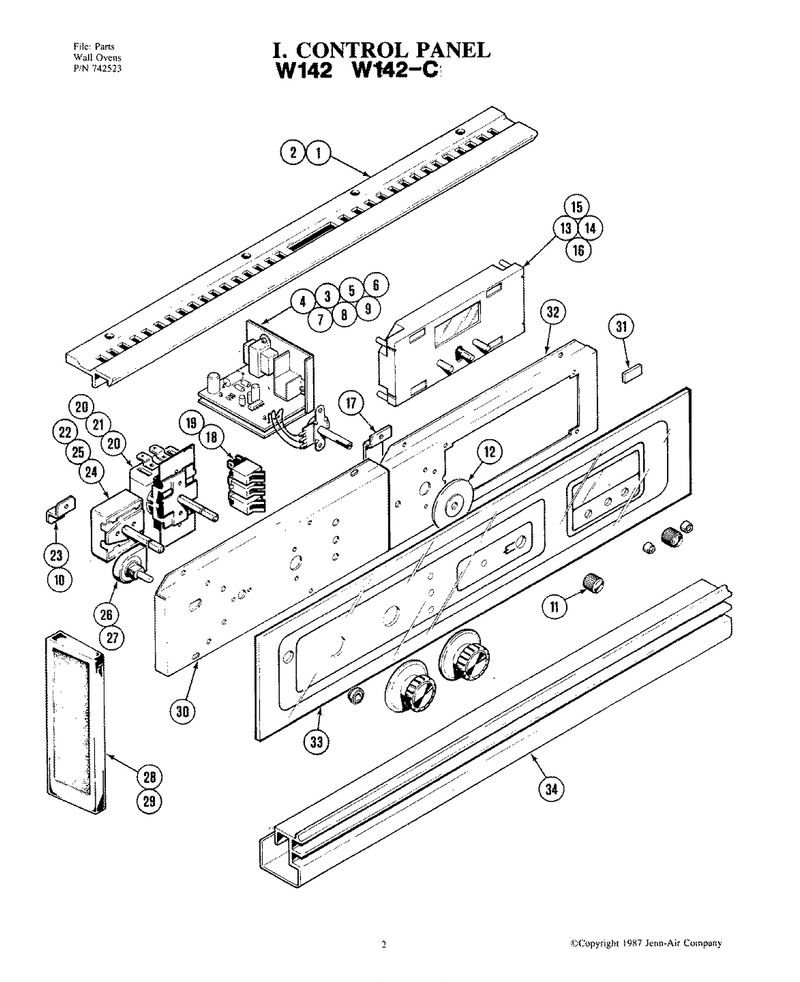

03 - Control Panel

...
...
1
Extrusion, Top WPL-701634
...
2
Screw WPL-702066
...
3
Module, Temp Control WPL-703091
...
4
Shield, C.b. WPL-701844
...
5
Screw WPL-703534
...
6
Support, P.c. Board WPL-700893
...
7
Transformer WPL-701629
...
8
Relay WPL-703765
...
9
Harness, P.c. Board WPL-703729
...
10
Screw WPL-WP12990527
...
11
Knob- Cloc WPL-WP7711P466-60
...
12
Dial, Temperature WPL-701616
...
13
Clock Kit, Electronic WPL-12200028
...
14
Palnut WPL-703679
...
15
Knob, Clock (Sm) WPL-703714
...
16
Knob- Cloc WPL-WP7711P492-60
...
17
Bracket, Hat WPL-701754
...
18
Light, Indicator 240v WPL-Y702394
...
19
Led WPL-701627
...
20
Wire, Resistor WPL-703290
...
21
Knob- Ther WPL-WPY703499
...
22
Screw WPL-71002058
...
23
Angle, Attachment WPL-701609
...
24
Harness, Wire WPL-703738
...
25
Knob- Sele WPL-WP703502
...
26
Switch, Push WPL-70162-1
...
27
Bezel, Switch WPL-701610
...
28
Cap, End (Lt) WPL-701635
...
29
Cap, End (Rt) WPL-701619
...
30
Panel, Control (Lt) WPL-703722
...
31
Pad, Spacer WPL-701618
...
32
Bracket, Timer WPL-703676
...
33
Glass WPL-703678
...
34
Extrusion, Bottom WPL-701608

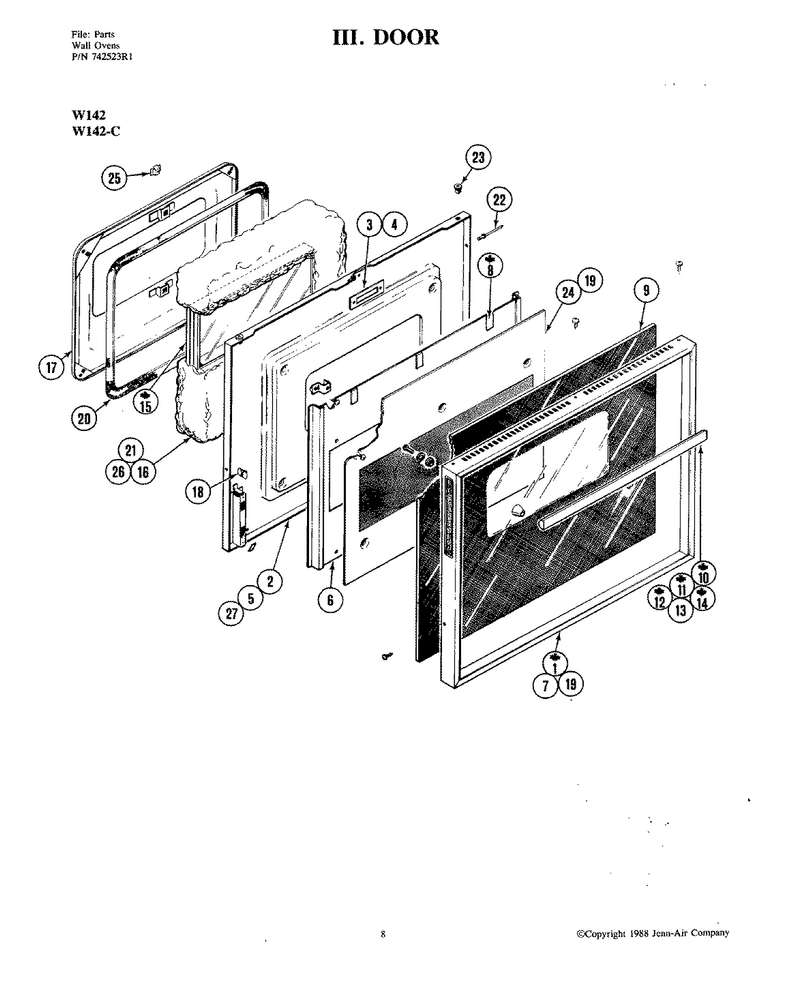

04 - Door

...
...
1
Frame WPL-702774
...
2
Liner, Door WPL-712188
...
3
Plate, Latch (Upper) WPL-Y712010
...
4
Rivet WPL-WP210720
...
5
Bracket, Stand-Off WPL-701652
...
6
Baffle, Door WPL-701645
...
7
Screw WPL-W11233072
...
8
Spacer WPL-W10840861
...
9
Glass- Scr WPL-703706K
...
10
Handle----Na WPL-702930
...
11
Pad, Mounting WPL-Y703430
...
12
Bushing WPL-Y703433
...
13
Washer WPL-Y700446
...
14
Screw WPL-Y700570
...
15
Pack, Window WPL-703804
...
16
Insulation, Bottom WPL-701658
...
17
Door Plug Weld WPL-Y04100664
...
18
Clip, Retainer WPL-Y700503
...
19
Screw WPL-700141
...
20
Seal- Oven WPL-WP701650
...
21
Insulation, Side WPL-701659
...
22
Rivet, Accordion WPL-70164-1
...
23
Nut, Push-In WPL-702657
...
24
Panel, Perforated (Upr) WPL-703784
...
25
Hinge-Door WPL-WP74008014
...
26
Insulation, Top WPL-701660
...
27
Screw WPL-WPY706189

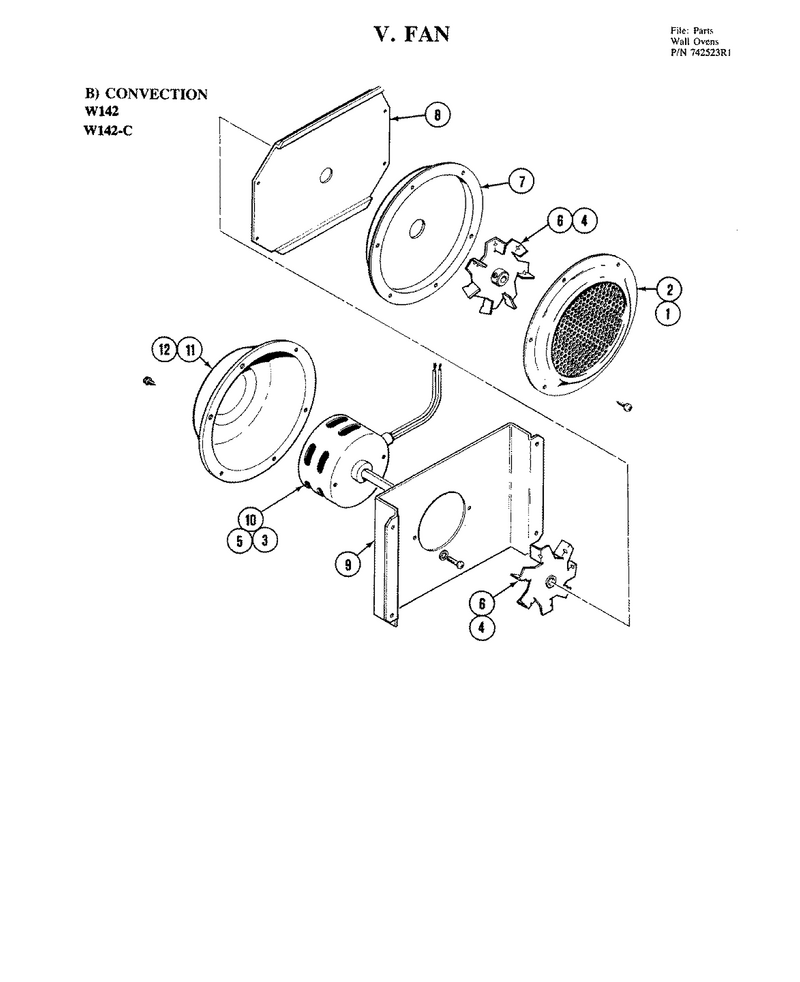

05 - Fan (convection)

...
...
1
Screw WPL-701526
...
2
Plate, Convection Front WPL-701707
...
3
Screw WPL-WP488234
...
4
Screw, Set WPL-701709
...
5
Washer, Lock WPL-715910
...
6
Wheel, Convection WPL-701711
...
7
Plate, Convection Back WPL-701712
...
8
Cover, Motor Front WPL-701713
...
9
Plate, Motor Mount WPL-Y700601
...
10
Motor, Convect WPL-Y704972
...
11
Cover, Motor WPL-701716
...
12
Screw WPL-WP12990527

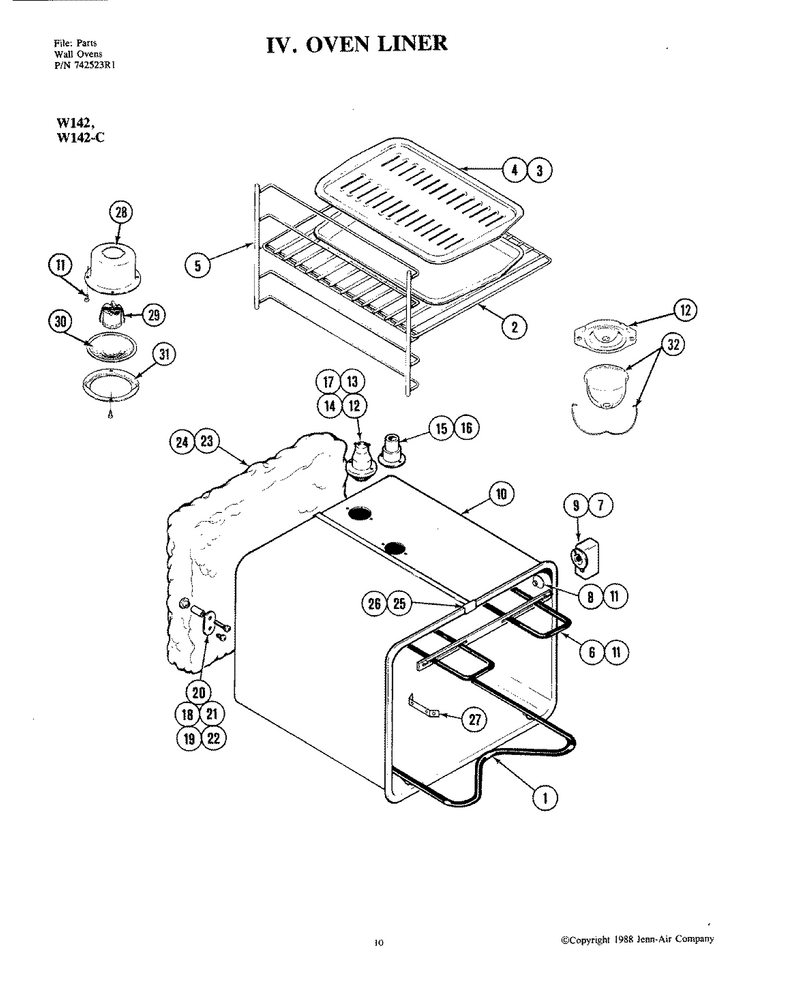

07 - Oven Liner

...
...
1
Element- B WPL-WPY04100020
...
2
Rack, Oven WPL-Y701725
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Support, Rack WPL-Y701728
...
6
Element- B WPL-WPY04100016
...
7
Nut, Hex 3/8`` WPL-Y703356
...
8
Cover (Upper) WPL-701732
...
9
Probe- Tem WPL-WP71001870
...
10
Oven Liner WPL-12001401
...
11
Screw WPL-WP1163283
...
12
Receptacle, Light WPL-715281
...
13
Washer WPL-701736
...
14
Screw WPL-715485
...
15
Tube, Vent WPL-701738
...
16
Screw WPL-WPY706189
...
17
Light Bulb WPL-8009
...
18
Nut, Tee WPL-715294
...
19
Spacer, Oven WPL-701741
...
20
Plate, Grounding WPL-701742
...
21
Screw WPL-WP71001171
...
22
Screw WPL-701744
...
23
Insulation, Rear WPL-701703
...
24
Insulation, Wrap WPL-701702
...
25
Clip, Oven WPL-Y702618
...
26
Rivet WPL-WP210720
...
27
Clip, Bulb WPL-Y701541
...
28
Receptacle, Holder WPL-704142
...
29
Sockt-Lite WPL-WP74003387
...
30
Lens, Light WPL-Y704143
...
31
Retainer, Lens WPL-Y704144
...
32
Light Lens (Kit) WPL-712282

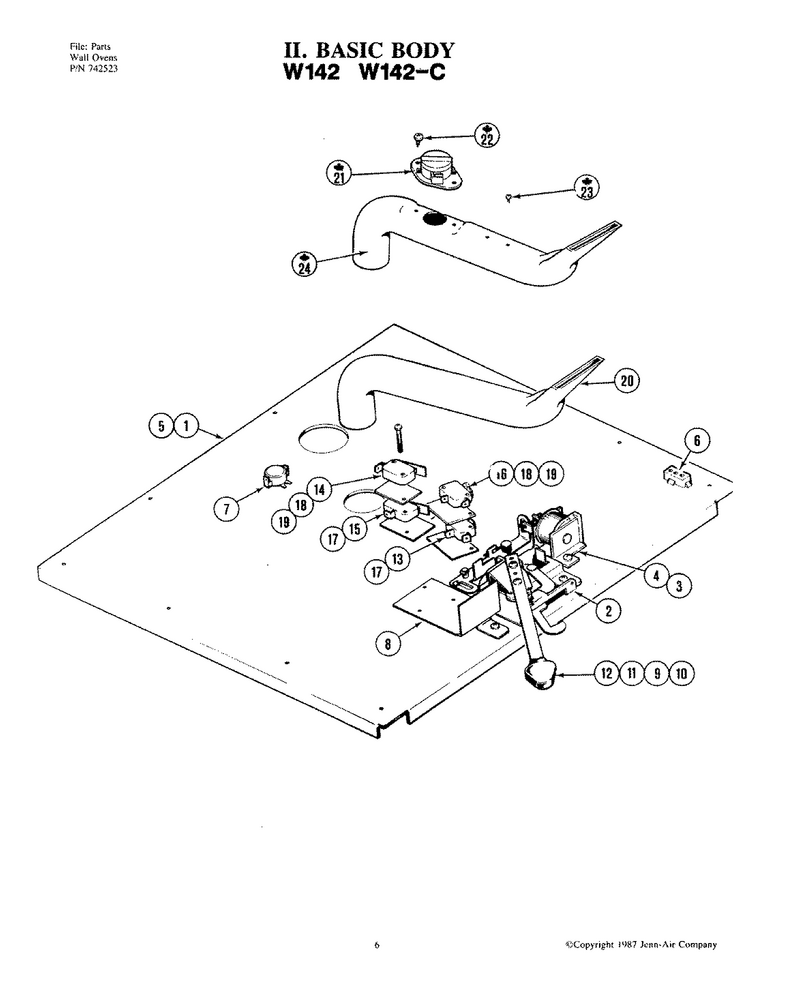

02 - Body

...
...
1
Panel-Top WPL-704155
...
2
Latch Assy. WPL-Y703357
...
3
Pin, Cotter WPL-Y701686
...
4
Solenoid WPL-Y702526
...
5
Screw WPL-WP12990527
...
6
Connector, Harness WPL-703517
...
7
Thermostat WPL-701687
...
8
Shield, Switch WPL-701706
...
9
Lever, Latch (Blk) WPL-Y704227
...
10
Screw WPL-707407
...
11
Spring, Knob WPL-701671
...
12
Knob (Blk) WPL-Y703932
...
13
Switch, Solenoid WPL-Y702360
...
14
Switch, Door WPL-702806
...
15
Switch, Door WPL-702805
...
16
Switch, Latch WPL-Y703732
...
17
Insulator WPL-Y702350
...
18
Insulator WPL-704364
...
19
Screw WPL-702807
...
20
Screw WPL-701817
...
21
Terminal WPL-Y702711
...
22
Screw WPL-WP355214
...
23
Screw WPL-WP179051
...
24
Tube, Vent WPL-702795
