Jenn-Air W123-C

Model: W123-C

Save Part Not Listed?
product name

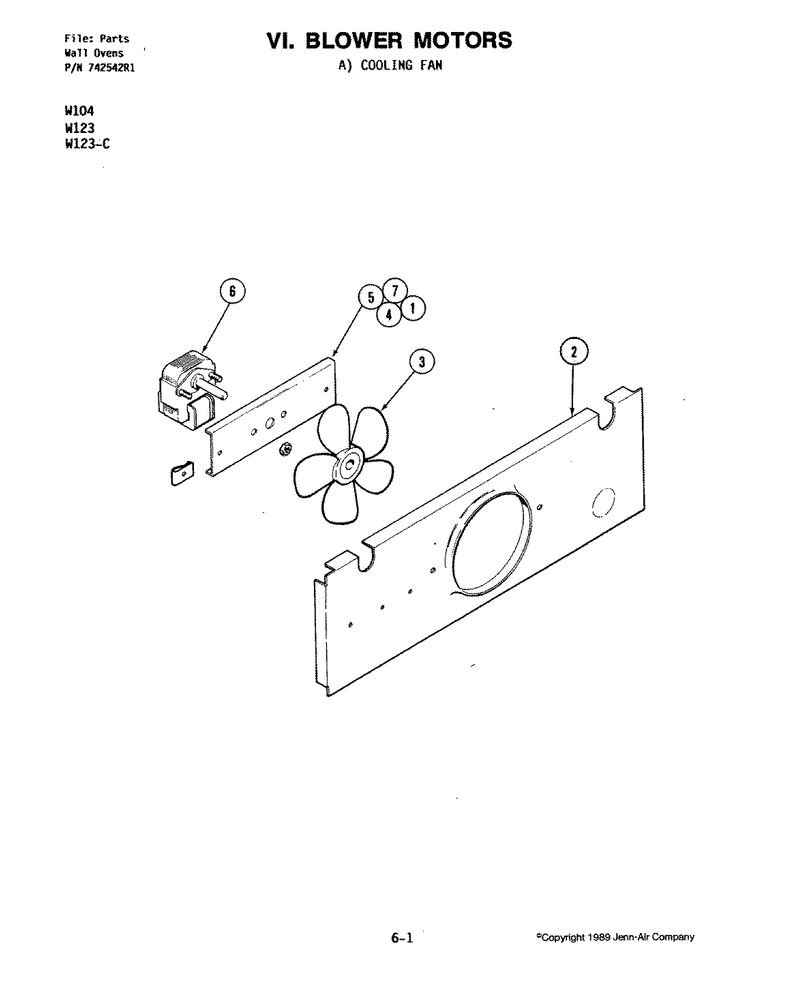

02 - Blower Motor (cooling Fan)

...
...
1
Screw WPL-WP90767
...
2
Plate, Motor WPL-704336
...
3
Blade, Fan WPL-701718
...
4
Nut K WPL-M0282005
...
5
Mount, Motor WPL-Y704732
...
6
Motor, Fan WPL-Y701721
...
7
Clip, J WPL-Y700556

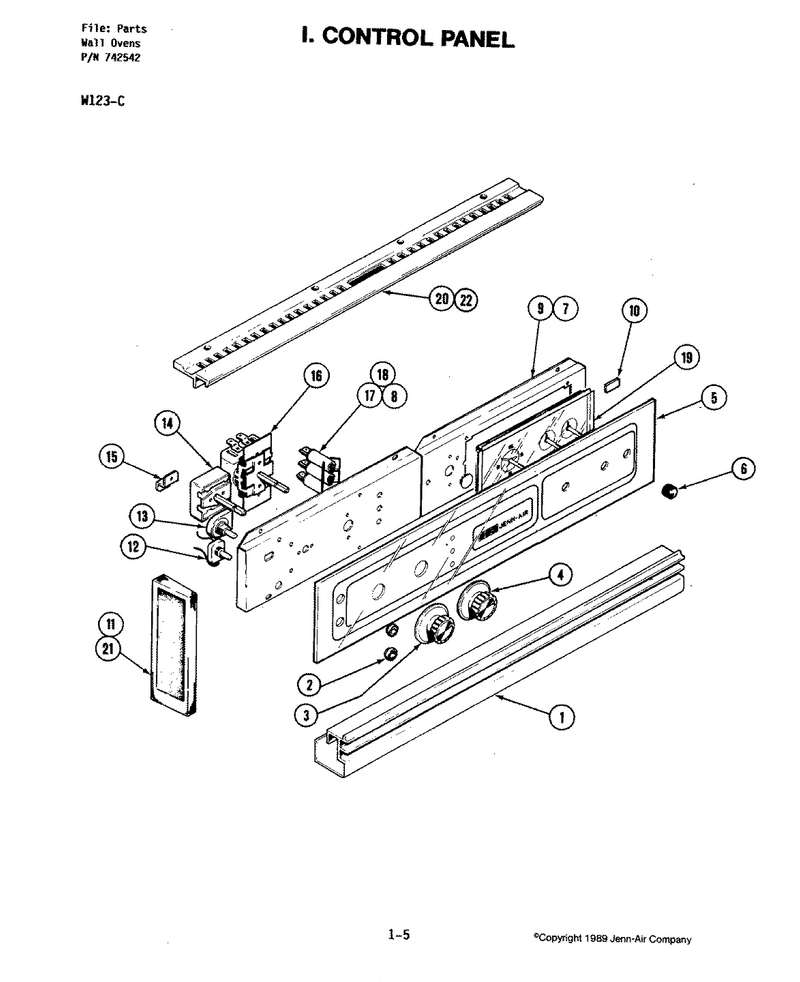

04 - Control Panel

...
...
1
Extrusion, Bottom WPL-701608
...
2
Bezel, Switch WPL-701610
...
3
Knob- Sele WPL-WP703502
...
4
Knob- Ther WPL-WPY703499
...
5
Panel, Glass Control WPL-703683
...
6
Knob- Cloc WPL-WP7711P466-60
...
7
Panel (Lt) WPL-701615
...
8
Lens-Light WPL-WPY700630
...
9
Panel (Rt) WPL-703675
...
10
Pad, Spacer WPL-701618
...
11
Cap, End (Rt) WPL-701619
...
12
Switch, Momentary WPL-Y701620
...
13
Switch, Light (Push) WPL-700558
...
14
Switch, Selector WPL-70316-7
...
15
Angle, Attachment WPL-701609
...
16
Screw WPL-71002058
...
17
Light, Indicator WPL-Y700557
...
18
Light-Ind WPL-WP903115
...
19
Clock WPL-701633
...
20
Extrusion, Top WPL-701634
...
21
Cap, End (Lt) WPL-701653
...
22
Screw WPL-712066

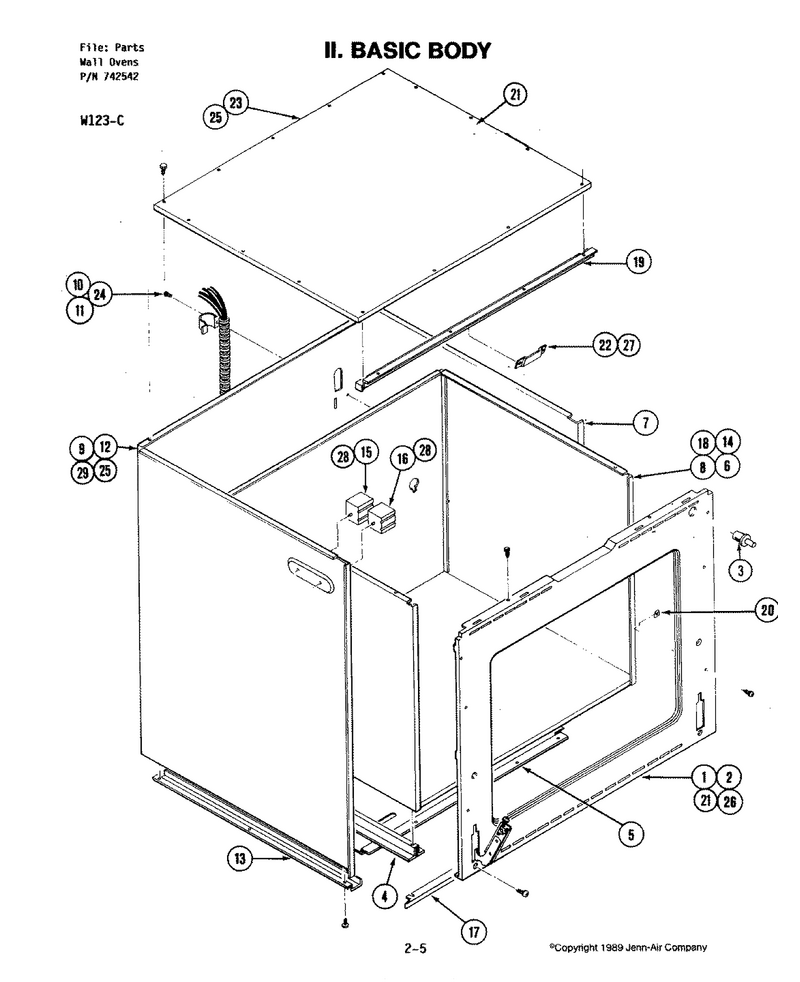

03 - Body

...
...
1
Closure, Front WPL-703609
...
2
Kit- Hinge WPL-12200038
...
3
Switch, Oven Light WPL-866294
...
4
Support, Bottom WPL-701667
...
5
Panel, Bottom (Outer) WPL-701668
...
6
Panel, Bottom WPL-701669
...
7
Panel, Outer (Rt) WPL-701672
...
8
Panel, Side (Rt) WPL-701676
...
9
Panel, Rear (Outer) WPL-70169-1
...
10
Clamp, Conduit WPL-70169-2
...
11
Cable, Wire WPL-701914
...
12
Panel, Outer (Lt) WPL-701695
...
13
Motor WPL-675835
...
14
Panel, Side (Lt) WPL-701697
...
15
Switch, Broil Cycle WPL-704355
...
16
Screw WPL-701638
...
17
Trim, Oven (Lower) WPL-701848
...
18
Angle, Oven Support WPL-701701
...
19
Support, Top WPL-703095
...
20
Clip, J WPL-Y700556
...
21
Screw WPL-WP3196183
...
22
Bracket, Vent Tube WPL-701680
...
23
Top (Outer) WPL-701681
...
24
Screw WPL-WP7101P126-60
...
25
Screw WPL-WP12990527
...
26
Screw WPL-W11233072
...
27
Screw WPL-WP90767
...
28
Screw WPL-704335
...
29
Cover, Motor Opening WPL-703551

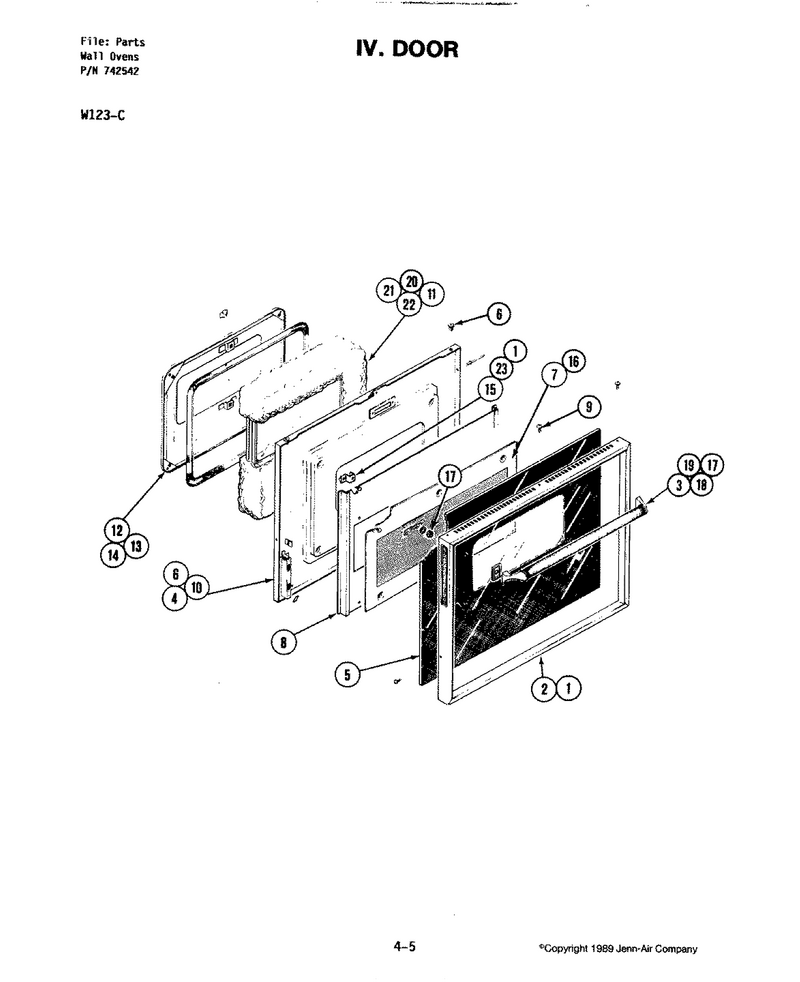

05 - Door

...
...
1
Screw WPL-W11233072
...
2
Frame (Stnls) WPL-704999
...
3
Kit- Handl WPL-12200057
...
4
Panel, Bottom & Side WPL-71001112
...
5
Glass- Scr WPL-703706K
...
6
Nut, Push In WPL-701643
...
7
Panel, Perforated (Upr) WPL-703784
...
8
Baffle WPL-712250
...
9
Screw WPL-W11233072
...
10
Liner, Door WPL-712188
...
11
Pack, Window WPL-703804
...
12
Door Plug Weld WPL-Y04100664
...
13
Seal- Oven WPL-WP701650
...
14
Clip, Retainer WPL-Y700503
...
15
Bracket, Stand-Off WPL-701652
...
16
Bumper, Button WPL-Y704223
...
17
Bushing WPL-Y703433
...
18
Palnut WPL-Y703431
...
19
Pad, Mounting WPL-Y703430
...
20
Insulation, Bottom WPL-701658
...
21
Insulation, Side WPL-701659
...
22
Insulation, Top WPL-701660
...
23
Screw WPL-WPY706189

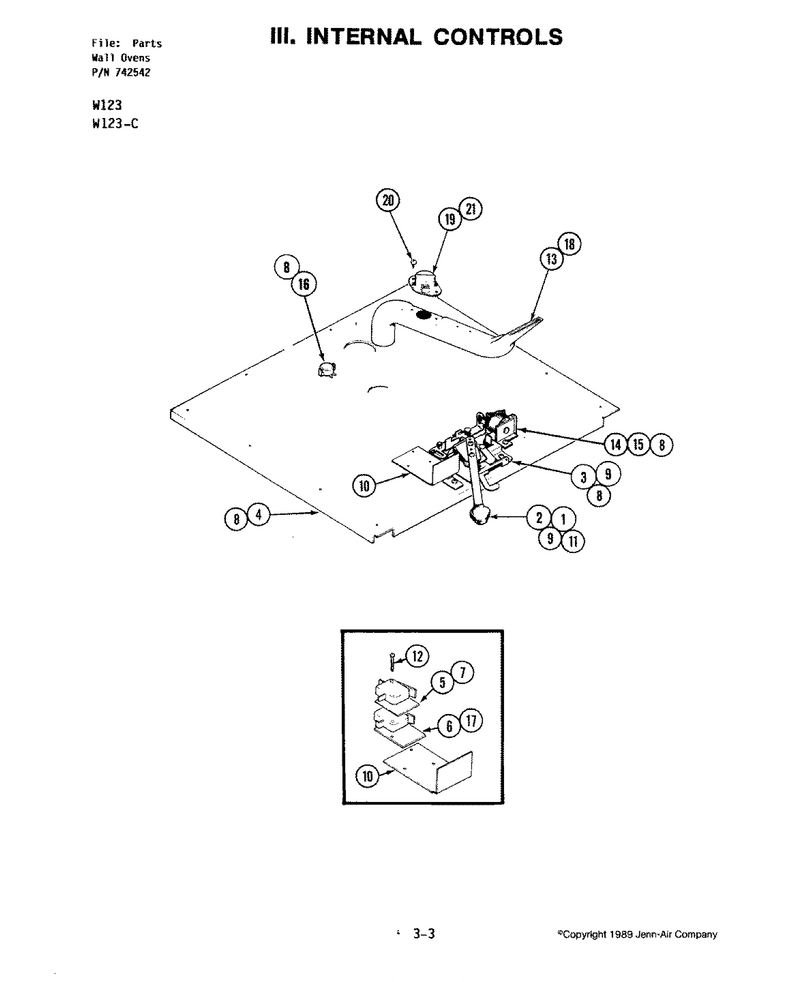

06 - Internal Controls

...
...
1
Knob (Blk) WPL-Y703932
...
2
Spring, Knob WPL-701671
...
3
Latch Assy. WPL-Y703357
...
4
Panel, Top WPL-704684
...
5
Switch, Door WPL-702806
...
6
Insulator WPL-Y702350
...
7
Insulator WPL-703264
...
8
Screw WPL-WP12990527
...
9
Lever, Latch (Blk) WPL-Y704227
...
10
Shield, Switch WPL-701706
...
11
Screw WPL-707407
...
12
Screw WPL-702807
...
13
Tube, Vent WPL-702795
...
14
Solenoid WPL-Y702526
...
15
Pin, Cotter WPL-Y701686
...
16
Thermostat WPL-701687
...
17
Switch, Door WPL-702805
...
18
Screw WPL-WP59002061
...
19
Limit, Oven WPL-Y702107
...
20
Buss Wire Brown WPL-700722
...
21
Harness, Wire WPL-702728

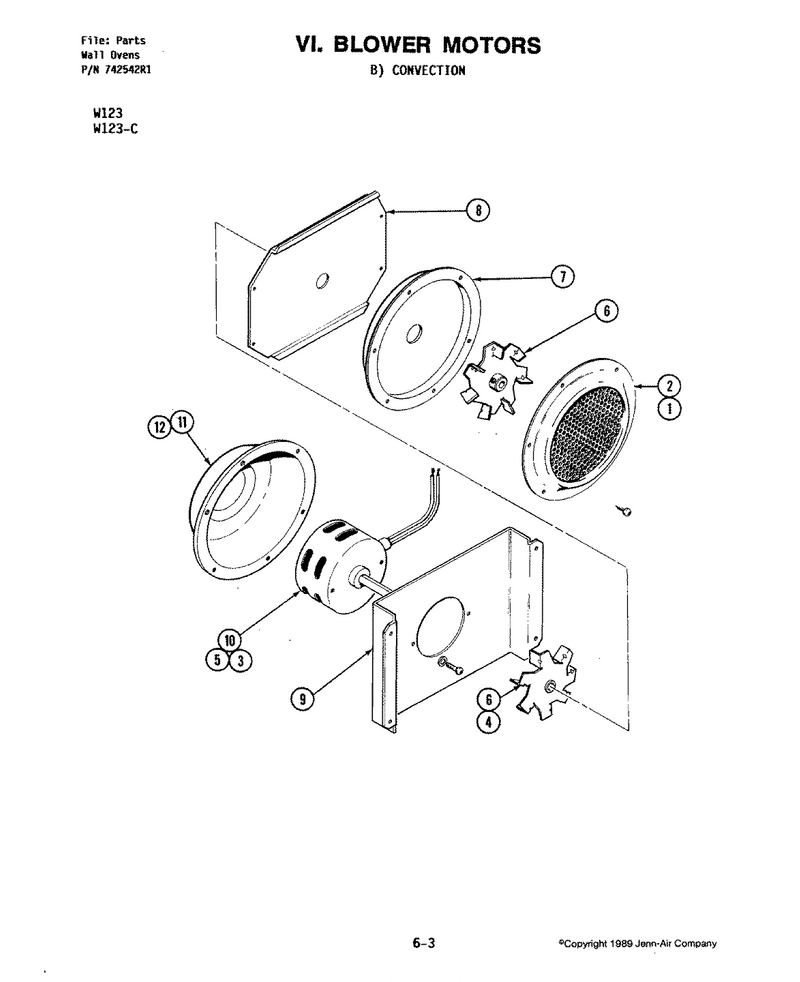

01 - Blower Motor (convection)

...
...
1
Screw WPL-WP1163283
...
2
Plate, Convection Front WPL-701707
...
3
Screw WPL-WP488234
...
4
Screw WPL-WP12990527
...
5
Washer, Lock WPL-715910
...
6
Wheel, Convection WPL-701711
...
7
Plate, Convection Back WPL-701712
...
8
Cover, Motor Front WPL-701713
...
9
Plate, Motor Mount WPL-Y700601
...
10
Motor, Convection WPL-701715
...
11
Cover, Motor WPL-701716

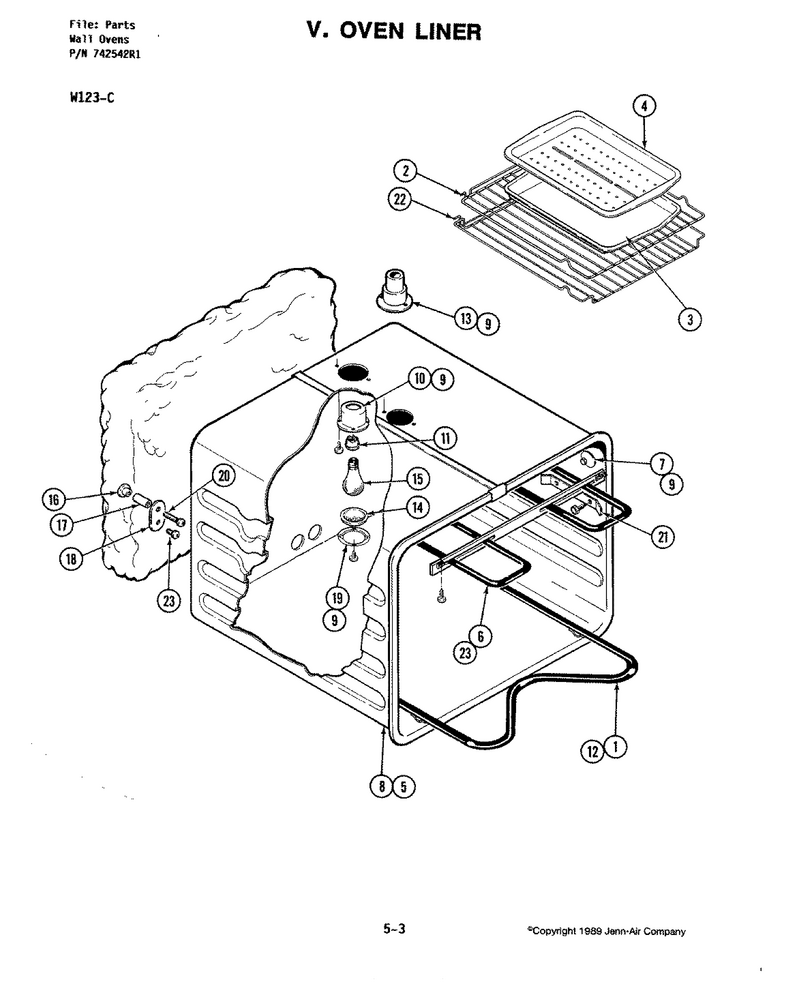

07 - Oven

...
...
1
Element, Bake WPL-Y704665
...
2
Rack, Oven WPL-Y704661
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Clip, Oven WPL-Y702618
...
6
Element- B WPL-WPY04100514
...
7
Cover, Meat Probe WPL-712088
...
8
Oven Liner WPL-12001401
...
9
Screw WPL-WP1163283
...
10
Receptacle, Holder WPL-704142
...
11
Sockt-Lite WPL-WP74003387
...
12
Screw WPL-WP179051
...
13
Tube, Vent WPL-701738
...
14
Lens, Light WPL-Y704143
...
15
Light Bulb WPL-8009
...
16
Nut, Tee WPL-715294
...
17
Spacer, Oven WPL-701741
...
18
Plate, Grounding WPL-701742
...
19
Retainer, Lens WPL-Y704144
...
20
Screw WPL-701744
...
21
Clip, Bulb WPL-Y701541
...
22
Rack, Oven (Offset) WPL-Y704663
