Jenn-Air W122-C

Model: W122-C

Save Part Not Listed?
product name

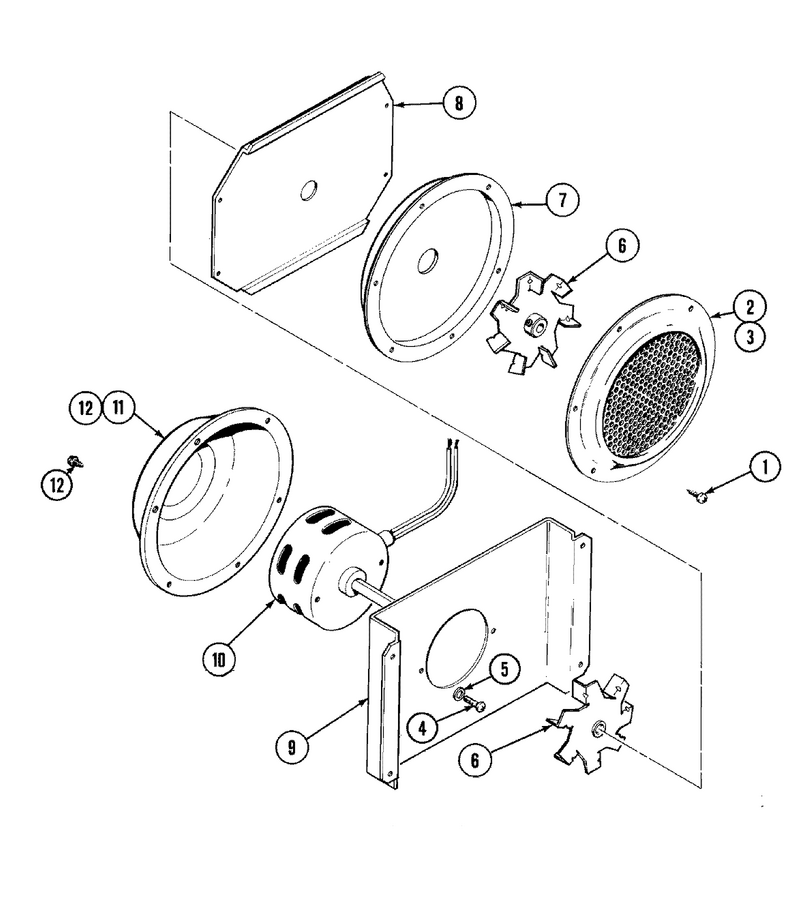

01 - Blower Motor (convection)

...
...
1
Screw WPL-701526
...
2
Plate, Convection Front WPL-701707
...
3
Screw WPL-WP488234
...
4
Screw, Set WPL-701709
...
5
Washer, Lock WPL-715910
...
6
Wheel, Convection WPL-701711
...
7
Plate, Convection Back WPL-701712
...
8
Cover, Motor Front WPL-701713
...
9
Plate, Motor Mount WPL-Y700601
...
10
Motor, Convection WPL-701715
...
11
Cover, Motor WPL-701716
...
12
Screw WPL-WP12990527

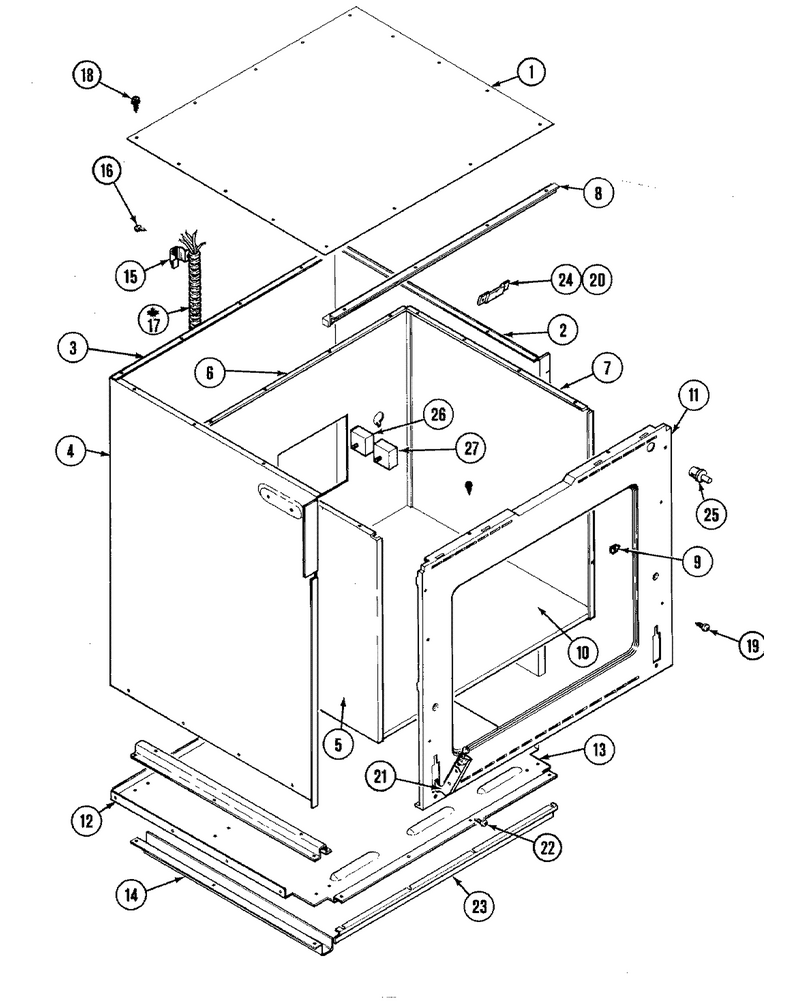

03 - Body

...
...
1
Top (Outer) WPL-701681
...
2
Panel, Outer (Rt) WPL-701672
...
3
Panel, Rear (Outer) WPL-70169-1
...
4
Panel, Outer (Lt) WPL-701695
...
5
Panel, Side (Lt) WPL-701697
...
6
Panel, Back WPL-701700
...
7
Panel, Side (Rt) WPL-701676
...
8
Support, Top WPL-703095
...
9
Clip, J WPL-Y700556
...
10
Panel, Bottom WPL-701669
...
11
Closure, Front WPL-703609
...
12
Angle, Oven Support WPL-701701
...
13
Panel, Bottom (Outer) WPL-701668
...
14
Motor WPL-675835
...
15
Clamp, Conduit WPL-70169-2
...
16
Screw WPL-WP7101P126-60
...
17
Harness, Main WPL-701693
...
18
Screw WPL-WP12990527
...
19
Screw WPL-W11233072
...
20
Screw WPL-WP90767
...
21
Kit- Hinge WPL-12200038
...
22
Screw WPL-WP3196183
...
23
Trim, Oven (Lower) WPL-701848
...
24
Bracket, Vent Tube WPL-701680
...
25
Switch, Oven Light WPL-866294
...
26
Switch, Broil Cycle WPL-701698
...
27
Switch, Bake Cycle WPL-701699

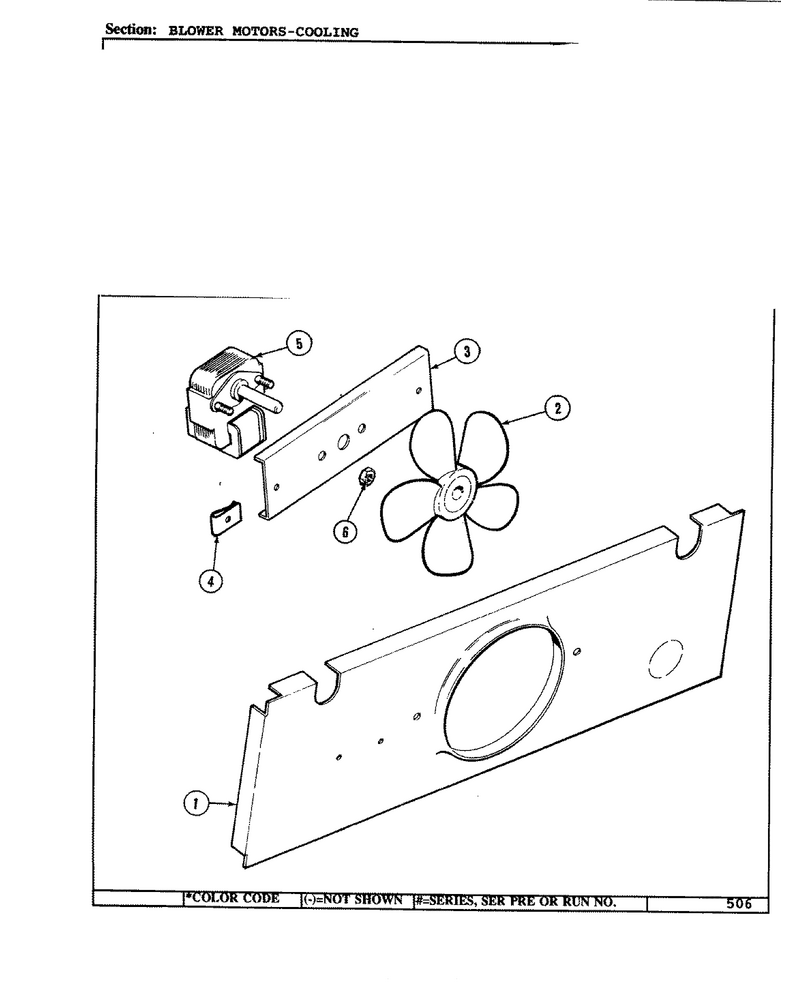

02 - Blower Motor (cooling)

...
...
1
Plate, Motor WPL-703096
...
2
Blade, Fan WPL-701718
...
3
Mount, Motor WPL-Y704732
...
4
Tinnerman WPL-712038
...
5
Motor, Fan WPL-Y701721
...
6
Nut K WPL-M0282005

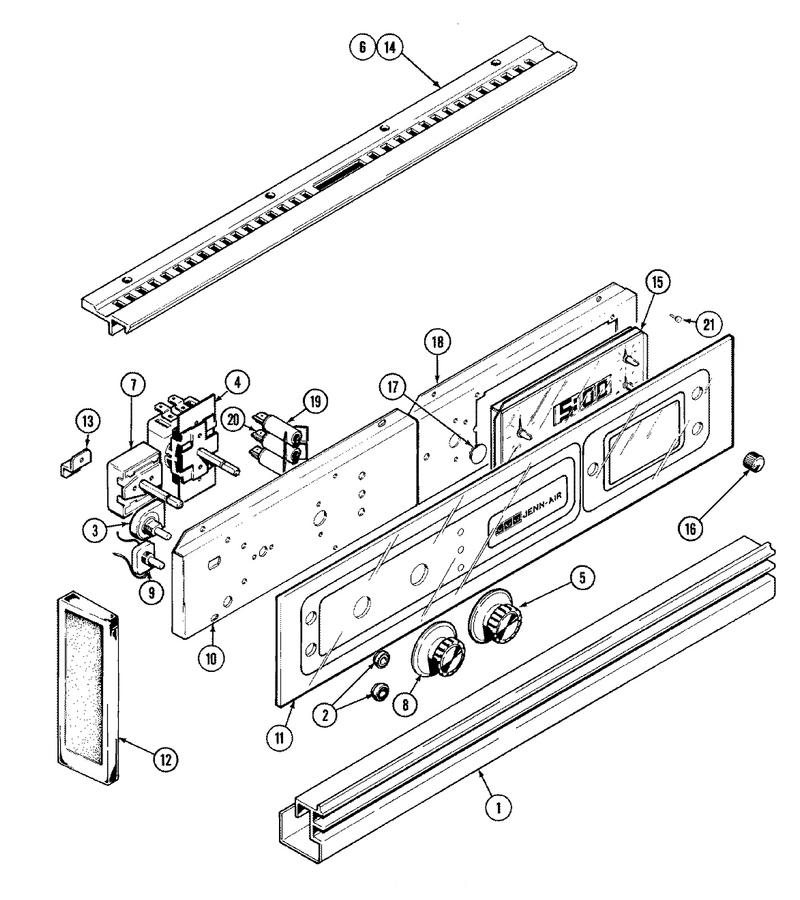

04 - Control Panel

...
...
1
Extrusion, Bottom WPL-701608
...
2
Bezel, Switch WPL-701610
...
3
Switch, Push WPL-70162-1
...
4
Thermostat WPL-Y703148
...
5
Knob- Ther WPL-WPY703499
...
6
Screw WPL-71002058
...
7
Switch, Selector WPL-70316-7
...
8
Knob- Sele WPL-WP703502
...
9
Switch, Momentary WPL-Y701620
...
10
Panel (Lt) WPL-701615
...
11
Panel, Glass Control WPL-703683
...
12
Cap, End (Lt) WPL-701635
...
13
Angle, Attachment WPL-701609
...
14
Extrusion, Top WPL-701634
...
15
Tie-Wire WPL-WPW10339879
...
16
Knob- Cloc WPL-WP7711P466-60
...
17
Plug, Hole WPL-702286
...
18
Washer WPL-Y707664
...
19
Light, Indicator WPL-Y700557
...
20
Ind Lt Elem Kit WPL-715396K
...
21
Pad, Spacer WPL-705331
...
22
Block, Terminal WPL-Y701623

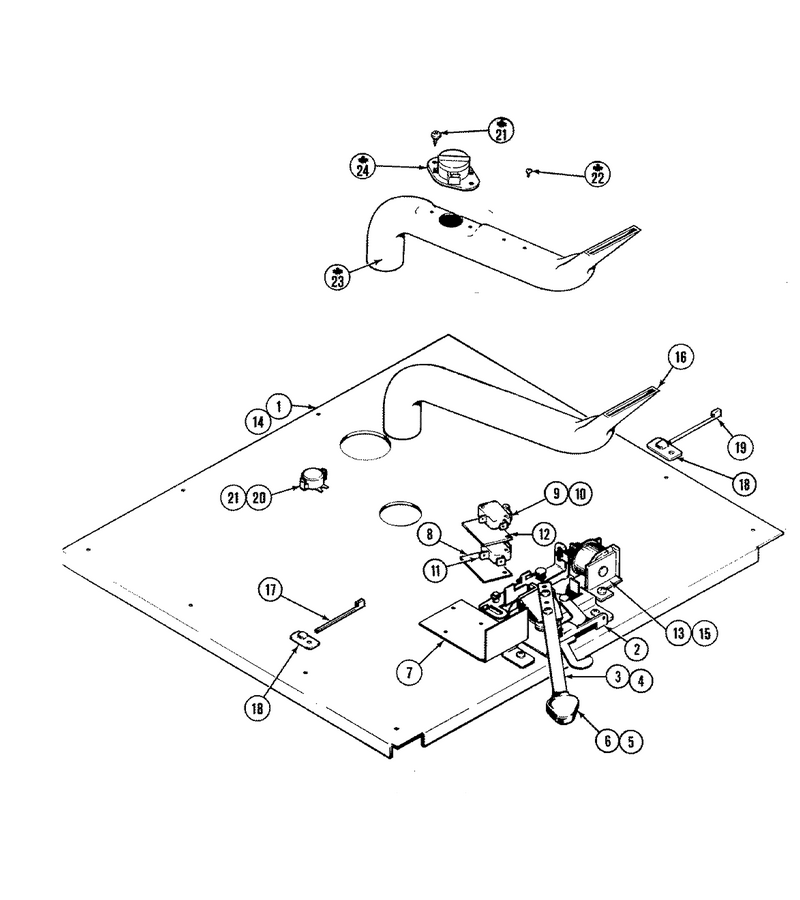

06 - Internal Controls

...
...
1
Panel-Top WPL-704155
...
2
Ring, Retaining WPL-701675
...
3
Lever, Latch (Blk) WPL-Y704227
...
4
Screw WPL-707407
...
5
Spring, Knob WPL-701671
...
6
Knob (Blk) WPL-Y703932
...
7
Shield, Switch WPL-701706
...
8
Insulator WPL-Y702350
...
9
Switch, Door WPL-702806
...
10
Screw WPL-702807
...
11
Switch, Door WPL-702805
...
12
Insulator WPL-703264
...
13
Solenoid WPL-701685
...
14
Screw WPL-WP12990527
...
15
Pin, Cotter WPL-Y701686
...
16
Tube, Vent WPL-701684
...
17
Tie-Wire WPL-WPW10339879
...
18
Tie, Mount Cable WPL-701679
...
19
Tie-Wire WPL-WPW10339879
...
20
Thermostat WPL-701687
...
21
Screw WPL-WP74004005
...
22
Screw WPL-WP355214
...
23
Tube, Vent WPL-702795
...
24
Harness, Wire WPL-702728

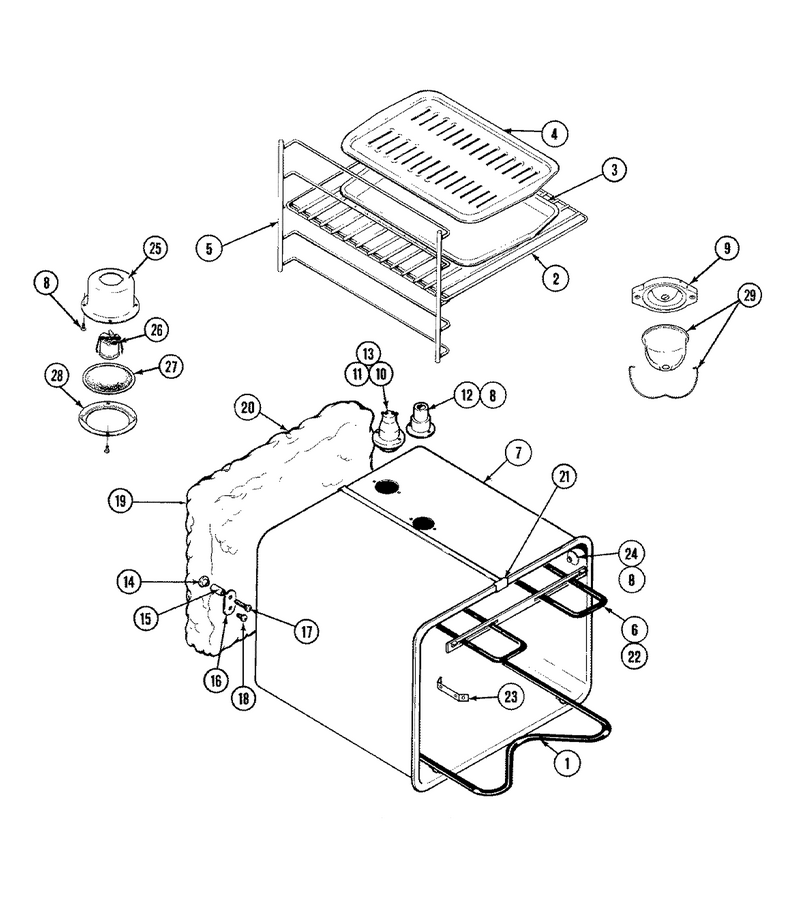

07 - Oven Liner

...
...
1
Element- B WPL-WPY04100020
...
2
Rack, Oven WPL-Y701725
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Support, Rack WPL-Y701728
...
6
Element- B WPL-WPY04100016
...
7
Oven Liner WPL-12001401
...
9
Receptacle, Light WPL-715281
...
10
Washer WPL-701736
...
11
Screw WPL-715485
...
12
Tube, Vent WPL-701738
...
13
Light Bulb WPL-8009
...
14
Nut, Tee WPL-715294
...
15
Spacer, Oven WPL-701741
...
16
Plate, Grounding WPL-701742
...
17
Screw WPL-WP71001171
...
18
Screw WPL-701744
...
19
Insulation, Wrap WPL-701702
...
20
Insulation, Rear WPL-701703
...
21
Rivet WPL-WP210720
...
22
Spacer WPL-702594
...
23
Clip, Bulb WPL-Y701541
...
24
Cover, Meat Probe WPL-712088
...
25
Receptacle, Holder WPL-704142
...
26
Sockt-Lite WPL-WP74003387
...
27
Lens, Light WPL-Y704143
...
28
Retainer, Lens WPL-Y704144
...
29
Light-Lens Kt+ WPL-712282K

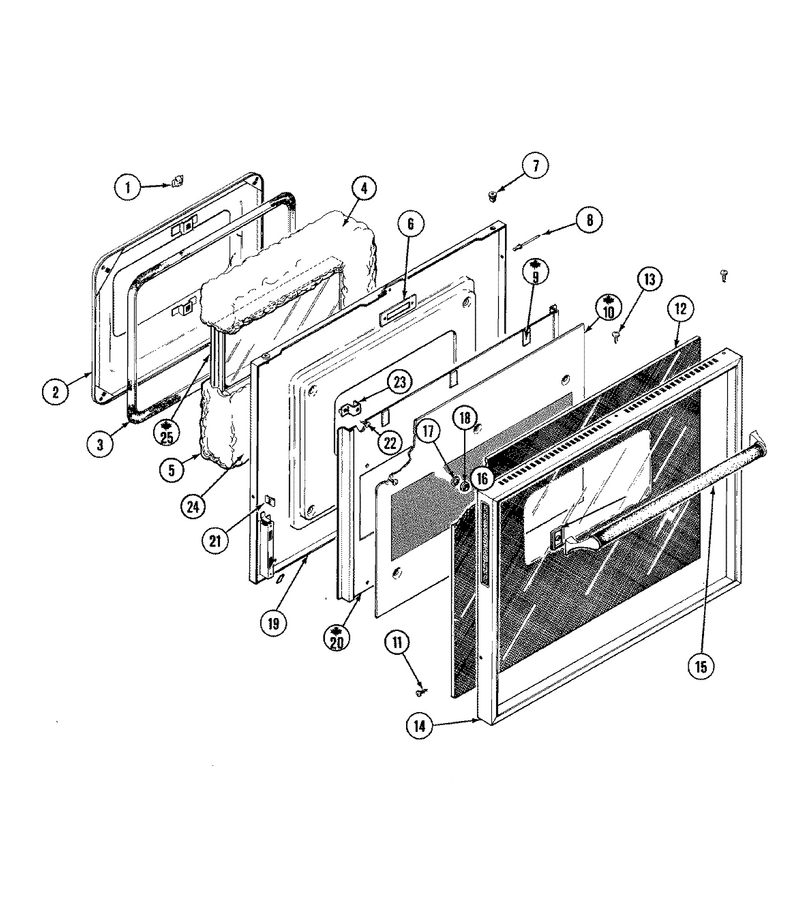

05 - Door

...
...
1
Clip, Retainer WPL-Y700503
...
2
Door Plug Weld WPL-Y04100664
...
3
Seal- Oven WPL-WP701650
...
4
Insulation, Bottom WPL-701658
...
5
Insulation, Top WPL-701660
...
6
Plate, Latch (Upper) WPL-Y712010
...
7
Nut, Push In WPL-701643
...
8
Rivet, Accordion WPL-70164-1
...
9
Pad, Spacer WPL-715938
...
10
Panel, Perforated WPL-701644
...
11
Screw WPL-W11233072
...
12
Glass- Scr WPL-703706K
...
13
Screw WPL-W11233072
...
14
Frame WPL-703705
...
15
Kit- Handl WPL-12200057
...
16
Pad, Mounting WPL-Y703430
...
17
Palnut WPL-Y703431
...
18
Bushing WPL-Y703433
...
19
Liner, Door WPL-712188
...
20
Baffle, Door WPL-701645
...
21
Hinge-Door WPL-WP74008014
...
22
Screw WPL-WPY706189
...
23
Bracket, Stand-Off WPL-701652
...
24
Insulation, Side WPL-701659
...
25
Rivet WPL-WP210720
