Jenn-Air TC607X6

Model: TC607X6

Save Part Not Listed?
product name

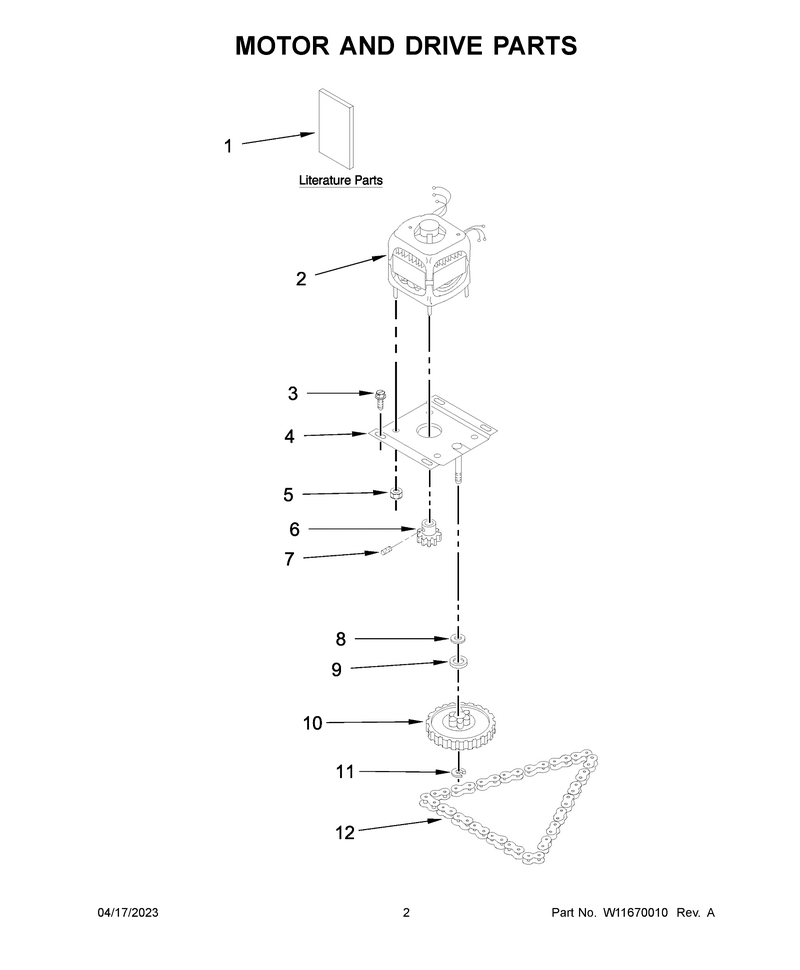

02 - Motor And Drive Parts

...
...
NI
Brackt-Kit WPL-9870118A
...
1
Tech Sheet WPL-W10415490
...
1A
Guide, Use And Care WPL-W11221289
...
1B
Instruction Sheet WPL-W10318872
...
2
Motor-Drv WPL-W10439651
...
3
Bolt WPL-WP8204624
...
4
Plate, Drive Mount WPL-776327
...
5
Nut WPL-WP776338
...
6
Gear-Drive WPL-882699
...
7
Pin-Spring WPL-WP454512
...
8
Washer, Wave WPL-776035
...
9
Washer WPL-W11214485
...
10
Gear-Drive WPL-882699
...
11
Clip WPL-WP776036
...
12
Chain, Drive WPL-780477
...
13
Following Parts Not Illustrated WPL-N/P

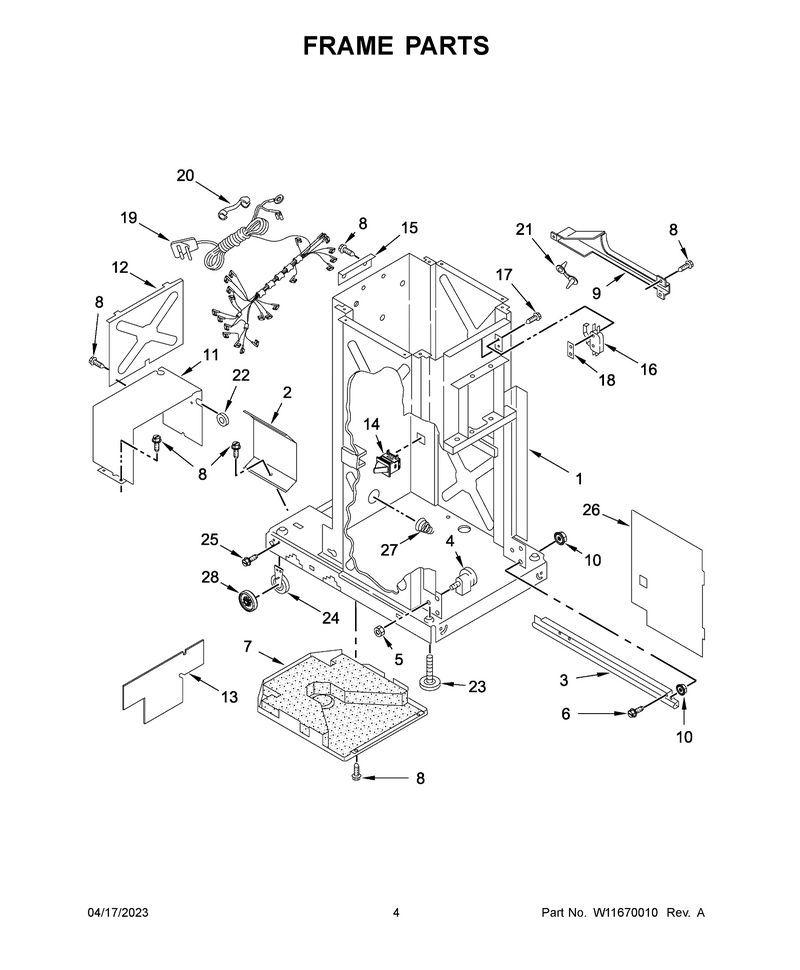

03 - Frame Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Shield, Slide Track WPL-9870867
...
3
Slide WPL-W11722978
...
3A
Slide WPL-WP9870975
...
4
Bearing WPL-882688
...
5
Nut WPL-WP776356
...
6
Screw WPL-WP486754
...
7
Pan-Bottom WPL-WP780437
...
8
Screw WPL-WP489478
...
9
Shield, Harness WPL-4149659
...
10
Nut WPL-W11759042
...
11
Cover, Motor WPL-780434
...
12
Plate, Motor Cover WPL-608009
...
13
Insulation WPL-W11688705
...
14
Switch-Saf WPL-W11243179
...
15
Angle, Frame Plate WPL-775668
...
16
Switch-Dir WPL-WP777811
...
17
Screw WPL-777849
...
18
Plate, Nut WPL-777850
...
19
Cord, Power WPL-W10830603
...
20
Relief-Str WPL-285777
...
21
Clamp WPL-W11705832
...
22
Bushing WPL-W11679167
...
23
Feet-Lvlng WPL-WPW10001130
...
24
Wheel-Lvlr WPL-W11023674
...
25
Screw WPL-WP3351614
...
26
Panel-Iner WPL-WP9870444
...
27
Spring WPL-WP777180
...
28
Wheel-Lvlr WPL-W11672206

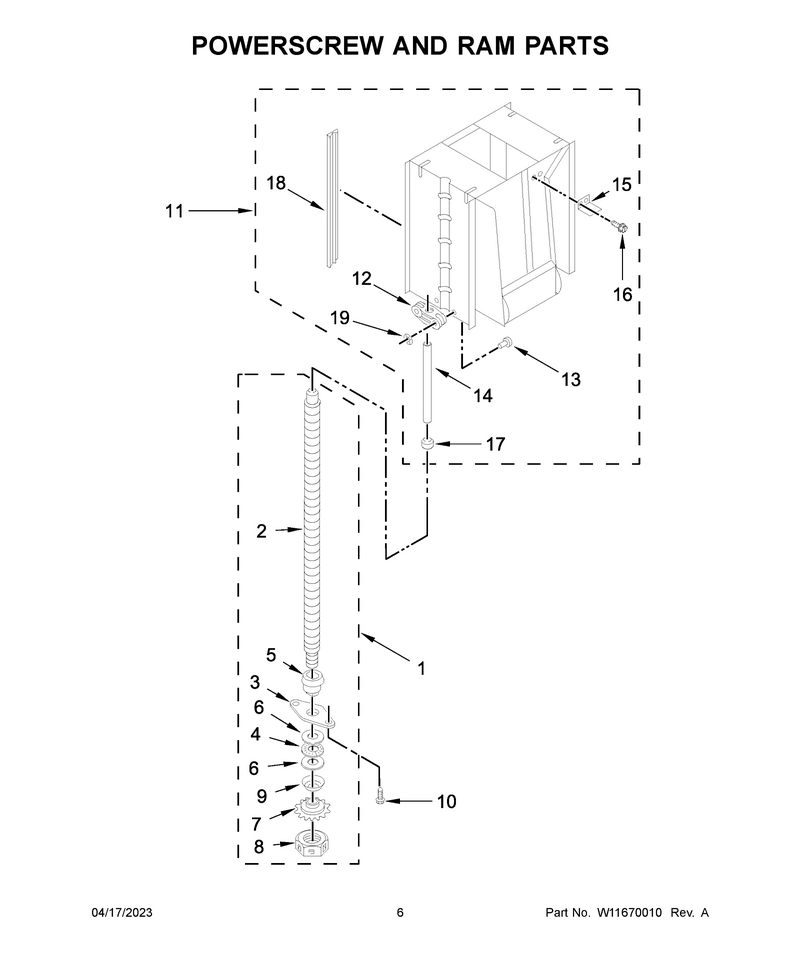

04 - Powerscrew And Ram Parts

...
...
1
Screw-Powr WPL-W11670656
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Plate, Bearing WPL-779121
...
4
Bearing WPL-W10917043
...
5
Hub, Power Screw WPL-776941
...
6
Race, Thrust WPL-775481
...
7
Sprocket WPL-W11679164
...
8
Nut, Power Screw WPL-4154842
...
9
Washer WPL-WP777332
...
10
Bolt WPL-WP8204624
...
11
Ram WPL-W11696573
...
12
Nut-Power WPL-WP9870163
...
13
Stud WPL-882694
...
14
Stop-Ram WPL-WP9870037
...
15
Bracket WPL-W11684541
...
16
Screw WPL-WP489399
...
17
Cap-Pwrscr WPL-WP9870775
...
18
Slide-Ram WPL-W10917246
...
19
Clip WPL-8534092

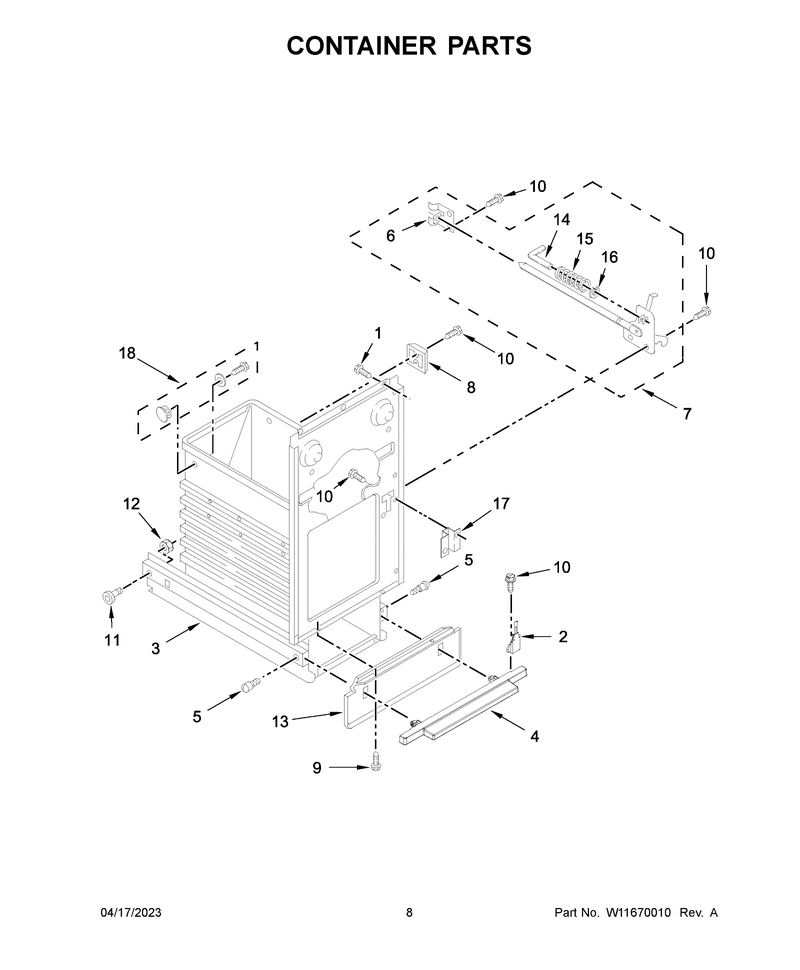

05 - Container Parts

...
...
1
Screw WPL-WPW10139210
...
2
Actuator WPL-W11670651
...
3
Container WPL-W11670733
...
4
Pedal-Foot WPL-W11636605
...
5
Screw WPL-WP780263
...
6
Guide-Ltch WPL-WP776395
...
7
Latch Assembly WPL-675379
...
8
Actuator, Safety Switch WPL-9871125
...
9
Screw WPL-WP3196175
...
10
Screw WPL-WP489478
...
11
Bearing WPL-WP9871602
...
12
Nut WPL-WP776356
...
13
Guard WPL-WP777328
...
14
Pin WPL-W11705836
...
15
Spring, Latch WPL-775736
...
16
Clip WPL-W11679168
...
17
Plate, Latch WPL-775665
...
18
Retainer WPL-W11705833

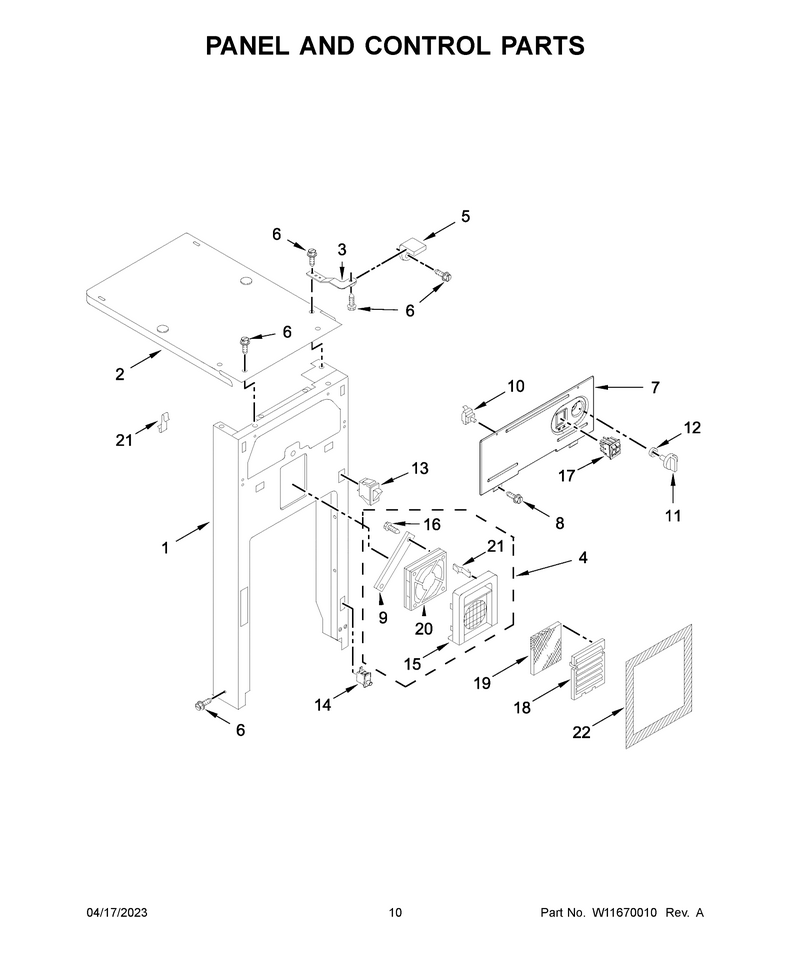

06 - Panel And Control Parts

...
...
1
Panel, Front Frame (Black) WPL-W10242567
...
2
Cover-Frme WPL-W11684543
...
3
Brkt-Retnr WPL-W11729437
...
4
Fan Mount Assembly WPL-9871893
...
5
Brkt-Retnr WPL-WP780239
...
6
Screw WPL-WP489478
...
7
Escutcheon WPL-W11251655
...
8
Screw WPL-246131
...
9
Strap, Fan WPL-4152703
...
10
Switch-Off WPL-WP9871971
...
11
Knob-Swich WPL-WP9871920
...
12
Nut WPL-WP777383
...
13
Switch, Drawer (Black) WPL-9871829
...
14
Switch-Off WPL-WPW10242556
...
15
Fan Mount Assembly WPL-9871893
...
16
Screw WPL-WP3351614
...
17
Switch-Off WPL-W11032731
...
18
Cover-Fltr WPL-WP9871099
...
19
Filter-Air WPL-WP4151750
...
20
Fan Mount Assembly WPL-9871893
...
21
Clip WPL-4151897
...
22
Following Parts Not Illustrated WPL-N/P

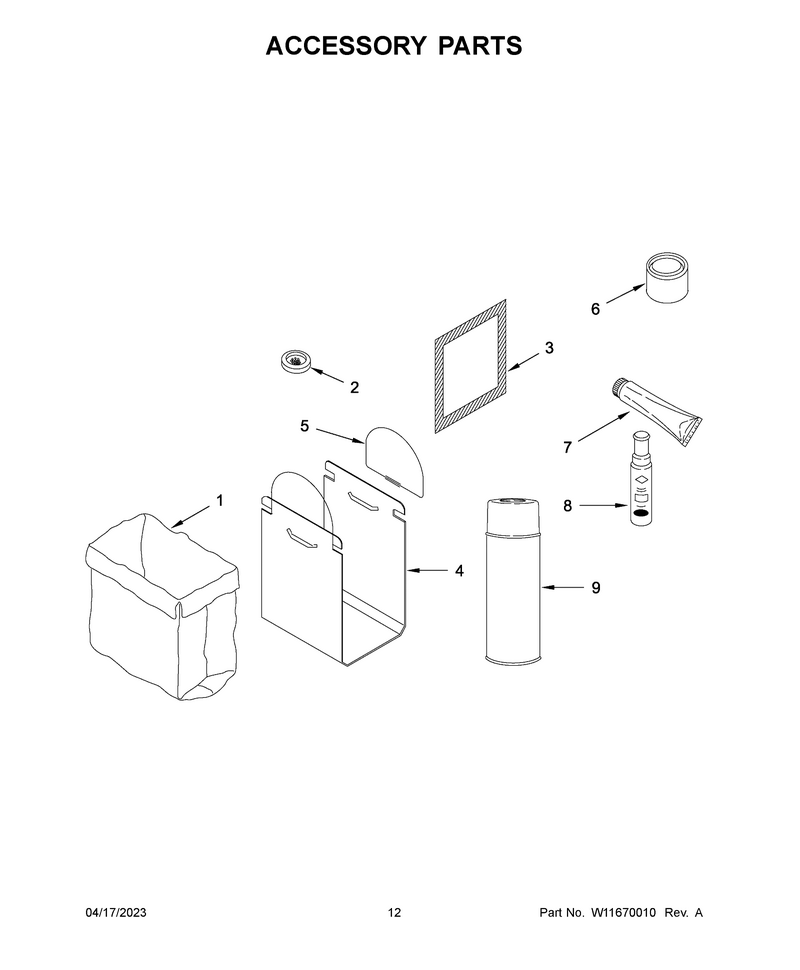

07 - Accessory Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Bag 15 Pak WPL-W10165295RP
...
1A
Bag 60 Pak WPL-W10165294RB
...
1B
Bag, Trash (15" Plastic) (12 Boxes Of 15 Pack) WPL-W10165295BU
...
1C
Bag, Trash (15 In Paper) (12 Pack) WPL-675186
...
1D
Bag, Trash (15 In Paper) (48 Pack) WPL-882652
...
2
Deodorizer, Solid Stick Ups (2 Pack) WPL-777635
...
3
Deodorizer Block (Green Apple) WPL-W10540355
...
3A
Deodorizer Block (Lemongrove) WPL-9872166LG
...
3B
Deodorizer Block (Lavender) WPL-9872166L
...
4
Carrier, Bag (Includes Item 5) WPL-13030RP
...
5
Handle-Bag WPL-WP777108
...
6
Grease 4 Oz. (Use On Power Screw And Ram Pressure Pads) WPL-675351
...
7
Adhesive WPL-WP279368
...
8
Paint, Touch-Up (1/2oz. White) WPL-72017
...
8A
Paint, Touch-Up (1/2oz. Black) WPL-72032
...
9
Paint, Spray (White) WPL-350930
...
9A
Paint, Pressurized Spray (12 Oz. Black) WPL-285006
...
10
Handle WPL-W10083931A
