Jenn-Air S156-C

Model: S156-C

Save Part Not Listed?
product name

Popular Parts

Popular Parts

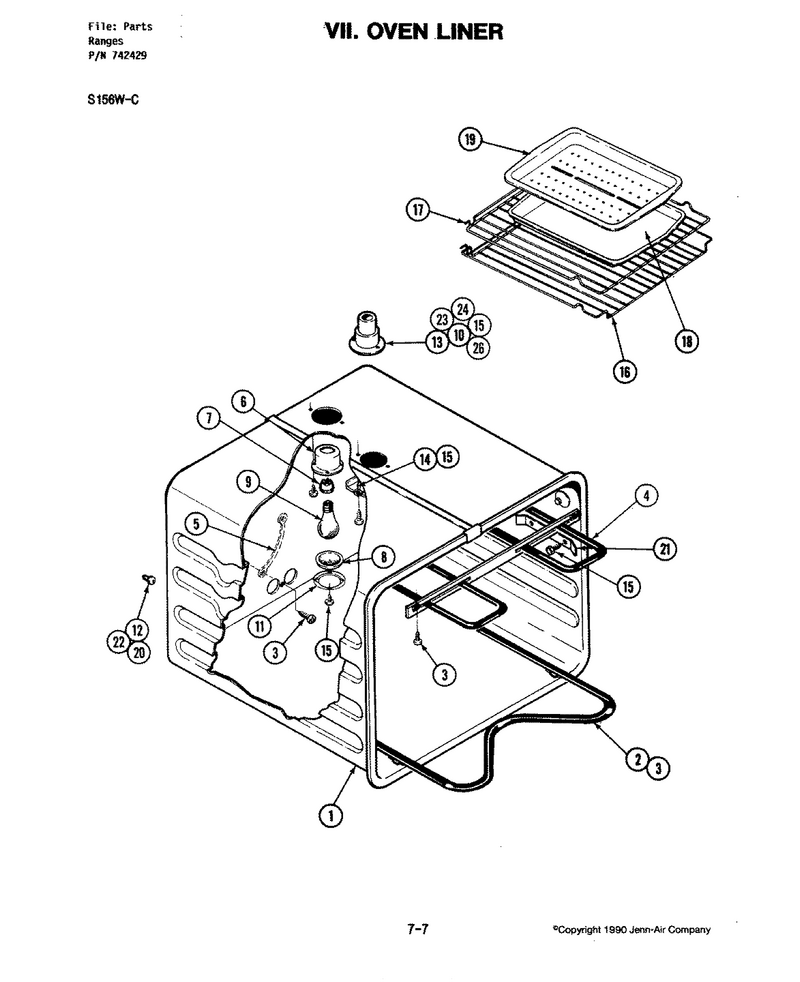

01 - Oven Liner

...
...
1
Screw WPL-WP7101P434-60
...
2
Element- B WPL-WPY04100021
...
3
Screw WPL-WP179051
...
4
Element- B WPL-WPY04100514
...
5
Wire, Ground WPL-702643
...
6
Receptacle, Holder WPL-704142
...
7
Sockt-Lite WPL-WP74003387
...
8
Lens, Light WPL-Y704143
...
9
Light Bulb WPL-8009
...
10
Tube, Vent WPL-702730
...
11
Retainer, Lens WPL-Y704144
...
12
Screw WPL-705170
...
13
Tube, Vent WPL-701738
...
14
Shield, Vent WPL-Y702632
...
15
Screw WPL-WP1163283
...
16
Rack, Oven (Offset) WPL-Y704662
...
17
Rack, Oven WPL-Y704660
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Nut, Tee WPL-715294
...
21
Insulation-Sides,top,bottom WPL-702282
...
22
Rivet WPL-WP210720
...
23
Limit, Oven WPL-Y702107
...
24
Terminal WPL-Y702711
...
25
Screw WPL-71002058
...
26
Screw WPL-WP355214
