Jenn-Air S125-C

Model: S125-C

Save Part Not Listed?
product name

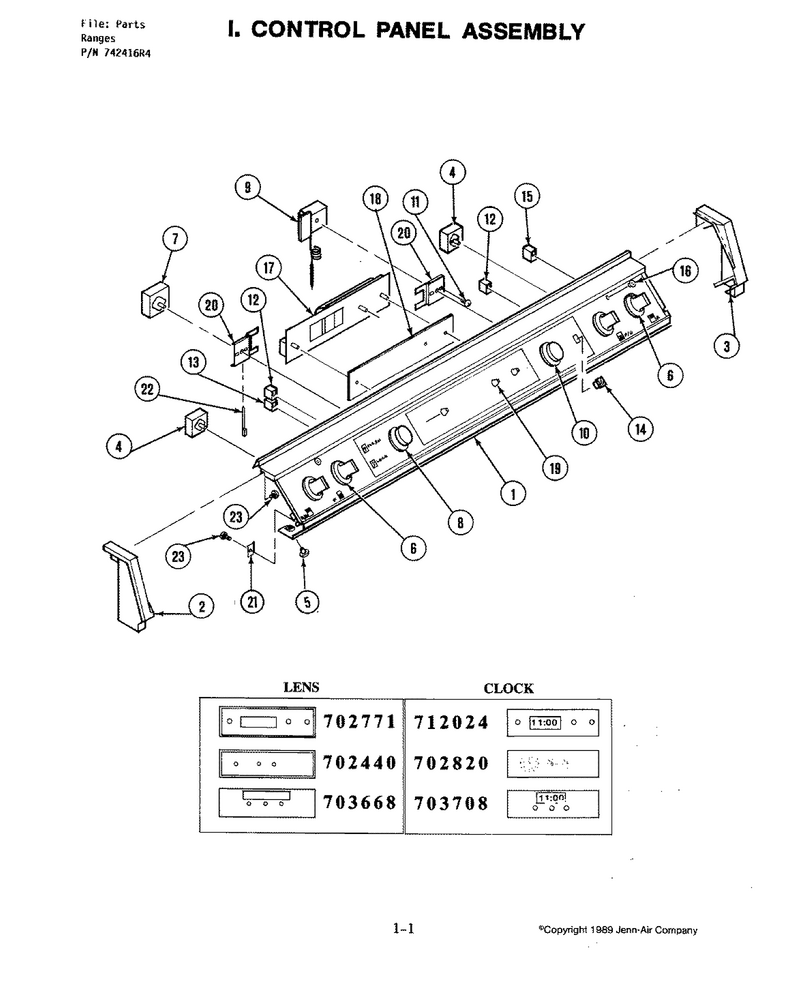

03 - Control Panel Assembly (s125-C)

...
...
1
Panel, Control WPL-702383
...
2
Cap, End (Lt) WPL-702388
...
3
Cap, End (Rt) WPL-Y702387
...
4
Switch-Inf WPL-W11120791
...
5
Screw WPL-W11233072
...
6
Knob Kit WPL-12200034
...
7
Selector S WPL-12001552
...
8
Knob- Sele WPL-WP703502
...
9
Thermostat WPL-703145
...
10
Knob- Ther WPL-WPY703499
...
11
Screw WPL-71002058
...
12
Light, Indicator 240v WPL-Y702394
...
13
Light-Ind WPL-WP903115
...
14
Lens, Pilot Light WPL-Y702351
...
15
Light-Ind WPL-WP903115
...
16
Lens, Pilot Light WPL-Y702615
...
17
Clock & Lens Assy. WPL-712024
...
18
Lens, Clock WPL-702771
...
19
Knob- Cloc WPL-WP7711P466-60
...
20
Bracket, Clock WPL-702617
...
21
Bracket, Retaining WPL-702616
...
22
Tie-Wire WPL-WPW10339879
...
23
Screw, No.6-32 X 1/4 Inch WPL-212951

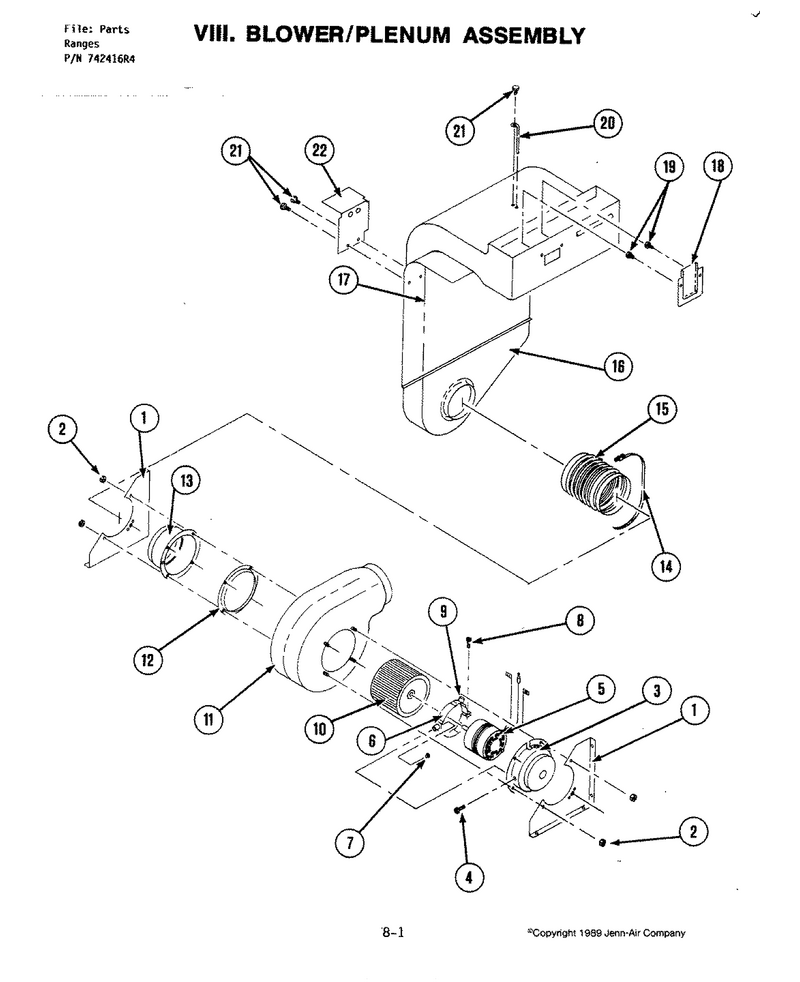

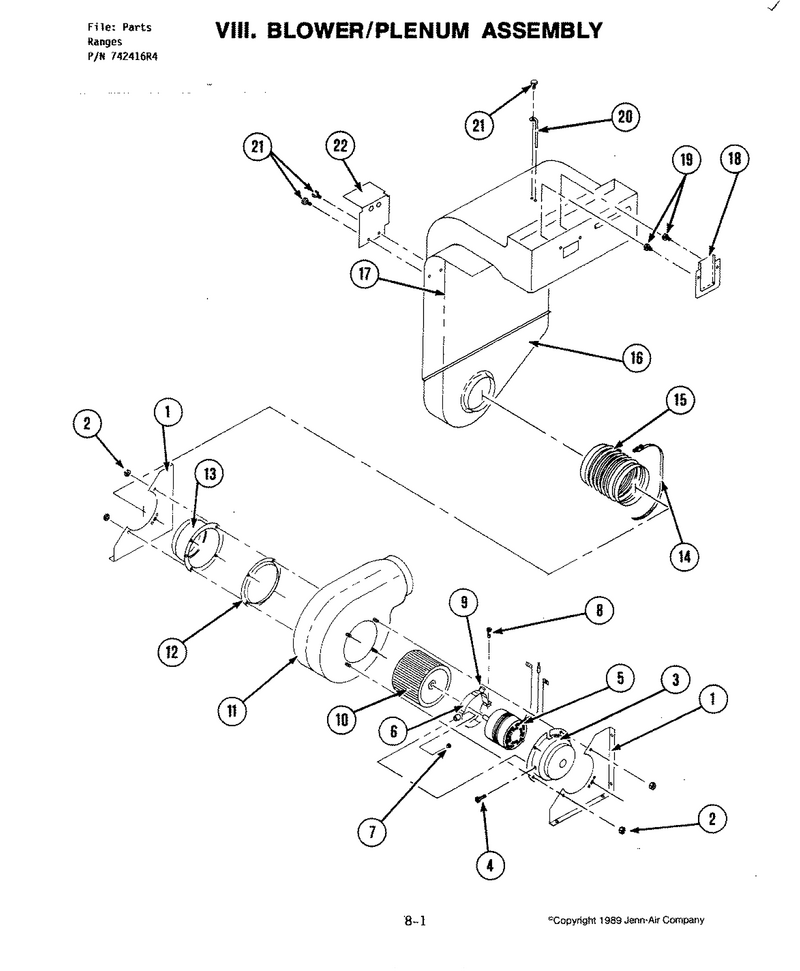

02 - Blower Assembly

...
...
1
Brkt-Mntg WPL-WP3801F631-51
...
2
Locknut WPL-WPY707702
...
3
Cover WPL-WP4005F513-80
...
4
Screw WPL-707407
...
5
Gasket WPL-715957K
...
6
Band, Motor WPL-3415F003-51
...
7
Screw WPL-707407
...
8
Screw WPL-WP4381696
...
9
Isolator- WPL-WP71003558
...
10
Wheel-Fan WPL-WPY707985
...
11
Scroll, Blower Assy. WPL-712008
...
12
Ring, Inlet WPL-Y702295
...
13
Adapter, Restrictor Ring WPL-Y702296
...
14
Clamp, Hose WPL-Y702331
...
15
Duct, Flexible WPL-Y702326
...
16
Plenum, Lower Assembly WPL-712007
...
17
Plenum, Upper WPL-7-12025
...
18
Cover, Vent WPL-Y702475
...
19
Screw WPL-W11233072
...
20
Stop, Filter WPL-Y702656
...
21
Screw WPL-WP90767
...
22
Filter- Gr WPL-WP71002111

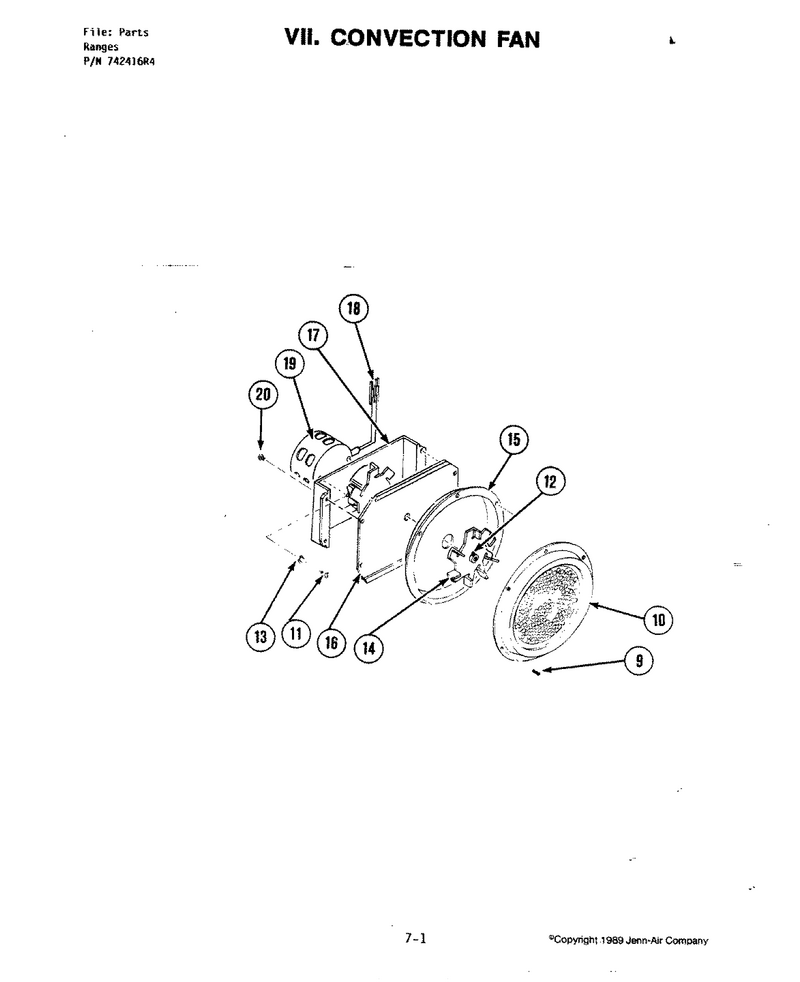

04 - Convection Fan

...
...
9
Screw WPL-701526
...
10
Plate, Convection Front WPL-701707
...
11
Screw WPL-WP488234
...
12
Screw, Set WPL-701709
...
13
Washer No.8 Lock WPL-705910
...
14
Wheel, Convection WPL-701711
...
15
Plate, Convection Back WPL-701712
...
16
Cover, Motor Front WPL-701713
...
17
Plate, Motor Mount WPL-Y700601
...
18
Connector, 1/4`` In-Line WPL-Y715563
...
19
Motor, Convection WPL-701715
...
20
Screw WPL-WP12990527

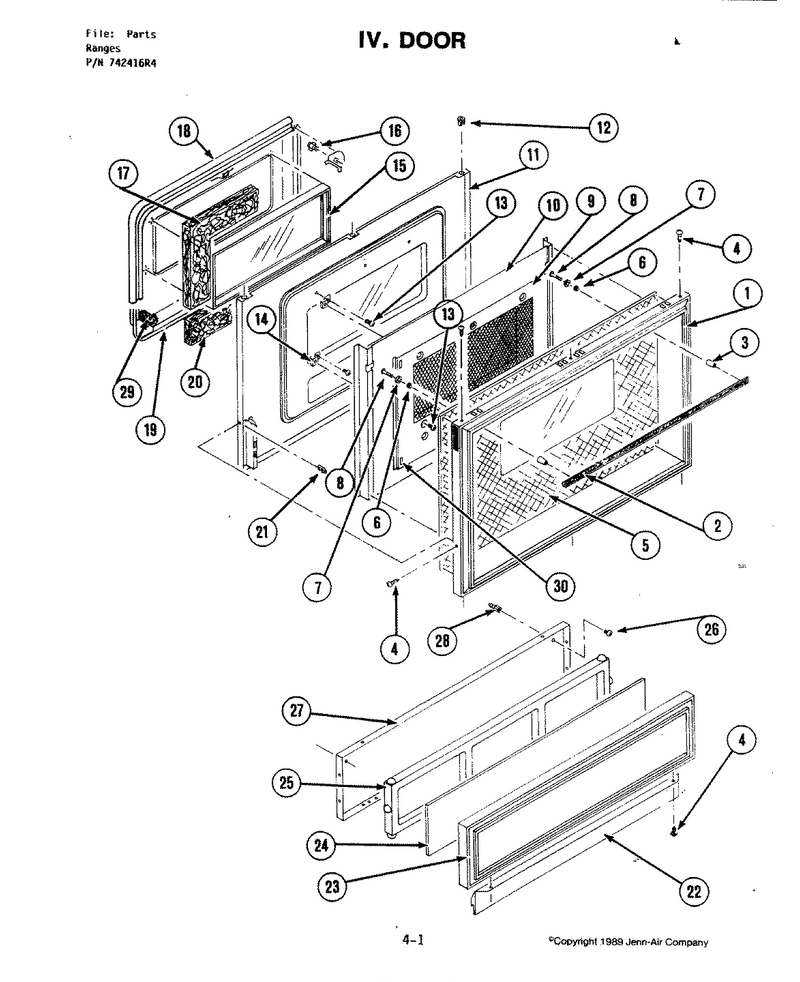

06 - Door (s125-C)

...
...
1
Frame, Oven Door WPL-702320
...
2
Kit- Handl WPL-12200056
...
3
Pad, Mounting WPL-Y703430
...
4
Screw WPL-W11233072
...
5
Glass- Scr WPL-705070K
...
6
Bushing WPL-Y704489
...
7
Washer WPL-Y700446
...
8
Screw WPL-Y700570
...
9
Panel, Perforated WPL-702323
...
10
Baffle-Door WPL-702305
...
11
Liner, Oven Door Weld WPL-712189
...
12
Nut, Push-In WPL-702657
...
13
Screw WPL-W11233072
...
14
Bracket, Stand-Off WPL-701652
...
15
Pack, Window WPL-703804
...
16
Clip, Retainer WPL-Y700503
...
17
Insulation WPL-702293
...
18
Seal- Oven WPL-WPY702338
...
19
Plug, Oven Door Weld WPL-712011
...
20
Insulation, Bottom WPL-702292
...
21
Hinge-Door WPL-WP74008014
...
22
Panel, Kick WPL-Y702744
...
23
Frame, Door WPL-702340
...
24
Panel, Base WPL-Y702342
...
25
Spacer, Base Door WPL-Y702896
...
26
Screw WPL-71002058
...
27
Liner, Door WPL-Y702341
...
28
Stud, Ball WPL-Y702633
...
29
Insulation-Top & Sides WPL-702279
...
30
Spacer WPL-W10840861

07 - Internal Controls (s125-C)

...
...
1
Closure, Front WPL-702329
...
2
Container,grease Assembly WPL-Y712001
...
3
Screw WPL-WP90767
...
4
Angle, Mount WPL-712002
...
5
Tie-Wire WPL-WPW10339879
...
6
Panel, Bottom & Side WPL-71001112
...
7
Cover,louver WPL-703619
...
8
Cover, Rear (Lower) WPL-702307
...
9
Panel, Side (Rt) WPL-702300
...
10
Panel, Side (Lh) WPL-Y04100629
...
11
Hinge, Bracket WPL-Y703487
...
12
Switch, Oven Light WPL-866294
...
13
Bracket, Hat WPL-702658
...
14
Cover, Access(R.h) WPL-702333
...
15
Support, Tube WPL-702302
...
16
Gussett (Rt) WPL-702556
...
17
Gussett (Lt) WPL-702557
...
18
Insulator WPL-702898
...
19
Block-Term WPL-WP8203546
...
20
Terminal WPL-Y702711
...
21
Nut WPL-707161
...
22
Screw WPL-701526
...
23
Not Required Part Or See Note Strap, Ground WPL-W10124350
...
24
Not Required Part Or See Note Screw WPL-W10124350
...
25
Screw WPL-WP90767
...
26
Not Required Part Or See Note Screw, Truss WPL-W10124350
...
27
Bracket WPL-702729
...
28
Not Required Part Or See Note Support, Channel WPL-W10124350
...
29
Anchor Level WPL-700903
...
30
Leveler WPL-W11117769
...
31
Spacer WPL-702745
...
32
Screw WPL-7101P345-60
...
33
Washer, Conical WPL-702462
...
34
Trim, Side WPL-702337
...
35
Clip----S WPL-708763
...
36
Bracket,stiffener WPL-702697
...
37
Panel, Top WPL-702318
...
38
Screw WPL-WP12990527
...
39
Block, Terminal WPL-Y701623
...
40
Limit, Fan WPL-Y702750
...
41
Screw WPL-WP59002061
...
42
Tie, Mount Cable WPL-702746
...
43
Pin, Cotter WPL-Y701686
...
44
Knob (Blk) WPL-Y703932
...
45
Spring, Knob WPL-701671
...
46
Lever, Latch (Blk) WPL-Y704227
...
47
Screw WPL-707407
...
48
Insulator WPL-Y702350
...
49
Switch, Solenoid WPL-Y702360
...
50
Switch, Solenoid Micro WPL-Y702359
...
51
Swtch-Sfty WPL-WP7403P899-60
...
52
Screw WPL-702380
...
53
Washer, Flat WPL-712005
...
54
Block, Terminal WPL-Y702607
...
55
Kit, Latch WPL-12001106
...
56
Clip, Spring WPL-Y702476
...
57
Wire,blacksplash Receptacle WPL-712006
...
58
Wireway WPL-70252-1
...
59
Screw WPL-WP90767
...
60
Enclosure, Circuit Breaker WPL-702523
...
61
Breaker, Circuit WPL-Y715443
...
62
Circuit Breaker (15 Amp) WPL-701774
...
63
Breaker, Circuit (30 Amp) WPL-Y702613
...
64
Screw WPL-WP90767

05 - Cooling Fan (s125-C)

...
...
1
Bracket, Mounting Motor WPL-Y702542
...
2
Motor, Fan WPL-Y702549
...
3
Blade, Fan WPL-Y702525
...
4
Limiter, Thermal WPL-702715
...
5
Screw WPL-WP90767
...
6
Unit, Back WPL-Y04100518
...
7
Screw WPL-WP90767
...
8
Nut K WPL-M0282005

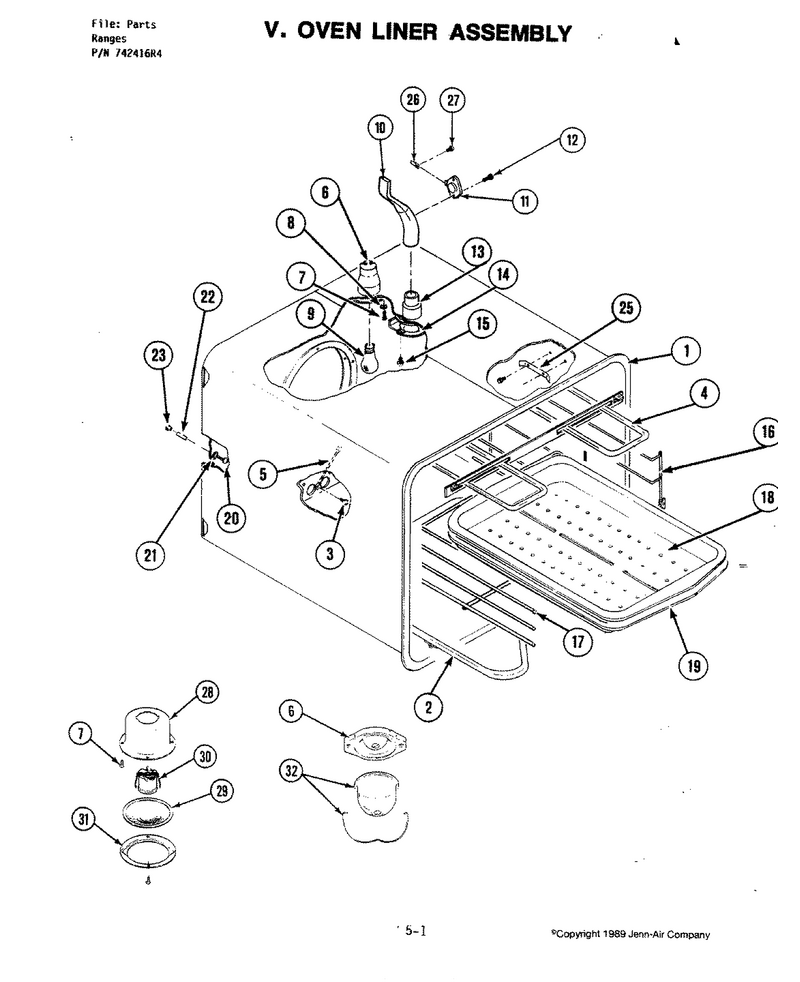

08 - Oven Liner Assembly (s125-C)

...
...
1
Weld, Oven Assy. WPL-712012
...
2
Element- B WPL-WPY04100019
...
3
Screw WPL-WP179051
...
4
Element- B WPL-WPY04100015
...
5
Wire, Ground WPL-702643
...
6
Receptacle, Light WPL-715281
...
7
Screw WPL-715485
...
8
Washer WPL-701736
...
9
Light Bulb WPL-8009
...
10
Tube, Vent WPL-702730
...
11
Limit, Oven WPL-Y702107
...
12
Screw WPL-WP355214
...
13
Tube, Vent WPL-701738
...
14
Shield, Vent WPL-Y702632
...
15
Screw WPL-WPY706189
...
16
Support, Rack WPL-702701
...
17
Rack, Oven WPL-Y702339
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Screw WPL-701744
...
21
Washer WPL-701736
...
22
Spacer, Oven WPL-701741
...
23
Nut, Tee WPL-715294
...
24
Screw WPL-W11233072
...
25
Clip, Oven WPL-Y702618
...
26
Not Required Part Or See Note Terminal WPL-W10124350
...
27
Not Required Part Or See Note Screw WPL-W10124350
...
28
Not Required Part Or See Note Holder, Receptacle WPL-W10124350
...
29
Not Required Part Or See Note Lens, Oven Light WPL-W10124350
...
30
Not Required Part Or See Note Receptacle, Snap-In WPL-W10124350
...
31
Not Required Part Or See Note Retainer, Lens WPL-W10124350

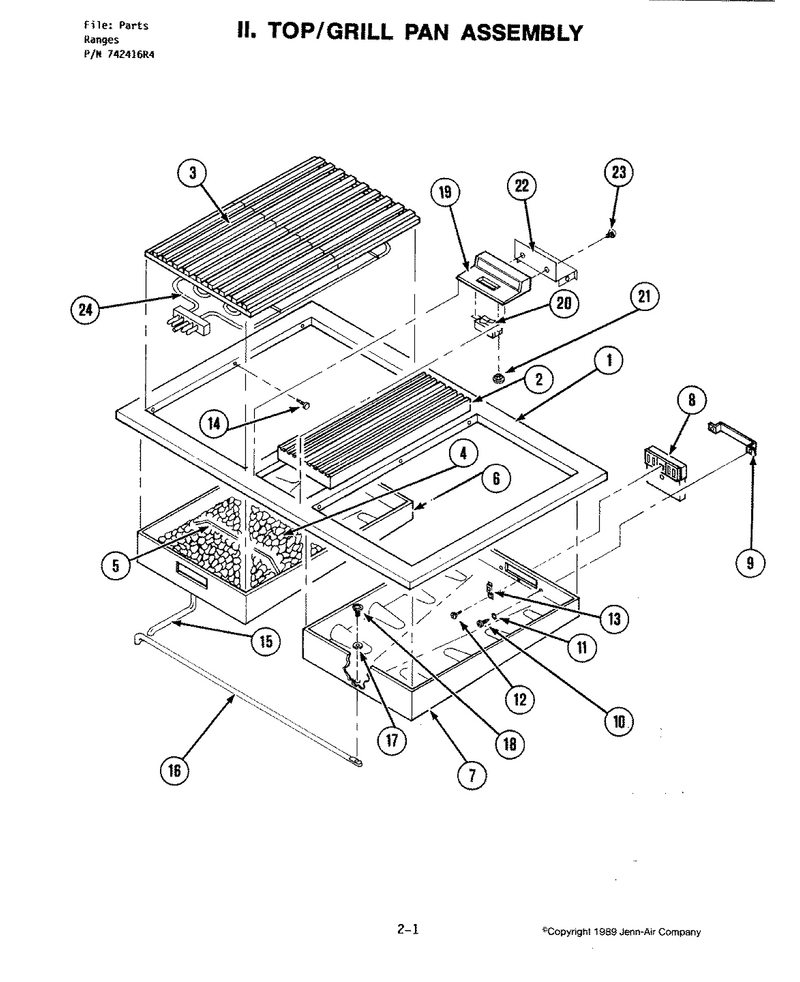

09 - Top Assembly

...
...
1
Top, Stainless Steel WPL-71001213
...
2
Grill, Air WPL-702568
...
3
Grate WPL-707886
...
4
Plate, Rock WPL-708929
...
5
Support, Rock Plate WPL-700819
...
6
Pan, Grill (Lt) WPL-701955
...
7
Harns-Wire WPL-WP5708M005-60
...
8
Receptacle WPL-WPY702434
...
9
Bracket WPL-Y702698
...
10
Screw WPL-WP59002061
...
11
Washer WPL-Y707664
...
12
Screw WPL-WP489128
...
13
Clip WPL-74004835
...
14
Screw WPL-W11233072
...
15
Tube, Drain (Left) WPL-Y702463
...
16
Tube, Drain (Right) WPL-Y702327
...
17
Washer, Teflon WPL-702747
...
18
Nut, Drain Tube WPL-702748
...
19
Escutcheon WPL-715381
...
20
Seal WPL-12200039
...
21
Nut, Hex WPL-7103P166-60
...
22
Bracket, Filler WPL-702581
...
23
Screw WPL-WP179051
...
24
Element WPL-WP5700M426-60

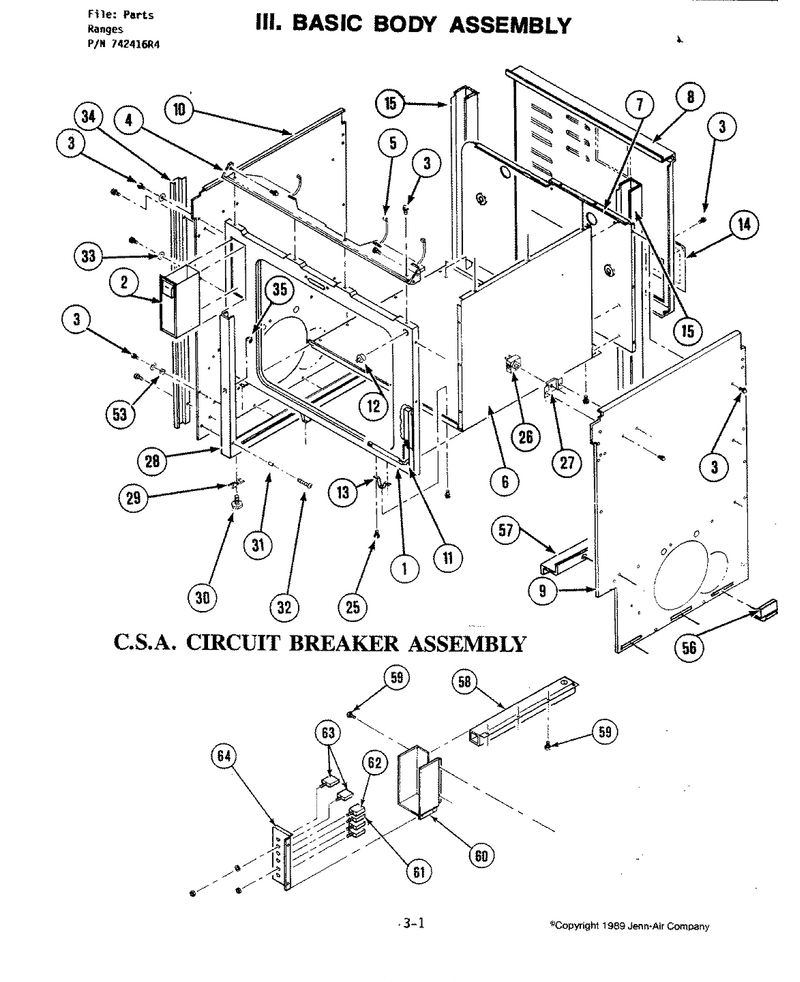

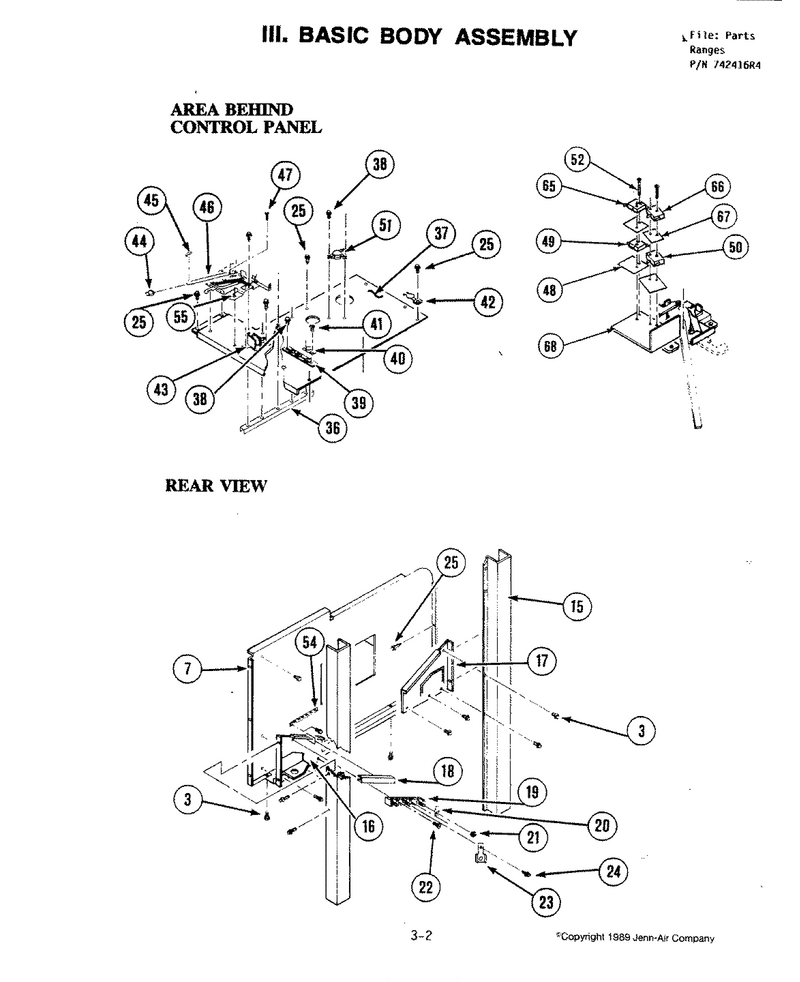

01 - Basic Body (s125-C)

...
...
1
Closure, Front WPL-702329
...
2
Container,grease Assembly WPL-Y712001
...
3
Screw WPL-WP90767
...
4
Angle, Mount WPL-712002
...
5
Tie-Wire WPL-WPW10339879
...
6
Panel, Bottom & Side WPL-71001112
...
7
Back, Inner WPL-Y704735
...
8
Cover, Rear (Lower) WPL-702307
...
9
Panel, Side (Rt) WPL-702300
...
10
Panel, Side (Lh) WPL-Y04100629
...
11
Hinge, Bracket WPL-Y703487
...
12
Switch, Oven Light WPL-866294
...
13
Bracket, Hat WPL-702658
...
14
Cover, Access(R.h) WPL-702333
...
15
Support, Tube WPL-702302
...
16
Gussett (Rt) WPL-702556
...
17
Gussett (Lt) WPL-702557
...
18
Insulator WPL-702898
...
19
Block-Term WPL-WP8203546
...
20
Terminal WPL-Y702711
...
21
Nut WPL-707161
...
22
Screw WPL-701526
...
23
Not Required Part Or See Note Strap, Ground WPL-W10124350
...
24
Not Required Part Or See Note Screw WPL-W10124350
...
25
Screw WPL-WP90767
...
26
Switch, Broil Cycle WPL-701698
...
27
Bracket WPL-702729
...
28
Not Required Part Or See Note Support, Channel WPL-W10124350
...
29
Anchor Level WPL-700903
...
30
Leveler WPL-W11117769
...
31
Spacer WPL-702745
...
32
Screw WPL-7101P345-60
...
33
Washer, Conical WPL-702462
...
34
Trim, Side WPL-702337
...
35
Clip----S WPL-708763
...
36
Bracket,stiffener WPL-702697
...
37
Panel, Top WPL-702318
...
38
Screw WPL-WP12990527
...
39
Block, Terminal WPL-Y701623
...
40
Limit, Fan WPL-Y702750
...
41
Screw WPL-WP59002061
...
42
Tie, Mount Cable WPL-702746
...
43
Solenoid WPL-Y702526
...
44
Knob (Blk) WPL-Y703932
...
45
Spring, Knob WPL-701671
...
46
Lever, Latch (Blk) WPL-Y704227
...
47
Screw WPL-707407
...
48
Insulator WPL-Y702350
...
49
Switch, Solenoid WPL-Y702360
...
50
Switch, Solenoid Micro WPL-Y702359
...
51
Swtch-Sfty WPL-WP7403P899-60
...
52
Screw WPL-702380
...
53
Washer, Flat WPL-712005
...
54
Block, Terminal WPL-Y702607
...
55
Kit, Latch WPL-12001106
...
56
Clip, Spring WPL-Y702476
...
57
Wire,blacksplash Receptacle WPL-712006
...
58
Wireway WPL-70252-1
...
59
Screw WPL-WP90767
...
60
Enclosure, Circuit Breaker WPL-702523
...
61
Breaker, Circuit WPL-Y715443
...
62
Circuit Breaker (15 Amp) WPL-701774
...
63
Harness, Circuit Breaker WPL-702612
...
64
Screw WPL-WP90767
