Jenn-Air JXW9048HP4

Model: JXW9048HP4

Save Part Not Listed?
product name

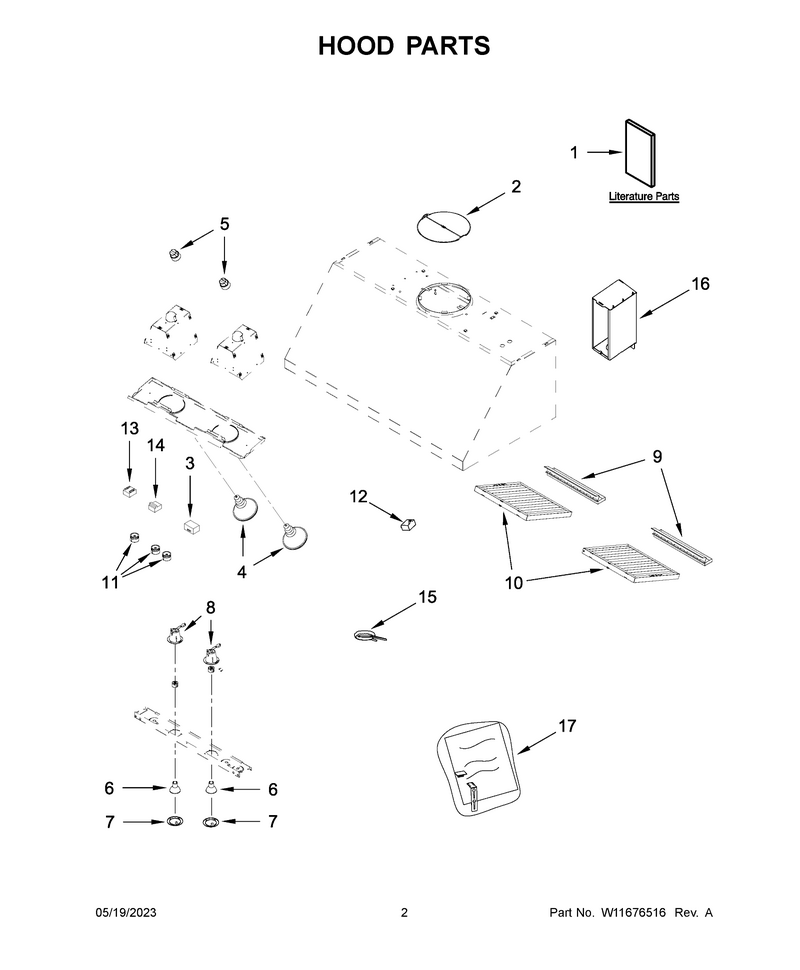

02 - Hood Parts

...
...
1
Owners Manual WPL-W11374531
...
2
Damper WPL-W11551389
...
3
Switch, Fan WPL-W10293967
...
4
Bulb-Light WPL-WPW10294005
...
5
Socket, Ir Lamp WPL-W10294008
...
6
Light WPL-W11388881
...
7
Bezel, Lamp WPL-W10351924
...
8
Housing, Lamp WPL-W11512046
...
9
Grease Tray (36" Model Only) WPL-W10294011
...
9A
Grease Tray (48" Model Only) WPL-W10294022
...
10
Grease Filter (36" Model Only) WPL-W10351892
...
10A
Filter WPL-WPW10351929
...
11
Knob-Cntrl WPL-WPW10294009
...
12
Capacitor WPL-W11715950
...
13
Switch, Ir Lamp WPL-W10293976
...
14
Switch, Light WPL-W10293968
...
15
Filter, Noise WPL-W10427011
...
16
Box-Termal WPL-W11675870
...
17
Hardware, Installation WPL-W10293977

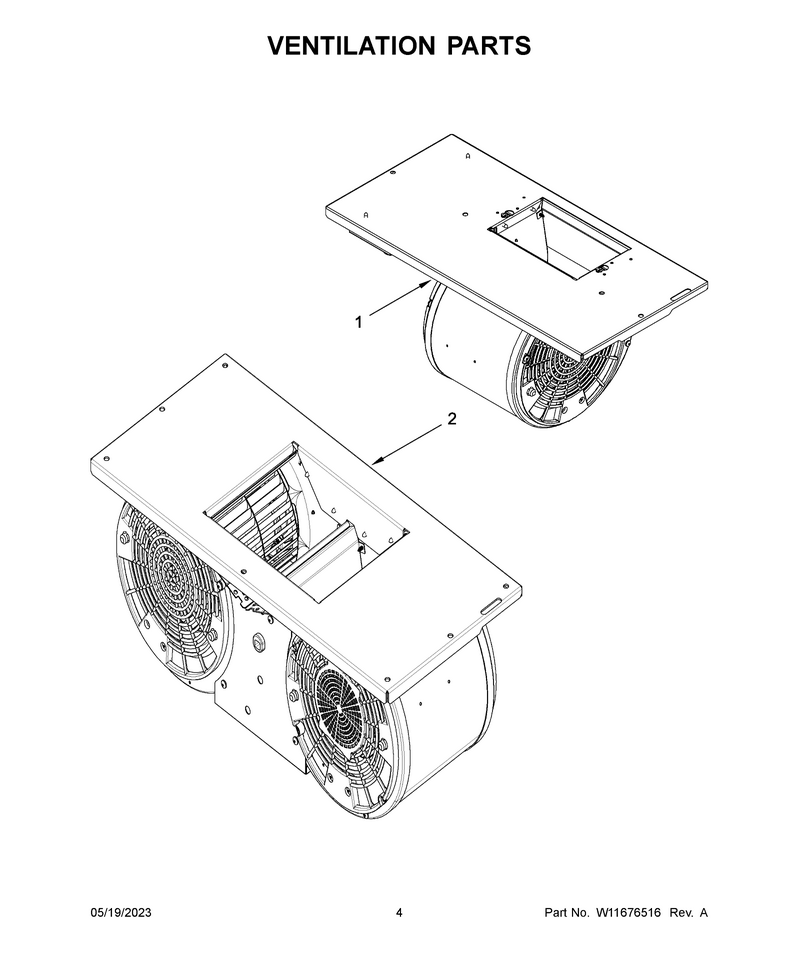

03 - Ventilation Parts

...
...
1
Blower-Fan WPL-W11499035
...
2
Blower-Fan WPL-W11499036
