Jenn-Air JXP5032WW

Model: JXP5032WW

Save Part Not Listed?
product name

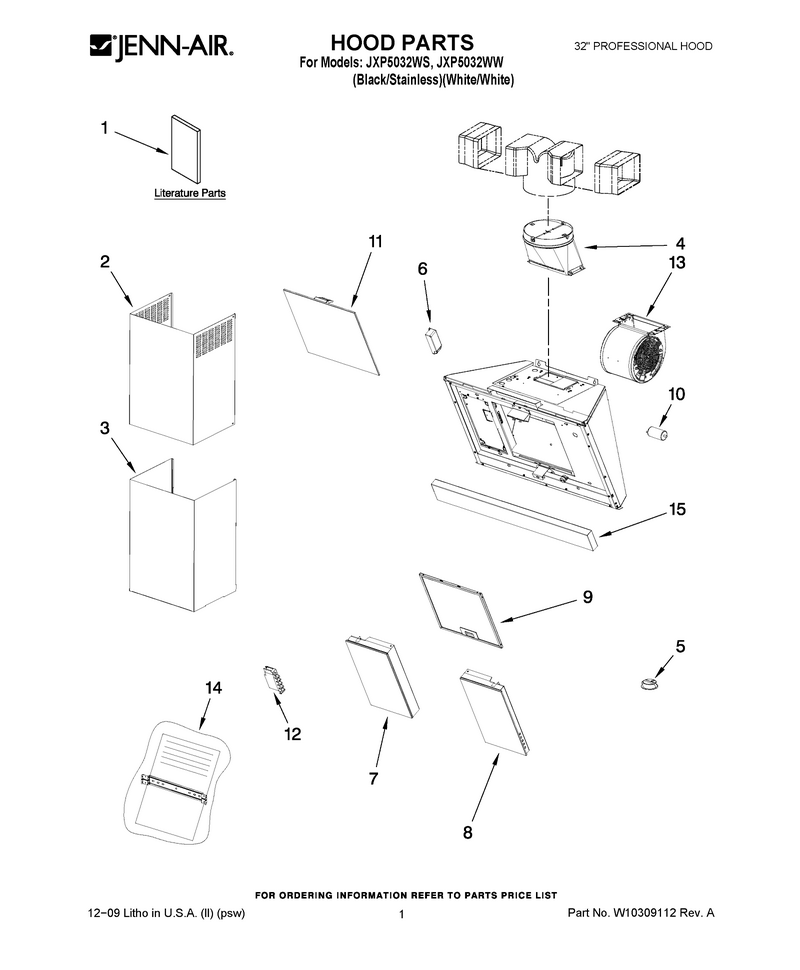

01 - Hood Parts

...
...
1
Use & Care Guide WPL-W10274314
...
2
Chimney WPL-W11321566
...
3
Chimney WPL-W11321566
...
4
Damper Assembly WPL-W10169956
...
5
Bulb-Light WPL-WPW10298151
...
6
Transformr WPL-W11186486
...
7
Panel, Left Front (White) WPL-W10295798
...
8
Panel, Right Front (White) WPL-W10295800
...
9
Filter WPL-WP8190836
...
10
Capacitor WPL-8186677
...
11
Glass, Center (White) WPL-W10294519
...
12
Cntrl-Elec WPL-WPW10294522
...
13
Blower-Fan WPL-W11106377
...
14
Hardware, Install WPL-W10294526
...
15
Trim (Black) WPL-W10295802
Schematic Image Zoomed
