Jenn-Air JXD7030YS7

Model: JXD7030YS7

Save Part Not Listed?
product name

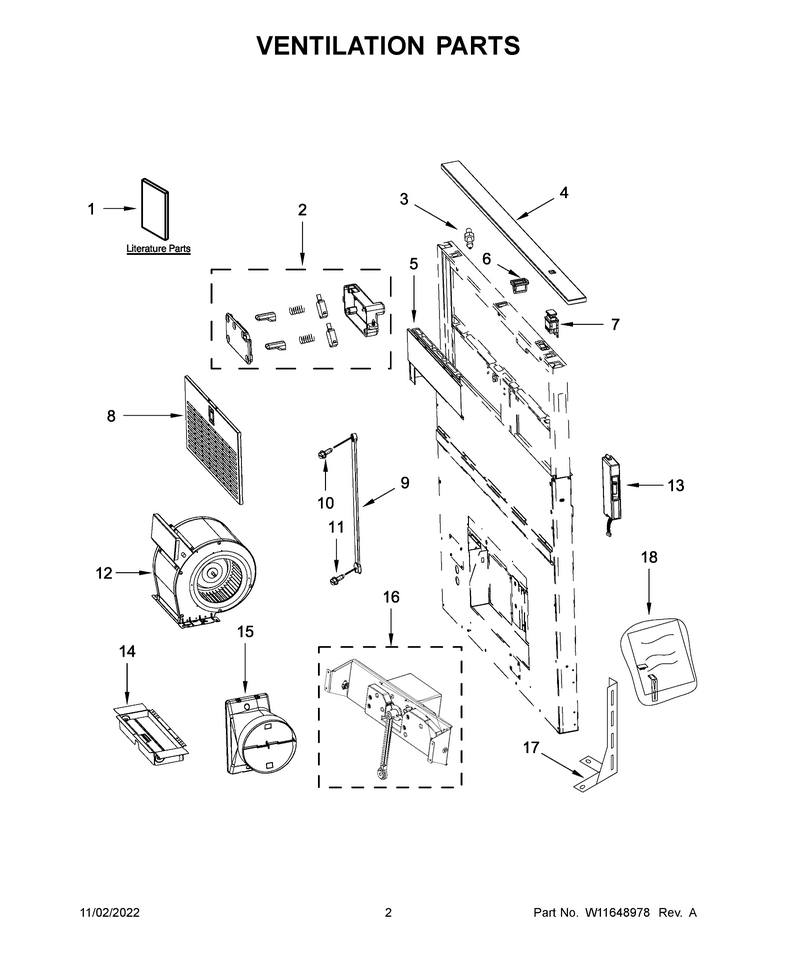

02 - Ventilation Parts

...
...
NI
Hardware WPL-W11174413
...
1
Use & Care Guide WPL-W10342490
...
2
Covr-Swtch WPL-W11666423
...
3
Clip, Top Trim WPL-W10421517
...
4
Trim, Top (30" Stainless) WPL-W11561955
...
4A
Trim, Top (36" Stainless) WPL-W11561956
...
5
Cover, Front (30" Model) WPL-W10798407
...
5A
Cover, Front (36`` Model) WPL-W10421449
...
6
Clip WPL-WPW10421518
...
7
Switch-Pb WPL-W11230930
...
8
Filter, Grease (30" Model) WPL-W10422879
...
8A
Filter, Grease (36" Model) WPL-W10422880
...
9
Arm-Motor WPL-WPW10421280
...
10
Screw WPL-WPW10422765
...
11
Screw WPL-WPW10422764
...
12
Blower-Fan WPL-W11672683
...
13
Cntrl-Elec WPL-W11088943
...
14
Dampr-Hood WPL-W11516461
...
15
Dampr-Hood WPL-WPW10313841
...
16
Motor WPL-W11187731
...
17
Leg, Lower Support WPL-W11233209
...
18
Hardware, Installation WPL-W11123695

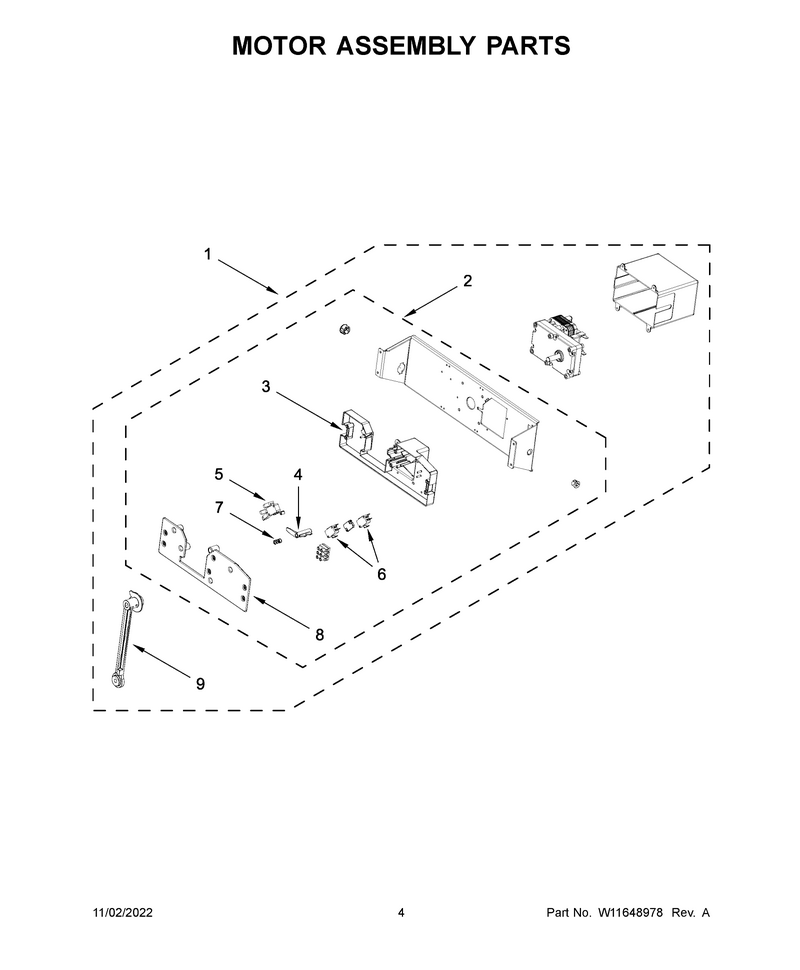

03 - Motor Assembly Parts

...
...
1
Motor WPL-W11187731
...
2
Covr-Swtch WPL-W10833182
...
3
Cover, Back Switch Holder Plenum Motor WPL-W10798401
...
4
Buttn-Cntl WPL-WPW10681777
...
5
Switch WPL-WPW10398341
...
6
Covr-Swtch WPL-W11666423
...
7
Spring WPL-WPW10469579
...
8
Cover, Front Switch Holder Plenum Motor WPL-W11097343
...
9
Arm-Motor WPL-WPW10421277
