Jenn-Air JWCG5 (BOM: WCG-H9)

Model: JWCG5 (BOM: WCG-H9)

Save Part Not Listed?
product name

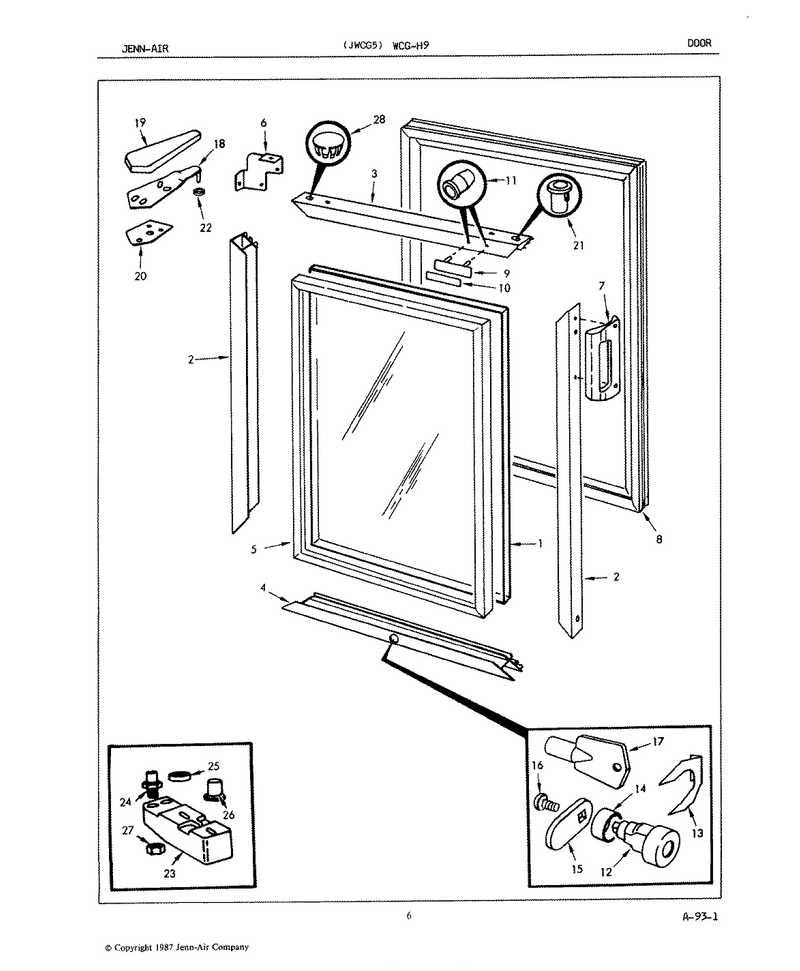

01 - Door

...
...
1
Door Glass WPL-66357-1
...
2
Door Frame WPL-66725-1
...
3
Top Door Frame WPL-66352-1
...
4
Btm Door Frame WPL-66351-1
...
5
Screw WPL-W11233072
...
6
Door Frame Brkt WPL-66356-1
...
7
Handle, Door WPL-66066-3
...
8
Gasket, Door WPL-66355-1
...
9
Nameplate Bezel WPL-66411-1
...
10
Nameplate WPL-65893-20
...
11
Retainer, Nameplate WPL-29356-1
...
12
Lock Cylinder WPL-66365-1
...
13
Spring Clip WPL-61858-1
...
14
Spacer WPL-66364-1
...
15
Lock Bolt WPL-66366-1
...
16
Screw WPL-65275-2
...
17
Key WPL-WP61859-1
...
18
Top Hinge WPL-66458-1
...
19
Cover, Upper Hinge WPL-66459-1
...
20
Spacer, Top Hinge WPL-66508-1
...
21
Bushing WPL-122903913
...
22
Screw WPL-WP59002061
...
23
Lower Hinge WPL-66658-1
...
24
Hinge Pin WPL-123900451
...
25
Washer WPL-122900184
...
26
Bushing WPL-122903913
...
27
Lower Hinge WPL-121901084
...
28
Plug, Door Hinge Hole Rev (Si) WPL-495050

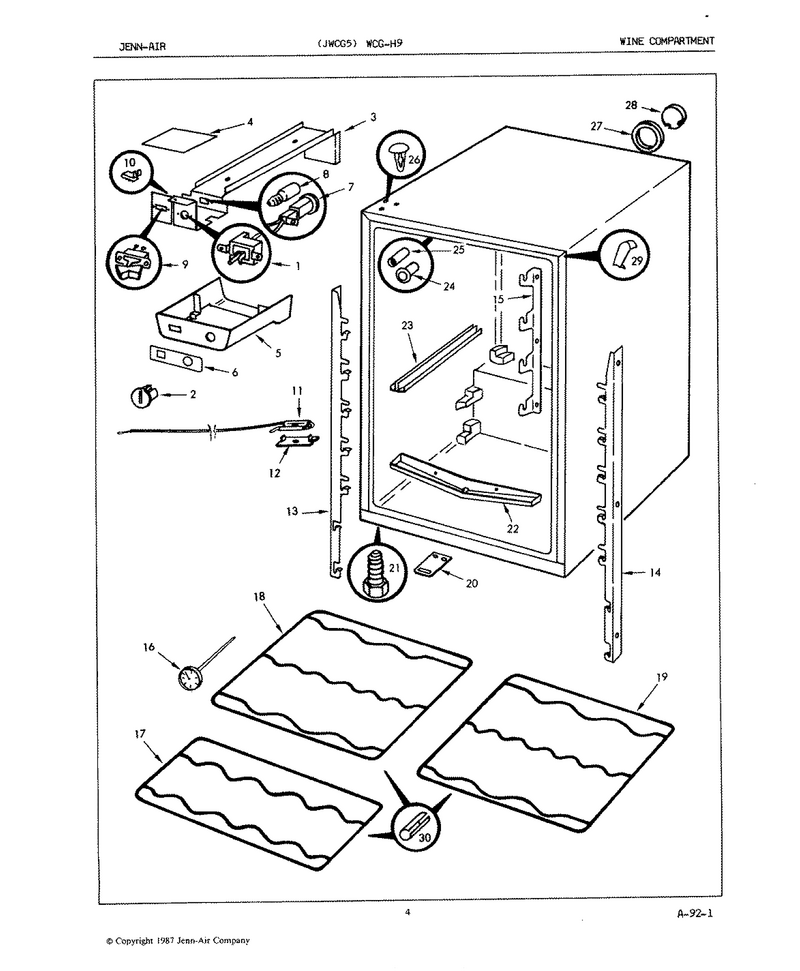

03 - Wine Compartment

...
...
1
Screw WPL-406013-1
...
2
Knob WPL-65658-1
...
3
Control Housing WPL-66374-1
...
4
Shield Barrier WPL-53808-24
...
5
Screw WPL-W11233072
...
6
Insert WPL-66359-1
...
7
Light Socket WPL-66373-1
...
8
Screw WPL-400001-1
...
9
Switch, Light WPL-66443-1
...
10
U-Nut Grounding WPL-53732-2
...
11
Plate, Temperature Control WPL-12096-1
...
13
Lh Shelf Brkt WPL-66346-1
...
14
Rh Shelf Brkt WPL-66346-2
...
15
Rear Shelf Brkt WPL-66347-1
...
16
Thermometer WPL-66751-1
...
17
Shelf WPL-66563-1
...
18
Screw WPL-W11233072
...
19
Shelf WPL-66564-1
...
20
Lock Strike WPL-66360-1
...
21
Leveler W/pin WPL-129624023
...
22
Screw WPL-W11233072
...
23
Cond Rail WPL-66345-1
...
24
Filter Sleeve WPL-66362-1
...
25
Air Filter WPL-66350-1
...
26
Black Plug WPL-66222-5
...
27
Plug WPL-125900754
...
28
Insulation WPL-125900753
...
29
Upr Cornr Cover WPL-66472-1
...
30
Shelf Sleeve WPL-66583-1

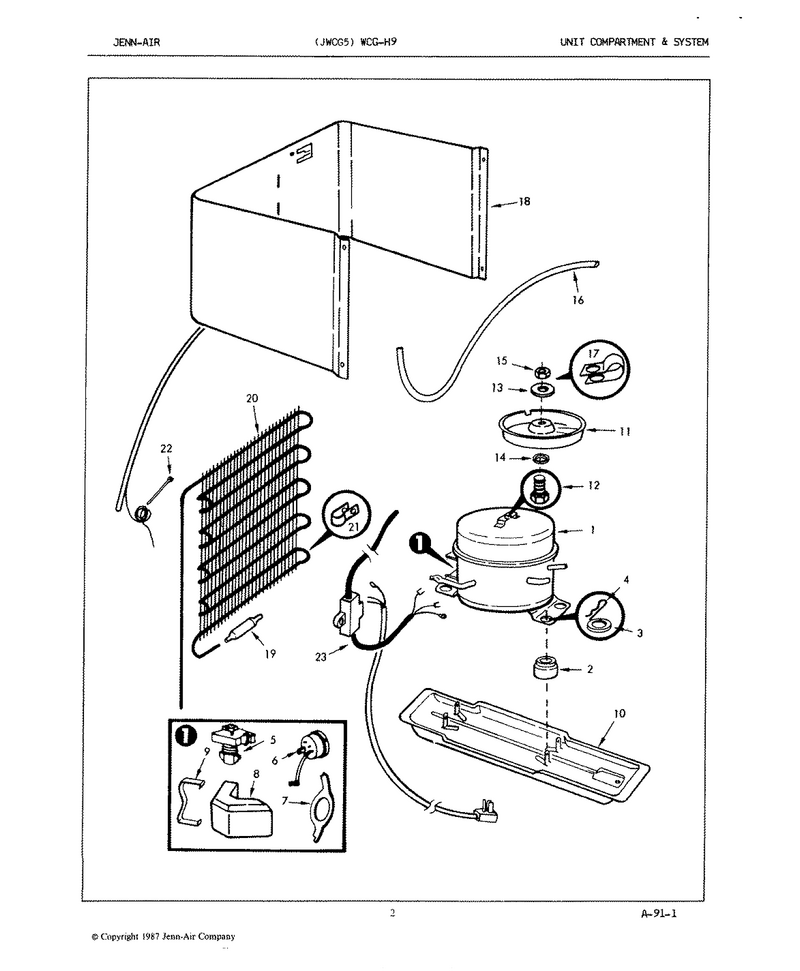

02 - Unit Compartment & System

...
...
1
Compressor WPL-12000018
...
2
Grommet, Compress.mtg.(Necchi) WPL-124400314
...
3
Washer,compressor Mtg. WPL-121900930
...
4
Clip, Compressor Mtg. WPL-123800132
...
5
Relay, Start WPL-126201493
...
6
Overload WPL-126201495
...
7
Clip WPL-127900212
...
8
Cover WPL-127900211
...
9
Clip WPL-127900210
...
10
Cabinet Base WPL-121400999
...
11
Defrost Pan WPL-121901069
...
12
Screw WPL-917131132
...
13
Washer WPL-993041134
...
14
Washer WPL-993210561
...
15
Nut WPL-920143233
...
16
Drain Tube WPL-66369-1
...
17
Clamp WPL-66368-1
...
18
Evaporator WPL-RW2026-1
...
19
Drier-Uv WPL-WPW10143759
...
20
Cover WPL-65916-1
...
21
Screw WPL-991341239
...
22
Strap, Capillary Tube WPL-121900714
...
23
Screw WPL-991341239
