Jenn-Air JUDFP242HX01

Model: JUDFP242HX01

Save Part Not Listed?
product name

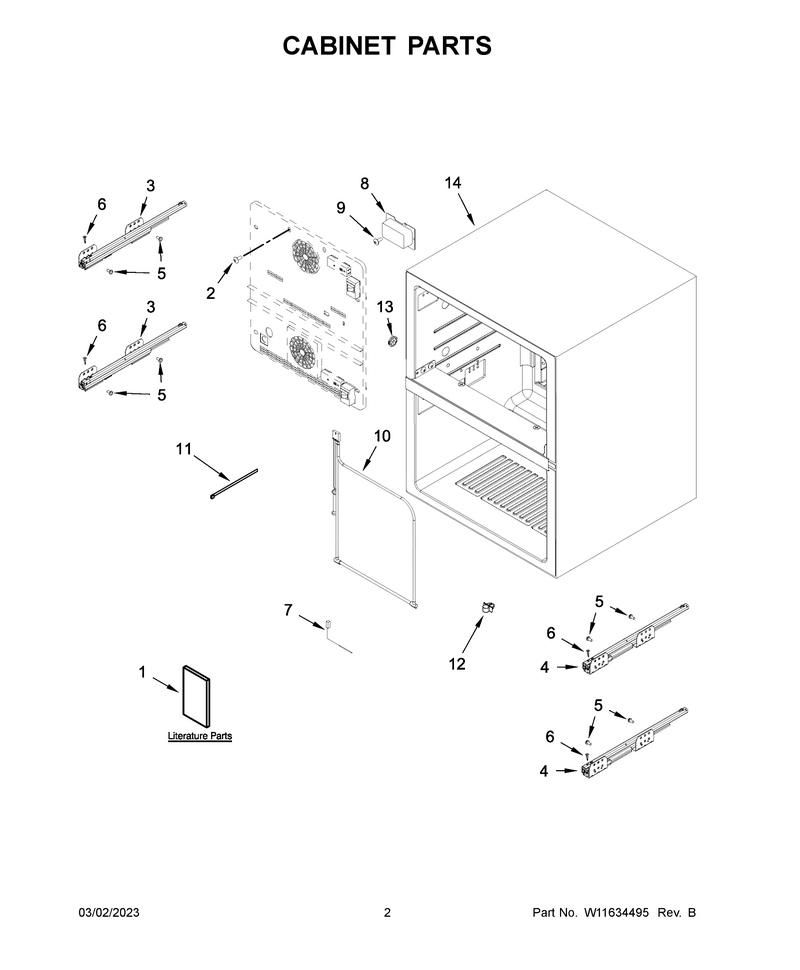

02 - Cabinet Parts

...
...
1
Energy Guide WPL-W10778958
...
1A
Service & Wiring Sheet WPL-W10796444
...
1B
Use & Care Guide WPL-W10741583
...
2
Screw WPL-W10774183
...
3
Rail Assembly, Left Hand WPL-W10621521
...
4
Rail Assembly, Right Hand WPL-W10621523
...
5
Screw WPL-W10621524
...
6
Screw WPL-W10204809
...
7
Thermistor WPL-W11573590
...
8
Cover WPL-W11633898
...
9
Screw WPL-4344826
...
10
Thermal Fuse Assembly WPL-W10204621
...
11
Tie, Cable WPL-4344829
...
12
Clip, Bushing WPL-W10238022
...
13
Liner Bushing WPL-W10621514
...
14
Following Parts Not Illustrated WPL-N/P

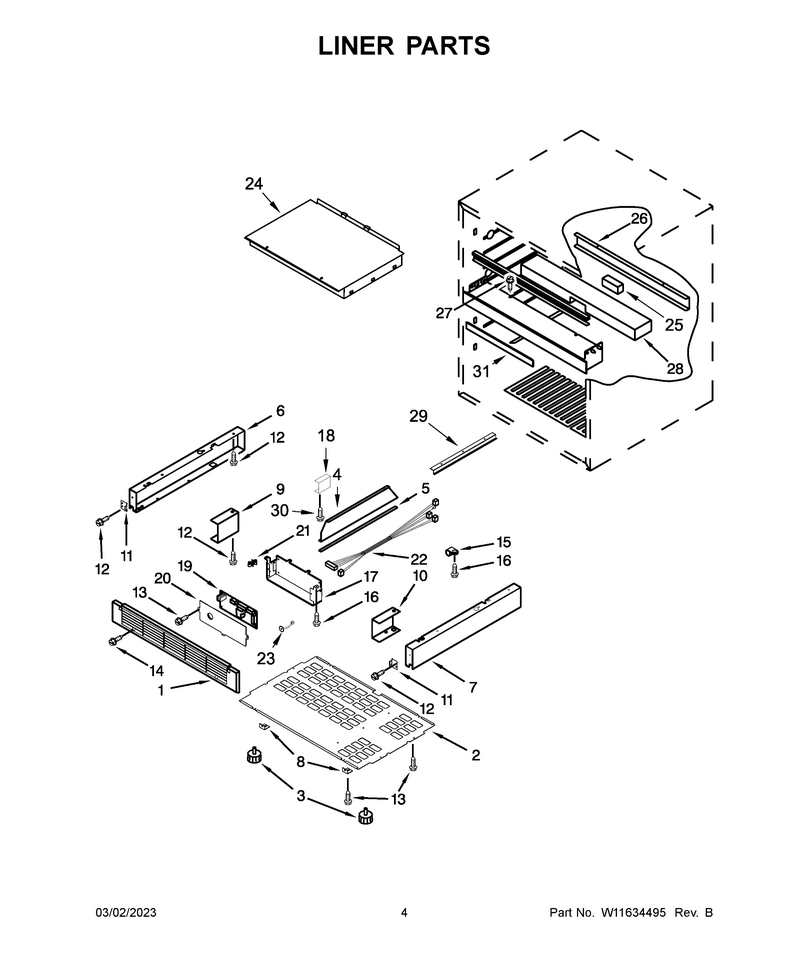

03 - Liner Parts

...
...
1
Kick Plate WPL-W10204635
...
2
Cover, Bottom WPL-W10772863
...
3
Leveler WPL-W11106296
...
4
Auxiliary Plate WPL-W11633891
...
5
Seal, Brace WPL-4344823
...
6
Frame (Left Hand) WPL-W10800049
...
7
Frame (Right Hand) WPL-W10800050
...
8
Bracket, Grille WPL-W10239388
...
9
Frame, Support (Support (Left Hand)) WPL-4344820
...
10
Frame, Support (Support (Right Hand)) WPL-4344821
...
11
Kick Plate Mount WPL-W10204640
...
12
Screw WPL-4344797
...
13
Screw WPL-4344826
...
14
Screw WPL-W10319184
...
15
Cable Clamp WPL-W11633875
...
16
Screw WPL-4344825
...
17
Main Pcb Box WPL-W10772866
...
18
Bracket, Pcb Box WPL-W11466968
...
19
Main Pcb WPL-W11422836
...
20
Cover, Speaker Sensor WPL-W10788698
...
21
Pcb Standoff WPL-W10204659
...
22
Harness Extension WPL-W10772870
...
23
Speaker WPL-W10788693
...
24
Mullion Body Assembly WPL-W10622002
...
25
Mullion Insulation WPL-W10205072
...
26
Mullion Case Cover WPL-W11422824
...
27
Screw WPL-W10319183
...
28
Mullion Insulation WPL-W11466965
...
29
Block Air Circulation WPL-W11493080
...
30
Screw WPL-W11422709
...
31
Mullion Case Insulation Front WPL-W11422742

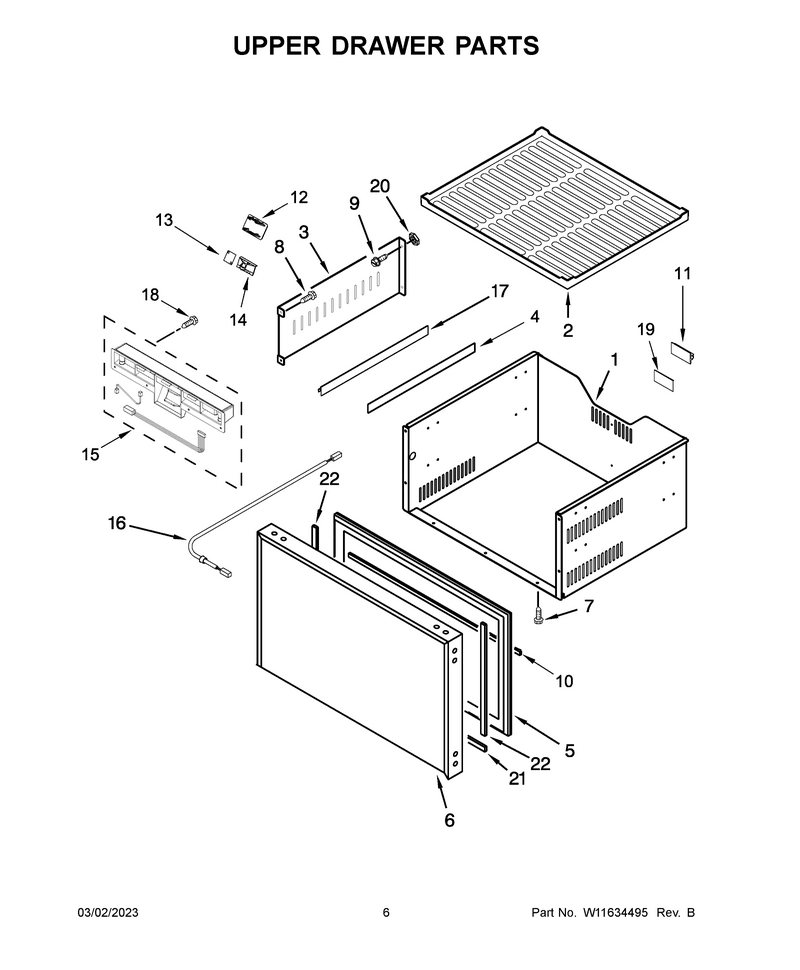

04 - Upper Drawer Parts

...
...
NI
Overlay Installation Kit WPL-W10788702
...
1
Drawer Box Assembly, Upper WPL-W11422819
...
2
Mat, Upper Drawer WPL-W11568835
...
3
Drawer Partition WPL-W11422834
...
4
Wire Support Tape WPL-W11442514
...
5
Gasket WPL-WPW10622006
...
6
Top Foamed Door Assembly WPL-W11422740
...
7
Screw WPL-W10319183
...
8
Screw WPL-W10204809
...
9
Screw WPL-W10204810
...
10
Cold Air Seal WPL-W10772909
...
11
Support, Wire WPL-W10772901
...
12
Lamp Cover WPL-W10204929
...
13
Led Lamp WPL-W10204930
...
14
Lamp Holder WPL-W10204931
...
15
Control Assembly WPL-W11422846
...
16
Harness, Display To Indicator WPL-W10789534
...
17
Support, Lead Wire WPL-W10622013
...
18
Screw WPL-W10204808
...
19
Cover, Relay WPL-W11633899
...
20
Nut WPL-W10204920
...
21
Door Gasket, Long WPL-W10204889
...
22
Door Gasket, Short WPL-W10204897

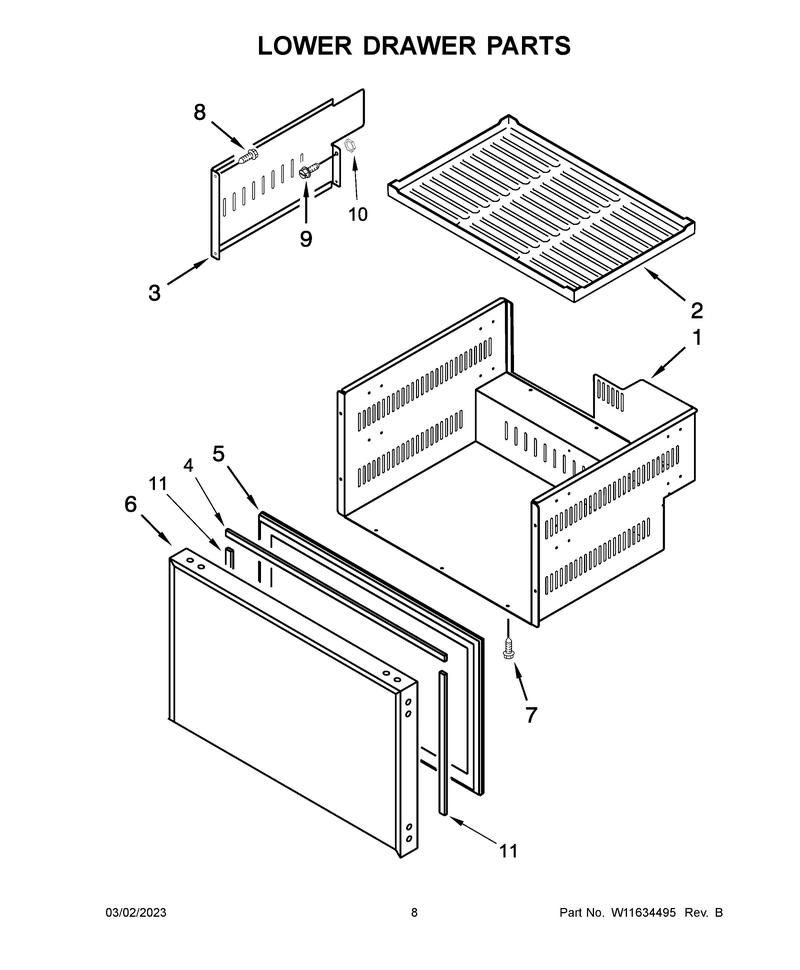

05 - Lower Drawer Parts

...
...
1
Drawer Box Assembly, Upper WPL-W11422821
...
2
Mat, Lower Drawer WPL-W11568945
...
3
Bottom Drawer Partition WPL-W11633892
...
4
Door Gasket, Long WPL-W10204889
...
5
Gasket WPL-WPW10622006
...
6
Bottom Foamed Door Assembly WPL-W11422817
...
7
Screw WPL-W10319183
...
8
Screw WPL-W10204809
...
9
Screw WPL-W10204810
...
10
Nut WPL-W10204920
...
11
Door Gasket, Short WPL-W10204897

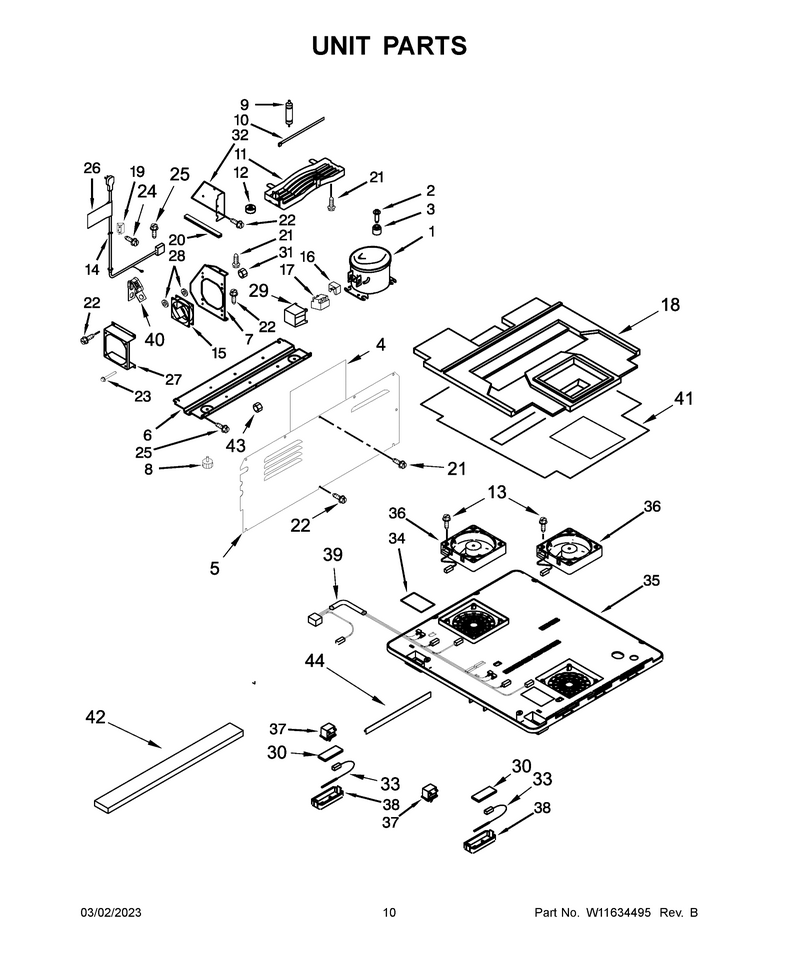

06 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Compressor WPL-W11422743
...
2
Bolt WPL-W10772873
...
3
Grommet WPL-WP4344779
...
4
Insulation, Rear Cover WPL-W10778963
...
5
Cover, Rear WPL-W10796445
...
6
Cabinet Base Plate WPL-W11422734
...
7
Air Baffle WPL-W10204674
...
8
Leveler WPL-W11106296
...
9
Drier WPL-W10163273
...
10
Tie, Cable WPL-W11633878
...
11
Pan, Drain WPL-W10316689
...
12
Trap, Drain WPL-W10163276
...
13
Screw WPL-W10205061
...
14
Cord-Power WPL-WPW10204676
...
15
Condenser Dc Motor WPL-W10772882
...
16
Overload Relay WPL-W11422769
...
17
Start-Dev WPL-W11596023
...
18
Insulation, Fan Cover WPL-W10772919
...
19
Clamp, Cord WPL-W10270517
...
20
Trim, Edge WPL-4344907
...
21
Screw WPL-4344825
...
22
Screw WPL-W11380570
...
23
Screw WPL-W11422695
...
24
Screw WPL-W10837731
...
25
Screw WPL-4344797
...
26
Warning Label WPL-W11444462
...
27
Fan Cover, Condenser WPL-W11506521
...
28
Fan Bushing WPL-W10204688
...
29
Cover, Relay WPL-W11422786
...
30
Sensor Case Seal WPL-W10204948
...
31
Nut WPL-W10772890
...
32
Bracket, Defrost Timer WPL-W10239387
...
33
Thermistor WPL-W11238391
...
34
Terminal Protector WPL-W10205062
...
35
Cover, Fan WPL-W10796448
...
36
Motor-Evap WPL-W10854409
...
37
Door Switch WPL-W10721454
...
38
Sensor Case WPL-W10775535
...
39
Harness, Fan Cover WPL-W10772918
...
40
Clamp, Cord WPL-W10281591
...
41
Plate Cover WPL-W10772920
...
42
Seal WPL-W10788704
...
43
Spring Washer WPL-W11422694
...
44
Seal WPL-W11422827
