Jenn-Air JUCFP242HM12

Model: JUCFP242HM12

Save Part Not Listed?
product name

Popular Parts

Popular Parts

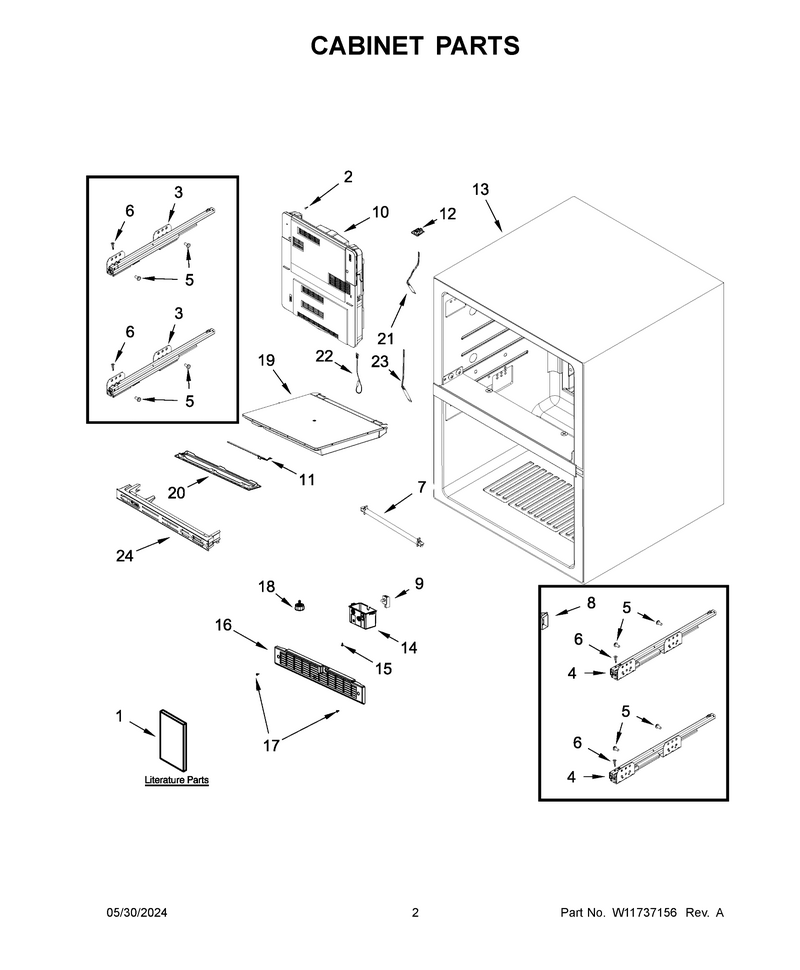

02 - Cabinet Parts

...
...
1
Energy Guide WPL-W11537005
...
1A
Use And Care Guide WPL-W11533206
...
2
Screw WPL-W10774183
...
3
Rail Assembly, Left Hand WPL-W11599889
...
4
Rail Assembly, Right Hand WPL-W11599890
...
5
Screw WPL-W10621524
...
6
Screw WPL-W10204809
...
7
Defrost Holder And Heater WPL-W11580231
...
8
Switch, Case WPL-W11568783
...
9
Switch WPL-W11266082
...
10
Cover Assembly, Evaporator WPL-W11728607
...
11
Bulb-Light WPL-W11497301
...
12
Connector, Cover WPL-W11580230
...
13
Cabinet (Not A Servicable Part) WPL---
...
14
Assembly, Switch Box WPL-W11568794
...
15
Screw WPL-W11371097
...
16
Kick Plate WPL-W11580233
...
17
Screw WPL-W11675284
...
18
Leveler WPL-W11106296
...
19
Assembly, Separator WPL-W11580290
...
20
Cover, Led WPL-W11312450
...
21
Fuse, Temperature WPL-W11359415
...
22
Sensor WPL-W11747626
...
23
Sensor WPL-W11747627
...
24
Assembly, Trim WPL-W11728576

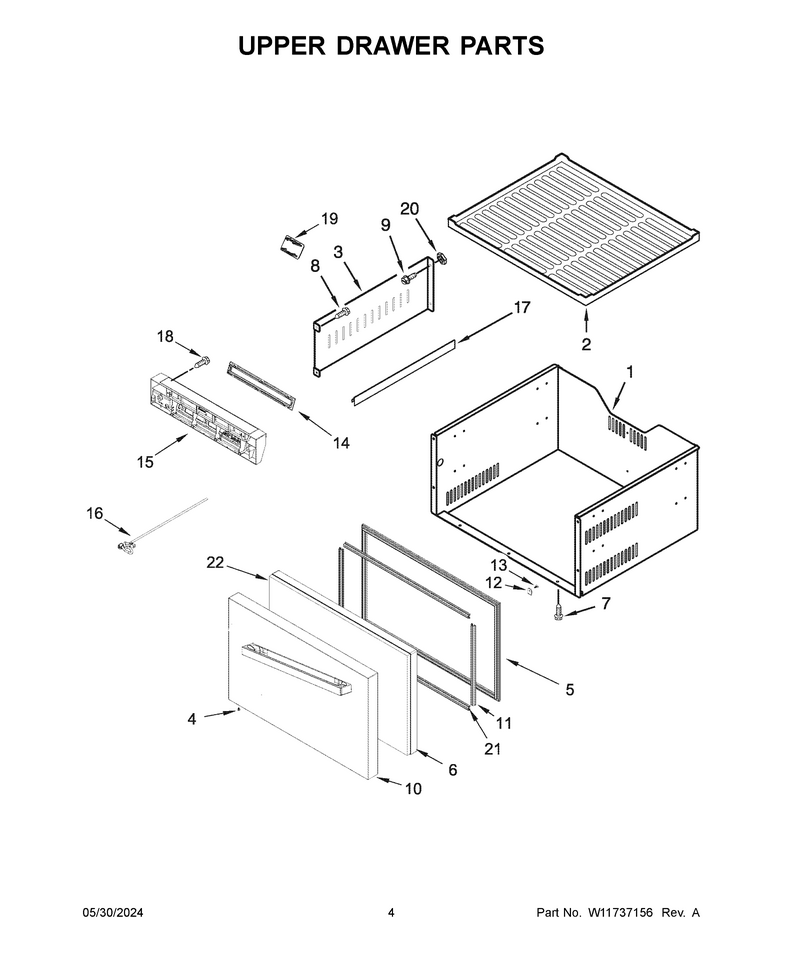

03 - Upper Drawer Parts

...
...
NI
Assembly, Complete Door WPL-W11737163
...
1
Drawer Box Assembly, Upper WPL-W11728577
...
2
Mat, Upper Drawer WPL-W11568835
...
3
Drawer Partition WPL-W11599888
...
4
Stud-Hndle WPL-W11179356
...
5
Gasket, Door WPL-W11568837
...
6
Top Foamed Door WPL-W11728597
...
7
Screw WPL-W10319183
...
8
Screw WPL-W10204809
...
9
Screw WPL-W10204810
...
10
Wrap, Stainless Steel WPL-W11728566
...
11
Gasket-Fip WPL-W11579578
...
12
Plate WPL-W11579579
...
13
Screw WPL-W10859467
...
14
Cover, Led WPL-W11312450
...
15
Control Panel Assembly WPL-W11599662
...
16
Harns-Wire WPL-W11592421
...
17
Support, Lead Wire WPL-W11568842
...
18
Screw WPL-W10204808
...
19
Lamp Cover WPL-W11568841
...
20
Nut WPL-W10204920
...
21
Gasket, Sash (Top/bottom) WPL-W11360665
...
22
Insulation WPL-W11579583

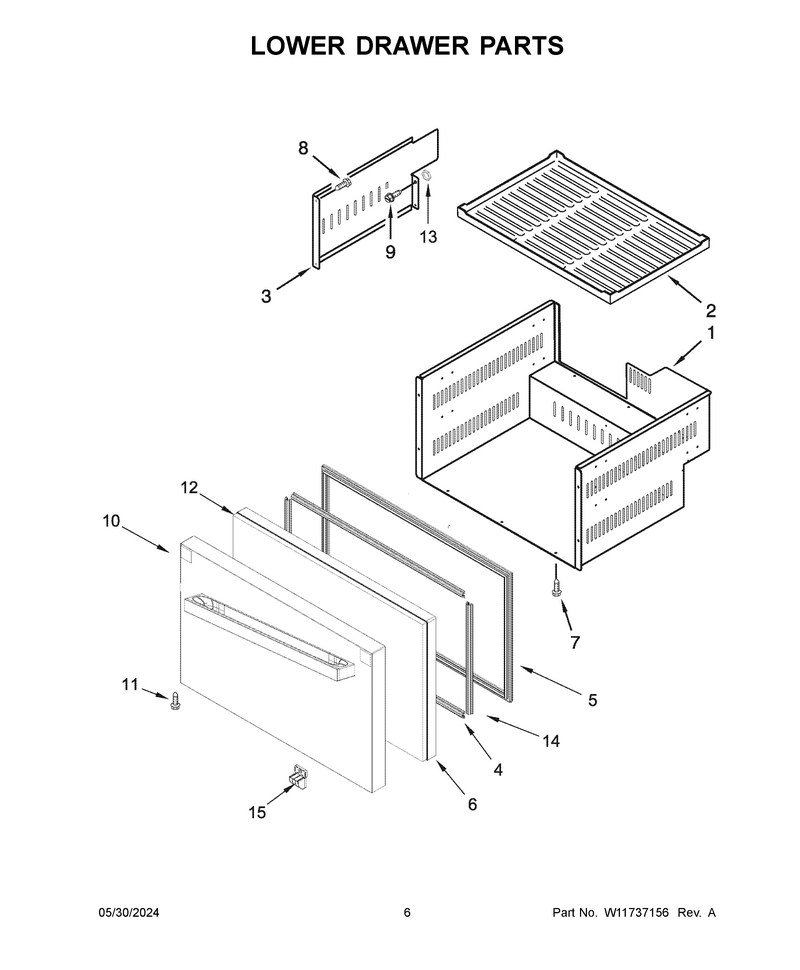

04 - Lower Drawer Parts

...
...
NI
Assembly, Complete Door WPL-W11737165
...
1
Drawer Box Assembly, Lower WPL-W11599895
...
2
Mat, Lower Drawer WPL-W11568945
...
3
Divider WPL-W11667022
...
4
Gasket, Sash (Top/bottom) WPL-W11360665
...
5
Gasket WPL-W11568947
...
6
Door Assembly, Lower WPL-W11728603
...
7
Screw WPL-W10319183
...
8
Screw WPL-W10204809
...
9
Screw WPL-W10204810
...
10
Wrap, Stainless Steel WPL-W11728566
...
11
Screw WPL-W10319185
...
12
Insulation WPL-W11579583
...
13
Nut WPL-W10204920
...
14
Gasket-Fip WPL-W11579578
...
15
Plate, Push WPL-W11728564

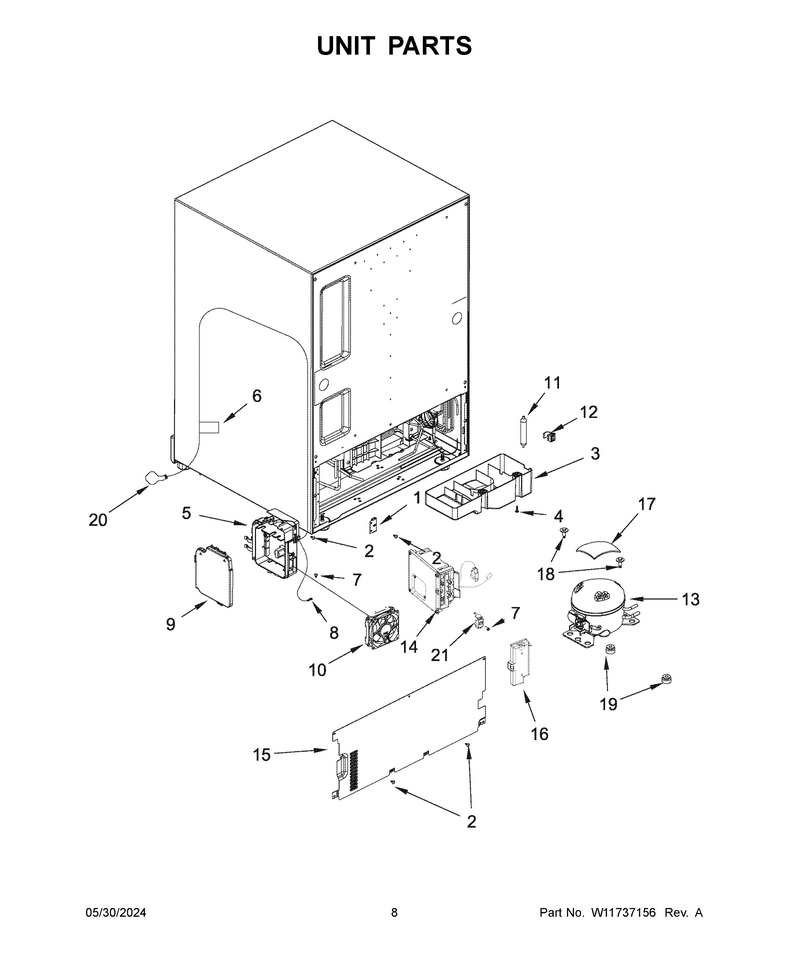

05 - Unit Parts

...
...
NI
Refrigerant Charge 52 Grams (R600a) WPL---
...
1
Clamp WPL-W11579515
...
2
Screw WPL-W11371097
...
3
Water Pan, Evaporator WPL-W11360241
...
4
Screw WPL-W11375763
...
5
Contrl-Box WPL-W11690305
...
6
Cord, Power WPL-W11618463
...
7
Screw WPL-4344826
...
8
Washer WPL-W11266077
...
9
Cover, Pcb WPL-W11313206
...
10
Assembly, Fan Motor WPL-W11360536
...
11
Drier-Tube WPL-W11109499
...
12
Clamp WPL-W11266075
...
13
Compressor WPL-W11721449
...
14
Invrtr-Box WPL-W11746146
...
15
Cover, Panel WPL-W11728397
...
16
Cover, Side WPL-W11360590
...
17
Insulation WPL-W11596025
...
18
Bolt WPL-W11375771
...
19
Mount, Compressor WPL-W11360596
...
20
Cord, Power WPL-W11618463
...
21
Stopper WPL-W11728552

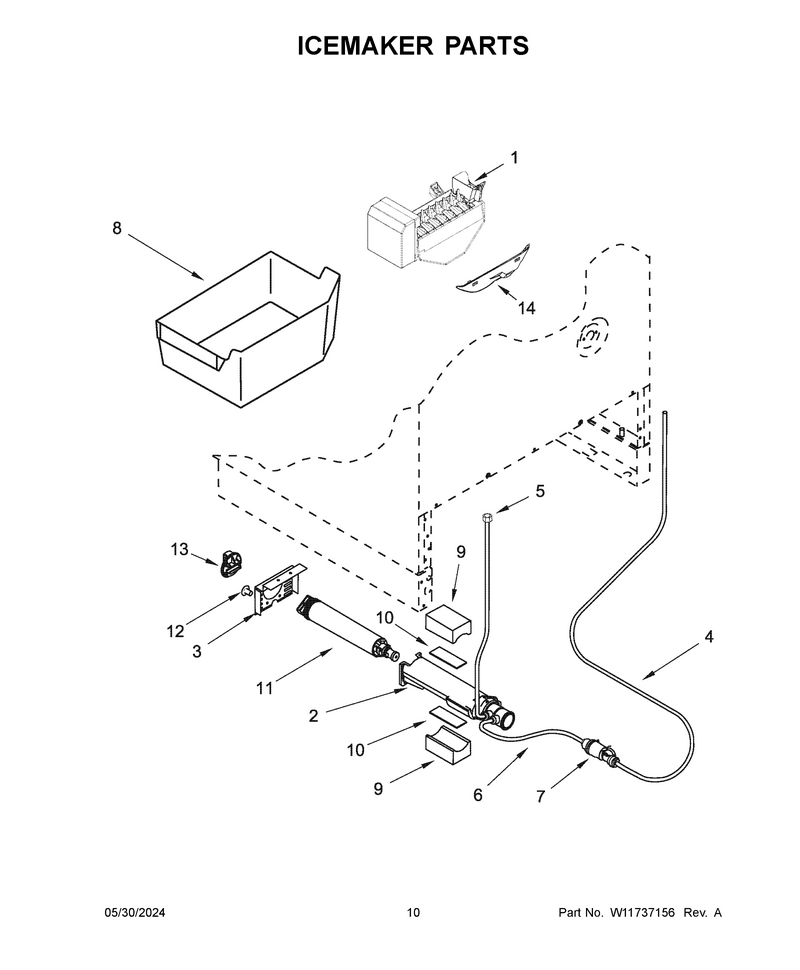

06 - Icemaker Parts

...
...
1
Icemaker WPL-W11707764
...
2
Housing WPL-W11594479
...
3
Bracket, Filter WPL-W11580300
...
4
Tube, Water WPL-W11580303
...
5
Tube-Water WPL-W11632305
...
6
Tube-Water WPL-W11632308
...
7
Valve WPL-W11700301
...
8
Ice-Contnr WPL-W11594484
...
9
Block, Filter WPL-W11580302
...
10
Tape, Filter WPL-W10281589
...
11
Water Filter WPL-W11736461
...
12
Screw WPL-W11371345
...
13
Cap-Filter WPL-WP2186494B
...
14
Arm Extension WPL-W10281552
