Jenn-Air JUBFL242HX01

Model: JUBFL242HX01

Save Part Not Listed?
product name

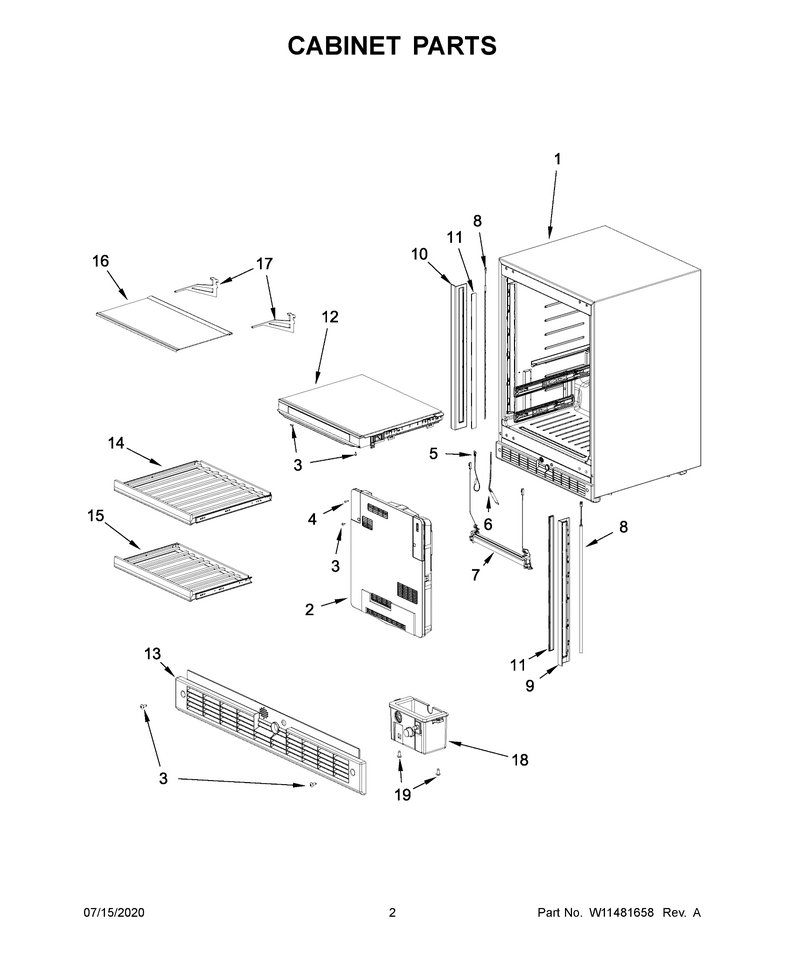

02 - Cabinet Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Assembly, Evaporator Cover (Includes Fan Motor, Damper And Sensor) WPL-W11364212
...
3
Screw WPL-W11675284
...
4
Screw WPL-W11375760
...
5
Thermistor WPL-W11266076
...
6
Fuse, Temperature WPL-W11359415
...
7
Defrost Holder And Heater WPL-W11359416
...
8
Assembly, Led WPL-W11359423
...
9
Cover, Led (Right) WPL-W11359424
...
10
Cover, Led (Left) WPL-W11395483
...
11
Cover, Led WPL-W11359428
...
12
Assembly, Separator WPL-W11359427
...
13
Kick, Plate WPL-W11360218
...
14
Upper, Wine Rack WPL-W11359429
...
15
Lower, Wine Rack WPL-W11359430
...
16
Tray WPL-W11432725
...
17
Holder, Shelf WPL-W11359432
...
18
Assembly, Switch Box WPL-W11359433
...
19
Screw WPL-W11371097

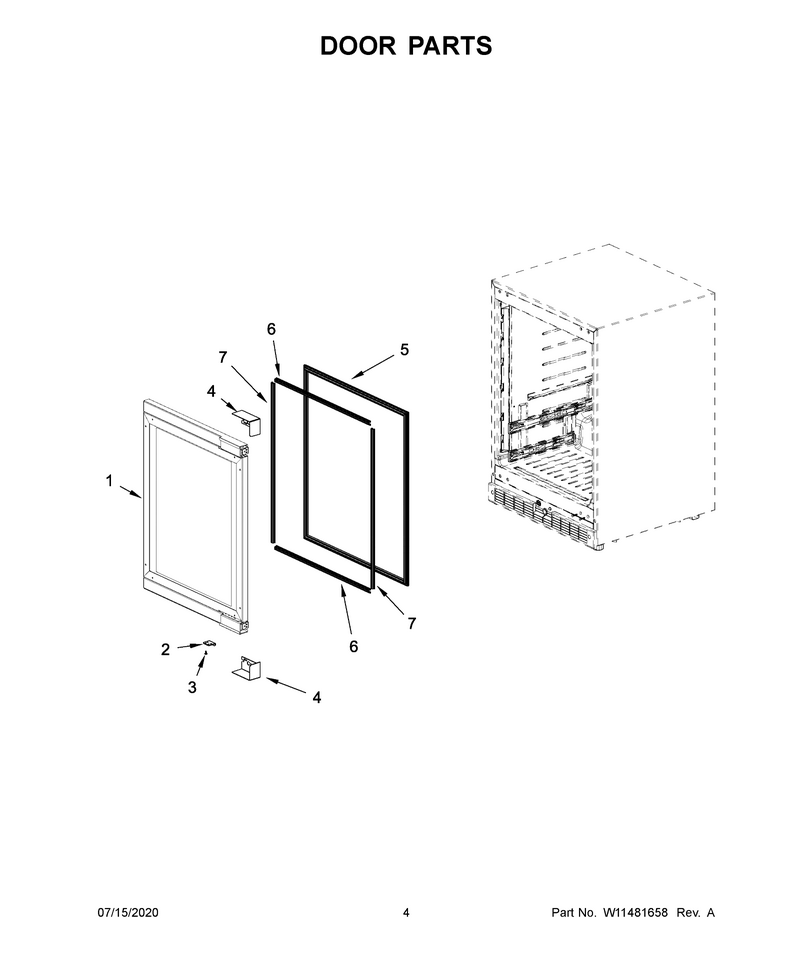

03 - Door Parts

...
...
1
Door Assembly (Left Hinge) WPL-W11360683
...
1A
Door Assembly (Right Hinge) WPL-W11360681
...
2
Plate, Push WPL-W11360659
...
3
Screw WPL-W11675284
...
4A
Cover, Door Hinge (Right Hinge (Bottom)/left Hinge (Top)) WPL-W11360664
...
4
Cover, Door Hinge (Right Hinge (Top)/left Hinge (Bottom)) WPL-W11360661
...
5
Gasket WPL-W11747576
...
6
Gasket, Sash (Top/bottom) WPL-W11360665
...
7
Gasket, Sash (Side) WPL-W11360666

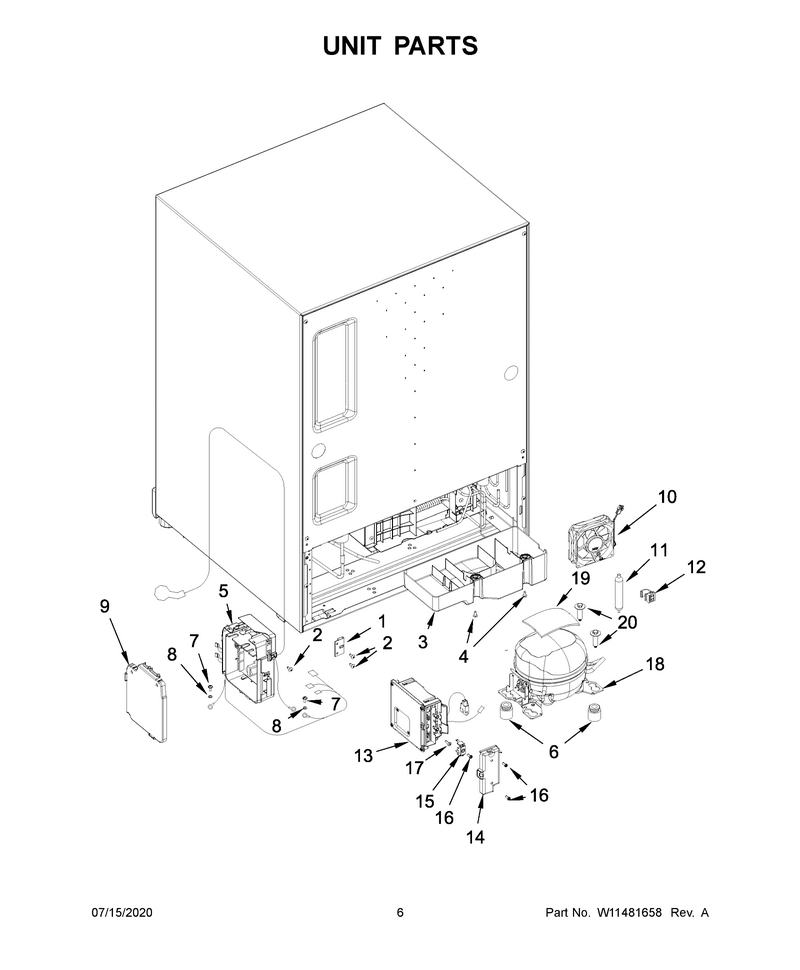

04 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Clamp, Cord WPL-W10270517
...
2
Screw WPL-W11371097
...
3
Water Pan, Evaporator WPL-W11360241
...
4
Screw WPL-W11375763
...
5
Assembly, Pcb Box (Includes Power Cord) WPL-W11360243
...
6
Mount, Compressor WPL-W11360596
...
7
Screw WPL-4344826
...
8
Washer WPL-W11266077
...
9
Cover, Pcb WPL-W11313206
...
10
Assembly, Fan Motor WPL-W11360536
...
11
Drier WPL-W10163273
...
12
Clamp WPL-W11266075
...
13
Contrl-Box WPL-W11736794
...
14
Cover, Side WPL-W11360590
...
15
Stopper WPL-W11360592
...
16
Screw WPL-W11375768
...
17
Screw WPL-W11375770
...
18
Compressor WPL-W11360594
...
19
Insulation WPL-W11596025
...
20
Bolt WPL-W11375771
