Jenn-Air JRT197W (BOM: DE79A)

Model: JRT197W (BOM: DE79A)

Save Part Not Listed?
product name

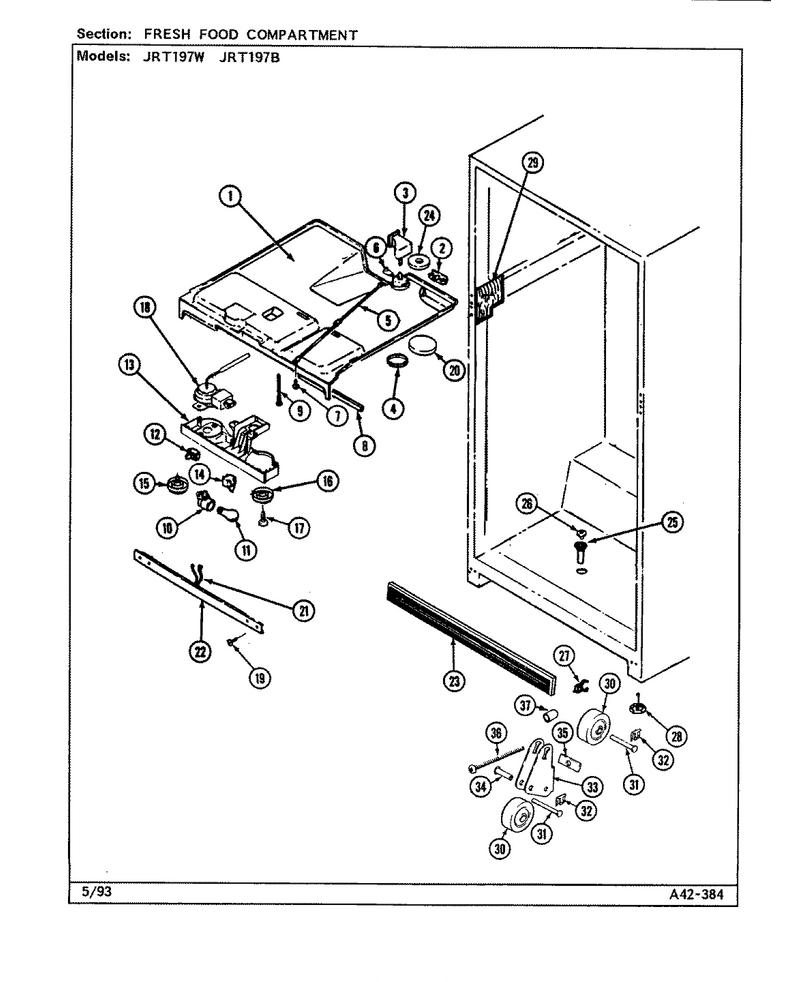

01 - Fresh Food Compartment

...
...
1
Screw WPL-WP694091
...
2
Deflector, Air WPL-69623-1
...
3
Orifice Assy., Damper WPL-69811-4
...
4
Cover, Crank WPL-67493-1
...
5
Rod, Frz. Control WPL-69418-3
...
6
Crank, Frz. Control WPL-67636-2
...
7
Washer, Control Rod WPL-420005-1
...
8
Magnet WPL-69413-2
...
9
Screw WPL-65275-78
...
10
Receptacle, Bulb WPL-68974-3
...
11
Bulb-Light WPL-W11679940
...
12
Switch, Heater WPL-69283-1
...
13
Foil (Above Light Bulb) WPL-69752-1
...
14
Switch WPL-W11384469
...
15
Knob, Temperature Control WPL-69417-9
...
16
Knob- Cont WPL-WP61006073
...
17
Screw WPL-65275-38
...
18
Screw WPL-406013-1
...
19
Screw WPL-65275-67
...
20
Disc, Crank Cover WPL-69037-1
...
21
Heater, Divider Channel WPL-69617-2
...
24
Seal, Top Tower WPL-68989-1
...
25
Tube, Drain WPL-54531-7
...
26
Cap, Drain Tube WPL-65039-1
...
27
Clip, Kickplate WPL-69940-1
...
28
Leveler WPL-W11117769
...
29
Seal, Food Liner (Rt) WPL-69416-2
...
30
Wheel WPL-69812-1
...
31
Pin, Wheel WPL-29835-2
...
32
Clip WPL-60216-1
...
33
Bracket, Wheel WPL-67530-1
...
34
Pin, Wheel WPL-64965-1
...
35
Tapping Plate, Wheel WPL-59101-1
...
36
Screw WPL-71003131
...
37
Tip, Adjustment Screw WPL-24580-4
