Jenn-Air JRT175A (BOM: DJ24A)

Model: JRT175A (BOM: DJ24A)

Save Part Not Listed?
product name

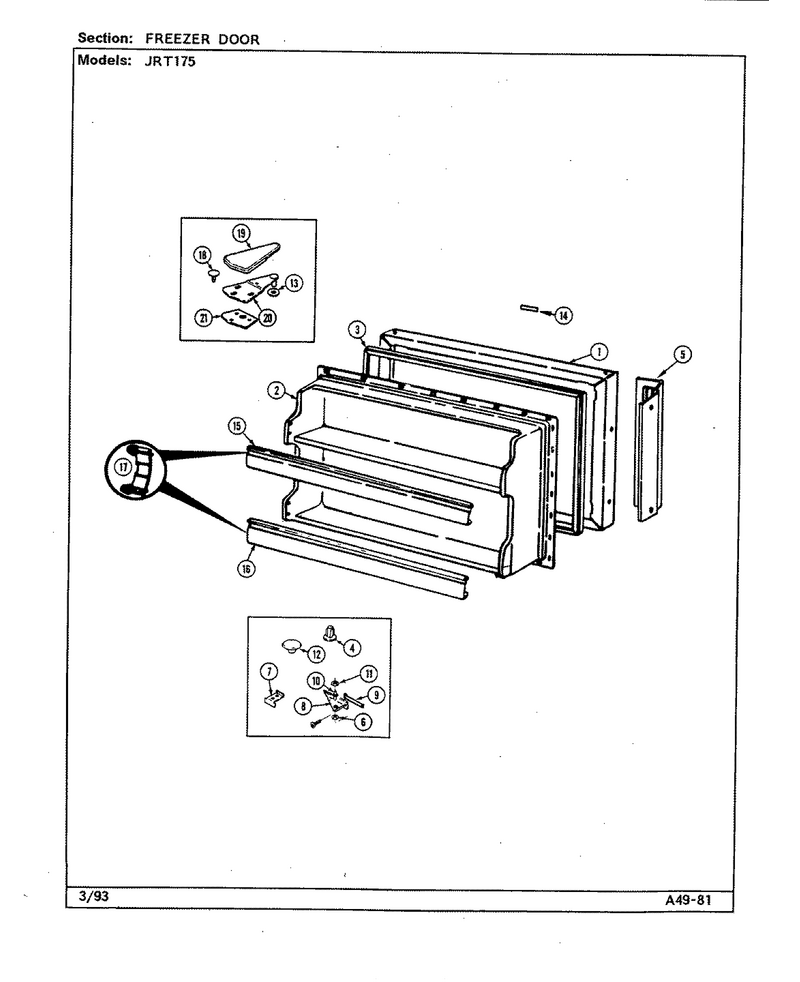

01 - Freezer Door (b/m Dj24a)

...
...
2
Liner WPL-69466-1
...
3
Gasket WPL-70025-3
...
6
Washer WPL-61005628
...
7
Screw WPL-65275-48
...
8
Screw WPL-65275-62
...
9
Shim, Center Hinge WPL-69515-1
...
10
Pin, Center Hinge WPL-69517-1
...
11
Washer WPL-61005628
...
13
Washer WPL-61005628
...
15
Trim- Door WPL-WP61003045
...
16
Trim- Door WPL-WP61003045
...
17
Retainer- WPL-WP65245-1
...
20
Screw WPL-WP3-24838-048
...
21
Shim, Upper Hinge WPL-65031-1

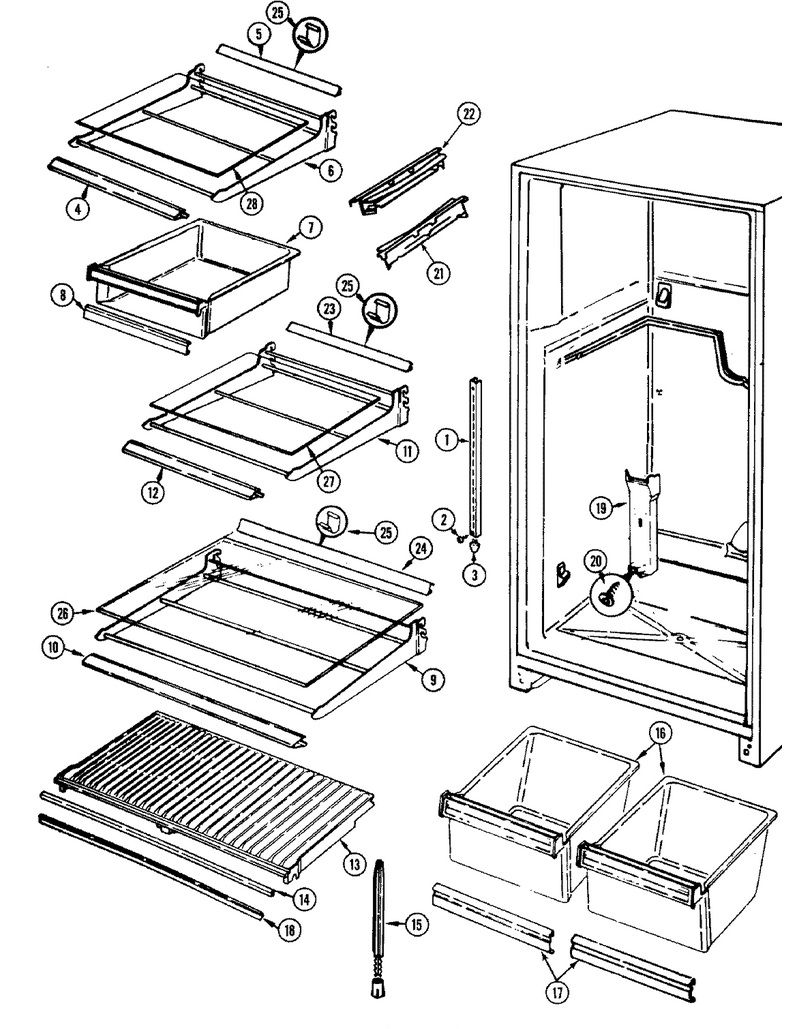

02 - Shelves & Accessories (b/m Dj24a)

...
...
1
Rail, Shelf Support (Center) WPL-60096-9
...
2
Screw WPL-400037-28
...
3
End Cap, Center Rail WPL-60340-1
...
4
Trim, Meat Shelf (Front) WPL-60524-6
...
5
Leveler WPL-836392
...
6
Frame, Shelf WPL-60570-36
...
7
Pan, Meat WPL-66637-43
...
8
Handle, Meat Pan WPL-60132-96
...
9
Frame, Shelf WPL-60570-46
...
10
Trim, Full Shelf (Front) WPL-60524-21
...
11
Frame, Shelf WPL-60570-49
...
12
Trim, Split Shelf (Front) WPL-60524-30
...
13
Shelf, Crisper WPL-66644-2
...
14
Trim, Crisper Shelf WPL-60454-9
...
15
Kit- Crisp WPL-12001957
...
16
Pan, Crisper WPL-68221-534
...
17
Trim, Crisper Pan WPL-60132-94
...
18
Seal, Crisper Shelf WPL-60148-4
...
19
Tunnel, Air (Meat) WPL-60094-22
...
20
Screw WPL-W11233072
...
21
Rail, Meat Pan (Rt) WPL-66814-1
...
22
Rail, Meat Pan (Lt) WPL-66813-1
...
23
Trim, Split Shelf (Rear) WPL-65276-2
...
24
Trim, Full Shelf (Rear) WPL-65276-34
...
25
Clip, Shelf Trim WPL-66333-1
...
26
Glass, Full Shelf WPL-68139-18
...
27
Glass, Split Shelf WPL-68139-20
...
28
Glass, Meat Shelf WPL-68139-21
...
29
Rail, Meat Pan (Rt) WPL-66814-1
