Jenn-Air JRT174L (BOM: CJ23A)

Model: JRT174L (BOM: CJ23A)

Save Part Not Listed?
product name

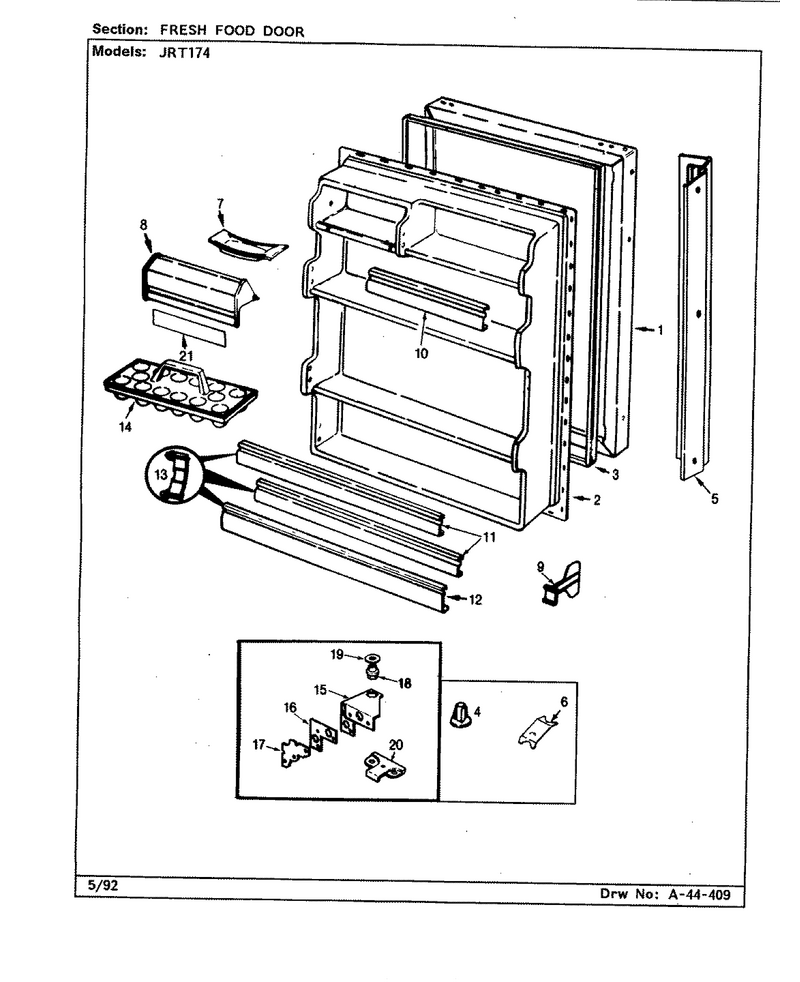

02 - Fresh Food Door (b/m Cj23a)

...
...
1
Door Insulation Kit WPL-RA95056-1
...
2
Liner, F.f. Door WPL-65934-5
...
3
Gasket- Do WPL-WP70048-2
...
4
Plug Button, Hdle & Door Stop WPL-55782-10
...
5
Screw, Handle WPL-65275-37
...
6
Clip, Stop Screw WPL-56209-3
...
7
Tray, Butter WPL-29936-2
...
8
Door, Dairy WPL-69058-20
...
9
Organizer, Shelf WPL-64097-11
...
10
Trim- Door WPL-WP61003045
...
11
Trim- Door WPL-WP61003045
...
12
Trim- Door WPL-WP61003045
...
13
Retainer- WPL-WP65245-1
...
14
Tray-Egg WPL-WP67004411
...
15
Screw WPL-403100-1
...
16
Shim, Lower Hinge WPL-60626-1
...
17
Screw WPL-403100-1
...
18
Hinge Pin WPL-68788-1
...
19
Washer, Door Spacer WPL-67483-3
...
20
Stop, Door WPL-68987-1
...
21
Trim, Dairy Door WPL-68128-20

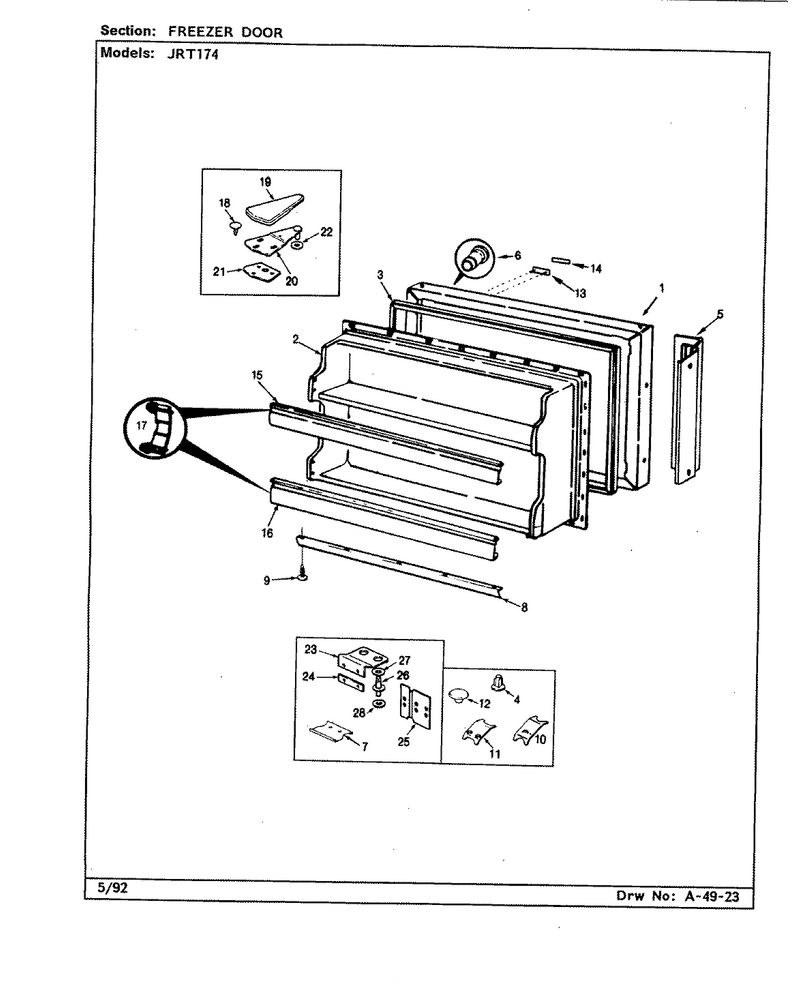

01 - Freezer Door (b/m Cj23a)

...
...
2
Screw WPL-61005388
...
3
Gasket, Door WPL-66199-3
...
4
Plug Button (Almond) WPL-55782-6
...
5
Handle, Frz WPL-68660-2
...
6
Retainer, Nameplate WPL-29356-1
...
7
Screw WPL-65275-48
...
8
Upper Front Panel Assembly (Golden Harvest) WPL-693206
...
9
Clip, Secondary Seal WPL-56686-5
...
10
Achor, Screw WPL-66799-1
...
11
Clip, Stop Screw WPL-60123-2
...
12
Plug Button, Hinge Cup (Alm) WPL-67634-3
...
13
Bezel WPL-68060-1
...
14
Insert, Nameplate WPL-68061-4
...
15
Trim- Door WPL-WP61003045
...
16
Trim, Shelf WPL-68410-5
...
17
Retainer- WPL-WP65245-1
...
18
Plug Button, Hinge Screw (Alm) WPL-56144-9
...
19
Cover, Upper Hinge (Wht) WPL-65003-6
...
20
Screw WPL-WP3-24838-048
...
21
Shim, Upper Hinge WPL-65031-1
...
22
Washer WPL-54233-1
...
23
Screw WPL-65275-24
...
24
Shim, Center Hinge WPL-68812-1
...
25
Tapping Plate, Center Hinge WPL-68377-1
...
26
Pin, Center Hinge WPL-67322-1
...
27
Washer WPL-61005628
...
28
Washer WPL-61005628

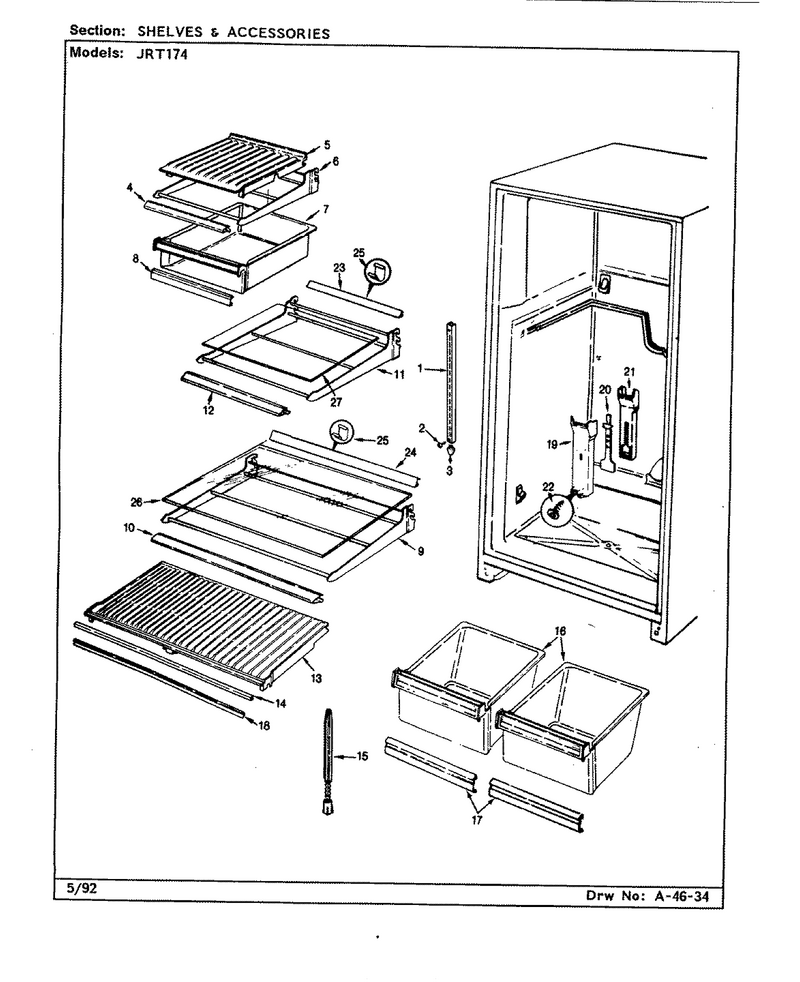

03 - Shelves & Accessories (b/m Cj23a)

...
...
1
Rail, Shelf Support (Center) WPL-60096-9
...
2
Screw WPL-400037-28
...
3
End Cap, Center Rail WPL-60340-1
...
4
Trim, Meat Shelf (Front) WPL-60524-6
...
5
Cover WPL-60075-1
...
6
Shelf, Meat WPL-60416-13
...
7
Pan, Meat WPL-66637-43
...
8
Handle, Meat Pan WPL-60132-96
...
9
Frame, Shelf WPL-60570-46
...
10
Trim, Full Shelf (Front) WPL-60524-21
...
11
Frame, Shelf WPL-60570-49
...
12
Trim, Split Shelf (Front) WPL-60524-30
...
13
Shelf, Crisper WPL-66644-2
...
14
Trim, Crisper Shelf WPL-60454-9
...
15
Kit- Crisp WPL-12001957
...
16
Pan, Crisper WPL-68221-534
...
17
Trim, Crisper Pan WPL-60132-94
...
18
Seal, Crisper Shelf WPL-60148-4
...
19
Tunnel, Air (Meat) WPL-60094-22
...
20
Damper, Air Tunnel WPL-60093-2
...
21
Foam Insulator, Air Tunnel WPL-60092-1
...
22
Screw WPL-W11233072
...
23
Trim, Split Shelf (Rear) WPL-65276-2
...
24
Trim, Full Shelf (Rear) WPL-65276-34
...
25
Clip, Shelf Trim WPL-66333-1
...
26
Glass, Full Shelf WPL-68139-18
...
27
Glass, Split Shelf WPL-68139-20
