Jenn-Air JRT153RH (BOM: 7C56A)

Model: JRT153RH (BOM: 7C56A)

Save Part Not Listed?
product name

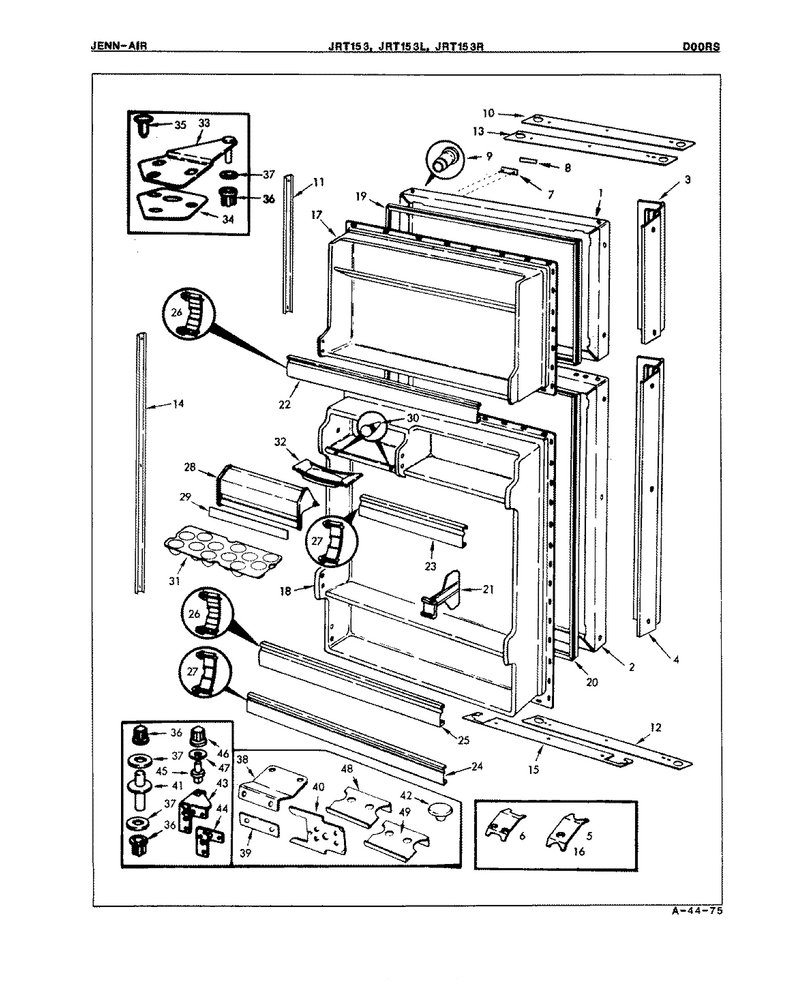

01 - Doors

...
...
2
Door Insulation Kit WPL-RA95056-1
...
3
Door Handle WPL-66708-1
...
4
Screw WPL-65275-4
...
5
Clip WPL-56209-2
...
6
Clip, Stop Screw WPL-60123-2
...
9
Retainer, Escutcheon WPL-65211-2
...
10
Trim WPL-66697-1
...
11
Trim WPL-66694-1
...
12
Screw WPL-400015-12
...
13
Trim WPL-66697-1
...
14
Trim WPL-66691-1
...
15
Trim WPL-66700-1
...
16
Clip WPL-56209-2
...
17
Inner Panel WPL-60044-16
...
18
Screw WPL-61005388
...
19
Gasket, Door WPL-66199-1
...
20
Gasket- Do WPL-WP70048-1
...
21
Organizer, Shelf WPL-66522-4
...
22
Shelf Trim WPL-66637-1
...
23
Trim, Door Shelf WPL-65151-234
...
24
Trim- Door WPL-WP61003045
...
25
Shelf Trim WPL-66637-1
...
26
Retainer WPL-65246-1
...
27
Retainer- WPL-WP65245-1
...
28
Door, Dairy WPL-60406-37
...
29
Trim, Dairy Door WPL-60573-40
...
30
Bumper, Door WPL-28272-6
...
31
Tray, Egg WPL-60621-5
...
32
Tray, Butter WPL-29936-2
...
33
Cover, Upper Hinge (Wht) WPL-65003-6
...
34
Shim, Upper Hinge WPL-65031-1
...
35
Plug Button, Upper Hinge (Wht) WPL-56144-13
...
36
Bushing,top/center Hinge WPL-66036-1
...
37
Washer WPL-WP52185-1
...
38
Door Hinge, Center WPL-60031-2
...
39
Spacer, Center Hinge WPL-60034-1
...
40
Tapping Plate WPL-60622-1
...
41
Pin, Center Hinge WPL-60035-4
...
42
Plug Button, (White) WPL-56186-10
...
43
Door Hinge, Lower WPL-60630-8
...
44
Shim, Lower Hinge WPL-60626-1
...
45
Pin, Lower Hinge WPL-53672-1
...
46
Bushing, Lower Hinge WPL-66034-1
...
47
Washer WPL-61005628
...
48
Door Stop WPL-60030-1
...
49
Door Stop WPL-60030-2
