Jenn-Air JRSDE247B (BOM: DQ84A)

Model: JRSDE247B (BOM: DQ84A)

Save Part Not Listed?
product name

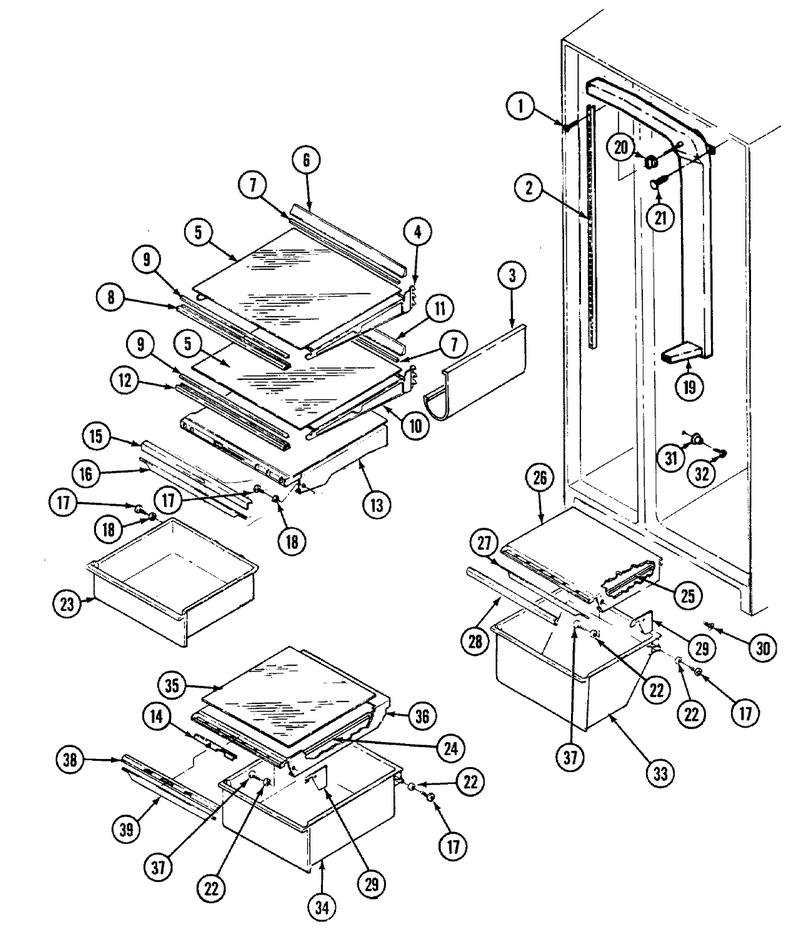

07 - Shelves & Accessories

...
...
1
Screw WPL-400037-28
...
2
Rail, Shelf Support WPL-67311-1
...
3
Holder, Wine Bottle WPL-67308-5
...
4
Frame, Shelf WPL-67273-2
...
5
Glass, Shelf WPL-68405-26
...
6
Trim, Shelf WPL-67309-40
...
7
Shelf Seal WPL-67266-5
...
8
Trim, Front WPL-68731-10
...
9
Gasket, Shelf Front WPL-67265-5
...
10
Frame, Meat Shelf WPL-67274-2
...
11
Trim, Meat Shelf WPL-67309-41
...
12
Trim, Front WPL-68731-12
...
13
Support, Meat Pan WPL-67649-13
...
14
Slide, Control WPL-67491-2
...
15
Trim, Meat Pan Support WPL-67071-3
...
16
Seal, Meat Pan WPL-67677-2
...
17
Screw WPL-WP65275-6
...
18
Roller WPL-WP67423-2
...
19
Tunnel, Air (Meat) WPL-68690-1
...
20
Knob, Air Tunnel WPL-68755-2
...
21
Tub-Outer WPL-W10772617
...
22
Roller WPL-WP67423-2
...
23
Pan, Meat WPL-69928-6
...
24
Seal, Crisper WPL-69779-2
...
25
Seal WPL-69779-1
...
26
Shelf, Crisper (Lower) WPL-67892-6
...
27
Seal, Crisper Pan WPL-69798-7
...
28
Trim, Crisper Shelf (Lower) WPL-67204-21
...
29
Support, Crisper Shelf (Lt) WPL-67895-1
...
30
Screw WPL-65275-28
...
31
Support- C WPL-WP67764-1
...
32
Screw WPL-WP489478
...
33
Pan, Crisper (Lower) WPL-69928-2
...
34
Pan, Crisper (Upper) WPL-69928-7
...
35
Glass, Crisper Shelf WPL-67489-8
...
36
Shelf, Crisper (Upper) WPL-67891-4
...
37
Screw WPL-WP65275-6
...
38
Trim, Crisper Shelf (Upper) WPL-67204-20
...
39
Seal, Crisper Pan WPL-69798-7

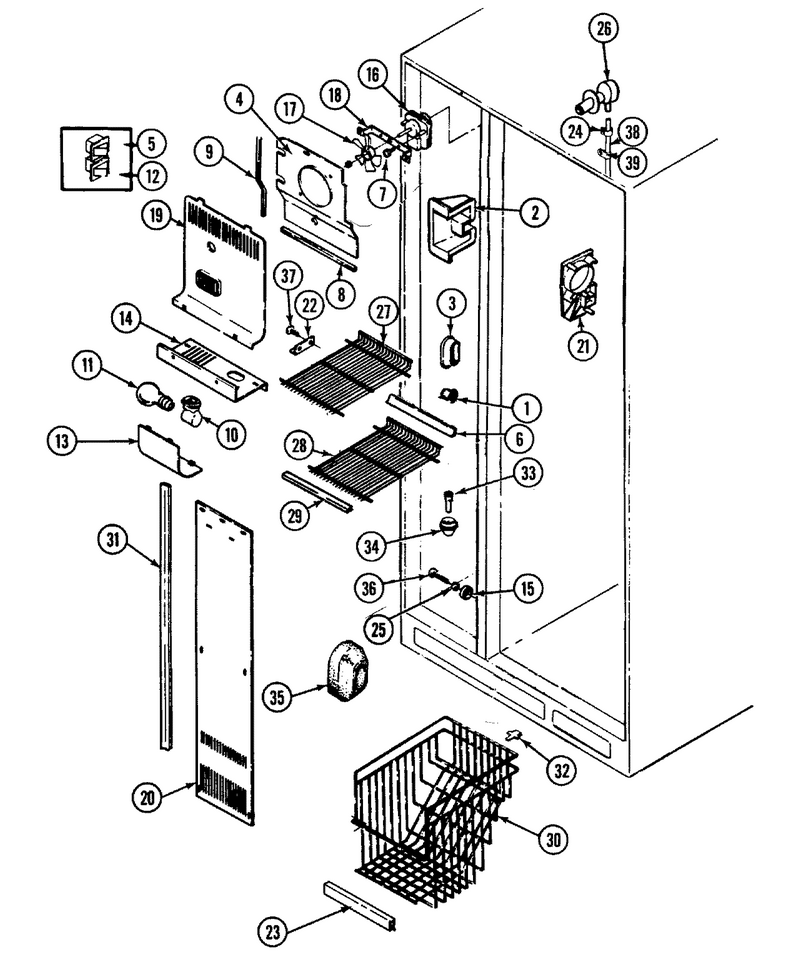

01 - Freezer Compartment

...
...
1
Cup, Shelf WPL-67466-1
...
2
Shield, Air Directional WPL-67353-1
...
3
Retainer, Air Return WPL-70034-1
...
4
Cover, Coil Upper WPL-67297-6
...
5
Switch, Interlock WPL-68058-1
...
6
Trim, Frz. Shelf WPL-67177-7
...
7
Screw WPL-WP488729
...
8
Seal WPL-68946-6
...
9
Seal WPL-66325-20
...
10
Receptacle, Bulb WPL-68974-3
...
11
Bulb-Light WPL-W11679940
...
12
Switch WPL-W11384469
...
13
Shield, Light WPL-67292-1
...
14
Bracket, Motor WPL-67295-1
...
15
Roller Wheel WPL-67123-2
...
16
Side Exhaust Kit WPL-279823
...
17
Blade, Evaporator Fan WPL-52120-4
...
18
Bulkhead WPL-279848
...
19
Shield, Fan WPL-67225-2
...
20
Screw WPL-400015-36
...
21
Orifice, Frz. Control (Outlet) WPL-67352-1
...
22
Bracket, Mounting WPL-67288-1
...
23
Trim, Frz Shelf Front WPL-67176-31
...
24
Clip- Spee WPL-WPM0114003
...
25
Space Roller WPL-67124-1
...
26
Tube-Inlet WPL-12001935
...
27
Shelf, Frz. WPL-67179-4
...
28
Shelf, Wire WPL-67178-8
...
29
Trim, Front WPL-67176-9
...
30
Basket WPL-69353-2
...
31
Clip WPL-693141
...
32
Clip, Stop WPL-67488-2
...
33
Tube, Drain WPL-26527-11
...
34
Grommet WPL-52526-1
...
35
Insulation, Air Return WPL-67837-1
...
36
Screw WPL-65275-19
...
37
Screw WPL-400015-36
...
38
Tube WPL-WPB5705307
...
39
Clamp WPL-W10833902

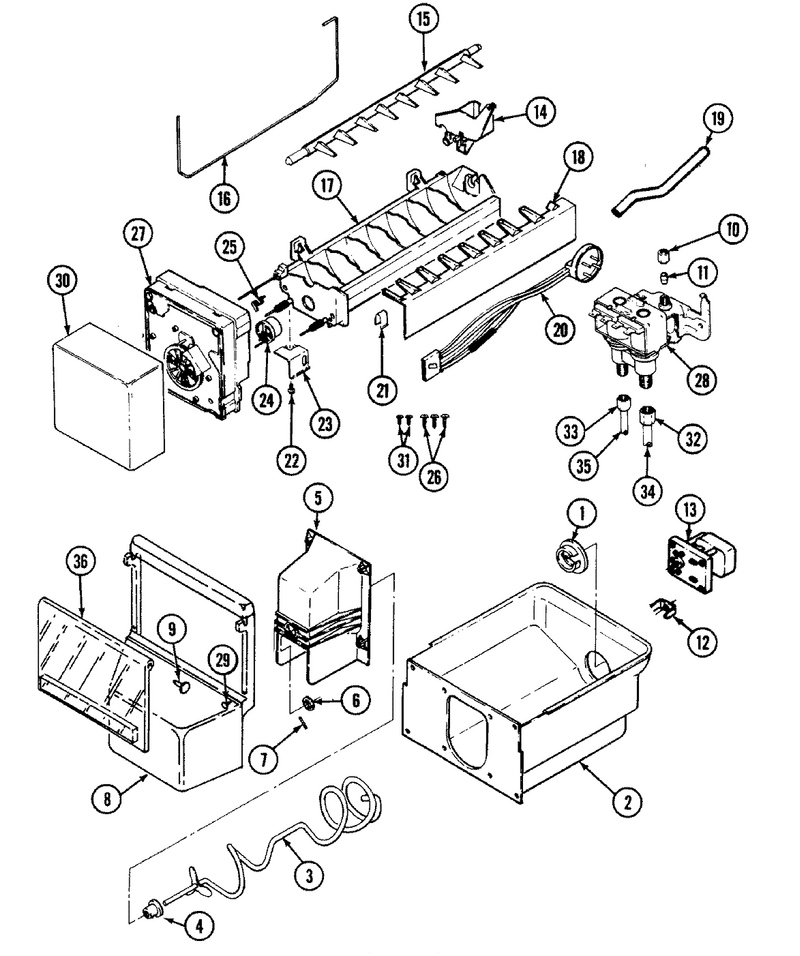

06 - Ice Maker & Bin

...
...
1
Ring- Driv WPL-WP61003336
...
2
Bin, Ice WPL-67830-1
...
3
Auger WPL-67833-1
...
4
Bearing WPL-67172-2
...
5
Ice Dam WPL-67829-1
...
6
Washer, Thrust WPL-67834-2
...
7
Pin, Cotter WPL-492007-703
...
8
Screw WPL-415013-35
...
9
Pin, Ice Door WPL-67906-1
...
10
Nut WPL-WP245183
...
11
Sleeve WPL-WP487627
...
12
Impeller WPL-WP63052-2
...
13
Assy., Auger Motor/yoke WPL-12001773
...
14
Cup-Fill WPL-WP628356
...
15
Arm-Ejectr WPL-WP627843
...
16
Arm-Shut WPL-W11342242
...
17
Ice Maker Assy. WPL-D7824706Q
...
18
Arm-Stripr WPL-WP2182124
...
19
Tube, Water Entry WPL-67666-1
...
20
Wire Harness, Ice Maker WPL-70076-1
...
21
Clip WPL-WP628379
...
22
Screw WPL-WP489128
...
23
Bracket WPL-WP2256087
...
24
Capacitor WPL-876595
...
25
Clip WPL-WP2315522
...
26
Screw WPL-WP489478
...
27
Capacitor WPL-876776
...
28
Valve-Inlt WPL-12001414
...
29
Bumper, Door WPL-28272-6
...
30
Cover, Ice Maker WPL-68328-2
...
31
Screw WPL-401018-1
...
32
Nut WPL-8201513
...
33
Nut WPL-WP627018
...
34
Tube-Water WPL-WPW10426709
...
35
Tube WPL-WPB5705307
...
36
Door, Disp Bin Assy. WPL-69920-1

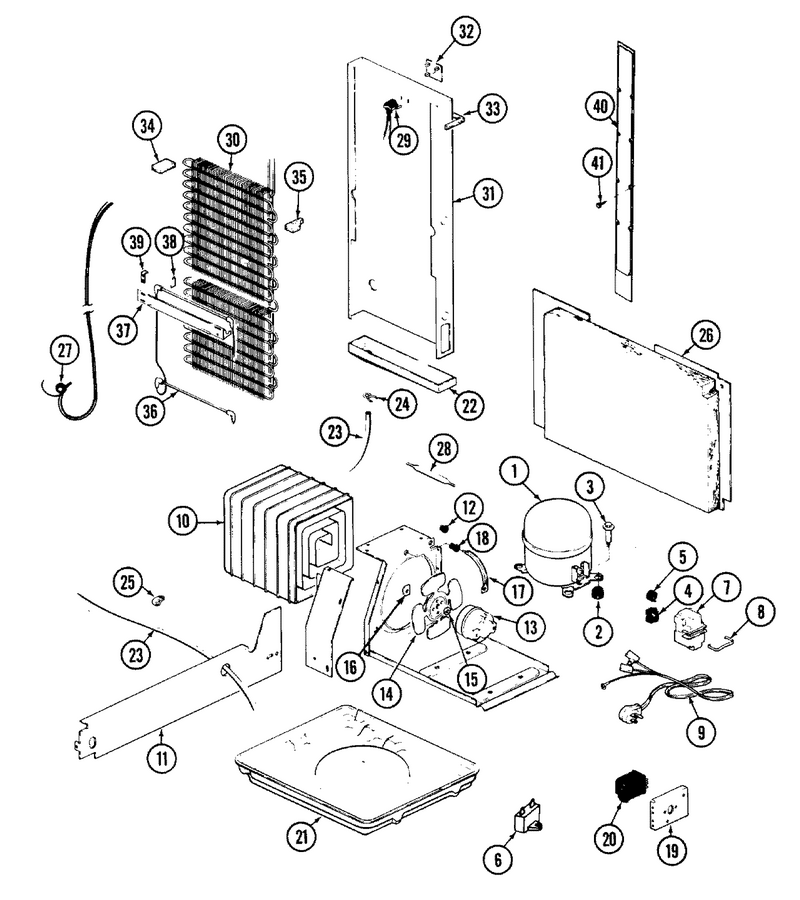

08 - Unit Compartment & System

...
...
1
Wire Harness, Compressor WPL-69062-1
...
2
Grommet, Compressor WPL-17245-4
...
3
Screw, Compressor Mounting WPL-65275-9
...
4
Relay, Start WPL-66588-5
...
5
Overload WPL-69105-8
...
6
Capacitor, Run WPL-65889-6
...
7
Cover, Terminal WPL-66589-2
...
8
Clip, Terminal Cover WPL-65886-1
...
9
Cord, Power WPL-52890-3
...
10
Screw WPL-WP489478
...
11
Screw WPL-WP488729
...
12
Grommet, Condenser Tubing WPL-53351-1
...
13
Motor-Cond WPL-833697
...
14
Blade- Con WPL-WP12587601
...
15
Washer, Fan Blade WPL-19913-2
...
16
Nut WPL-WP486692
...
17
Bracket, Fan Motor WPL-69181-1
...
18
Grommet- B WPL-WP61004743
...
19
Screw WPL-WP489478
...
20
Screw WPL-61005388
...
21
Pan- Drain WPL-WP68236-1
...
22
Trough, Drain WPL-53523-2
...
23
Hose, Drain WPL-26911-25
...
24
Clamp WPL-WP596669
...
25
Clamp, Drain Hose WPL-53516-5
...
26
Cover WPL-66339-3
...
27
Sleeve WPL-26088-23
...
28
Drier-Uv WPL-WPW10143759
...
29
Thermostat WPL-WP52085-29
...
30
Evaporator WPL-52551-22
...
31
Housing, Evaporator WPL-68834-2
...
32
Board, Terminal WPL-55878-1
...
33
Seal WPL-66325-18
...
34
Seal, Styrofoam-(Left) WPL-65063-1
...
35
Seal, Styrofoam-(Right) WPL-65064-1
...
36
Heater- De WPL-WP61001874
...
37
Shield, Defrost Heater WPL-29915-13
...
38
Clip, Defrost Heater WPL-52067-1
...
39
Wire Harness Main WPL-69864-1
...
40
Cover WPL-66381-1
...
41
Guide, Quick Ref - Jenn-Air WPL-16000326

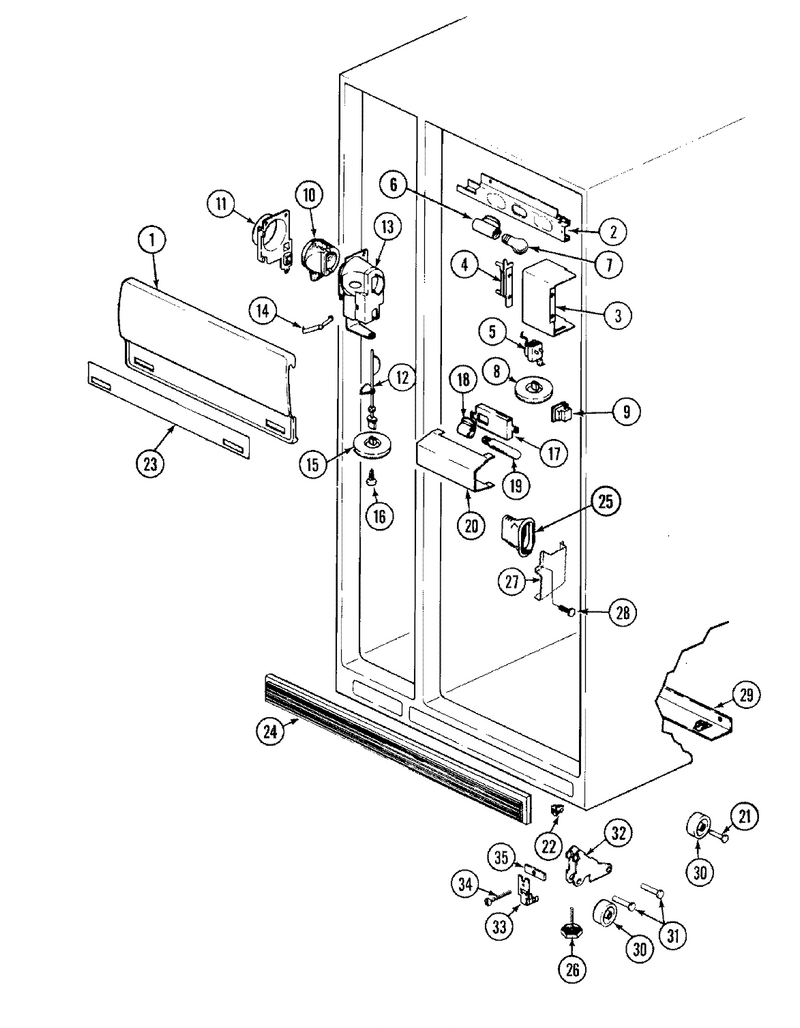

03 - Fresh Food Compartment

...
...
1
Shield, Light WPL-67113-5
...
2
Screw WPL-WP489478
...
3
Screw WPL-WP489478
...
4
Support, Light Shield WPL-67125-1
...
5
Control- T WPL-WP61001673
...
6
Socket, Light WPL-29813-1
...
7
Bulb-Light WPL-W11679940
...
8
Knob, Temperature Control WPL-67145-3
...
9
Switch WPL-W11384469
...
10
Insulation, Housing WPL-58767-1
...
11
Orifice, Frz. Control (Inlet) WPL-67351-1
...
12
Damper, Frz. Control WPL-67609-1
...
13
Housing, Frz. Control WPL-67354-1
...
14
Spring, Baffle WPL-52648-1
...
15
Knob, Freezer Control WPL-67145-4
...
16
Screw WPL-400001-1
...
17
Base, Light (Meat) WPL-67243-1
...
18
Receptacle, Light WPL-29814-2
...
19
Bulb, Light WPL-20174-6
...
20
Shield, Light WPL-67242-1
...
21
Pin, Wheel (Rear) WPL-64965-3
...
22
Screw WPL-WP489478
...
23
Insert, Light Shield WPL-67476-7
...
24
Kickplate (Blk) WPL-68981-3
...
25
Tunnel, Air Return WPL-67684-1
...
26
Leveler WPL-W11117769
...
27
Cover, Air Return WPL-69982-1
...
28
Tub-Outer WPL-W10772617
...
29
Rail, Horizontal Support WPL-67255-3
...
30
Wheel WPL-69812-1
...
31
Pin, Wheel WPL-64965-1
...
32
Bracket, Wheel WPL-62794-1
...
33
Screw WPL-WP33002917
...
34
Screw, Wheel Adjustment WPL-56487-5
...
35
Tapping Plate, Wheel WPL-59101-1

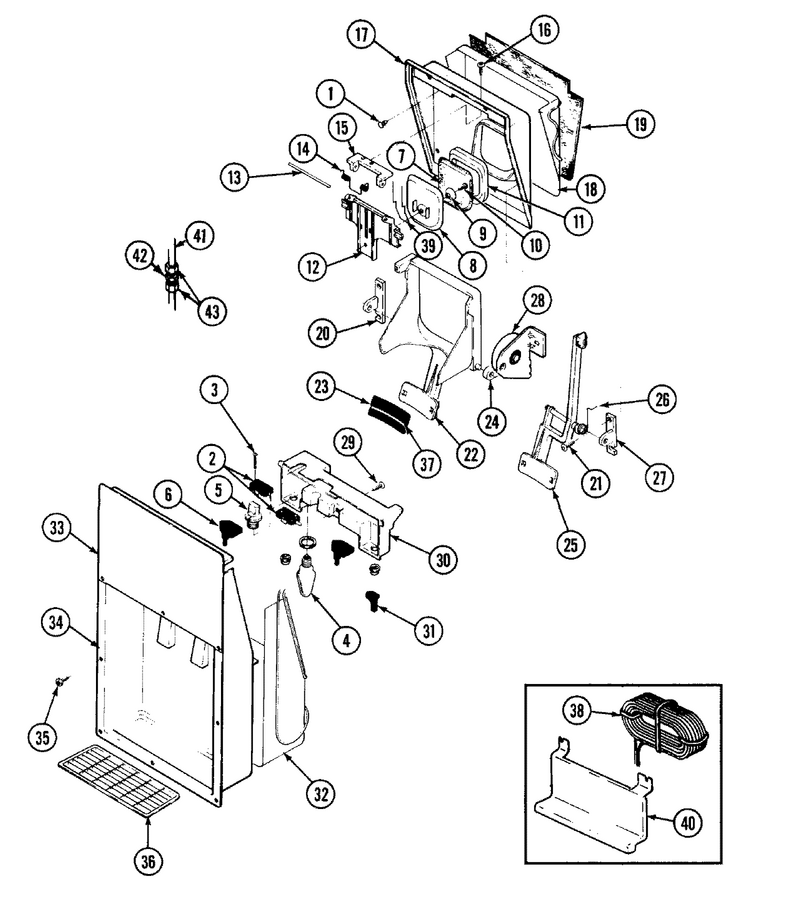

05 - Ice & Water Dispenser

...
...
1
Bumper, Door WPL-28272-6
...
2
Switch, Ice & Water WPL-55440-2
...
3
Screw WPL-405071-1
...
4
Bulb-Light WPL-W10857122
...
6
Wire Harness, Switch WPL-68491-1
...
7
Insulation, Ice Door WPL-68557-1
...
8
Screw WPL-405023-35
...
9
Retainer WPL-68566-1
...
10
Screw WPL-405116-35
...
11
Seal- Ice WPL-WP69867-1
...
12
Strike, Ice Door WPL-68563-2
...
13
Shaft WPL-68564-1
...
14
Spring WPL-68765-1
...
15
Bracket, Pivot WPL-68958-1
...
16
Screw WPL-415013-35
...
17
Back, Fountain (Blk) WPL-68567-1
...
18
Heater, Fountain Back WPL-68937-1
...
19
Insulation, Foil WPL-68714-1
...
20
Pivot, Actuator (Lt) WPL-68627-1
...
21
Screw WPL-415013-35
...
22
Paddle- Ic WPL-WP69112-3
...
23
Pad, Paddle (Blk) WPL-69174-1
...
24
Pivot, Actuator (Center) WPL-68764-1
...
25
Light-Ind WPL-WP903115
...
26
Spring, Paddle Return WPL-68767-1
...
27
Pivot, Actuator (Rt)---Na WPL-68628-1
...
28
Screw WPL-415013-35
...
29
Screw WPL-415013-35
...
30
Nut WPL-70176-1
...
31
Plunger WPL-68568-2
...
32
Heater, Fountain WPL-68936-1
...
33
Front, Fountain WPL-68955-1
...
34
Button-Plg WPL-WP660975
...
35
Screw WPL-415013-35
...
36
Grill WPL-68631-1
...
37
Trim, Paddle Pad WPL-68763-1
...
38
Coil, Water WPL-67616-1
...
39
Spring, Ice Door WPL-69868-1
...
40
Cover, Water Coil WPL-68837-1
...
41
Tube-Water WPL-WPW10426709
...
42
Not Required Part Or See Note WPL-W10124350
...
43
Nut WPL-8201513

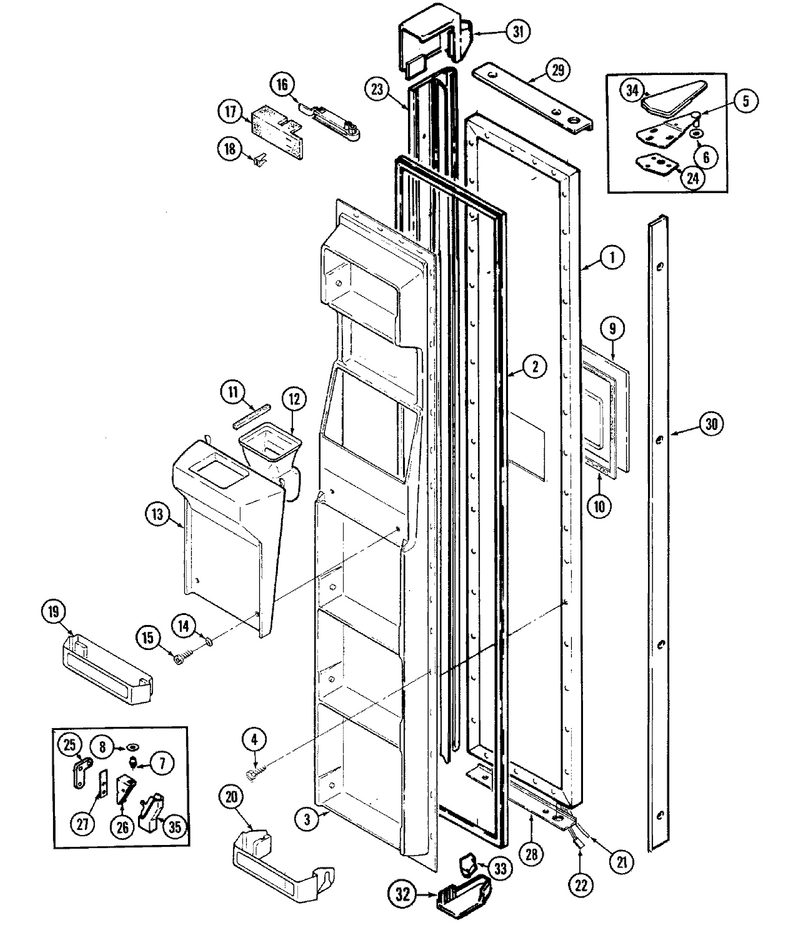

02 - Freezer Door

...
...
1
Panel, Frz. Door (Blk) WPL-72346-27-BK
...
2
Gasket, Frz. Door WPL-70024-10
...
3
Liner, Door WPL-69254-1
...
4
Screw WPL-61005388
...
5
Screw WPL-WP3-24838-048
...
6
Washer WPL-WP52185-1
...
7
Pin, Hinge WPL-70060-1
...
8
Washer, Door Spacer WPL-67483-3
...
9
Hose WPL-WP696394
...
10
Tape, Escutcheon WPL-95121-1
...
11
Seal WPL-52077-26
...
12
Chute, Ice WPL-69224-1
...
13
Insulation WPL-68768-2
...
14
Stud WPL-68786-2
...
15
Grommet, Pick-Off WPL-67144-1
...
16
Closer, Door WPL-69258-1
...
17
Element WPL-WP5708M016-60
...
18
Bracket, Closer WPL-69261-1
...
19
Shelf, Pick-Off WPL-69873-3
...
20
Front, Pick-Off Shelf WPL-69870-3
...
21
Tube-Water WPL-WPW10426709
...
22
Wire Harness, Door WPL-69865-5
...
23
Screw, Handle WPL-65275-37
...
24
Shim, Upper Hinge WPL-65031-1
...
25
Screw WPL-65275-59
...
26
Hinge, Lower (Blk) WPL-69516-1
...
27
Shim, Lower Hinge WPL-69510-1
...
28
Trim, Perimeter WPL-69631-5
...
29
Trim, Perimeter WPL-69631-4
...
30
Trim, Perimeter WPL-69631-1
...
31
Upper Endcap Assembly WPL-69912-2
...
32
Lower End Cap Assebmly WPL-69910-4
...
33
Filler, End Cap WPL-69815-1
...
34
Cover, Upper Hinge (Wht) WPL-70121-4
...
35
Cover, Lower Hinge (Wht) WPL-68978-4

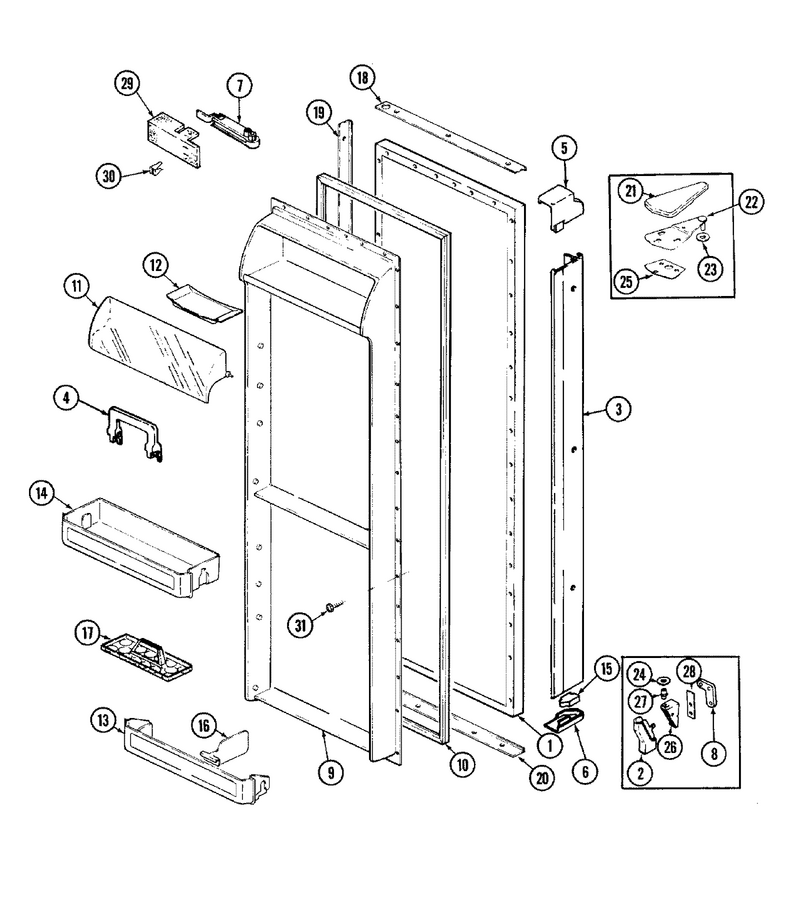

04 - Fresh Food Door

...
...
1
Plug Button, Door WPL-495034-900
...
2
Cover, Lower Hinge (Blk) WPL-68978-1
...
3
Screw, Handle WPL-65275-37
...
4
Retainer, Bottle WPL-69795-1
...
5
Cover WPL-697369
...
6
End Cap Assy., Handle (Lower) WPL-69910-3
...
7
Closer, Door WPL-69258-1
...
8
Screw WPL-65275-59
...
9
Toepnl WPL-279913
...
10
Gasket WPL-70024-12
...
11
Door, Dairy WPL-69918-3
...
12
Tray, Butter WPL-29936-2
...
13
Front, Pick-Off WPL-69871-3
...
14
Shelf, Pick-Off WPL-69872-3
...
15
Filler, Lower Endcap WPL-69815-2
...
16
Organizer WPL-69759-2
...
17
Tray-Egg WPL-WP67004411
...
18
Trim, Perimeter WPL-69631-2
...
19
Trim, Perimeter WPL-69631-1
...
20
Trim, Perimeter WPL-69631-3
...
21
Cover, Upper Hinge (Blk) WPL-70121-6
...
22
Screw WPL-WP3-24838-048
...
23
Washer WPL-WP52185-1
...
24
Washer, Door Spacer WPL-67483-3
...
25
Shim, Upper Hinge WPL-65031-1
...
26
Hinge, Lower (Blk) WPL-69516-2
...
27
Pin, Lower Hinge WPL-69845-1
...
28
Shim, Lower Hinge WPL-69510-1
...
29
Insulation, Closer WPL-52613-1
...
30
Bracket, Closer WPL-69261-1
...
31
Screw WPL-61005388
