Jenn-Air JRSD279KW

Model: JRSD279KW

Save Part Not Listed?
product name

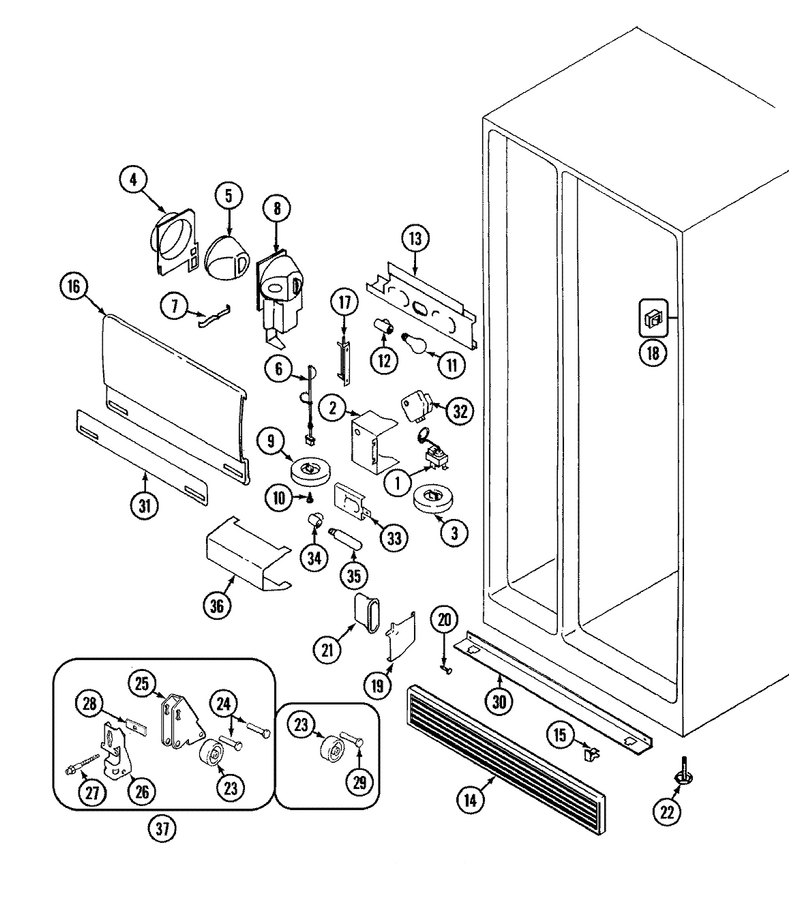

04 - Fresh Food Compartment

...
...
1
Screw WPL-WP489399
...
2
Housing, Temperature Control WPL-70178-1
...
3
Knob, Temperature Control WPL-67145-3
...
4
Orifice, Frz. Control (Inlet) WPL-61001230
...
5
Insulation, Housing WPL-58767-1
...
6
Damper, Frz. Control WPL-67609-2
...
7
Spring, Baffle WPL-52648-1
...
8
Screw WPL-415017-1
...
9
Knob, Freezer Control WPL-67145-4
...
10
Screw WPL-400001-1
...
11
Bulb-Light WPL-WP67002552
...
12
Socket, Light WPL-29813-1
...
13
Screw WPL-WP489478
...
14
Kickplate (Wht) WPL-68981-9
...
15
Screw WPL-WP489478
...
16
Shield, Light WPL-67113-5
...
17
Support, Light Shield WPL-67125-1
...
18
Switch WPL-W11384469
...
19
Cover, Air Return WPL-69982-1
...
20
Tub-Outer WPL-W10772617
...
21
Tunnel, Air Return WPL-67684-1
...
22
Cap, Leveling Leg WPL-69810-1
...
23
Wheel WPL-69812-1
...
24
Pin, Wheel WPL-64965-1
...
25
Screw WPL-WP33002917
...
26
Faceplate, Bracket WPL-70230-1
...
27
Screw, Wheel Adjustment WPL-61001126
...
28
Tapping Plate, Wheel WPL-59101-1
...
29
Pin, Wheel (Rear) WPL-64965-3
...
30
Rail, Horizontal Support WPL-61001032
...
31
Insert, Light Shield WPL-67476-7
...
32
Screw WPL-61005388
...
33
Base, Light (Meat) WPL-67243-1
...
34
Receptacle, Bulb WPL-68974-3
...
35
Bulb, Light (Meat) WPL-20174-7
...
36
Shield, Light WPL-67242-1
...
37
Wheel Assy. WPL-61001108

06 - Fresh Food Outer Door

...
...
1
Panel, F.f. Door (Wht) WPL-72348-6-WW
...
2
Washer, Door Spacer WPL-67483-3
...
3
Kit, Handle Assy. (Wht) WPL-12000039
...
4
Trim, Handle Ext. (Upper) WPL-69586-3
...
5
Trim, Handle Ext. (Lower) WPL-69586-4
...
6
End Cap, Handle WPL-69590-1
...
7
Closer, Door WPL-69258-1
...
8
Stop, Door WPL-61001269
...
9
Bracket, Closer WPL-69261-1
...
10
Cover, Upper Hinge (Wht) WPL-70121-4
...
11
Screw WPL-WP3-24838-048
...
12
Shim, Upper Hinge WPL-65031-1
...
13
Cover, Lower Hinge (Wht) WPL-61001611
...
14
Hinge, Lower WPL-61001587
...
15
Shim, Lower Hinge WPL-69510-1
...
16
Screw WPL-65275-59
...
17
Pin, Lower Hinge WPL-69845-1
...
18
Insulation, Closer (Frt.) WPL-61001721

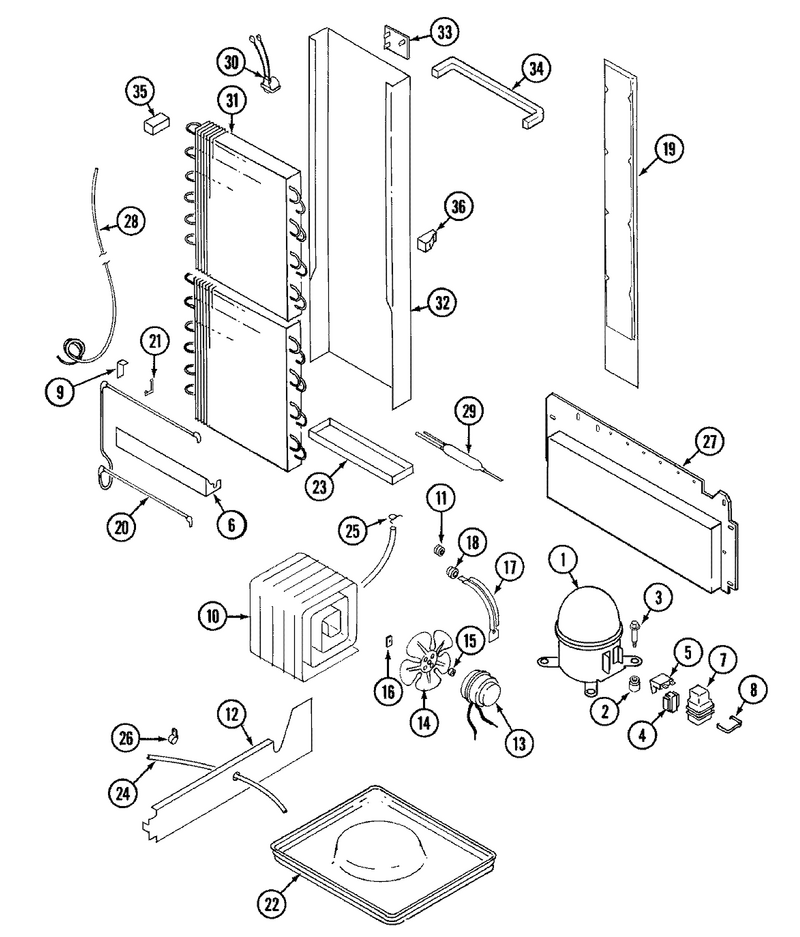

11 - Unit Compartment & System

...
...
1
Wire Harness, Compressor WPL-61001546
...
2
Grommet, Compressor WPL-17245-4
...
3
Screw, Compressor Mounting WPL-65275-9
...
4
Relay WPL-WP10097206
...
5
Overload WPL-61001080
...
6
Shield, Defrost Heater WPL-29915-13
...
7
Cover, Terminal WPL-69754-1
...
8
Clip, Terminal Cover WPL-59596-1
...
9
Bracket, Heater Shield WPL-52561-1
...
10
Condenser WPL-64998-1
...
11
Grommet, Condenser Tubing WPL-53351-1
...
12
Baffle, Air Divider WPL-61001533
...
13
Motor, Condenser Fan WPL-61001208
...
14
Blade- Con WPL-WP12587601
...
15
Washer WPL-WPM0274039
...
16
Nut WPL-WP486692
...
17
Bracket, Fan Motor WPL-61001414
...
18
Grommet- B WPL-WP61004743
...
19
Wire Harness, Main (W/pw Cord) WPL-61001706
...
20
Heater, Defrost WPL-61001174
...
21
Clip, Defrost Heater WPL-52067-1
...
22
Pan- Drain WPL-WP68236-1
...
23
Trough, Drain WPL-53523-2
...
24
Hose, Drain WPL-26911-25
...
25
Clamp WPL-WP596669
...
26
Clamp, Drain Hose WPL-53516-5
...
27
Screw WPL-61001485
...
28
Heat Exchanger WPL-61001039
...
29
Drier-Uv WPL-WPW10143759
...
30
Thermostat, Defrost WPL-52085-37
...
31
Evaporator WPL-52551-22
...
32
Housing, Evaporator WPL-68834-2
...
33
Board, Terminal WPL-55878-1
...
34
Seal WPL-66325-18
...
35
Seal, Styrofoam-(Left) WPL-65063-1
...
36
Seal, Styrofoam-(Right) WPL-65064-1
...
37
Guide, Quick Ref - Jenn-Air WPL-16000326

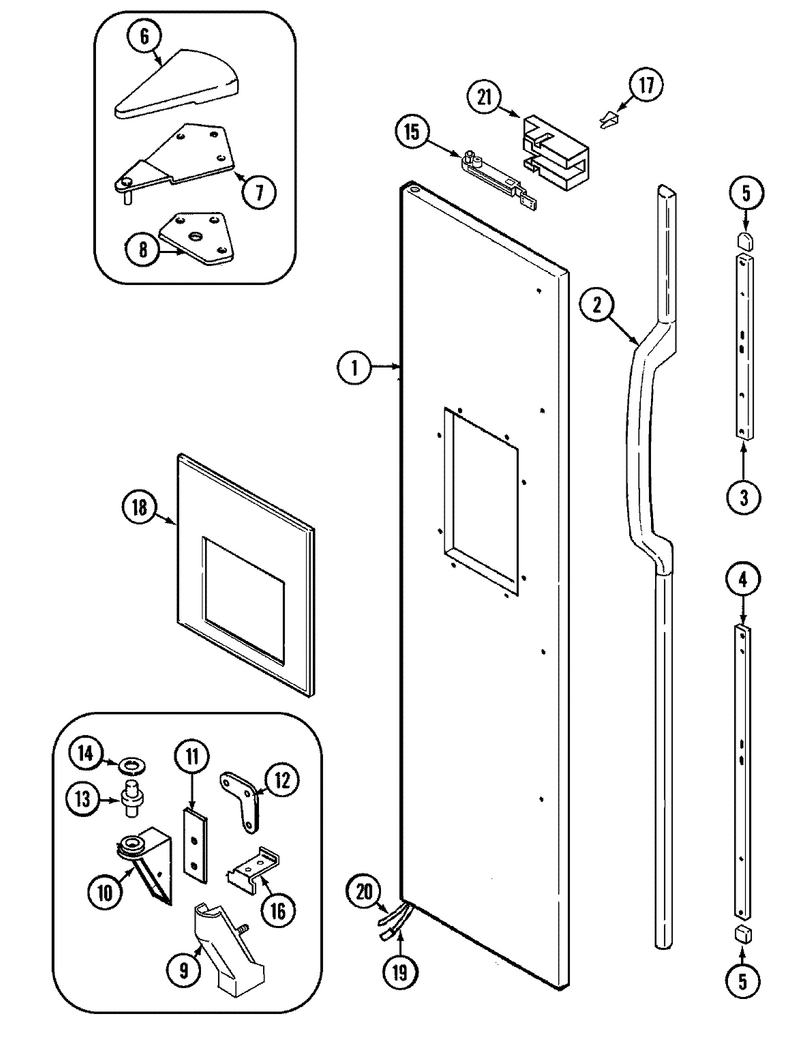

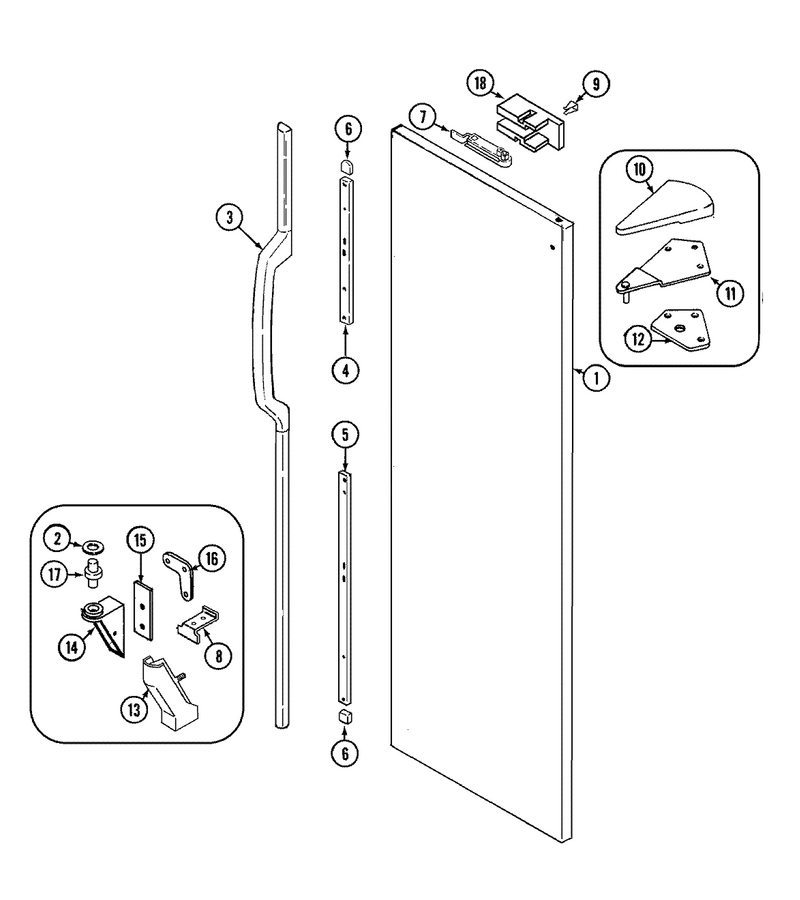

03 - Freezer Outer Door

...
...
1
Panel, Frz. Door (Wht) WPL-72341-106-WW
...
2
Kit, Handle Assy. (Wht) WPL-12000039
...
3
Trim, Handle Ext. (Upper) WPL-69586-3
...
4
Trim, Handle Ext. (Lower) WPL-69586-4
...
5
End Cap, Handle WPL-69590-1
...
6
Cover, Upper Hinge (Wht) WPL-70121-4
...
7
Hinge Upper WPL-53709-26
...
8
Shim, Upper Hinge WPL-65031-1
...
9
Screw WPL-65275-56
...
10
Hinge, Lower WPL-61001629
...
11
Shim, Lower Hinge WPL-69510-1
...
12
Tapping Plate, Lower Hinge WPL-67874-1
...
13
Pin, Hinge WPL-70060-1
...
14
Washer, Door Spacer WPL-67483-3
...
15
Screw WPL-414004-35
...
16
Stop, Door WPL-61001269
...
17
Bracket, Closer WPL-69261-1
...
18
Escutcheon (Wht) WPL-61004845
...
19
Wire Harness, Door WPL-69804-1
...
20
Tube-Water WPL-WPW10426709
...
21
Insulation, Closer (Frt.) WPL-61001721

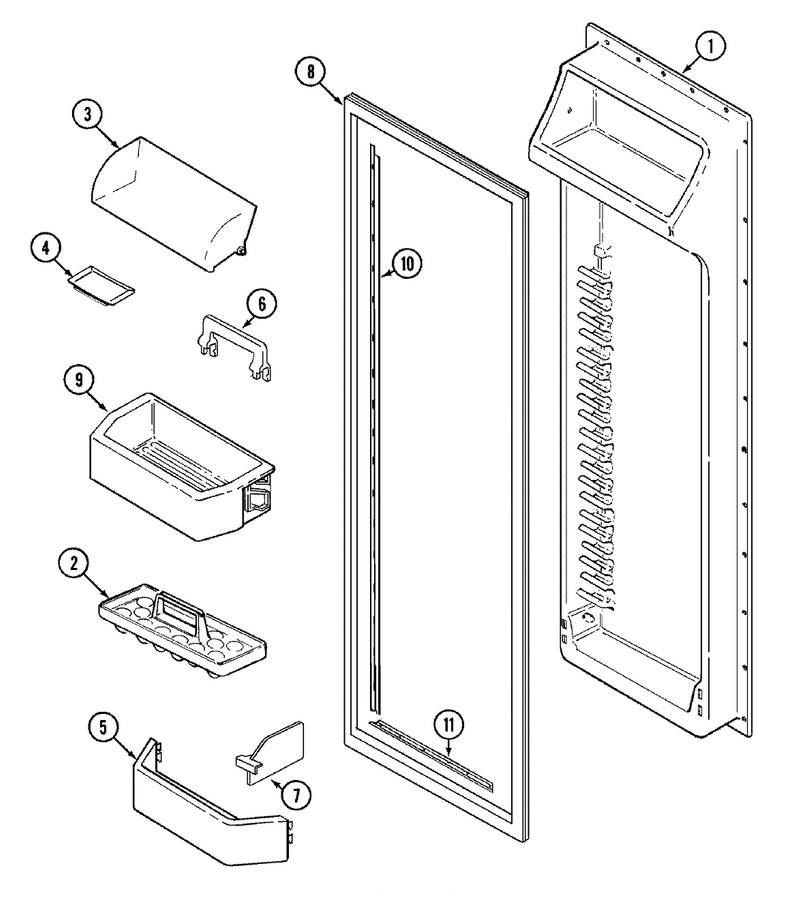

05 - Fresh Food Inner Door

...
...
1
Insulation, Liner Support WPL-61001270
...
2
Tray-Egg WPL-WP67004411
...
3
Door, Dairy WPL-70215-4
...
4
Tray, Butter WPL-29936-2
...
5
Front, Pick Off WPL-70209-13
...
6
Retainer, Bottle WPL-70219-1
...
7
Organizer, Shelf WPL-70218-1
...
8
Gasket- F. WPL-WP70024-4
...
9
Shelf, Pick Off WPL-70209-12
...
10
Retainer, Gasket WPL-69992-1
...
11
Retainer, Gasket WPL-69992-2

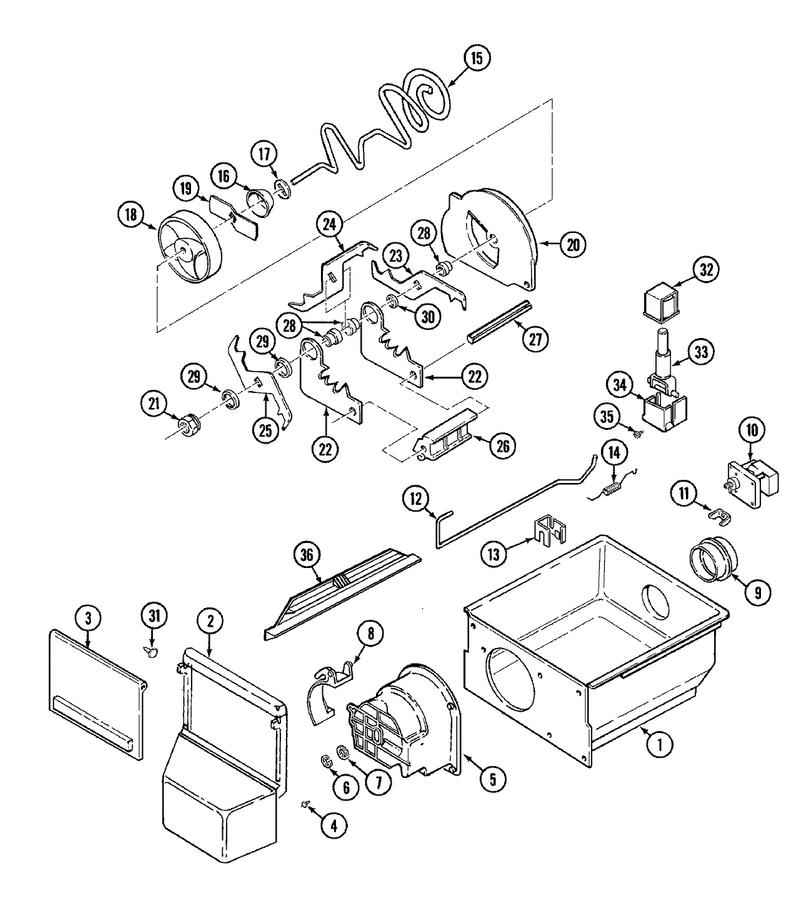

08 - Ice Crusher & Bin

...
...
1
Bin, Ice WPL-70220-1
...
2
Front, Ice Bin WPL-69875-24
...
3
Door, Ice Access WPL-61001678
...
4
Bumper, Door WPL-28272-6
...
5
Housing, Crusher WPL-69756-1
...
6
Ring, Snap WPL-69704-1
...
7
Washer, Plain Upper Cam WPL-489234
...
8
Door, Ice Crusher WPL-69718-1
...
9
Ring- Driv WPL-WP61003336
...
10
Screw WPL-WP488234
...
11
Impeller WPL-WP63052-2
...
12
Rod, Crusher Control WPL-69714-2
...
13
Bracket, Control Rod WPL-69716-1
...
14
Spring, Control Rod WPL-69717-1
...
15
Auger WPL-69707-2
...
16
Cone, Ice Deflector WPL-69699-1
...
17
Washer, Cone Stop WPL-69698-1
...
18
Impeller WPL-70036-1
...
19
Plate, Drive WPL-69755-1
...
20
Plate, Impeller WPL-69701-1
...
21
Nut, Auger WPL-69709-1
...
22
Blade, Crusher WPL-69706-1
...
23
Blade, Crusher WPL-69702-1
...
24
Blade, Crusher WPL-69702-2
...
25
Blade, Crusher WPL-69702-3
...
26
Lock, Fixed Blade WPL-69708-1
...
27
Pin, Blade Lock WPL-69705-1
...
28
Bearing, Spacer WPL-69697-1
...
29
Spacer, Crusher Blade WPL-69696-1
...
30
Spacer, Blade WPL-69696-2
...
31
Pin, Ice Door WPL-67906-1
...
32
Solenoid WPL-69730-2
...
33
Yoke Assy. WPL-72353-50
...
34
Guide- Yok WPL-WP69715-1
...
35
Screw WPL-400015-36
...
36
Rail, Ice Bin WPL-69710-2

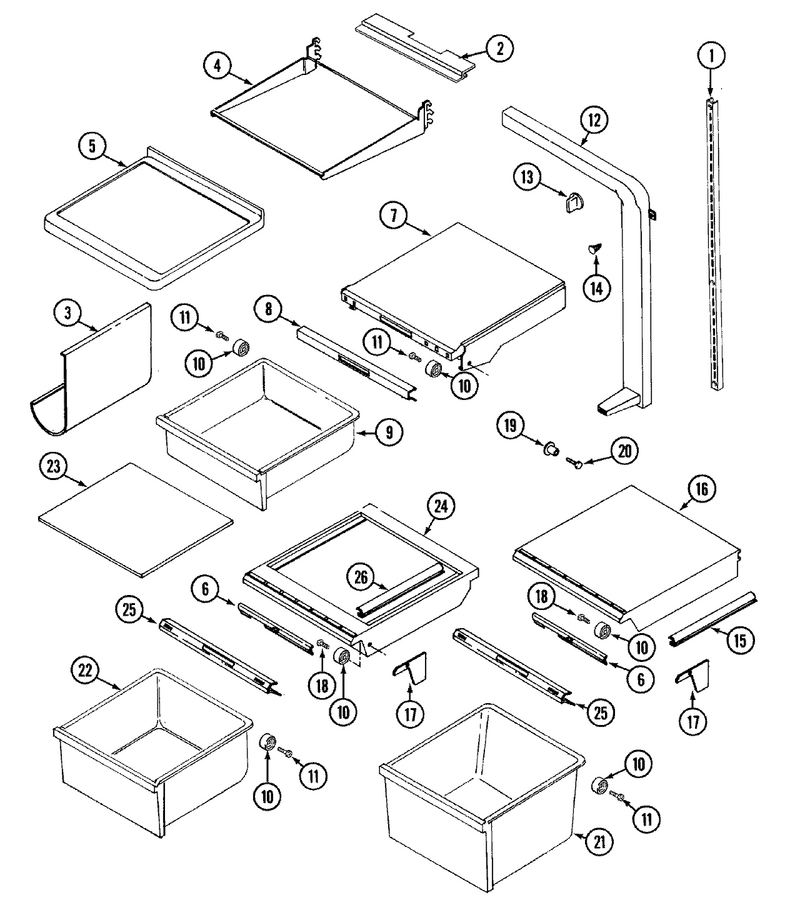

10 - Shelves & Accessories

...
...
1
Rail, Shelf Support WPL-67311-1
...
2
Swtch-Plgr WPL-676484
...
3
Holder, Wine Bottle WPL-61001622
...
4
Frame, Meat Shelf WPL-70310-4
...
5
Shelf, Slide WPL-70307-4
...
6
Slide, Control WPL-67491-2
...
7
Support, Meat Pan WPL-67649-13
...
8
Trim, Meat Pan Support WPL-70281-1
...
9
Pan, Meat WPL-69928-6
...
10
Roller WPL-WP67423-2
...
11
Screw WPL-WP65275-6
...
12
Tunnel, Air (Meat) WPL-68690-3
...
13
Knob, Air Tunnel WPL-68755-2
...
14
Screw WPL-W11233072
...
15
Seal WPL-69779-1
...
16
Shelf, Crisper (Lower) WPL-67892-6
...
17
Support, Crisper Shelf (Lt) WPL-67895-1
...
18
Screw WPL-WP65275-6
...
19
Support- C WPL-WP67764-1
...
20
Screw WPL-WP489478
...
21
Pan, Crisper (Lower) WPL-69928-2
...
22
Pan, Crisper (Upper) WPL-69928-7
...
23
Glass, Crisper Shelf WPL-67489-8
...
24
Shelf, Crisper (Upper) WPL-67891-4
...
25
Trim, Crisper Shelf WPL-70337-2
...
26
Seal, Crisper WPL-69779-2

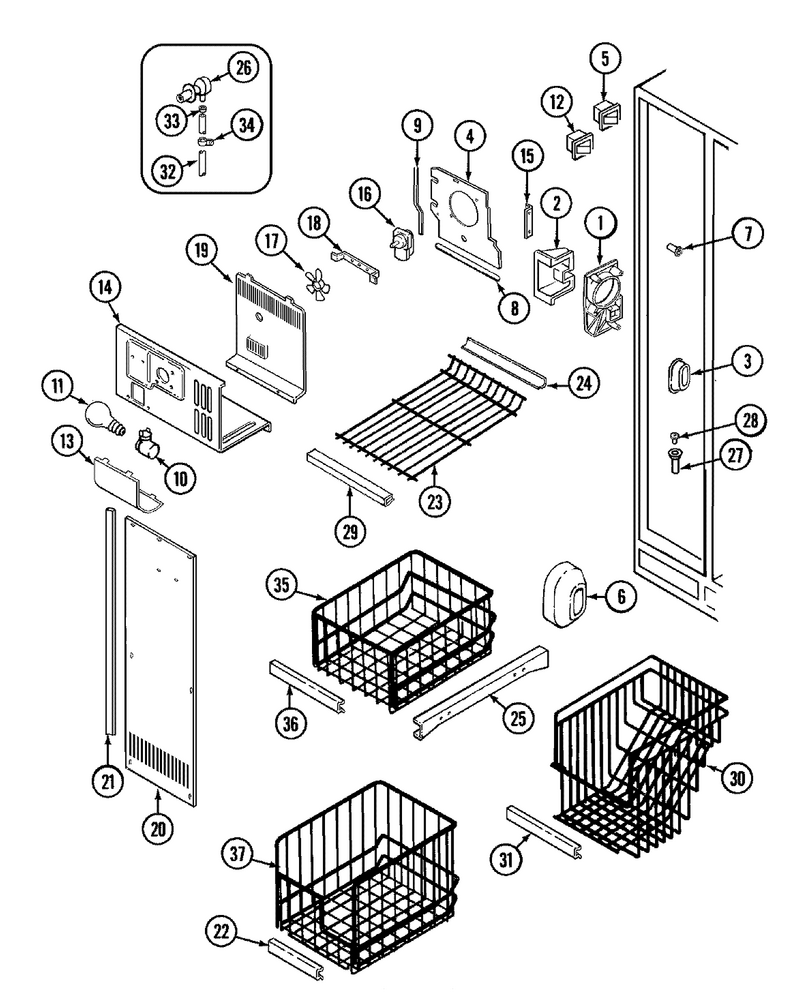

01 - Freezer Compartment

...
...
1
Orifice, Frz. Control (Outlet) WPL-67352-1
...
2
Shield, Air Directional WPL-67353-1
...
3
Retainer, Air Return WPL-70034-1
...
4
Cover, Coil Upper WPL-67297-6
...
5
Switch, Interlock WPL-68058-2
...
6
Insulation, Air Return WPL-67837-1
...
7
Cup, Shelf WPL-67466-1
...
8
Seal WPL-68946-6
...
9
Seal WPL-66325-20
...
10
Receptacle, Bulb WPL-68974-3
...
11
Bulb-Light WPL-WP67002552
...
12
Switch WPL-W11384469
...
13
Shield, Light WPL-67292-1
...
14
Box, Auger Motor WPL-69724-1
...
15
Screw WPL-WP489478
...
16
Motor-Evap WPL-WP10449503
...
17
Blade, Evaporator Fan WPL-52120-4
...
18
Screw WPL-WP488729
...
19
Shield, Fan WPL-61001025
...
20
Screw WPL-400015-36
...
21
Clip WPL-693141
...
22
Trim, Pizza Basket WPL-70135-23
...
23
Shelf, Wire WPL-67178-8
...
24
Trim, Shelf (Rear) WPL-70136-1
...
25
Screw WPL-WP67006908
...
26
Tube-Inlet WPL-12001935
...
27
Tube, Drain WPL-26527-11
...
28
Grommet WPL-52526-1
...
29
Trim, Shelf WPL-70135-19
...
30
Basket, Frz Wire WPL-69350-2
...
31
Trim, Lower Basket WPL-70135-27
...
32
Tube WPL-WPB5705307
...
33
Clamp WPL-WP488878
...
34
Clamp WPL-WP488366
...
35
Basket, Frz Wire WPL-69348-2
...
36
Trim, Upper Basket WPL-70135-26
...
37
Basket, Pizza WPL-69349-2

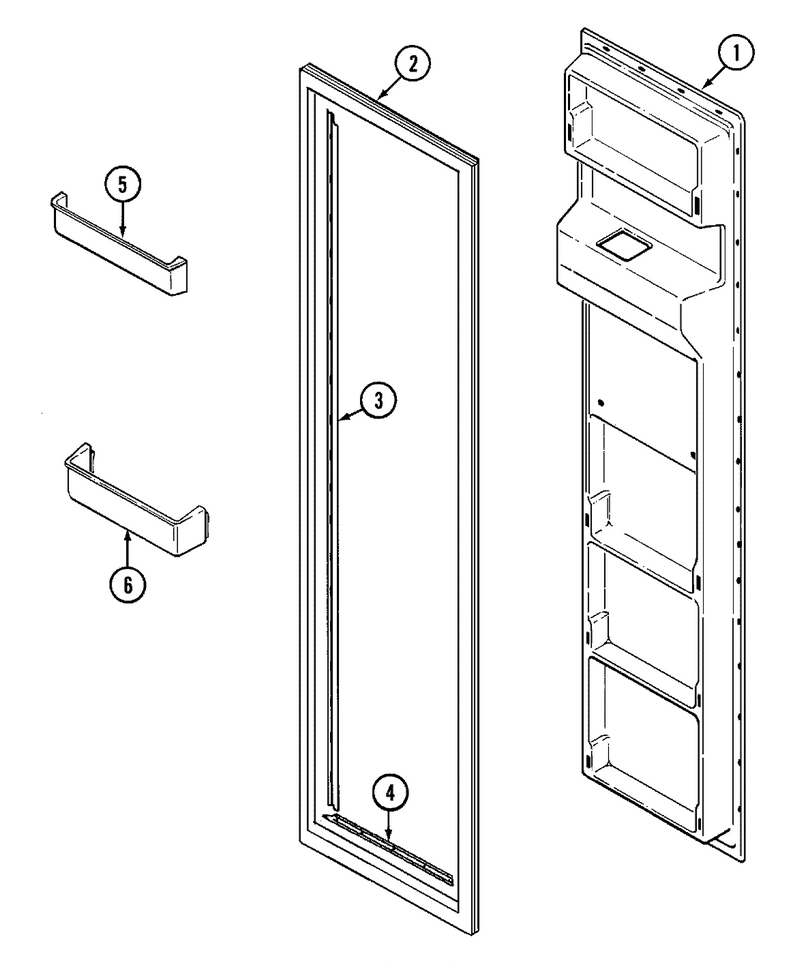

02 - Freezer Inner Door

...
...
1
Screw WPL-61005388
...
2
Gasket, Frz. Door WPL-70024-2
...
3
Retainer, Gasket WPL-69992-1
...
4
Retainer, Gasket WPL-69992-4
...
5
Front, Pick Off WPL-70209-14
...
6
Front, Pick Off WPL-70209-15

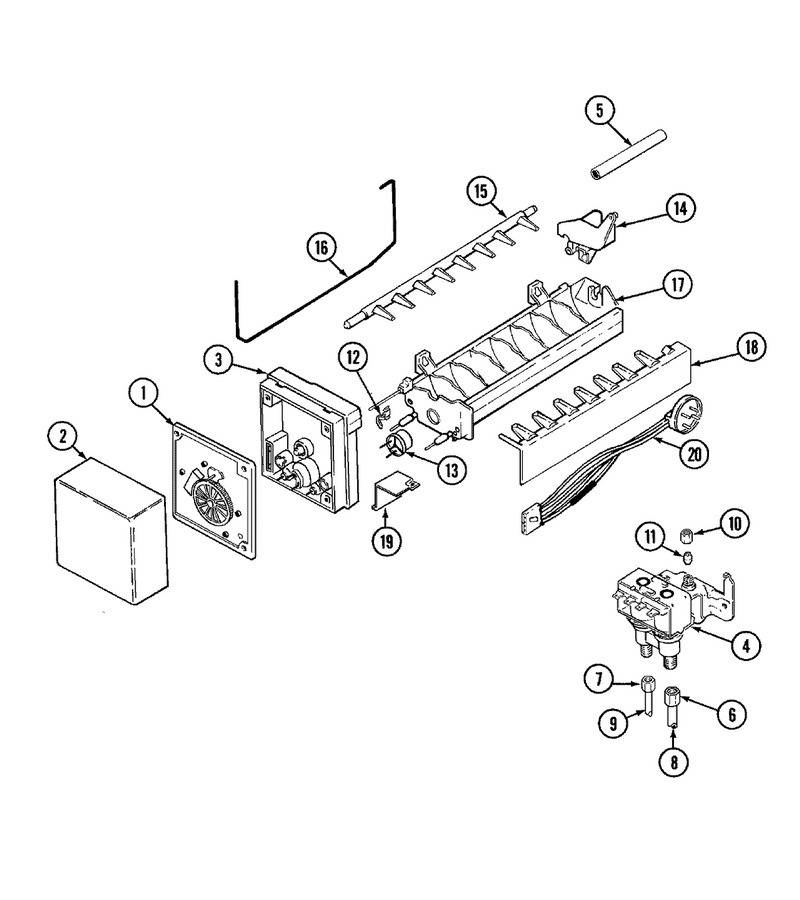

09 - Ice Maker

...
...
1
Screw WPL-WP489478
...
2
Cover, Ice Maker WPL-61005374
...
3
Housing-Im WPL-WP2195914
...
4
Screw WPL-401018-1
...
5
Tube, Water Entry WPL-67666-1
...
6
Nut WPL-8201513
...
7
Nut WPL-WP627018
...
8
Tube-Water WPL-WPW10426709
...
9
Tube WPL-WPB5705307
...
10
Nut WPL-WP245183
...
11
Sleeve WPL-WP487627
...
12
Clip WPL-WP2315522
...
13
Capacitor WPL-876595
...
14
Cup-Fill WPL-WP628356
...
15
Arm-Ejectr WPL-WP627843
...
16
Arm-Shut WPL-W11342242
...
17
Mold-Ice WPL-WPW10122523
...
18
Arm-Stripr WPL-WP2182124
...
19
Screw WPL-WP489128
...
20
Wire Harness, Ice Maker WPL-70076-2

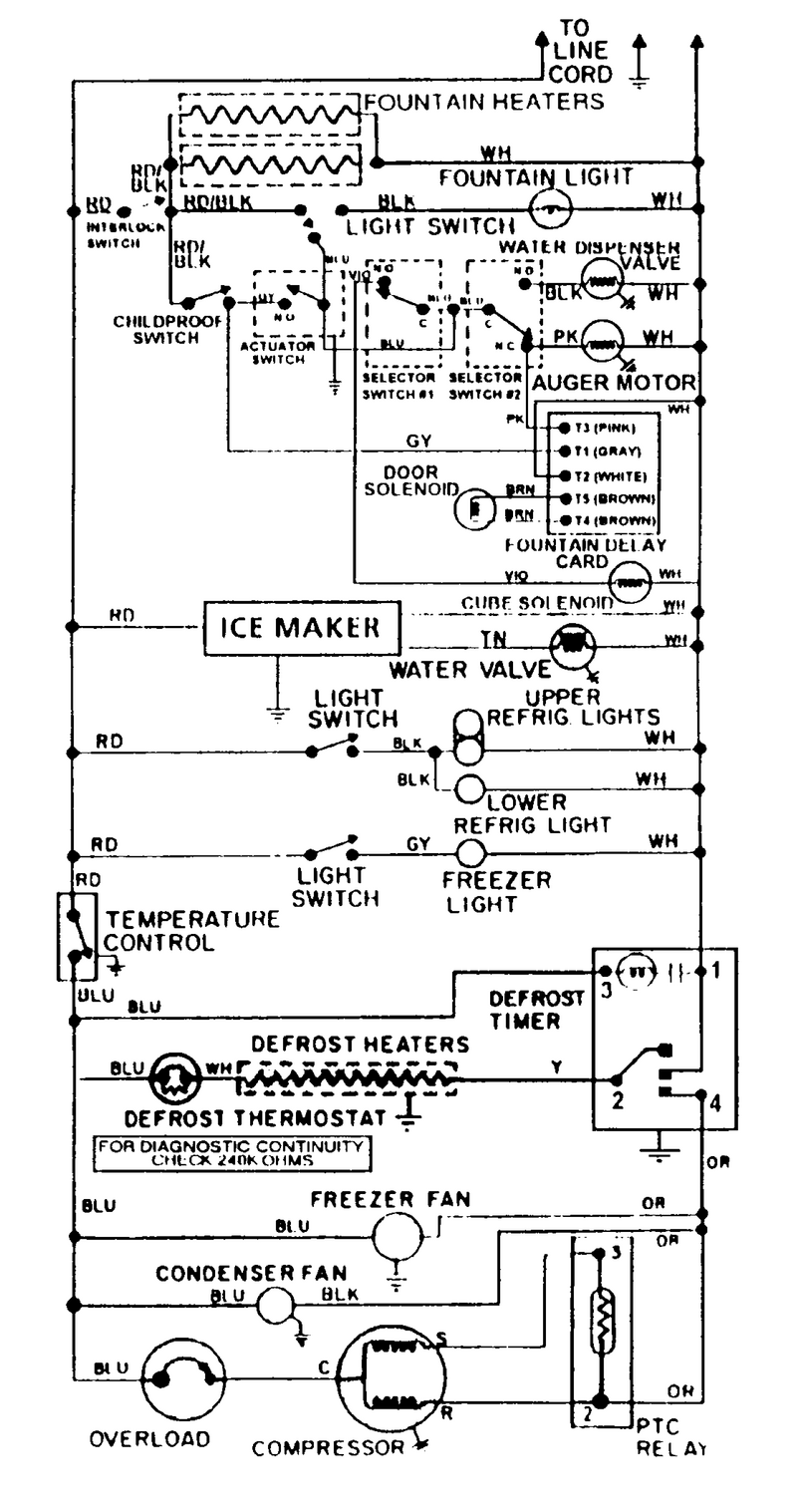

12 - Wiring Information

...
...
NI
Wiring Information WPL-15001860

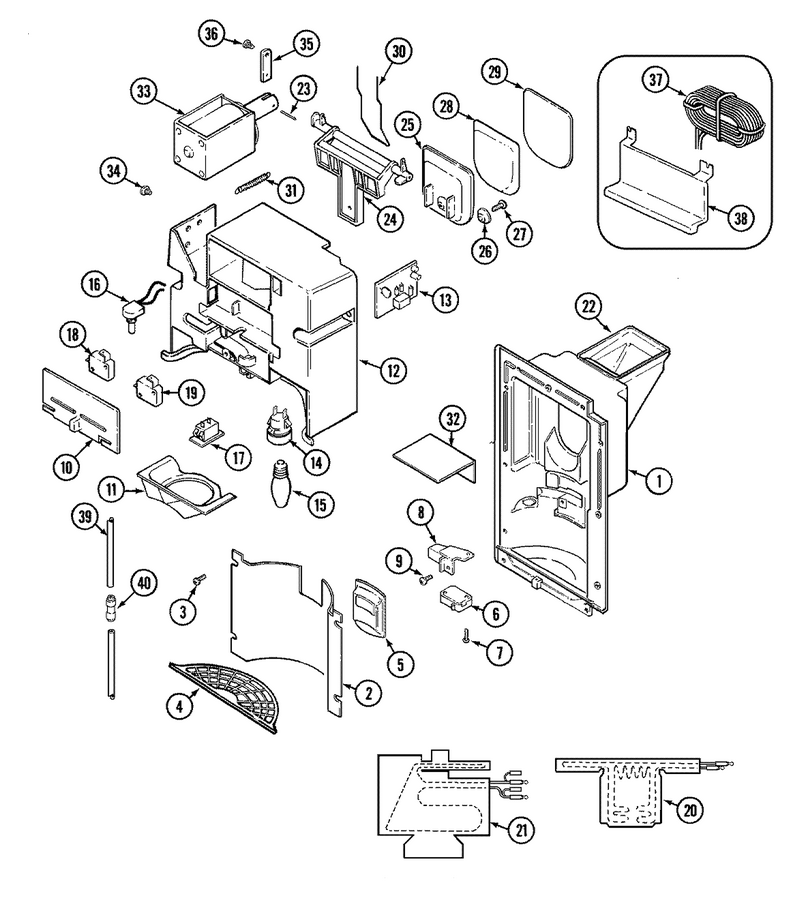

07 - Ice & Water Dispenser

...
...
1
Insulation, Bonnet Top WPL-69841-2
...
2
Liner, Fountain WPL-69686-2
...
3
Screw WPL-65275-81
...
4
Grill,fountain WPL-67223-1
...
5
Pad, Actuator WPL-69682-2
...
6
Switch, Ice & Water WPL-55440-2
...
7
Screw WPL-415041-35
...
8
Bracket, Actuator Switch WPL-70044-1
...
9
Screw WPL-415013-35
...
10
Screw WPL-65275-74
...
11
Guard, Chip WPL-70023-2
...
12
Screw WPL-415013-35
...
13
Board, Pc WPL-61001559
...
14
Socket, Light (W/nut) WPL-70119-2
...
15
Bulb-Light WPL-WP61006109
...
16
Switch, Light (W/nut) WPL-69832-10
...
17
Switch, Rocker (Blk) WPL-7403P067-60
...
18
Switch, Ice & Water WPL-55440-2
...
19
Switch WPL-55440-3
...
20
Heater, Fountain (Upper) WPL-69796-2
...
21
Heater, Fountain (Lower) WPL-69842-1
...
22
Seal, Ice Chute WPL-52077-27
...
23
Pin, Spring WPL-67291-3
...
24
Strike, Ice Door WPL-69675-7
...
25
Door, Ice WPL-68957-2
...
26
Retainer WPL-68566-1
...
27
Screw WPL-405116-35
...
28
Insulation, Ice Door WPL-68557-1
...
29
Seal- Ice WPL-WP69867-1
...
30
Spring, Ice Door WPL-69868-1
...
31
Spring, Extension WPL-67339-1
...
32
Foil, Fountain Front WPL-53808-38
...
33
Solenoid WPL-67883-5
...
34
Screw WPL-406033-1
...
35
Link, Solenoid WPL-69688-1
...
36
Screw WPL-415013-35
...
37
Screw WPL-WP67006908
...
38
Screw WPL-400015-36
...
39
Tube-Water WPL-WPW10426709
...
40
Union WPL-W11211369
...
41
Nut, Wire WPL-27116-5
...
42
Wire Harness, Fountain WPL-69903-4
