Jenn-Air JRSD279A

Model: JRSD279A

Save Part Not Listed?
product name

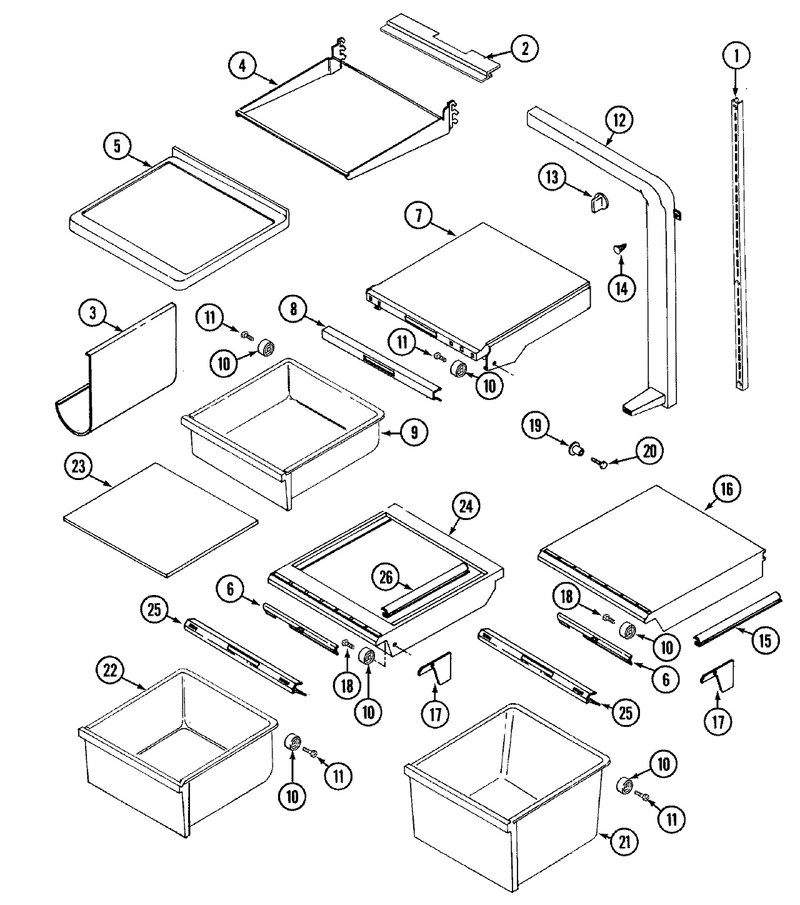

10 - Shelves & Accessories

...
...
1
Screw WPL-400037-28
...
2
Swtch-Plgr WPL-676484
...
3
Holder, Wine Bottle WPL-67308-7
...
4
Frame, Meat Shelf WPL-70310-4
...
5
Shelf, Slide WPL-70307-4
...
6
Slide, Control WPL-67491-2
...
7
Support, Meat Pan WPL-67649-13
...
8
Trim, Meat Pan Support WPL-70281-1
...
9
Pan, Meat WPL-69928-6
...
10
Roller WPL-WP67423-2
...
11
Screw WPL-WP65275-6
...
12
Tunnel, Air WPL-68690-2
...
13
Knob, Air Tunnel WPL-68755-2
...
14
Screw WPL-W11233072
...
15
Seal WPL-69779-1
...
16
Shelf, Crisper (Lower) WPL-67892-6
...
17
Support, Crisper Shelf (Lt) WPL-67895-1
...
18
Screw WPL-WP65275-6
...
19
Support- C WPL-WP67764-1
...
20
Screw WPL-WP489478
...
21
Pan, Crisper (Lower) WPL-69928-2
...
22
Pan, Crisper (Upper) WPL-69928-7
...
23
Glass, Crisper Shelf WPL-67489-8
...
24
Shelf, Crisper (Upper) WPL-67891-4
...
25
Trim, Crisper Shelf WPL-70337-2
...
26
Seal, Crisper WPL-69779-2

12 - Wiring Information

...
...
NI

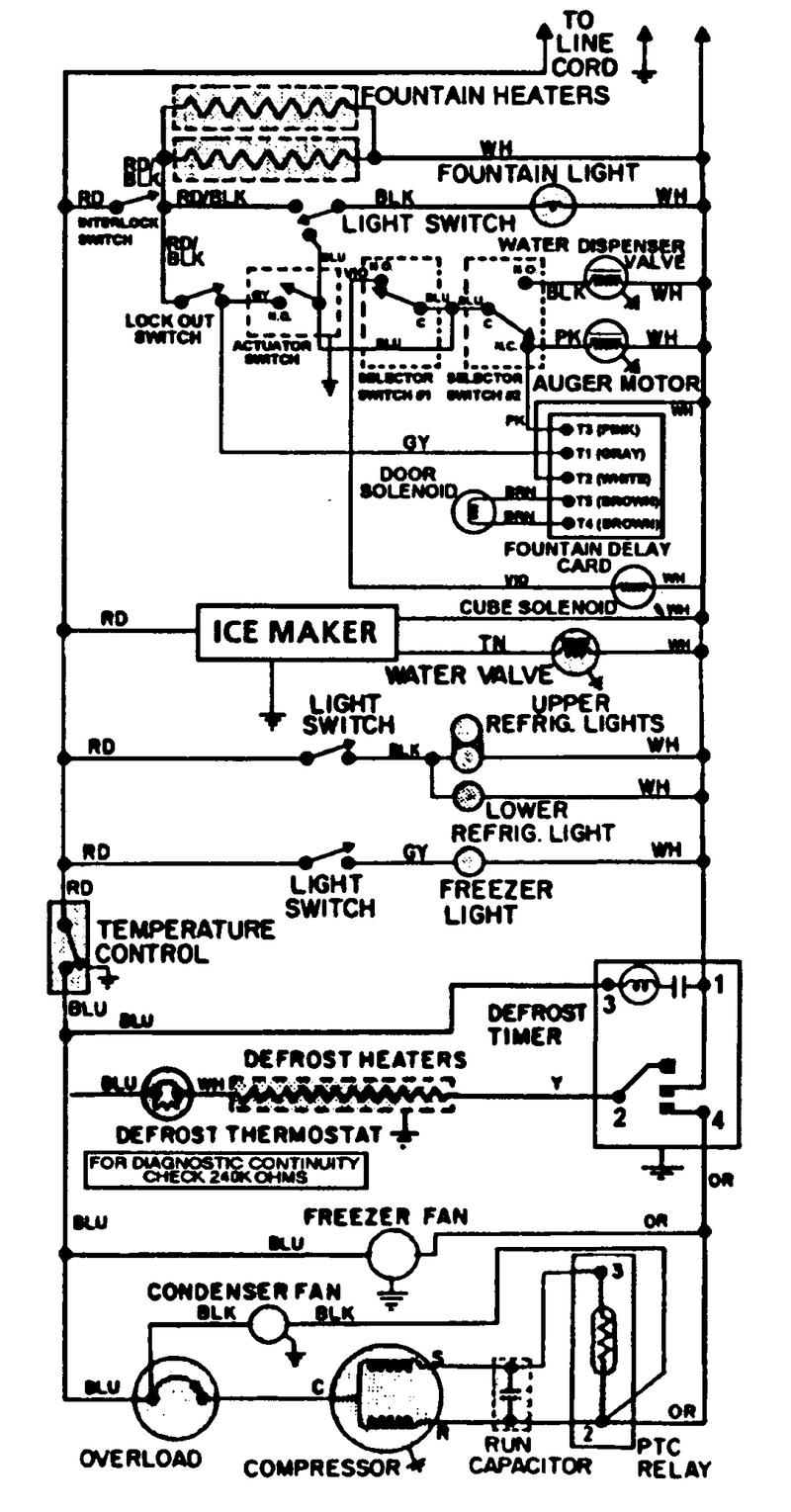

Wiring Information WPL-15001457

06 - Fresh Food Outer Door

...
...
1
Plug Button, Door WPL-495034-900
...
2
Washer, Door Spacer WPL-67483-3
...
3
Kit, Handle Assy (Almond) WPL-12000043
...
4
Trim, Handle Ext. (Upper) WPL-69586-3
...
5
Screw WPL-W10856122
...
6
End Cap, Handle WPL-69590-1
...
7
Screw WPL-414004-1
...
8
Stop, Door WPL-61001269
...
9
Bracket, Closer WPL-69261-1
...
10
Cover, Upper Hinge (Alm) WPL-70121-3
...
11
Screw WPL-WP3-24838-048
...
12
Shim, Upper Hinge WPL-65031-1
...
13
Cover, Lower Hinge (Alm) WPL-68978-3
...
14
Hinge, Lower (Zinc) WPL-69516-4
...
15
Shim, Lower Hinge WPL-69510-1
...
16
Screw WPL-65275-59
...
17
Pin, Lower Hinge WPL-69845-1

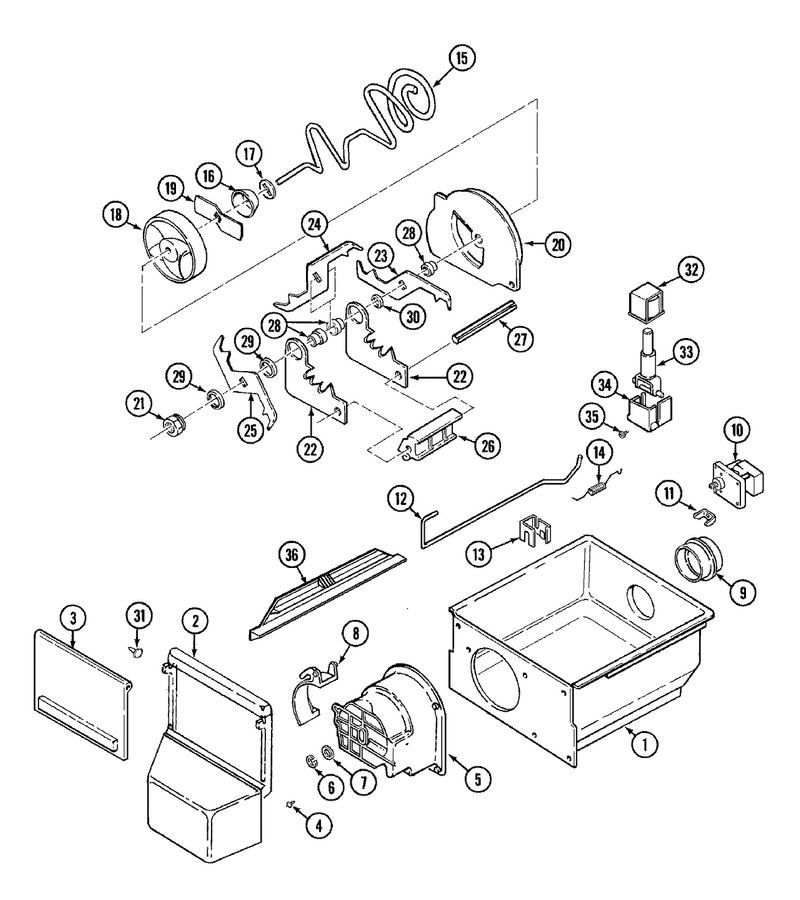

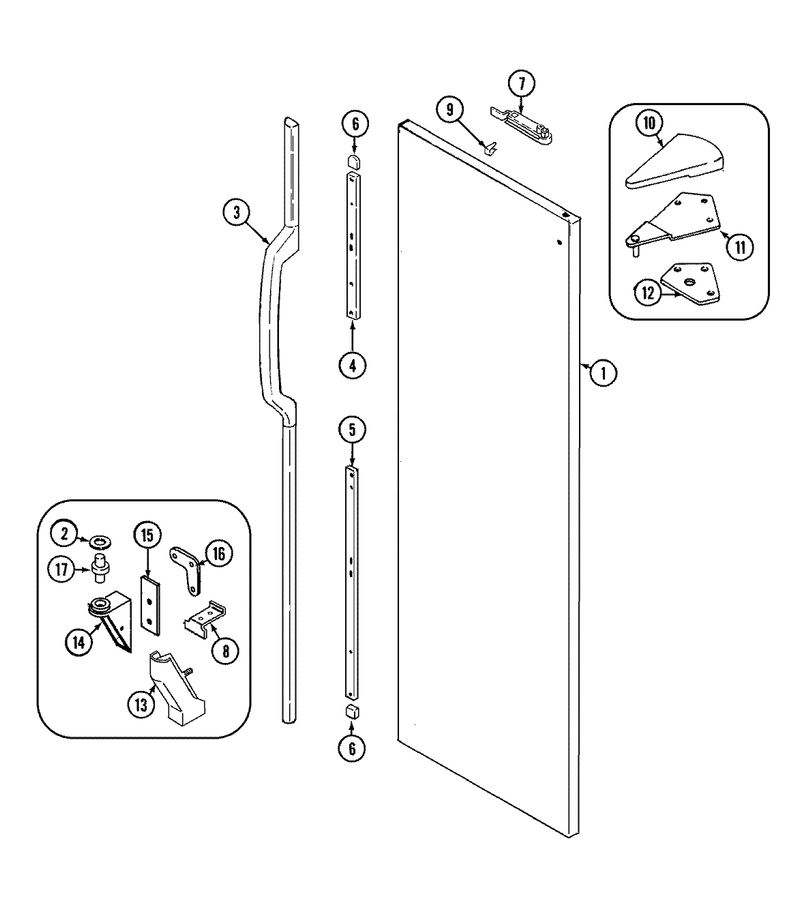

08 - Ice Crusher & Bin

...
...
1
Bin, Ice WPL-70220-1
...
2
Front, Ice Bin WPL-69875-24
...
3
Door, Disp Bin Assy. WPL-69920-1
...
4
Bumper, Door WPL-28272-6
...
5
Housing, Crusher WPL-69756-1
...
6
Ring, Snap WPL-69704-1
...
7
Washer, Plain Upper Cam WPL-489234
...
8
Door, Ice Crusher WPL-69718-1
...
9
Ring- Driv WPL-WP61003336
...
10
Screw WPL-WP488234
...
11
Impeller WPL-WP63052-2
...
12
Rod, Crusher Control WPL-69714-2
...
13
Bracket, Control Rod WPL-69716-1
...
14
Spring, Control Rod WPL-69717-1
...
15
Auger WPL-69707-2
...
16
Cone, Ice Deflector WPL-69699-1
...
17
Washer, Cone Stop WPL-69698-1
...
18
Impeller WPL-70036-1
...
19
Plate, Drive WPL-69755-1
...
20
Plate, Impeller WPL-69701-1
...
21
Nut, Auger WPL-69709-1
...
22
Blade, Crusher WPL-69706-1
...
23
Blade, Crusher WPL-69702-1
...
24
Blade, Crusher WPL-69702-2
...
25
Blade, Crusher WPL-69702-3
...
26
Lock, Fixed Blade WPL-69708-1
...
27
Pin, Blade Lock WPL-69705-1
...
28
Bearing, Spacer WPL-69697-1
...
29
Spacer, Crusher Blade WPL-69696-1
...
30
Spacer, Blade WPL-69696-2
...
31
Pin, Ice Door WPL-67906-1
...
32
Screw WPL-WP488234
...
33
Yoke Assy. WPL-72353-50
...
34
Guide- Yok WPL-WP69715-1
...
35
Screw WPL-400015-36
...
36
Rail, Ice Bin WPL-69710-2

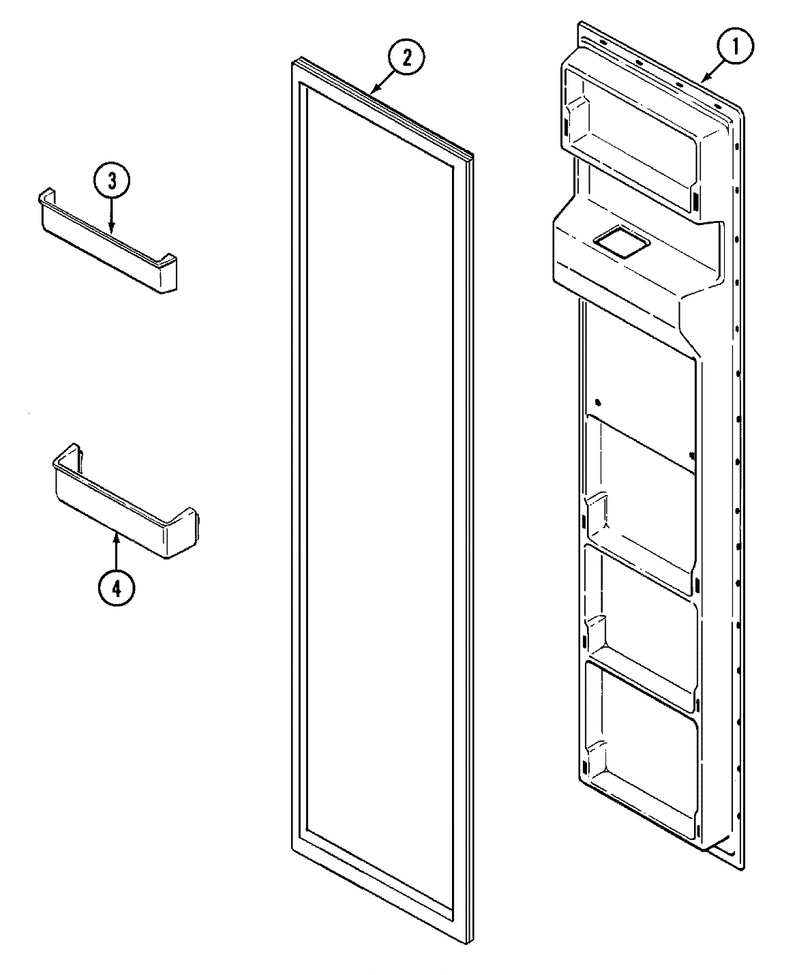

02 - Freezer Inner Door

...
...
1
Insulation, Liner Support WPL-61001272
...
2
Gasket, Frz. Door WPL-70024-2
...
3
Front, Pick Off WPL-70209-14
...
4
Front, Pick Off WPL-70209-15

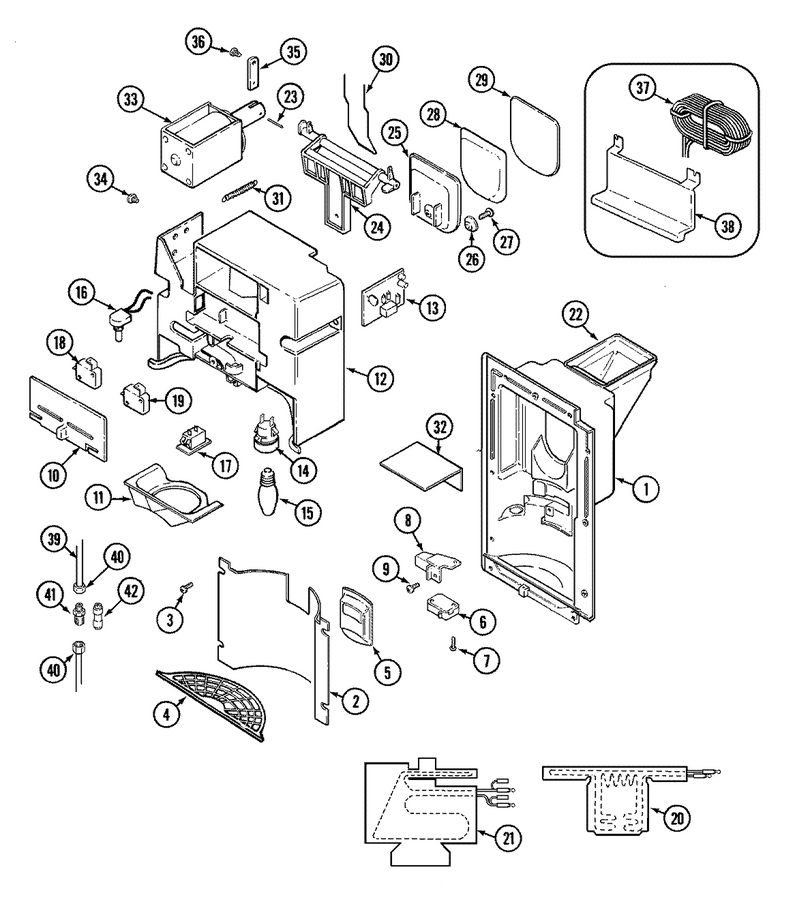

07 - Ice & Water Dispenser

...
...
1
Insulation, Bonnet Top WPL-69841-2
...
2
Liner, Fountain WPL-69686-4
...
3
Screw WPL-65275-81
...
4
Grill,fountain WPL-67223-1
...
5
Pad, Actuator WPL-69682-3
...
6
Switch, Ice & Water WPL-55440-2
...
7
Screw WPL-415041-35
...
8
Bracket, Actuator Switch WPL-70044-1
...
9
Screw WPL-415013-35
...
10
Slide, Selector (Alm) WPL-69681-6
...
11
Guard, Chip WPL-70023-2
...
12
Bracket, Fountain WPL-70324-9
...
13
Board, Pc WPL-69751-4
...
14
Receptacle, Bulb WPL-70119-1
...
15
Bulb-Light WPL-W10857122
...
16
Switch, Light (W/nut) WPL-69832-6
...
17
Switch, Rocker (Blk) WPL-7403P067-60
...
18
Switch, Ice & Water WPL-55440-2
...
19
Screw WPL-415041-35
...
20
Heater, Fountain WPL-69796-1
...
21
Heater, Fountain WPL-69797-1
...
22
Seal, Ice Chute WPL-52077-27
...
23
Pin, Spring WPL-67291-3
...
24
Strike, Ice Door WPL-69675-7
...
25
Door, Ice WPL-68957-2
...
26
Retainer WPL-68566-1
...
27
Screw WPL-405116-35
...
28
Insulation, Ice Door WPL-68557-1
...
29
Seal- Ice WPL-WP69867-1
...
30
Spring, Ice Door WPL-69868-1
...
31
Spring, Extension WPL-67339-1
...
32
Foil, Fountain Front WPL-53808-38
...
33
Solenoid WPL-WP67883-3
...
34
Screw WPL-406033-1
...
35
Link, Solenoid WPL-69688-1
...
36
Screw WPL-415013-35
...
37
Screw WPL-WP67006908
...
38
Screw WPL-400015-36
...
39
Tube-Water WPL-WPW10426709
...
40
Nut WPL-8201513
...
41
Union WPL-W11211369
...
42
Union WPL-W11211369
...
43
Nut, Wire WPL-27116-5
...
44
Wire Harness, Fountain WPL-69902-1

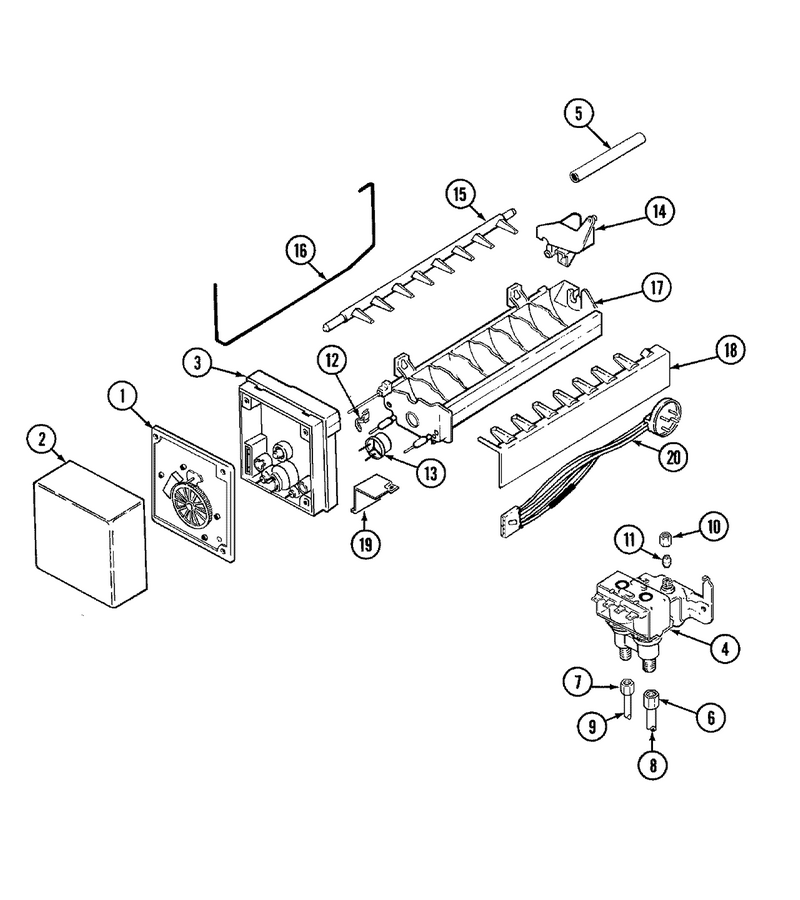

09 - Ice Maker

...
...
1
Capacitor WPL-876776
...
2
Cover, Ice Maker WPL-68328-2
...
3
Screw WPL-WP681249
...
4
Screw WPL-401018-1
...
5
Clamp WPL-WP285655
...
6
Nut WPL-8201513
...
7
Nut WPL-WP627018
...
8
Tube-Water WPL-WPW10426709
...
9
Tube WPL-WPB5705307
...
10
Nut WPL-WP245183
...
11
Sleeve WPL-WP487627
...
12
Clip WPL-WP2315522
...
13
Bimetl-Def WPL-WP627985
...
14
Cup-Fill WPL-WP628356
...
15
Arm-Ejectr WPL-WP627843
...
16
Arm-Shut WPL-W11342242
...
17
Ice Maker Assy. WPL-D7824706Q
...
18
Arm-Stripr WPL-WP2182124
...
19
Screw WPL-WP489128
...
20
Wire Harness, Ice Maker WPL-70076-1

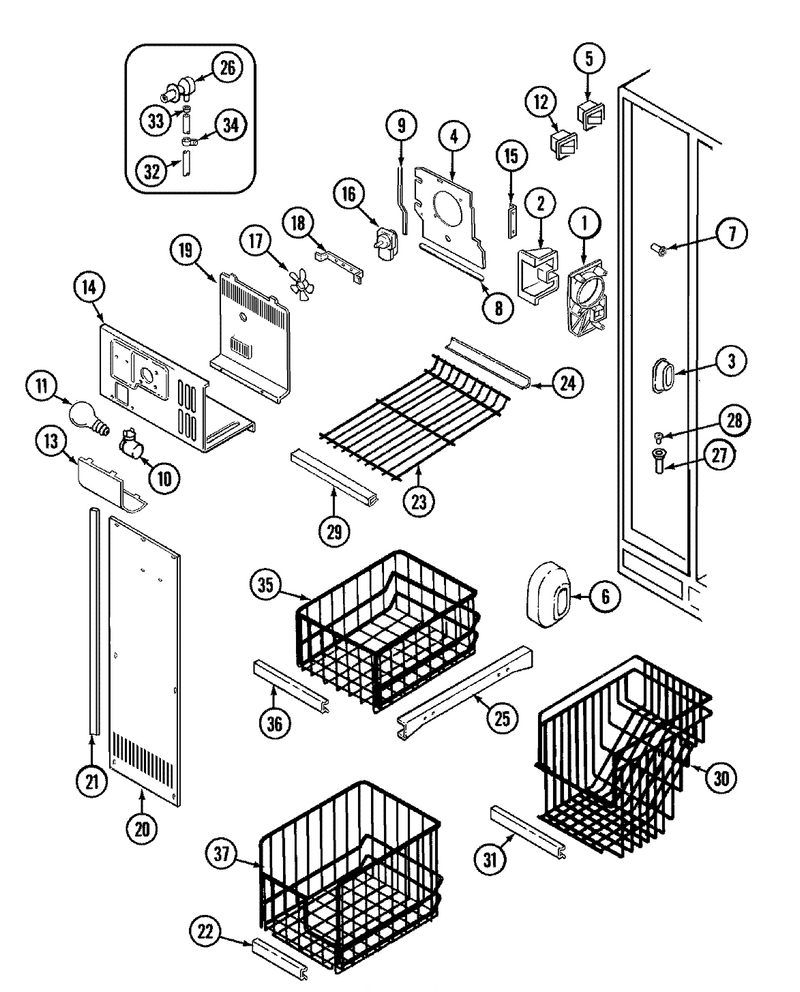

01 - Freezer Compartment

...
...
1
Orifice, Frz. Control (Outlet) WPL-67352-1
...
2
Shield, Air Directional WPL-67353-1
...
3
Retainer, Air Return WPL-70034-1
...
4
Cover, Coil Upper WPL-67297-6
...
5
Switch, Interlock WPL-68058-2
...
6
Insulation, Air Return WPL-67837-1
...
7
Cup, Shelf WPL-67466-1
...
8
Seal WPL-68946-6
...
9
Seal WPL-66325-20
...
10
Receptacle, Bulb WPL-68974-3
...
11
Bulb-Light WPL-W11679940
...
12
Switch WPL-W11384469
...
13
Shield, Light WPL-67292-1
...
14
Box, Auger Motor WPL-69724-1
...
15
Screw WPL-400015-36
...
16
Side Exhaust Kit WPL-279823
...
17
Washer, Spring WPL-420092-900
...
18
Screw WPL-WP488729
...
19
Shield, Fan WPL-61001025
...
20
Screw WPL-400015-36
...
21
Clip WPL-693141
...
22
Trim, Pizza Basket WPL-70135-23
...
23
Shelf, Wire WPL-67178-8
...
24
Trim, Shelf (Rear) WPL-70136-1
...
25
Screw WPL-WP67006908
...
26
Tube-Inlet WPL-12001935
...
27
Tube, Drain WPL-26527-11
...
28
Grommet WPL-52526-1
...
29
Trim, Shelf WPL-70135-19
...
30
Basket, Frz Wire WPL-69350-2
...
31
Trim, Lower Basket WPL-70135-27
...
32
Tube WPL-WPB5705307
...
33
Clamp WPL-WP488878
...
34
Clamp WPL-WP488366
...
35
Basket, Frz Wire WPL-69348-2
...
36
Trim, Upper Basket WPL-70135-26
...
37
Basket, Pizza WPL-69349-2

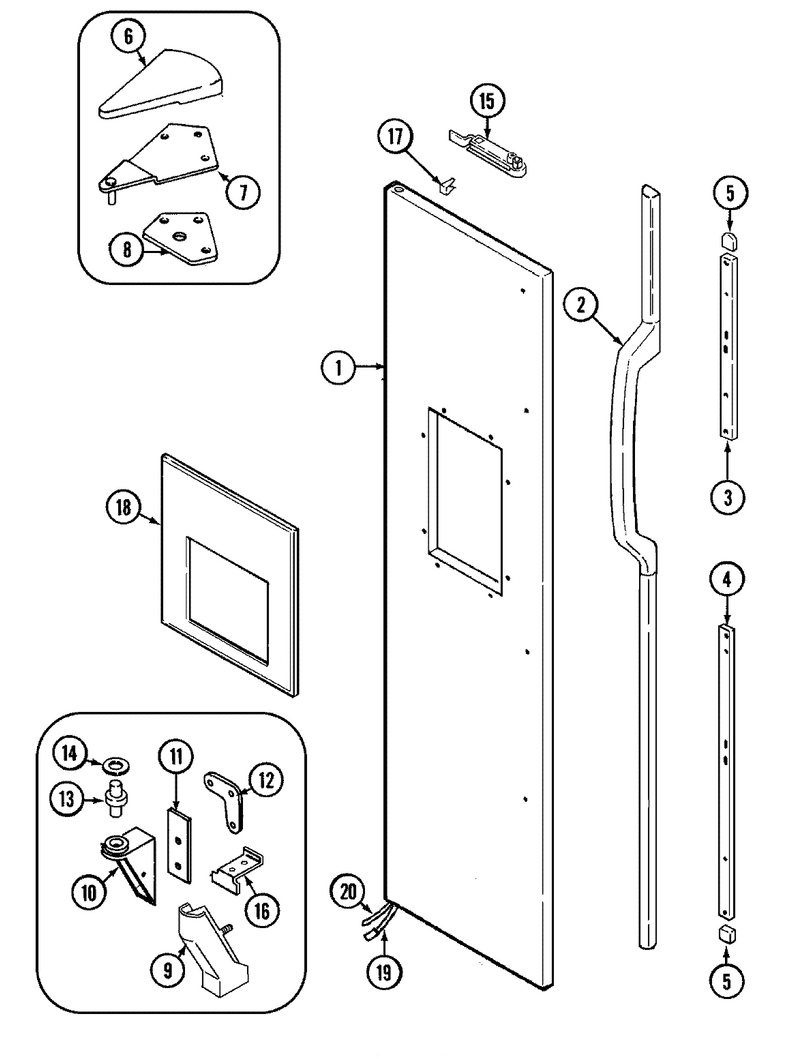

03 - Freezer Outer Door

...
...
1
Plug Button, Door WPL-495034-900
...
2
Kit, Handle Assy (Almond) WPL-12000043
...
3
Trim, Handle Ext. (Upper) WPL-69586-3
...
4
Screw WPL-W10856122
...
5
End Cap, Handle WPL-69590-1
...
6
Cover, Upper Hinge (Alm) WPL-70121-3
...
7
Screw WPL-WP3-24838-048
...
8
Shim, Upper Hinge WPL-65031-1
...
9
Screw WPL-65275-56
...
10
Hinge, Lower (Zinc) WPL-69516-3
...
11
Shim, Lower Hinge WPL-69510-1
...
12
Screw WPL-65275-59
...
13
Pin, Hinge WPL-70060-1
...
14
Washer, Door Spacer WPL-67483-3
...
15
Closer, Door WPL-69258-1
...
16
Stop, Door WPL-61001269
...
17
Bracket, Closer WPL-69261-1
...
18
Screw WPL-405004-35
...
19
Wire Harness, Door WPL-69804-1
...
20
Tube-Water WPL-WPW10426709

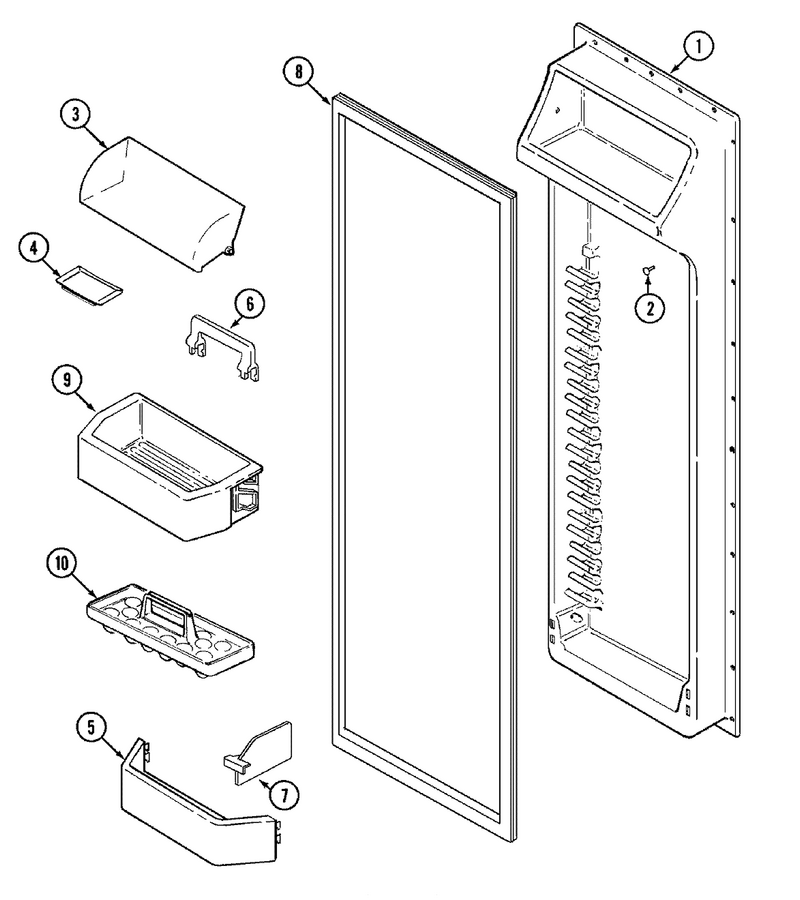

05 - Fresh Food Inner Door

...
...
1
Insulation, Liner Support WPL-61001270
...
2
Bumper, Door WPL-28272-6
...
3
Door, Dairy WPL-70215-4
...
4
Tray, Butter WPL-29936-2
...
5
Front, Pick Off WPL-70209-13
...
6
Retainer, Bottle WPL-70219-1
...
7
Organizer, Shelf WPL-70218-1
...
8
Gasket- F. WPL-WP70024-4
...
9
Shelf, Pick Off WPL-70209-12
...
10
Tray-Egg WPL-WP67004411

04 - Fresh Food Compartment

...
...
1
Control- T WPL-WP61001673
...
2
Screw WPL-WP489478
...
3
Knob, Temperature Control WPL-67145-3
...
4
Orifice, Frz. Control (Inlet) WPL-61001230
...
5
Insulation, Housing WPL-58767-1
...
6
Damper, Frz. Control WPL-67355-1
...
7
Spring, Baffle WPL-52648-1
...
8
Screw WPL-400053-1
...
9
Knob, Freezer Control WPL-67145-4
...
10
Screw WPL-400001-1
...
11
Bulb-Light WPL-W11679940
...
12
Socket, Light WPL-29813-1
...
13
Screw WPL-WP489478
...
14
Kickplate (Alm) WPL-68981-6
...
15
Screw WPL-WP489478
...
16
Shield, Light WPL-67113-5
...
17
Support, Light Shield WPL-67125-1
...
18
Switch WPL-W11384469
...
19
Cover, Air Return WPL-69982-1
...
20
Tub-Outer WPL-W10772617
...
21
Tunnel, Air Return WPL-67684-1
...
22
Leg, Leveling WPL-68664-3
...
23
Wheel WPL-69812-1
...
24
Pin, Wheel WPL-64965-1
...
25
Screw WPL-WP33002917
...
26
Faceplate, Bracket WPL-70230-1
...
27
Screw, Wheel Adjustment WPL-61001126
...
28
Tapping Plate, Wheel WPL-59101-1
...
29
Pin, Wheel (Rear) WPL-64965-3
...
30
Screw WPL-3400518
...
31
Insert, Light Shield WPL-67476-7
...
32
Screw WPL-61005388
...
33
Screw WPL-WP489478
...
34
Receptacle, Bulb WPL-68974-3
...
35
Bulb, Light WPL-20174-6
...
36
Shield, Light WPL-67242-1
...
37
Wheel Assy. WPL-61001108

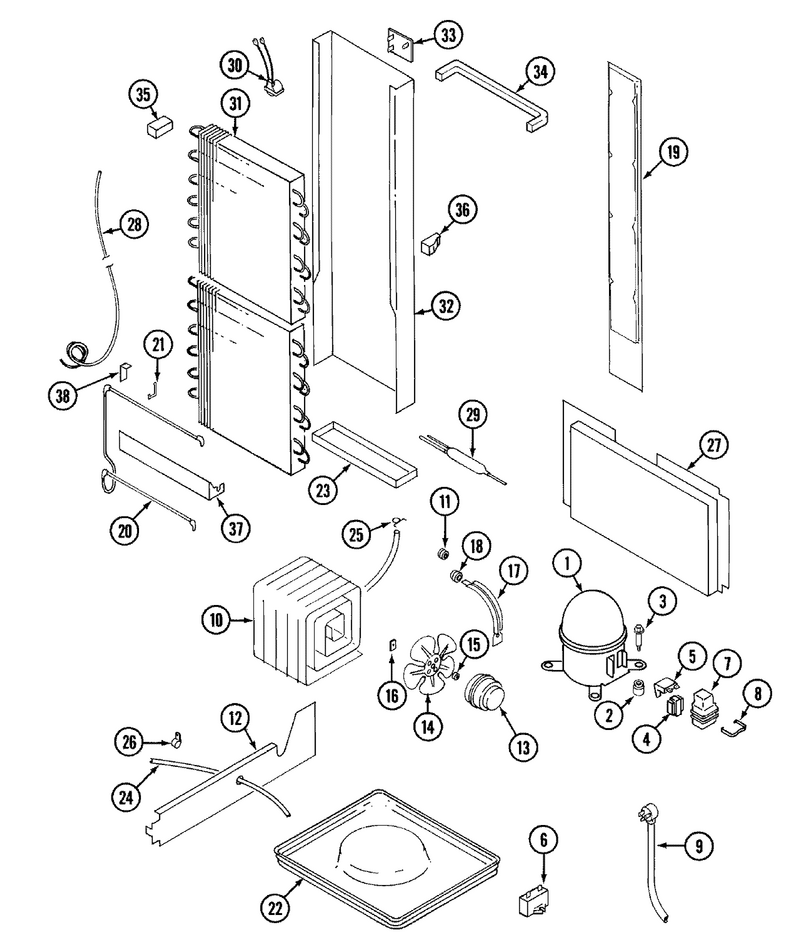

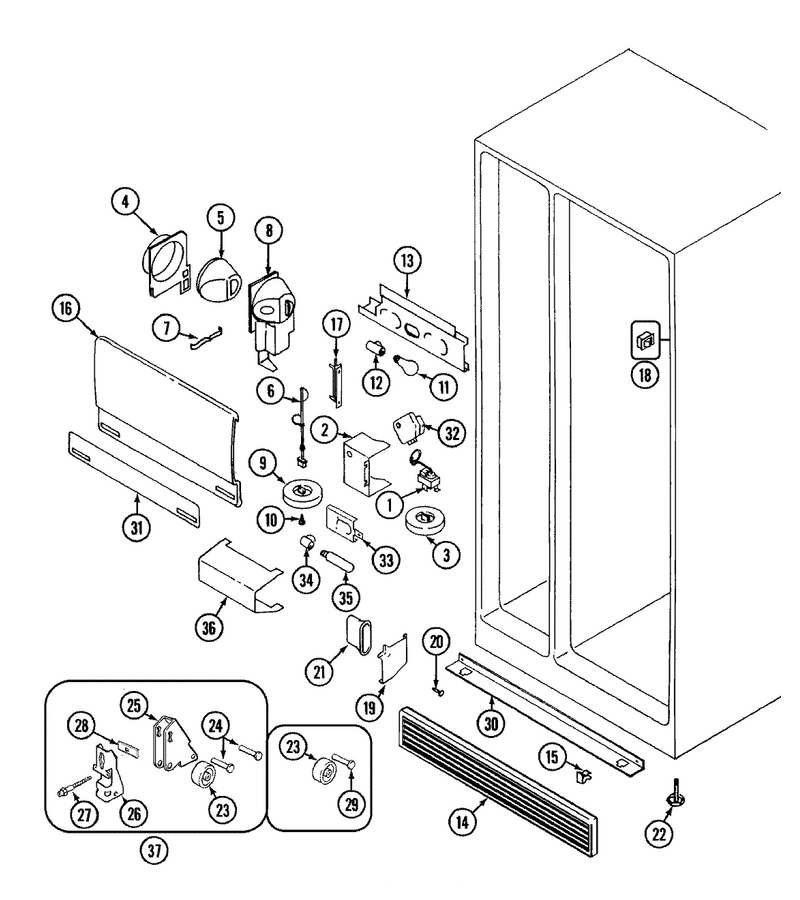

11 - Unit Compartment & System

...
...
1
Wire Harness, Compressor WPL-61001017
...
2
Grommet, Compressor WPL-17245-4
...
3
Screw, Compressor Mounting WPL-65275-9
...
4
Relay, Start WPL-66588-5
...
5
Overload WPL-69105-8
...
6
Capacitor, Run WPL-65889-6
...
7
Cover, Terminal WPL-66589-2
...
8
Clip, Terminal Cover WPL-65886-1
...
9
Cord, Power WPL-52890-3
...
10
U-Nut, Condenser WPL-60408-2
...
11
Grommet, Condenser Tubing WPL-53351-1
...
12
Screw WPL-WP488729
...
13
Screw WPL-65275-33
...
14
Blade- Con WPL-WP12587601
...
15
Washer, Fan Blade WPL-69063-1
...
16
Nut WPL-WP486692
...
17
Bracket, Fan Motor WPL-69181-1
...
18
Grommet- B WPL-WP61004743
...
19
Wire Harness, Main WPL-70263-1
...
20
Heater- De WPL-WP61001874
...
21
Clip, Defrost Heater WPL-52067-1
...
22
Pan- Drain WPL-WP68236-1
...
23
Trough, Drain WPL-53523-2
...
24
Hose, Drain WPL-26911-25
...
25
Clamp WPL-WP596669
...
26
Clamp, Drain Hose WPL-53516-5
...
27
Kit-Unit C WPL-12001345
...
28
Sleeve WPL-26088-23
...
29
Drier-Uv WPL-WPW10143759
...
30
Thermostat WPL-WP52085-29
...
31
Evaporator WPL-52551-22
...
32
Housing, Evaporator WPL-68834-2
...
33
Board, Terminal WPL-55878-1
...
34
Seal WPL-66325-18
...
35
Seal, Styrofoam-(Left) WPL-65063-1
...
36
Seal, Styrofoam-(Right) WPL-65064-1
...
37
Shield, Defrost Heater WPL-29915-13
...
38
Bracket, Heater Shield WPL-52561-1
...
39
Manual, Use & Care WPL-61001229
