Jenn-Air JRSD245L (BOM: 9Q25A)

Model: JRSD245L (BOM: 9Q25A)

Save Part Not Listed?
product name

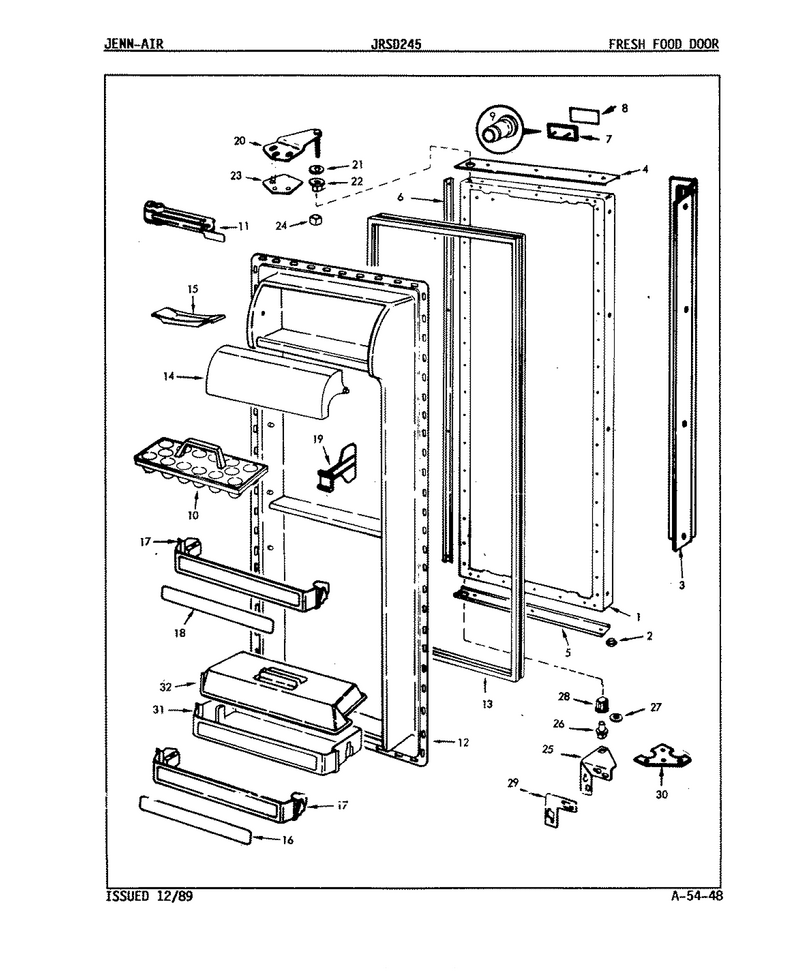

01 - Fresh Food Door

...
...
1
Insulation Kit WPL-RA95060-1
...
2
Plug Button, Door WPL-495034-900
...
3
Handle, F.f. Door WPL-68206-2
...
4
Trim, Perimeter Trim (Top) WPL-68203-1
...
5
Trim, Perimeter Trim (Bottom) WPL-68204-1
...
6
Trim, Perimeter Trim (Side) WPL-68205-2
...
7
Bezel WPL-68060-1
...
8
Insert, Nameplate WPL-68061-4
...
9
Retainer, Nameplate Bezel WPL-68381-1
...
10
Tray-Egg WPL-WP67004411
...
11
Screw WPL-WP489478
...
12
Screw WPL-61005388
...
13
Gasket WPL-53712-2
...
14
Door, Dairy WPL-66184-361
...
15
Tray, Butter WPL-29936-2
...
16
Insert, Shelf Door WPL-68121-43
...
17
Shelf Front WPL-65781-6
...
18
Insert, Shelf Door WPL-68121-43
...
19
Shelf, Pick-Off WPL-66645-5
...
20
Hinge, Upper WPL-53709-22
...
21
Washer WPL-WP52185-1
...
22
Bushing, Upper Hinge WPL-66036-2
...
23
Shim, Upper Hinge WPL-65031-1
...
24
Seal Sleeve WPL-55990-1
...
25
Screw WPL-403062-801
...
26
Pin, Lower Hinge WPL-53672-1
...
27
Washer WPL-54233-1
...
28
Bushing, Lower Hinge WPL-66034-1
...
29
Shim, Lower Hinge WPL-60626-1
...
30
Tapping Plate, Lower Hinge WPL-65964-1
...
31
Shelf, Pick-Off WPL-65782-6
...
32
Cover, Pick-Off WPL-66637-40
