Jenn-Air JRSD224W (BOM: 7N07A)

Model: JRSD224W (BOM: 7N07A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

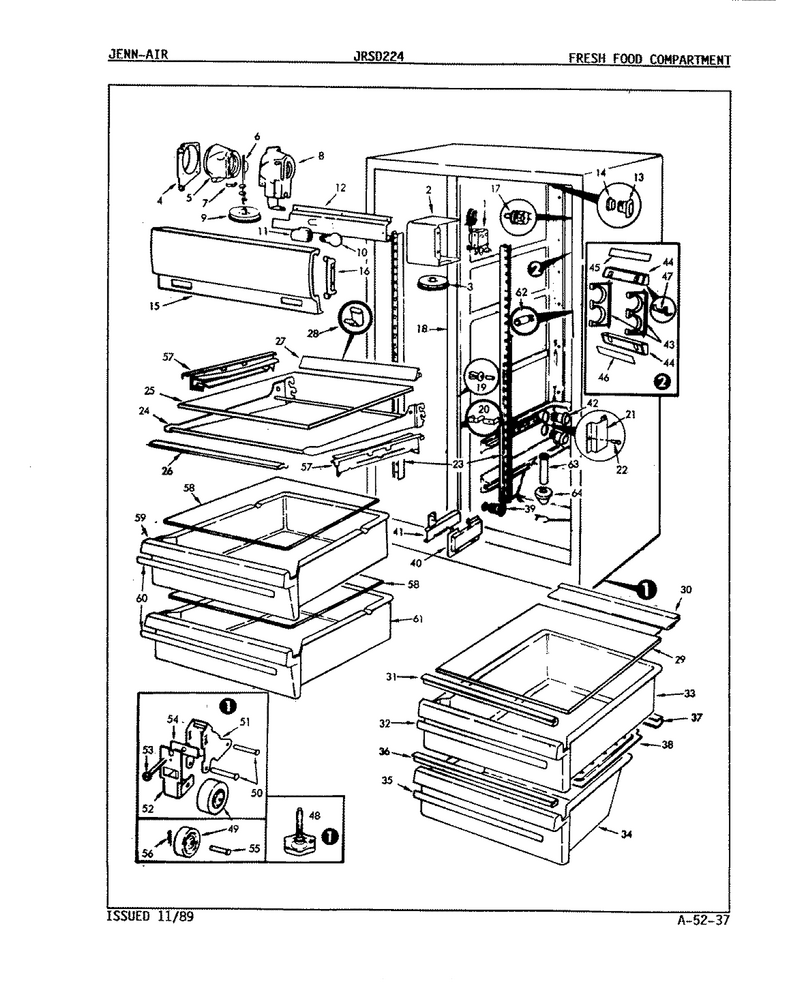

01 - Fresh Food Compartment

...
...
1
Insulator,temperature Control WPL-52898-1
...
2
Housing, Temperature Control WPL-53682-10
...
3
Knob, Temp. Control WPL-29893-7
...
4
Orifice, Freezer Control WPL-53835-2
...
5
Insulation, Housing WPL-58767-1
...
7
Spring, Baffle WPL-52648-1
...
8
Housing, Freezer Control WPL-58760-2
...
9
Knob, Freezer Control WPL-29893-8
...
10
Bulb-Light WPL-W10887190
...
11
Receptacle, Light WPL-29814-2
...
12
Housing, Light Socket & Wires WPL-59740-2
...
13
Tunnel WPL-57410-1
...
14
Retainer WPL-57411-1
...
15
Shield, Light WPL-65578-15
...
16
Screw WPL-WP489478
...
17
Spacer WPL-65512-1
...
18
Mullion WPL-59026-1-AM
...
19
Stud, Divider Channel Mounting WPL-59920-3
...
20
Clip WPL-53060-4
...
21
Air Deflector WPL-62128-1
...
22
Tub-Outer WPL-W10772617
...
23
Rail, Shelf Support WPL-58381-4
...
24
Frame, Shelf WPL-65618-3
...
25
Glass Shelf WPL-65598-32
...
26
Trim, Shelves (Front) WPL-66649-2
...
27
Trim, Shelves (Rear) WPL-65276-15
...
28
Clip, Shelf Trim WPL-66333-1
...
29
Glass Shelf WPL-65598-34
...
30
Crisper Seal WPL-66092-2
...
31
Seal, Crisper Pan (Front) WPL-65650-2
...
32
Insert WPL-65583-80
...
33
Pan, Crisper WPL-66637-17
...
34
Pan, Meat WPL-66637-21
...
35
Insert WPL-65583-80
...
36
Seal, Meat Pan (Front) WPL-65648-2
...
37
Seal, Meat Pan (Rear) WPL-65649-2
...
38
Cover, Meat Pan WPL-65608-2
...
39
Tunnel, Air (Meat) WPL-53726-2
...
40
Control Housing WPL-65737-2
...
41
Clip WPL-56686-4
...
43
Rack, Wine WPL-56519-4
...
44
Support, Wine Rack WPL-65689-1
...
45
Insert, Wine Rack (Plain) WPL-65753-19
...
46
Insert WPL-65753-21
...
47
Spring, Wine Rack WPL-58057-1
...
48
Leveler WPL-W11117769
...
49
Wheel WPL-29834-2
...
50
Pin, Wheel WPL-64965-1
...
51
Bracket, Wheel WPL-62794-1
...
52
Faceplate Bracket WPL-62795-1
...
53
Screw, Wheel Adjustment WPL-56487-1
...
55
Pivot Pin, Wheel (Rear) WPL-62580-1
...
56
Clip, Food Liner Mount.top&bot WPL-56438-1
...
58
Glass Shelf WPL-65598-35
...
59
Pan, Deli WPL-66637-22
...
60
Insert WPL-65583-80
...
61
Pan, Fruit/veg WPL-66637-23
...
62
Nylon Nut WPL-19530-2
...
63
Grommet WPL-55512-1
...
64
Tube WPL-55513-1

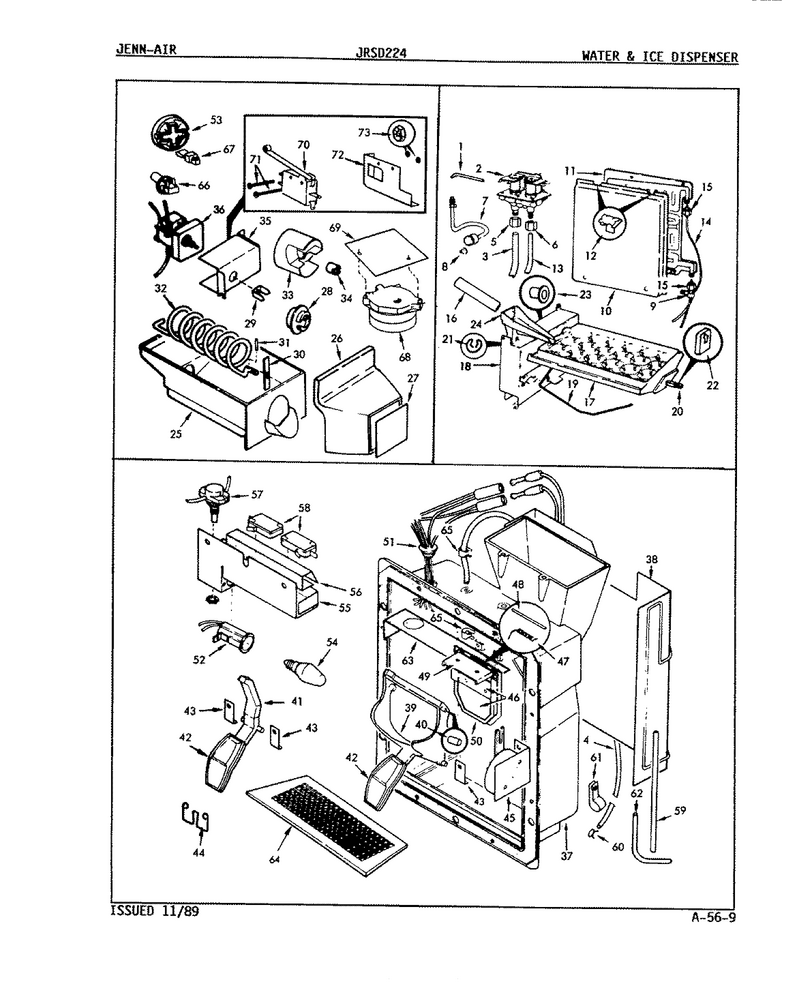

03 - Water & Ice Dispenser

...
...
1
Tube, Feeder WPL-56125-1
...
2
Valve-Inlt WPL-12001414
...
3
Tubing, Valve To Ice Maker WPL-55603-6
...
4
Tube WPL-WPB5705307
...
5
Nut WPL-8201513
...
6
Nut WPL-WP627018
...
7
Inlet Tubing Assy. WPL-53760-2
...
8
Nut, Inlet Tubing WPL-24685-1
...
9
Clamp WPL-W10833902
...
10
Cover, Water Tank WPL-59843-1
...
11
Tank, Water WPL-62920-1
...
12
Clip, Water Tank Mounting WPL-62082-1
...
13
Tube WPL-WPB5705307
...
14
Tube WPL-WPB5705307
...
15
Nut WPL-WP627018
...
16
Tube, Fill WPL-58461-4
...
17
Tray WPL-WP59688-1A
...
18
Icemaker WPL-MHIK7989
...
19
Arm, Sensor WPL-52307-2
...
20
Shaft, Drive WPL-65319-1
...
21
Ring, Retainer WPL-58706-1
...
22
Clip, Drive Shaft WPL-65318-1
...
23
Spacer WPL-65317-1
...
24
Screw WPL-405009-103
...
25
Bin, Ice WPL-66447-1
...
26
Screw WPL-WP1163283
...
27
Insert WPL-65707-12
...
28
Ring- Driv WPL-WP61003336
...
29
Impeller WPL-WP63052-2
...
30
Hub, Reinforcing WPL-63084-1
...
31
Pin, Auger WPL-63071-1
...
32
Auger WPL-66435-1
...
33
Impeller, Auger WPL-66448-1
...
34
Nut, Auger WPL-66098-1
...
35
Box,auger Motor WPL-65265-1
...
36
Screw WPL-WP488234
...
37
Screw WPL-405022-1
...
38
Heater, Fountain WPL-64937-1
...
39
Arm,ice WPL-63007-3
...
40
Tubing, Arm Pins WPL-55602-21
...
41
Arm, Water WPL-63008-3
...
42
Pad- Arm WPL-WP63066-1
...
43
Clip WPL-63035-2
...
44
Screw WPL-W11380570
...
45
Motor, Inertia WPL-65212-1
...
46
Door Assy., Ice WPL-RA43825-1
...
47
Spring, Ice Door WPL-63428-1
...
48
Pin, Ice Door WPL-63053-1
...
49
Bracket, Ice Door WPL-63014-1
...
50
Boot, Ice Door WPL-66007-1
...
51
Wire Harness WPL-65291-1
...
52
Socket, Light WPL-63039-1
...
53
Bushing, Plunger Guide WPL-65176-1
...
54
Bulb-Light WPL-W10857122
...
55
Clamp WPL-23197-7
...
56
Insulator, Switch WPL-65333-1
...
57
Switch, Light WPL-63040-1
...
58
Switch, Ice & Water WPL-55440-2
...
59
Tubing, Water Line WPL-65002-15
...
60
Clamp, Tubing WPL-9602-9
...
61
Clamp WPL-W10833902
...
62
Water Line WPL-63038-2
...
63
Foil, Barrier Front WPL-63036-1
...
64
Grill WPL-63025-1
...
65
Clamp, Spring WPL-60333-2
...
66
Switch, Auger Shut Off WPL-65177-1
...
67
Strike, Auger Box WPL-65185-1
...
68
Control, Auger Motor WPL-65132-1
...
69
Insulation, Motor Control WPL-65143-1
...
70
Switch, 2 Circuit WPL-65285-1
...
71
Screw WPL-405022-1
...
72
Bracket WPL-65286-2
...
73
Nut WPL-430002-1

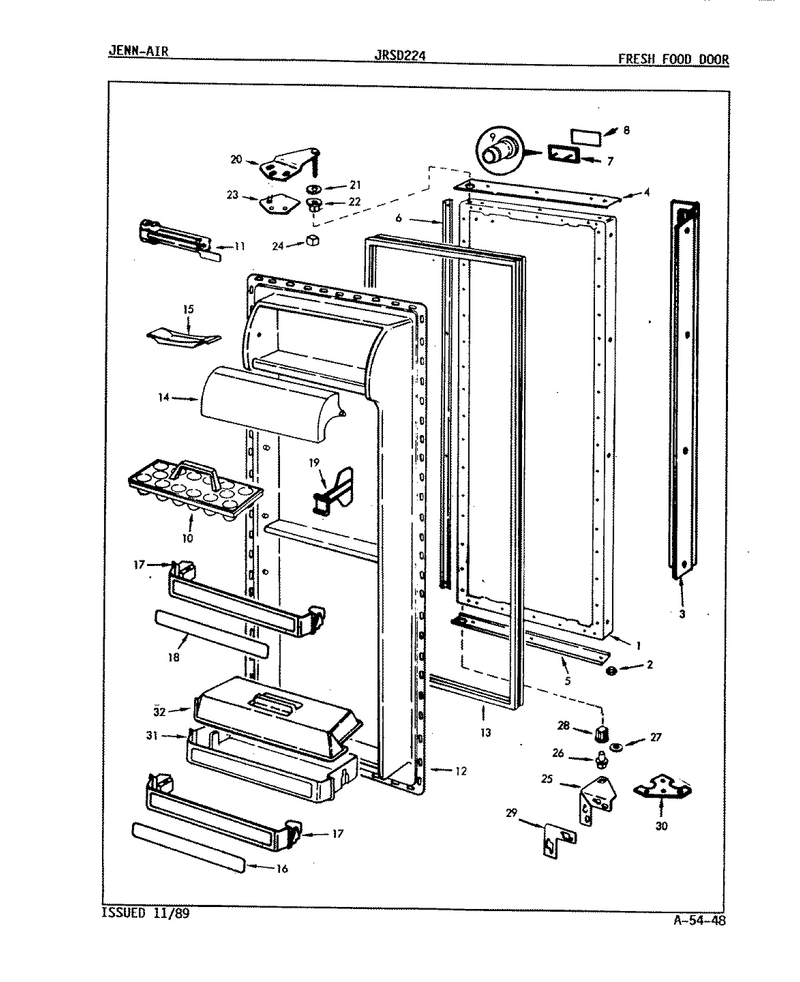

02 - Fresh Food Door

...
...
1
Panel, F.f. Door (Alm) WPL-66689-1-AM
...
2
Plug Button, Door WPL-495034-900
...
3
Door Trim WPL-66720-2
...
4
Perimeter Trim WPL-66715-1
...
5
Perimeter Trim WPL-66717-1
...
6
Screw WPL-W11233072
...
7
Bezel, Nameplate WPL-66641-1
...
8
Insert WPL-66646-1
...
9
Retainer, Nameplate Bezel WPL-68381-1
...
10
Tray, Egg WPL-60066-9
...
11
Screw WPL-WP489478
...
12
Liner, F.f. Door WPL-65641-6
...
13
Gasket WPL-53712-2
...
14
Door, Dairy WPL-66184-234
...
15
Tray, Butter WPL-29936-2
...
16
Insert WPL-68121-23
...
17
Shelf Front WPL-65781-6
...
18
Insert WPL-68121-26
...
19
Organizer WPL-66645-2
...
20
Cover, Upper Hinge (Alm) WPL-65003-3
...
21
Washer WPL-WP52185-1
...
22
Bushing, Upper Hinge WPL-66036-2
...
23
Shim, Upper Hinge WPL-65031-1
...
24
Seal Sleeve WPL-55990-1
...
25
Hinge, Lower WPL-60630-12
...
27
Washer WPL-54233-1
...
29
Shim, Lower Hinge WPL-60626-1
...
30
Tapping Plate, Lower Hinge WPL-65964-1
...
31
Shelf, Pick-Off WPL-65782-6
...
32
Cover WPL-65637-204
