Jenn-Air JRS223L (BOM: 7N06A)

Model: JRS223L (BOM: 7N06A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

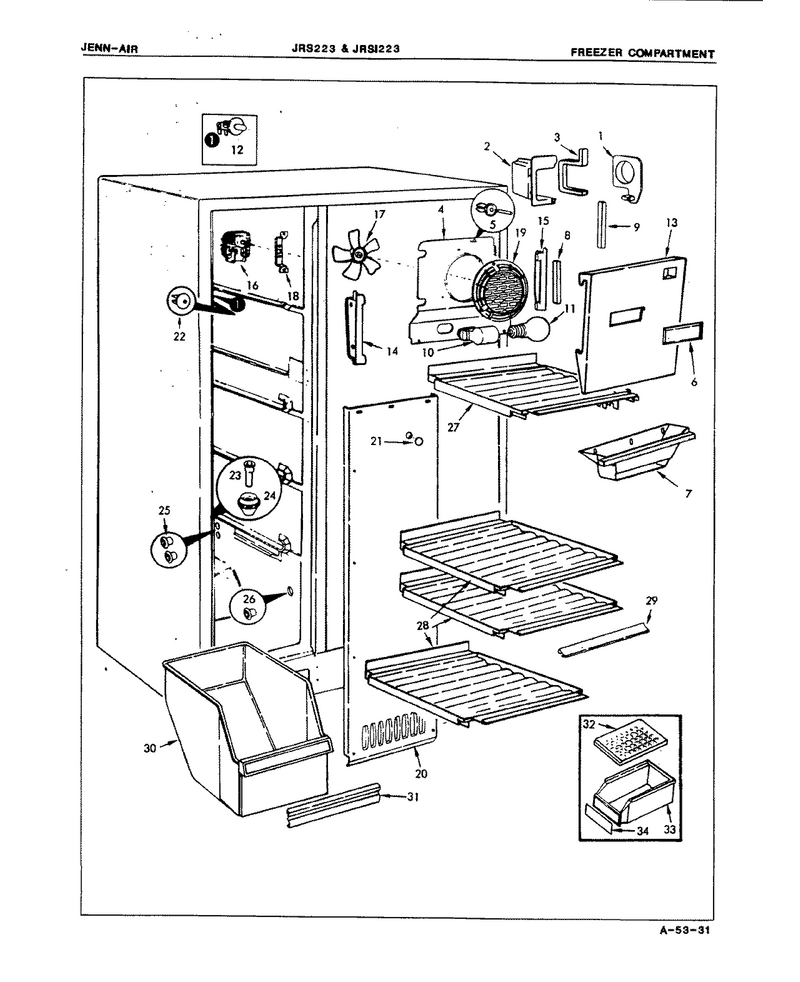

01 - Freezer Compartment

...
...
1
Orifice WPL-54423-1
...
2
Shield WPL-53837-1
...
3
Seal WPL-52077-10
...
4
Screw WPL-400015-12
...
6
Insert WPL-WP65706-1
...
7
Air Duct Asm WPL-65693-1
...
8
Seal,upper Coil Cover To Liner WPL-52077-19
...
9
Coil Seal WPL-52824-6
...
10
Receptacle, Light WPL-29814-2
...
11
Light Bulb WPL-8009
...
12
Spacer WPL-65512-1
...
13
Shield, Light WPL-65654-3
...
14
Support WPL-53687-2
...
15
Support WPL-54424-2
...
16
Motor WPL-56488-4
...
17
Blade, Fan Frzr. WPL-52120-1
...
18
Bracket, Fan Motor WPL-64856-2
...
19
Fan Grid WPL-62689-1
...
20
Cover, Coil WPL-65224-4
...
21
Plug Button WPL-495015-900
...
22
Nut WPL-53821-1
...
23
Drain Tube WPL-26527-9
...
24
Grommet WPL-52526-1
...
25
Retainer, Air Tunnel WPL-53727-1
...
26
Retainer, Air Tunnel WPL-53727-1
...
27
Shelf, Frz. WPL-65722-12
...
28
Shelf, Frz. WPL-65722-11
...
29
Trim,frzr Shelves(Front&back) WPL-66648-1
...
30
Drawer, Frz. WPL-66637-24
...
31
Handle Trim, Freezer Drawer WPL-26527-81
...
32
Tray-Ice WPL-WP61002140
...
33
Pan WPL-66592-1
...
34
Insert WPL-60614-12

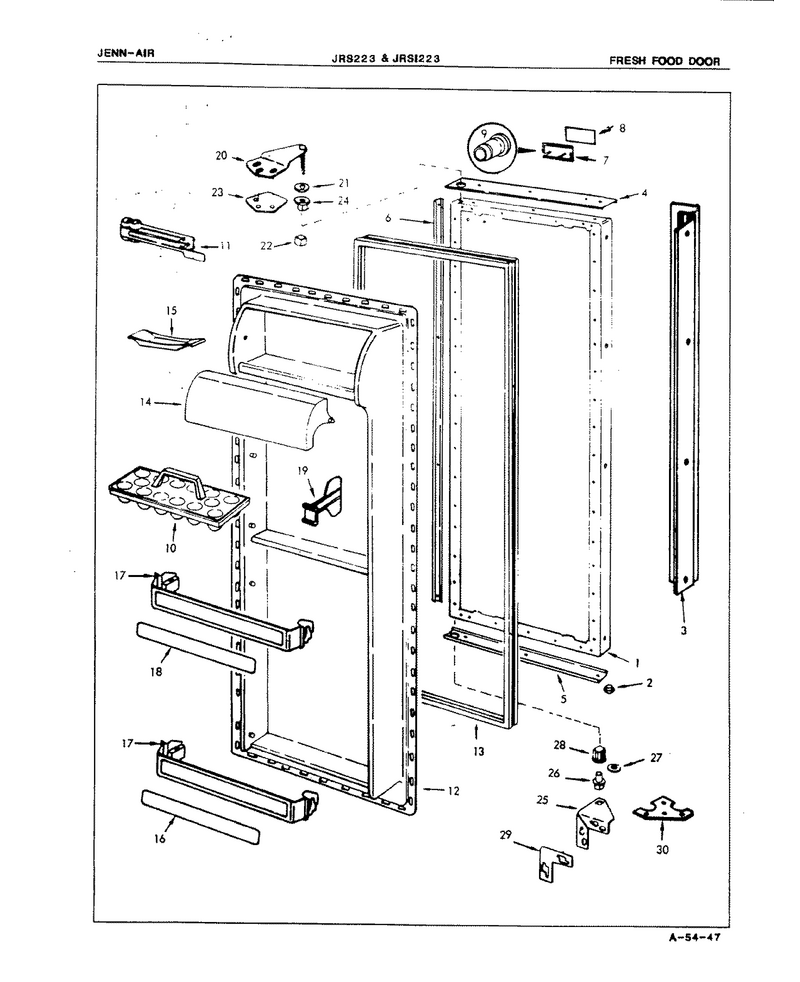

03 - Fresh Food Door

...
...
1
Insulation Kit WPL-RA95060-1
...
3
Door Trim WPL-66720-2
...
4
Perimeter Trim WPL-66715-1
...
5
Perimeter Trim WPL-66717-1
...
6
Perimeter Trim WPL-66719-2
...
7
Bezel, Nameplate WPL-66641-1
...
8
Insert WPL-66646-1
...
9
Retainer, Nameplate WPL-65211-1
...
10
Tray, Egg WPL-60066-9
...
11
Insulation, Closer WPL-52613-1
...
12
Screw WPL-61005388
...
13
Gasket WPL-53712-16
...
14
Door, Dairy WPL-66184-234
...
15
Tray, Butter WPL-29936-2
...
16
Insert WPL-65571-35
...
18
Insert WPL-65571-38
...
19
Organizer WPL-66645-2
...
20
Screw WPL-WP3-24838-048
...
21
Washer WPL-WP52185-1
...
22
Bushing, Upper Hinge WPL-66036-2
...
23
Shim, Upper Hinge WPL-65031-1
...
24
Seal Sleeve WPL-55990-1
...
25
Screw WPL-403062-5
...
26
Pin, Lower Hinge WPL-53672-1
...
27
Washer WPL-54233-1
...
28
Bushing, Lower Hinge WPL-66034-1
...
29
Shim, Lower Hinge WPL-60626-1
...
30
Tapping Plate, Lower Hinge WPL-65964-1

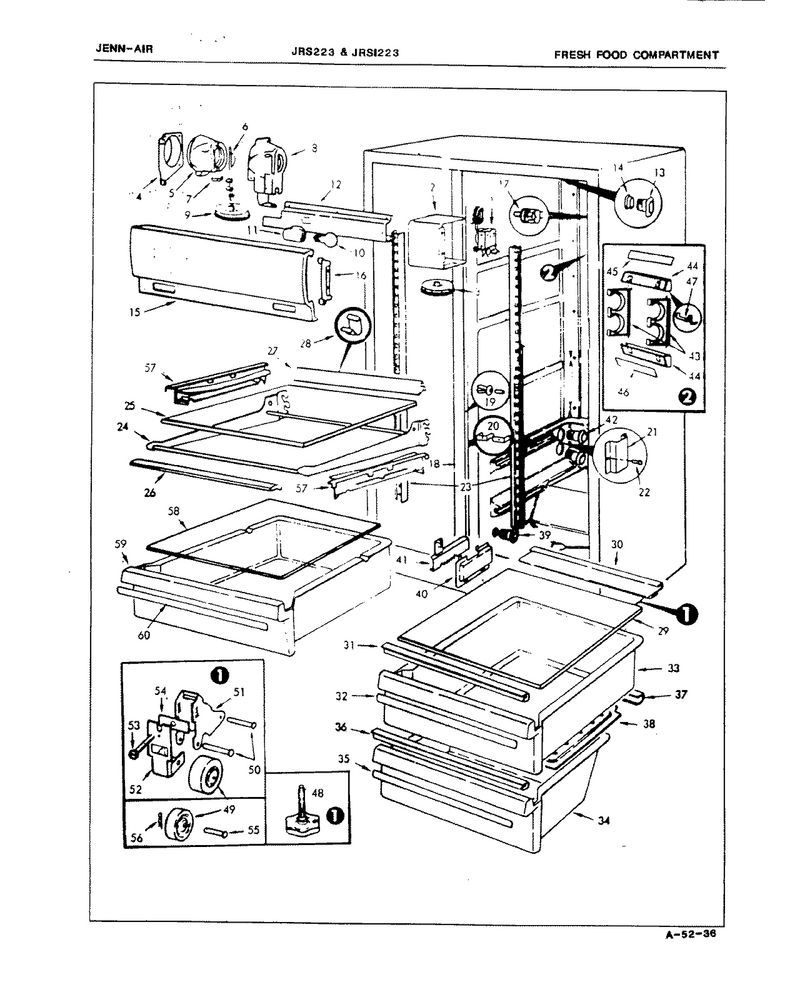

02 - Fresh Food Compartment

...
...
1
Kit, Temp Control WPL-12000034
...
2
Screw WPL-WP489478
...
3
Knob, Temp. Control WPL-29893-7
...
4
Orifice, Freezer Control WPL-53835-2
...
5
Insulation, Housing WPL-58767-1
...
6
Damper WPL-52587-2
...
7
Spring, Baffle WPL-52648-1
...
8
Screw WPL-400027-1
...
9
Knob, Freezer Control WPL-29893-8
...
10
Bulb-Light WPL-W10887190
...
11
Receptacle, Light WPL-29814-2
...
12
Housing, Light Socket & Wires WPL-59740-2
...
13
Tunnel WPL-57410-1
...
14
Retainer WPL-57411-1
...
15
Shield, Light WPL-65578-15
...
16
Screw WPL-WP489478
...
17
Switch WPL-56432-2
...
18
Channel,mullion Divid.(White) WPL-59026-1-WW
...
19
Stud, (White) WPL-59920-13
...
20
Clip WPL-53060-4
...
21
Air Deflector WPL-62128-1
...
22
Tub-Outer WPL-W10772617
...
23
Rail, Shelf Support WPL-58381-4
...
24
Frame, Shelf WPL-65618-3
...
25
Glass Shelf WPL-65598-32
...
26
Trim, Shelves (Front) WPL-66649-2
...
27
Trim, Shelves (Rear) WPL-65276-15
...
28
Clip, Shelf Trim WPL-66333-1
...
29
Glass Shelf WPL-65598-34
...
30
Crisper Seal WPL-66092-2
...
31
Seal, Crisper Pan (Front) WPL-65650-2
...
32
Insert WPL-65583-80
...
33
Pan, Crisper WPL-66637-17
...
34
Pan, Meat WPL-66637-21
...
35
Insert WPL-65583-80
...
36
Seal, Meat Pan (Front) WPL-65648-2
...
37
Seal, Meat Pan (Rear) WPL-65649-2
...
38
Cover, Meat Pan WPL-65608-2
...
39
Tunnel, Air (Meat) WPL-53726-2
...
40
Control Housing WPL-65737-2
...
41
Slide Control, (Meat) WPL-65736-1
...
42
Air Tunnel WPL-53726-1
...
43
Rack, Wine WPL-56519-4
...
44
Support, Wine Rack WPL-65689-1
...
45
Insert, Wine Rack (Plain) WPL-65753-19
...
46
Insert WPL-65753-21
...
47
Spring, Wine Rack WPL-58057-1
...
48
Leveler WPL-W11117769
...
49
Wheel WPL-29834-2
...
50
Pin, Wheel WPL-64965-1
...
51
Bracket, Wheel WPL-62794-1
...
52
Faceplate Bracket WPL-62795-1
...
53
Screw, Wheel Adjustment WPL-56487-1
...
54
Screw WPL-WP489478
...
55
Pivot Pin, Wheel (Rear) WPL-62580-1
...
56
Clip, Retaining Wheel (Rear) WPL-62581-1
...
57
Rail, Slide WPL-65604-4
...
58
Glass Shelf WPL-65598-35
...
60
Insert WPL-65583-80
