Jenn-Air JRS205L (BOM: DQ02A)

Model: JRS205L (BOM: DQ02A)

Save Part Not Listed?
product name

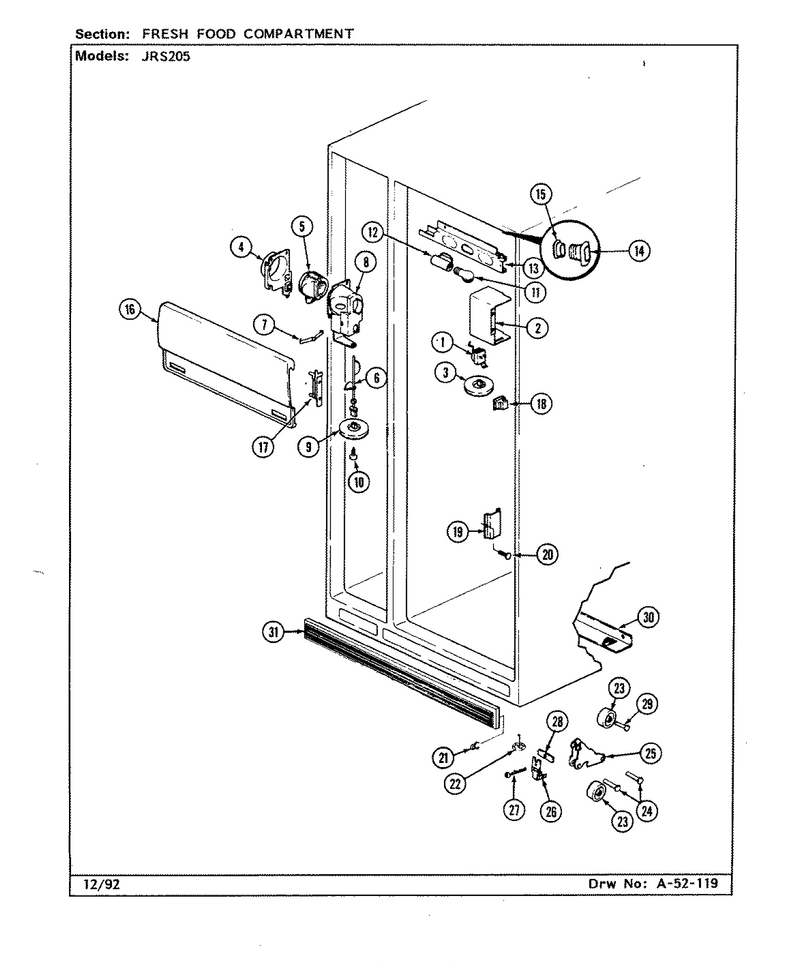

01 - Fresh Food Compartment

...
...
1
Insulation, Control WPL-67692-1
...
2
Housing, Temperature Control WPL-67126-1
...
3
Knob, Temp. Control WPL-29893-7
...
4
Orifice, Frz. Control (Inlet) WPL-67351-1
...
5
Insulation, Housing WPL-58767-1
...
6
Baffle, Freezer Control WPL-68610-2
...
7
Spring, Baffle WPL-52648-1
...
8
Housing, Frz. Control WPL-67354-1
...
9
Knob WPL-29893-12
...
10
Screw WPL-400001-1
...
11
Bulb-Light WPL-W10887190
...
12
Receptacle, Bulb WPL-68974-3
...
13
Screw WPL-WP489478
...
14
Tunnel WPL-57410-1
...
15
Retainer WPL-57411-1
...
16
Shield, Light WPL-69194-3
...
17
Support, Light Shield WPL-67125-1
...
18
Switch WPL-W11384469
...
19
Air Deflector WPL-62128-1
...
20
Tub-Outer WPL-W10772617
...
21
Clip- Kick WPL-WP60100-1
...
22
Leveler WPL-W11117769
...
23
Wheel WPL-69812-1
...
24
Pin, Wheel WPL-64965-1
...
25
Bracket, Wheel WPL-62794-1
...
26
Faceplate, Bracket WPL-67280-1
...
27
Screw, Wheel Adjustment WPL-56487-5
...
28
Tapping Plate, Wheel WPL-59101-1
...
29
Pin, Wheel (Rear) WPL-64965-3
...
30
Screw WPL-3400518
