Jenn-Air JRC5HB (BOM: E7S031)

Model: JRC5HB (BOM: E7S031)

Save Part Not Listed?
product name

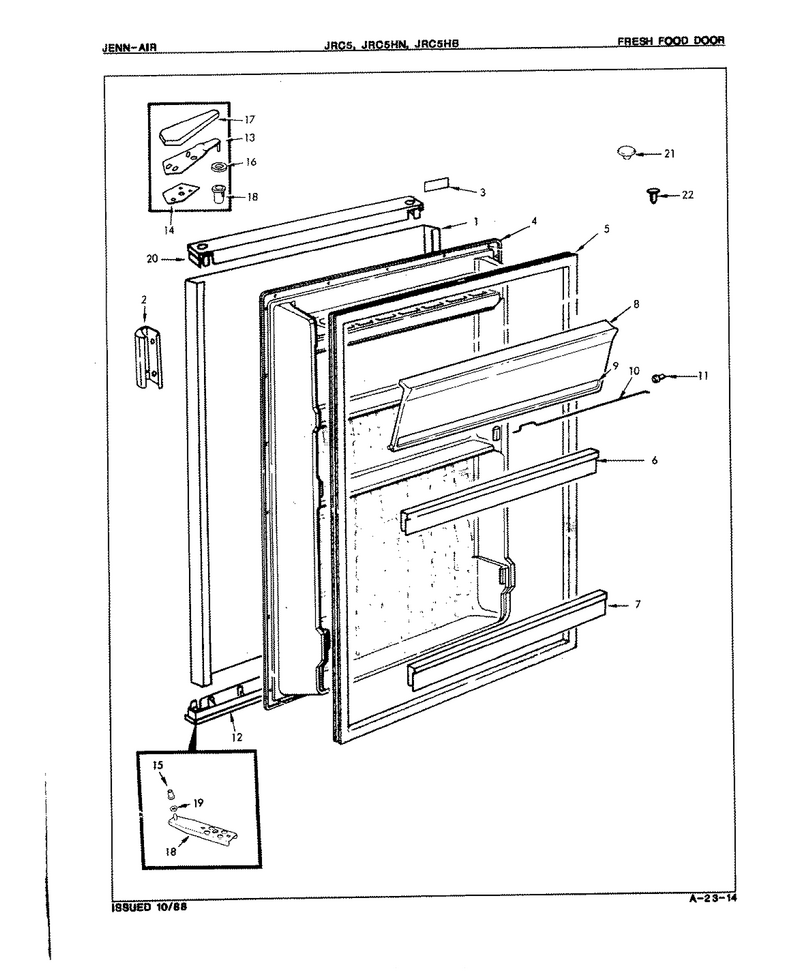

02 - Fresh Food Door

...
...
1
Outer Panel WPL-RW2027-1
...
2
Screw WPL-400015-12
...
3
Nameplate WPL-65893-1
...
4
Inner Panel WPL-66921-2
...
5
Gasket, Door WPL-66091-9
...
6
Shelf Guard WPL-66262-3
...
7
Shelf Guard WPL-66263-2
...
8
Door, Dairy WPL-66266-2
...
9
Trim, Butter Door WPL-66514-6
...
10
Spring, Butter Door WPL-66662-1
...
11
Bushing, Butter Door WPL-123800120
...
12
Door Cap WPL-66407-7
...
13
Top Hinge WPL-66458-1
...
14
Spacer, Top Hinge WPL-66508-2
...
15
Hinge Bushing WPL-66798-1
...
16
Screw WPL-WP59002061
...
17
Cover, Upper Hinge WPL-66459-1
...
18
Lower Hinge WPL-66910-2
...
19
Washer WPL-122900184
...
20
Door Cap WPL-65815-8
...
21
Plug Button WPL-66394-5
...
22
Plug Button WPL-66816-5

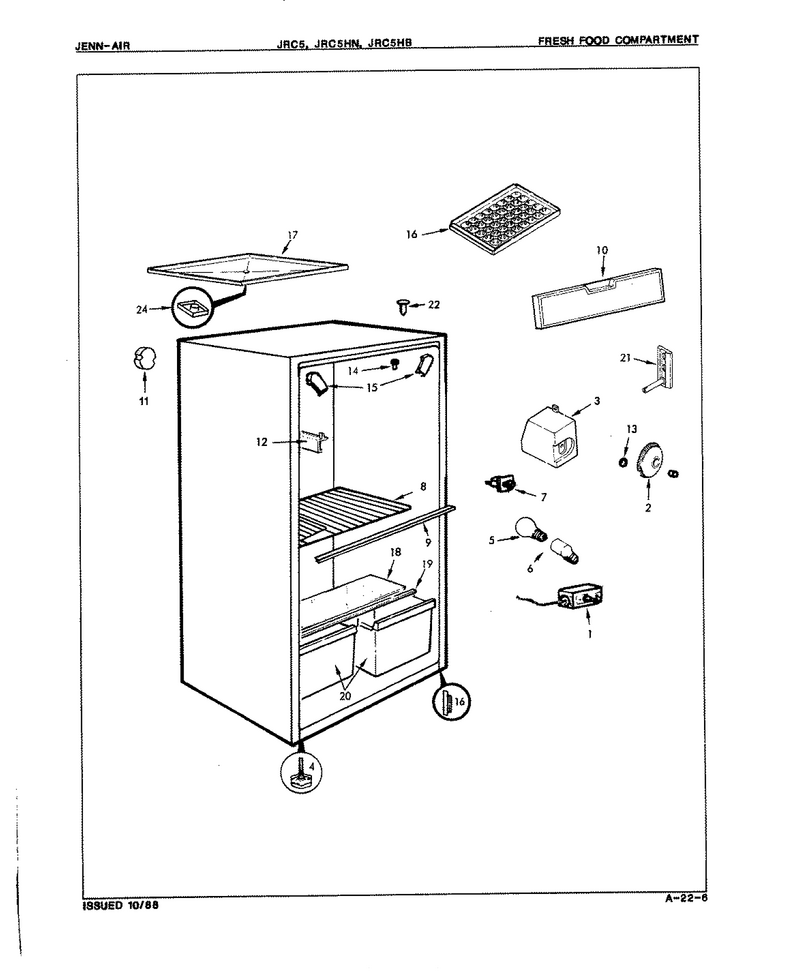

01 - Fresh Food Compartment

...
...
1
Control, Temperature WPL-66973-1
...
2
Thermostat Knob WPL-66760-1
...
3
Control Housing WPL-66761-1
...
4
Leveler WPL-W11117769
...
5
Bulb, Light WPL-31956-0
...
6
Socket, Light WPL-60577-2
...
7
Switch WPL-W11384469
...
8
Shelf WPL-66086-2
...
9
Shelf Trim WPL-65844-4
...
10
Shim WPL-66961-1
...
11
Plug WPL-125900754
...
12
Screw WPL-400015-1
...
13
Spring WPL-940110126
...
14
Spacer WPL-122904732
...
15
Upr Cornr Cover WPL-68052-4
...
16
Tray-Ice WPL-WP61002140
...
17
Drip Tray WPL-66840-1
...
18
Crisper Cover WPL-124900477
...
19
Shelf Trim WPL-65845-3
...
20
Pan, Crisper WPL-66256-2
...
21
Upper Hinge WPL-66766-1
...
22
Plug Button WPL-66816-5
...
23
Cover WPL-68051-1
...
24
Divider Plug WPL-122904699
...
25
Plug Button WPL-66816-5

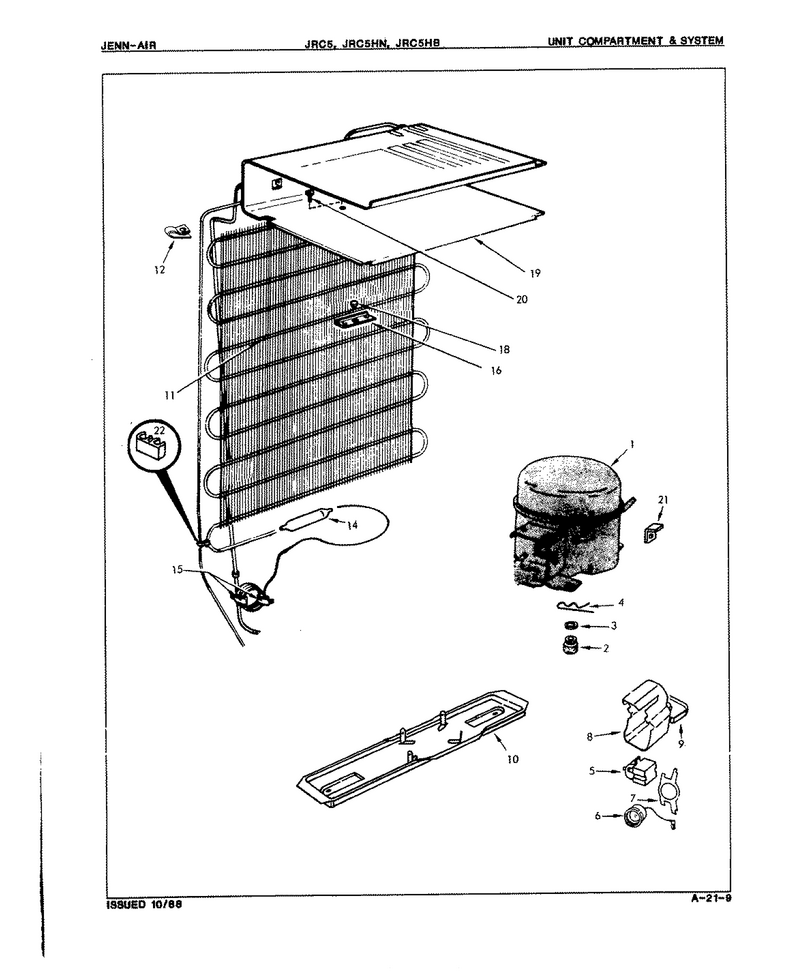

03 - Unit Compartment & System

...
...
1
Compressor WPL-12000018
...
2
Grommet, Compress.mtg.(Necchi) WPL-124400314
...
3
Washer,compressor Mtg. WPL-121900930
...
4
Clip, Compressor Mtg. WPL-123800132
...
5
Relay, Start WPL-65529-2
...
6
Overload WPL-53067-85
...
7
Clip, Overload WPL-65190-1
...
8
Cover, Terminal WPL-65189-1
...
9
Clip, Terminal Cover WPL-65191-1
...
10
Cabinet Base WPL-121400999
...
11
Condenser WPL-RW2045-1
...
12
Clamp, Condenser Mtg. WPL-23197-11
...
13
Screw WPL-WP67006908
...
14
Drier-Uv WPL-WPW10143759
...
15
Strap, Capillary Tube WPL-121900714
...
16
Holder Clamp Capillary Tube WPL-121900070
...
17
Cap Pad WPL-122900057
...
18
Rivet Clamp WPL-122904812
...
19
Evaporator Plate Assembly WPL-RW2039
...
20
Screw WPL-WP250830
...
21
Clamp WPL-53810-1
...
22
Manual, Use & Care WPL-104390-1
