Jenn-Air JMW3430LM00

Model: JMW3430LM00

Save Part Not Listed?
product name

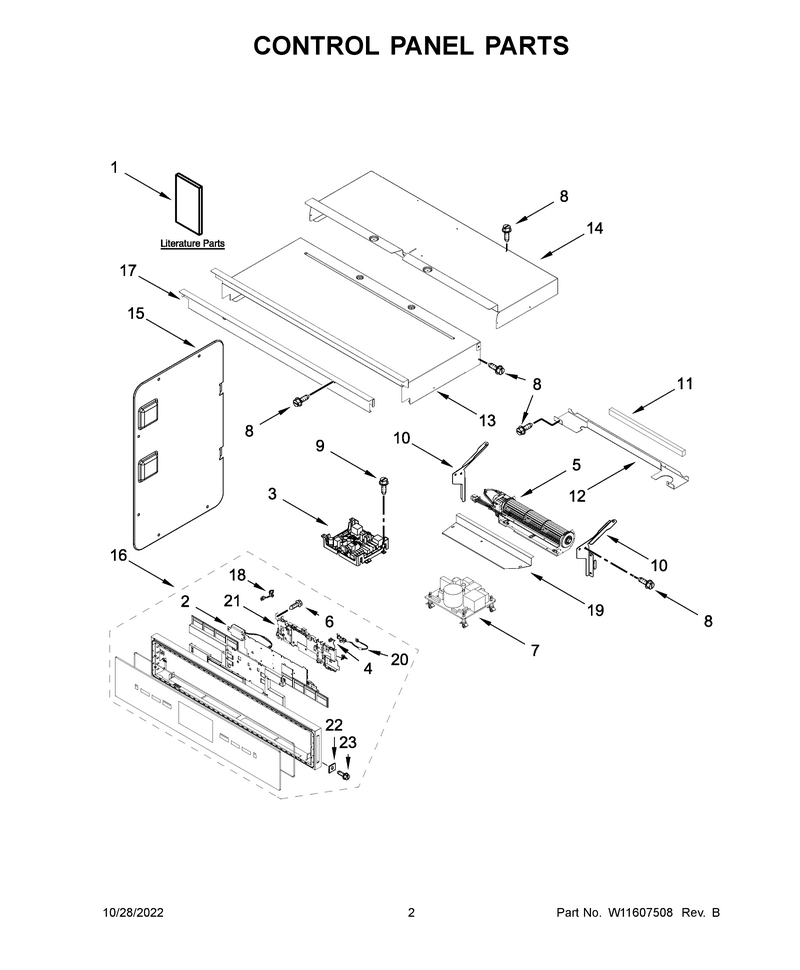

02 - Control Panel Parts

...
...
NI
Hardware WPL-W11602626
...
1
Owner's Manual WPL-W11499878
...
1A
Quick Start Guide WPL-W11423731
...
1B
Tech Sheet WPL-W11399190
...
2
Speaker WPL-W11123146
...
3
Cntrl-Elec WPL-W11448961
...
4
Harness, Keypad (Right To Center) WPL-W10524350
...
5
Blower WPL-W11598119
...
6
Screw WPL-W10489172
...
7
Cntrl-Elec WPL-WPW10260060
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP7101P434-60
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Divider, Chassis Back WPL-W11166802
...
13
Chassis, Cover Top Front 30 In WPL-W10318158
...
14
Cover, Top Back 30 In Chassis WPL-W10588732
...
15
Chassis, Combo Side WPL-W10655467
...
16
Console WPL-W11598176
...
17
Cover, 30 In Compliment WPL-W10444127
...
18
Harness, Keypad (Left To Center) WPL-W10566973
...
19
Cover, Combo Blower WPL-W10681157
...
20
Jumper Harness, Power Supply WPL-W10575307
...
21
Housing WPL-W10668510
...
22
Nut WPL-WP4450118
...
23
Screw WPL-W11602625

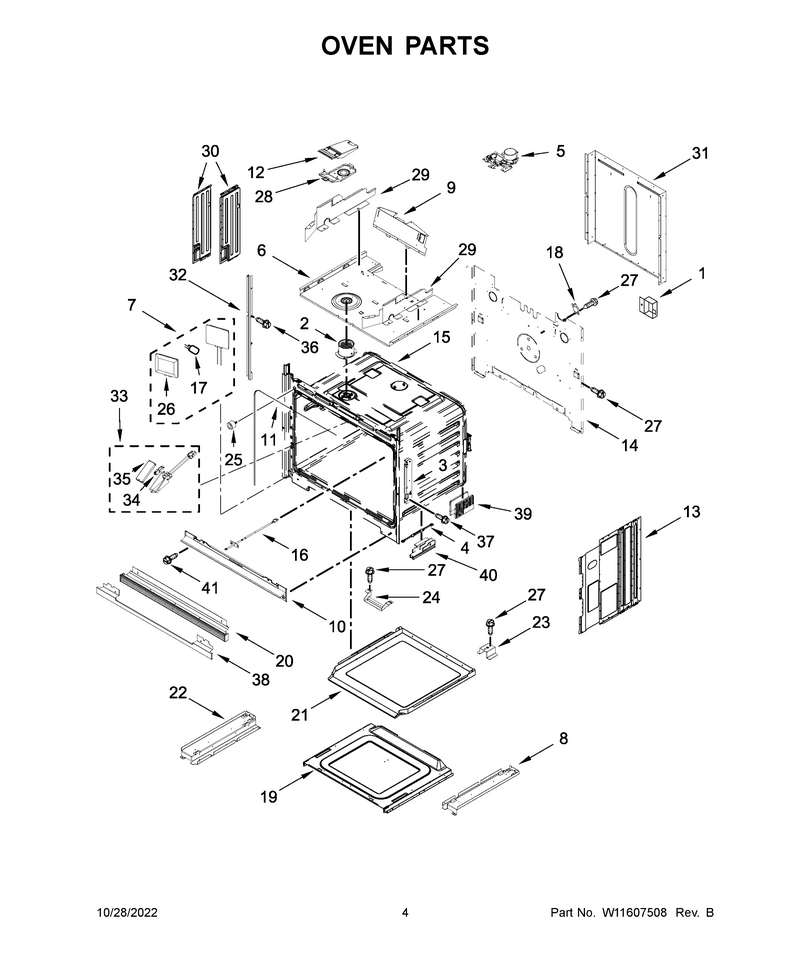

03 - Oven Parts

...
...
NI
Insulation, Top Back WPL-W11244449
...
1
Cover, Connector WPL-8285593
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11712405
...
3A
Hinge-Recv WPL-W11712406
...
4
Spacer WPL-W11598152
...
5
Latch-Door WPL-W11686858
...
6
Top, Chassis WPL-W11168071
...
7
Light-Oven WPL-W11292252
...
8
Support, Base (Right) WPL-W10283021
...
9
Deflector, Blower WPL-W10904163
...
10
Vent-Oven WPL-W11715953
...
11
Gasket-Ovn WPL-W11676903
...
12
Cover, Vent Exhaust WPL-W11256424
...
13
Side, Chassis WPL-W11165274
...
14
Following Parts Not Illustrated WPL-N/P
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11598120
...
17
Bulb-Light WPL-WPW10472384
...
18
Thrmst-Fix WPL-WP4449751
...
19
Covr-Acess WPL-W11598115
...
20
Accessories, Assembly, Bottom Vent (Stainless) WPL-W11369889
...
21
Duct, Bottom Chassis WPL-W11244446
...
22
Support, Base (Left) WPL-W10283020
...
23
Support, Air Channel WPL-W11135135
...
24
Brkt-Suprt WPL-W11731183
...
25
Bumper WPL-W11598125
...
26
Light-Oven WPL-WPW10519866
...
27
Screw WPL-WP90767
...
28
Base, Vent Exhaust WPL-W11256423
...
29
Deflector, Chassis (Left) WPL-W11186391
...
29A
Deflector, Chassis (Right) WPL-W11186398
...
30
Cover-Side WPL-W11598150
...
30A
Cover-Side WPL-W11598151
...
31
Duct, Lower Chassis Back WPL-W11134657
...
32
Sidetrim, Bended (Black (Left)) WPL-W11235457
...
32A
Sidetrim, Bended (Black (Right)) WPL-W11235458
...
33
Light-Oven WPL-W11325525
...
34
Bulb-Light WPL-WPW10169757
...
35
Lens, Light WPL-W10169756
...
36
Screw WPL-W11602623
...
37
Screw WPL-WPW10254050
...
38
Trim WPL-W11598135
...
39
Foot-Level WPL-W11598170
...
40
Foot-Level WPL-W11598169
...
40A
Foot-Level WPL-W11598168
...
41
Screw WPL-WPY706189

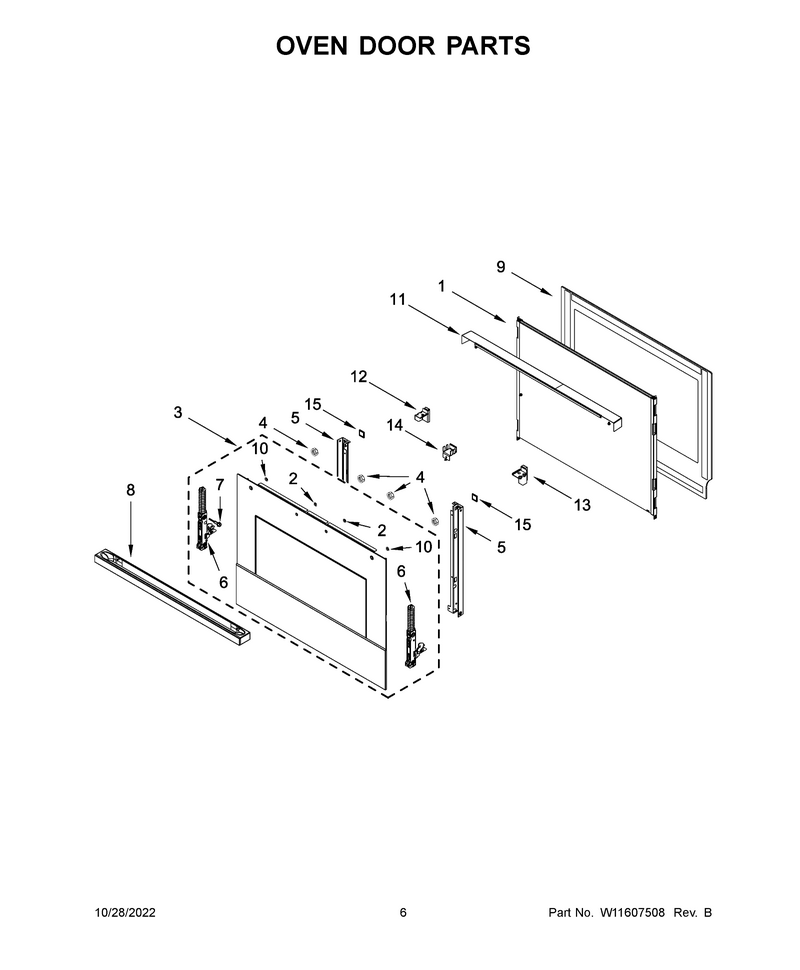

04 - Oven Door Parts

...
...
1
Glass-Door WPL-W11600213
...
2
Spacer, Handle WPL-W11132942
...
3
Glass-Door WPL-W11602614
...
4
Nut WPL-W11602632
...
5
Brkt-Suprt WPL-W11598126
...
5A
Brkt-Suprt WPL-W11598127
...
6
Hinge, Door (Left) WPL-W11111221
...
6A
Hinge, Door (Right) WPL-W11111222
...
7
Screw WPL-WP3196183
...
8
Assembly, Handle (Stainless) WPL-W11411894
...
9
Glass-Door WPL-W11602610
...
10
Washer WPL-W11676355
...
11
Trim-Vent WPL-W11705878
...
12
Brkt-Suprt WPL-W11598130
...
13
Brkt-Suprt WPL-W11598128
...
14
Clip WPL-W11598131
...
15
Spacer WPL-WPW10517428

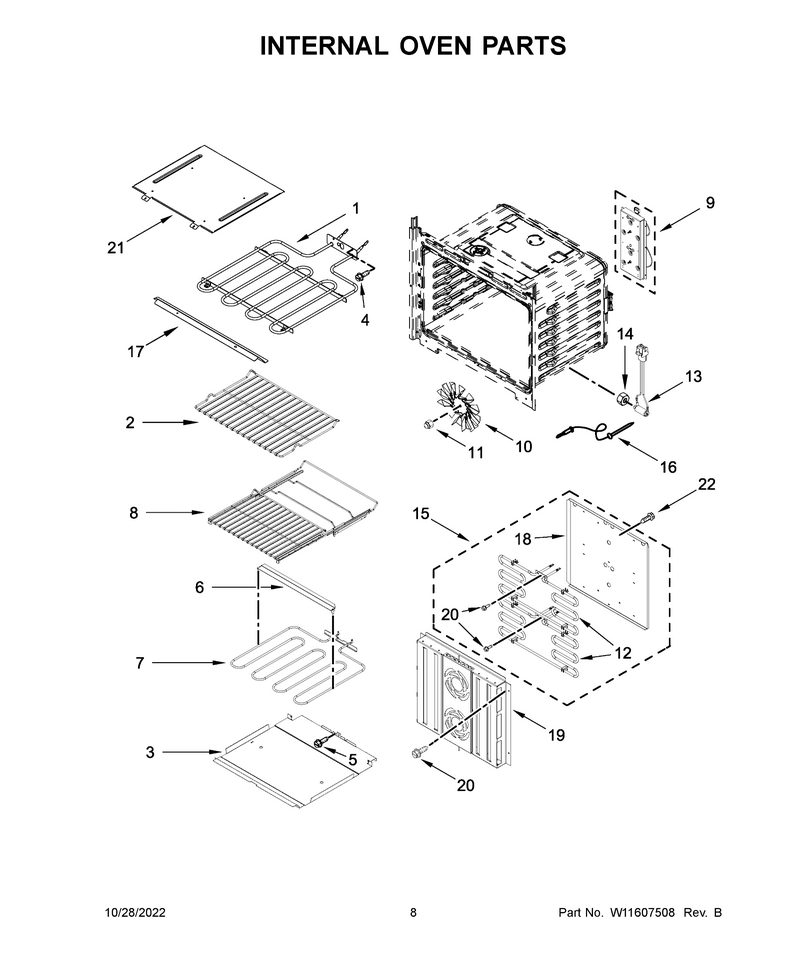

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W11598122
...
2
Rack, Oven WPL-W11242906
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Rack, Sliding WPL-W11256305
...
9
Motor-Fan WPL-W11255349
...
10
Fan-Convct WPL-W11301887
...
11
Nut WPL-W11548755
...
11A
Nut, Acorn (Rh) WPL-W10803140
...
12
Element, Convection WPL-W10663735
...
13
Jack, Meat Probe WPL-W11252826
...
14
Locknut WPL-W11231343
...
15
Element WPL-W11098805
...
16
Probe-Meat WPL-WP9755542
...
17
Shield, Broil Front WPL-W10588737
...
18
Shield, Convection WPL-W10853277
...
19
Assembly, Baffle WPL-W11313747
...
20
Screw WPL-WP489464
...
21
Top-Cabnt WPL-W11598121
...
22
Screw WPL-W10739592

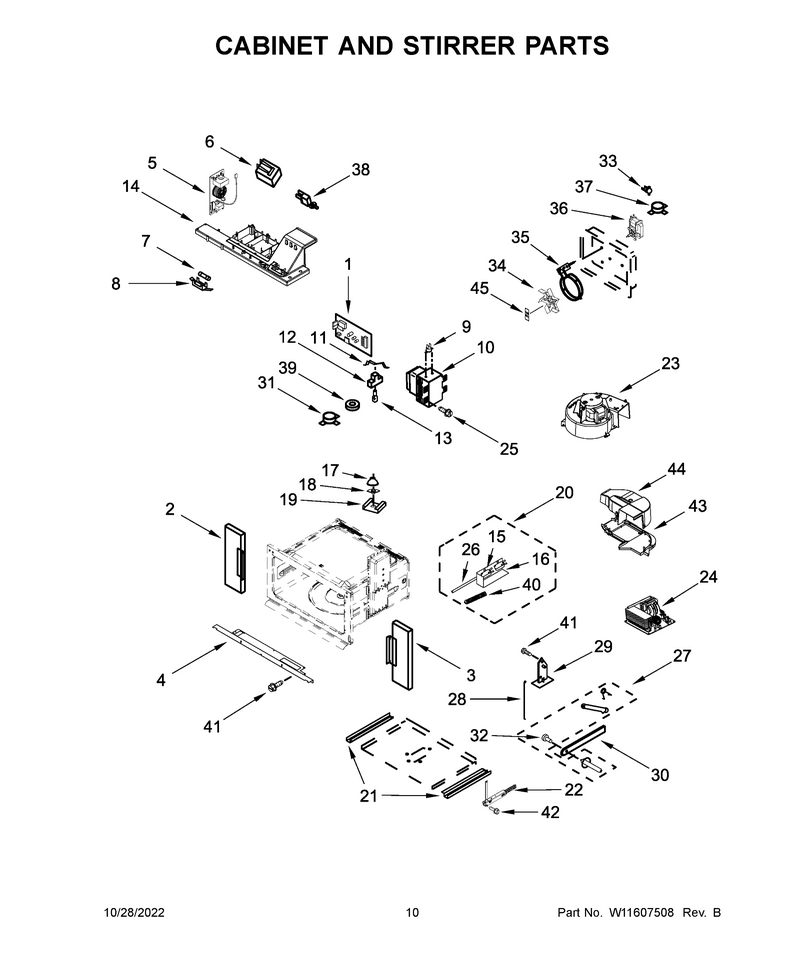

06 - Cabinet And Stirrer Parts

...
...
1
Cntrl-Elec WPL-W11325784
...
2
Trim, Side Left WPL-W10486208
...
3
Trim WPL-W10510106
...
4
Vent, Top Microwave WPL-W11334716
...
5
Water Filter WPL-FILTER
...
6
Transformr WPL-W11238401
...
7
Fuse WPL-W11188752
...
8
Holder, Fuse WPL-W10245194
...
9
Sensor WPL-W11233913
...
10
Magnetron WPL-W11578959
...
11
Spring, Lamp WPL-W10465869
...
12
Housng-Lmp WPL-WPW10490593
...
13
Lmp-Basles WPL-W10886919
...
14
Duct, Magnetron WPL-461967754821
...
15
Switch, Micro V15t16-Cz200 WPL-W10211972
...
16
Interlock WPL-W11214928
...
17
Reflector WPL-423107022541
...
18
Lens-Lamp WPL-W11193483
...
19
Clip, Spring WPL-W11440819
...
20
Interlock WPL-W11033422
...
21
Support, Bottom WPL-8205707
...
22
Hinge-Door WPL-W11675306
...
23
Motor-Fan WPL-W11344874
...
24
Inverter WPL-W11578579
...
25
Screw WPL-461967825971
...
26
Rod-Rel WPL-WPW10120235
...
27
Arm WPL-WPW10128850
...
28
Spring WPL-W11700292
...
29
Support WPL-W11684510
...
30
Arm WPL-W11607070
...
31
Sensor WPL-W11699906
...
32
Arm WPL-WPW10128850
...
33
Thrmst-Fix WPL-W11607085
...
34
Fan WPL-W11512064
...
35
Heater WPL-WPW10493735
...
36
Mtr-Convct WPL-W11534564
...
37
Sensor WPL-W11208292
...
38
Thermoactuator WPL-461967842541
...
39
Sealing, Lamp WPL-W10769147
...
40
Spring WPL-W11715912
...
41
Screw WPL-461967825321
...
42
Screw WPL-W11690594
...
43
Housing WPL-W11646906
...
44
Housing WPL-W11646907
...
45
Support WPL-W11724411

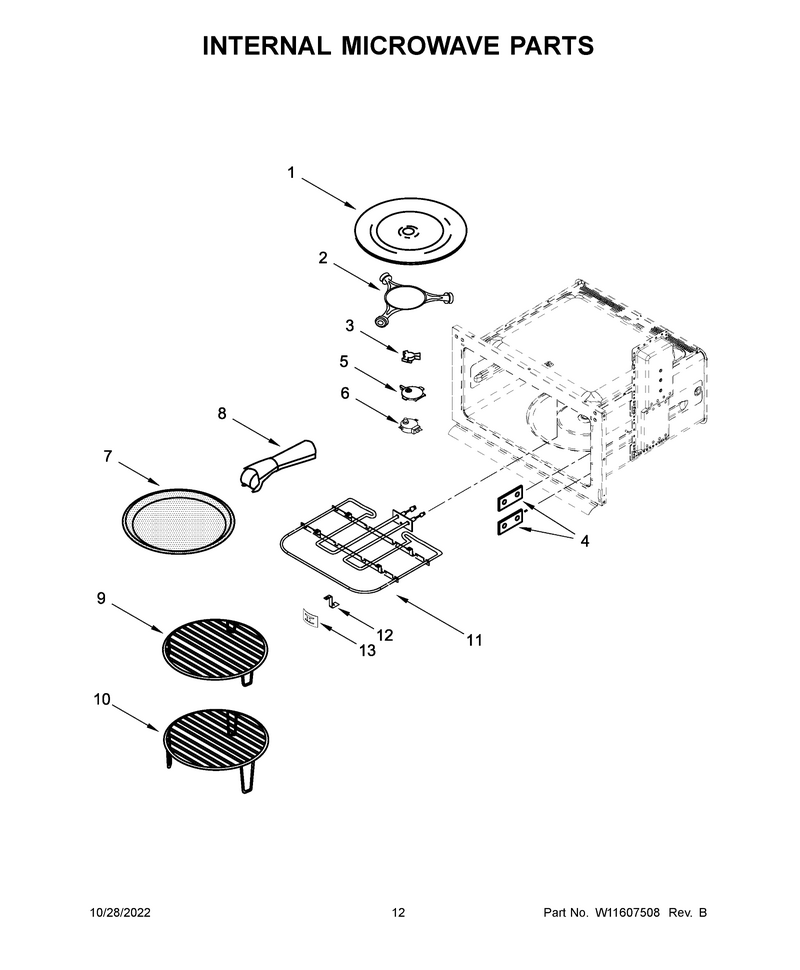

07 - Internal Microwave Parts

...
...
1
Tray-Cook WPL-W11373838
...
2
Ring-Turn WPL-W11110134
...
3
Shaft-Turn WPL-W11179756
...
4
Cover-Plt WPL-W10915651
...
5
Covr-Motor WPL-W11676353
...
6
Motor-Turn WPL-W10911403
...
7
Pan-Crisp WPL-W11755098
...
8
Handle-Pan WPL-W11218702
...
9
Rack WPL-W11175831
...
10
Rack, High Convection WPL-W10748280
...
11
Element WPL-WPW10387651
...
12
Support WPL-W11724411
...
13
Support WPL-W11724411

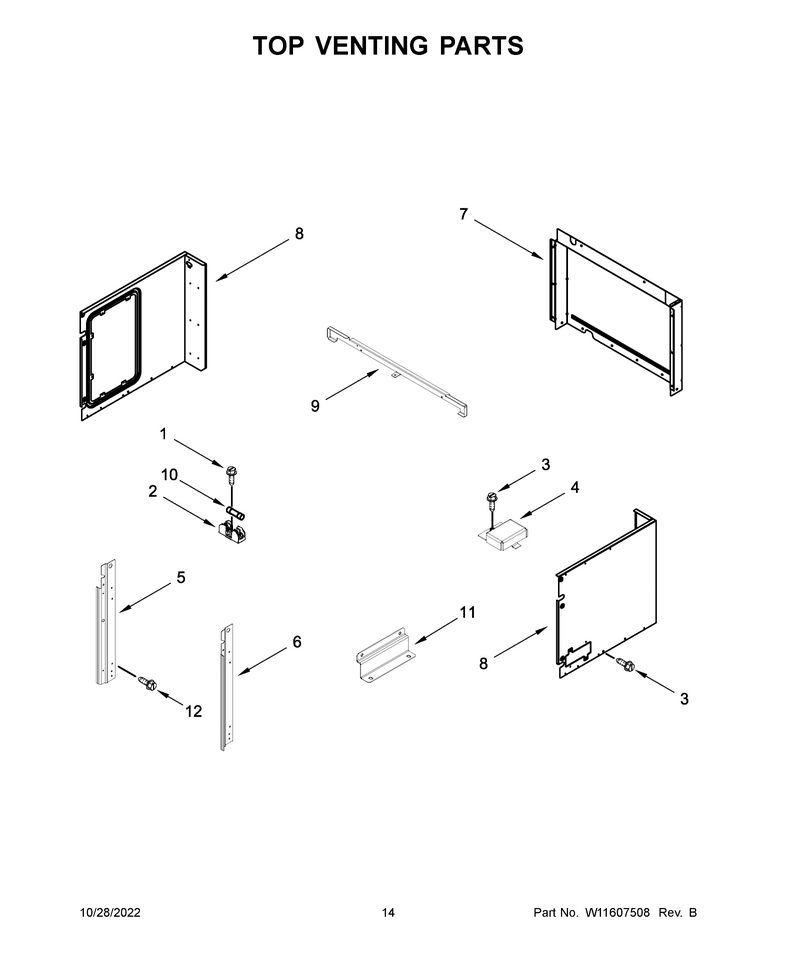

08 - Top Venting Parts

...
...
1
Screw WPL-W11684512
...
2
Holder, Fuse WPL-4454949
...
3
Screw WPL-WP90767
...
4
Cover, Connector WPL-8285593
...
5
Siderail, Combo (Left) WPL-W11627410
...
6
Siderail, Combo (Right) WPL-W11627411
...
7
Cover, Combo Chassis Back Duct WPL-W11171004
...
8
Side, Combo Chassis (Left) WPL-W11171909
...
8A
Side, Combo Chassis (Right) WPL-W11171919
...
9
Support, Crossbar WPL-W10283022
...
10
Fuse WPL-WPW10017410
...
11
Side, Bracket WPL-W10283024
...
12
Screw WPL-WPY706189

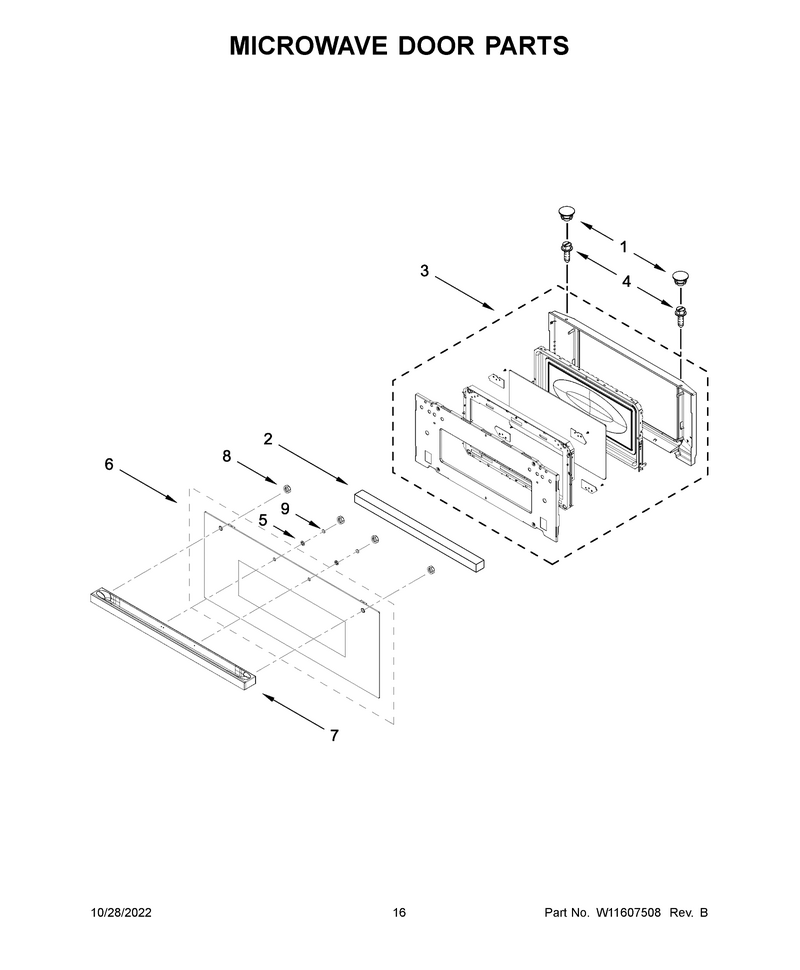

09 - Microwave Door Parts

...
...
1
Cap, Screw WPL-8304588BL
...
2
Foam, Door Handle WPL-W10359769
...
3
Door/mw WPL-W11684570
...
4
Screw WPL-W11233072
...
5
Spacer, Handle WPL-W11132942
...
6
Glass-Door WPL-W11602620
...
7
Assembly, Handle (Stainless) WPL-W11411894
...
8
Nut WPL-W11602632
...
9
Washer WPL-W11607071

...
...
NI
Assembly, Bottom Vent (Black) WPL-W11369884
