Jenn-Air JMW2427IL03

Model: JMW2427IL03

Save Part Not Listed?
product name

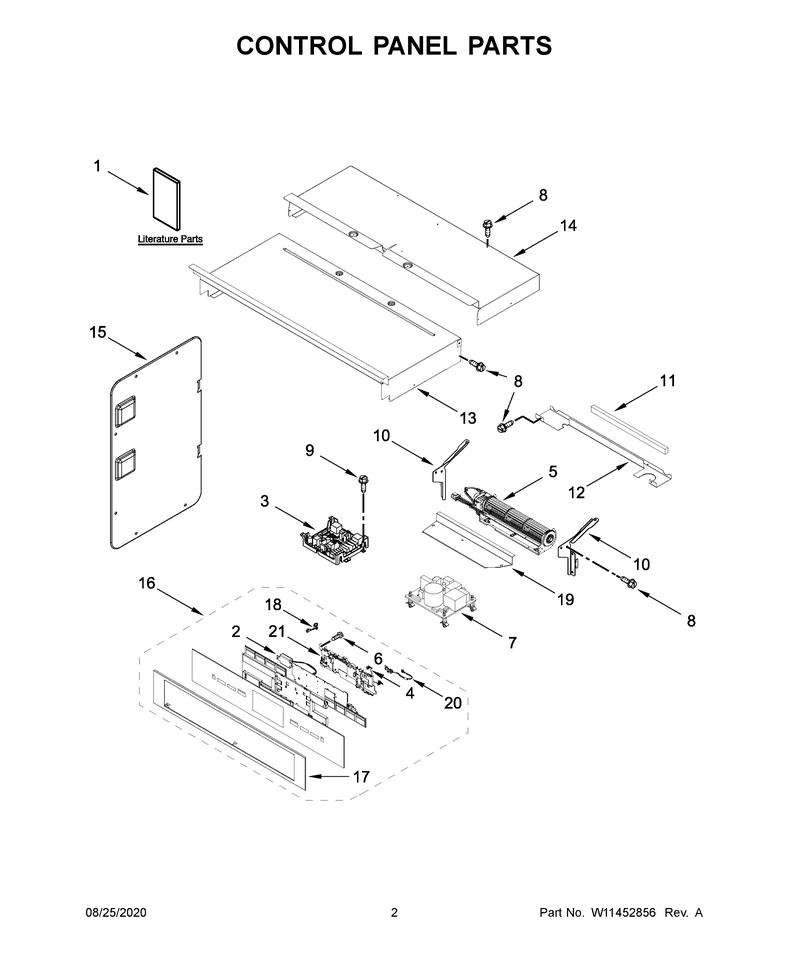

02 - Control Panel Parts

...
...
NI
Harness, Inverter WPL-W11356968
...
1
Guide, Use & Care (Oven) WPL-W11235342
...
1A
Guide, Use & Care (Oven/micro Combo) WPL-W11235344
...
1B
Instructions, Installation WPL-W11235622
...
1C
Instructions, Undercounter Install WPL-W10351318
...
1D
Sheet, Tech (Oven/micro Combo) WPL-W11284425
...
1E
Diagram, Wiring WPL-W11235300
...
2
Speaker WPL-W11123146
...
3
Cntrl-Elec WPL-W11448962
...
4
Harness, Keypad (Right To Center) WPL-W10524350
...
5
Blower WPL-W11248652
...
6
Screw WPL-W10489172
...
7
Cntrl-Elec WPL-WPW10260060
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP7101P434-60
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Chassis, Back Divider WPL-W10655465
...
13
Chassis, Cover Top Front 27 In WPL-W10318159
...
14
Chassis, Cover Top Back 27 In Wifi WPL-W11037652
...
15
Chassis, Combo Side WPL-W10655467
...
16
Console WPL-W11454130
...
17
Skin, Control Panel (Stainleass) WPL-W11197499
...
18
Harness, Keypad (Left To Center) WPL-W10566973
...
19
Cover, Combo Blower WPL-W10681157
...
20
Jumper Harness, Power Supply WPL-W10575307
...
21
Housing WPL-W10668510

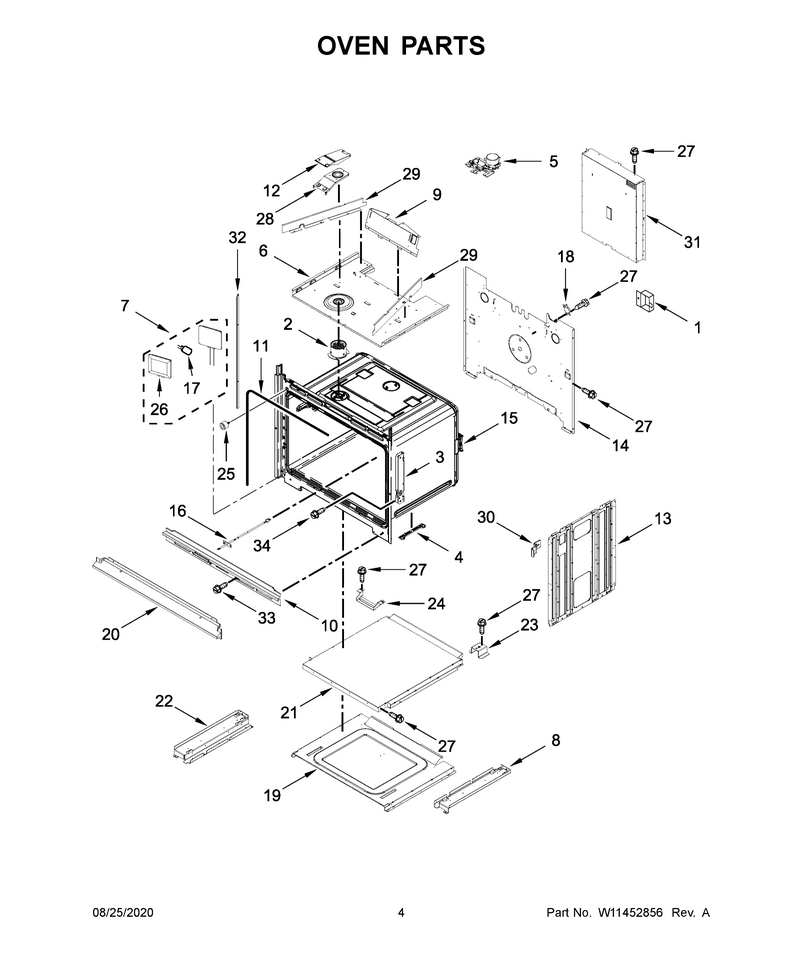

03 - Oven Parts

...
...
NI
Insulation, Wrap WPL-W10520716
...
1
Cover, Connector WPL-8285593
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11613828
...
4
Spacer WPL-W11240831
...
5
Latch-Door WPL-W10883049
...
6
Chassis, Top WPL-W10904159
...
7
Light-Oven WPL-W11292252
...
8
Support, Base (Right) WPL-W10283021
...
9
Deflector, Blower WPL-W10904163
...
10
Vent, Center 27" WPL-W11299325
...
11
Gasket, Cavity WPL-W10739090
...
12
Cover, Vent Exhaust WPL-W10616810
...
13
Side, Chassis WPL-W10318190
...
14
Back, Chassis WPL-W10904162
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11290976
...
17
Bulb-Light WPL-WPW10472384
...
18
Thrmst-Fix WPL-WP4449751
...
19
Base, Chassis WPL-W10282901
...
20
Vent-Oven WPL-WPW10327376
...
21
Covr-Acess WPL-WPW10283008
...
22
Support, Base (Left) WPL-W10283020
...
23
Support, Air Channel WPL-W10213759
...
24
Spacer, Chassis Bottom Duct WPL-W10351308
...
25
Bumper WPL-WPW10351278
...
26
Light-Oven WPL-WPW10519866
...
27
Screw WPL-WP90767
...
28
Base, Vent Exhaust WPL-W10616809
...
29
Deflector, Chassis WPL-W10681156
...
30
Spacers, Front WPL-W10347649
...
31
Cover, Combo Chassis Back Duct (With Hole) WPL-W11037653
...
32
Accessory Parts, Kit, Combo Oven Microwave Side Trim (Black) WPL-W10536162
...
32A
Accessory Parts, Kit, Combo Oven Microwave Side Trim (Black) WPL-W10536162
...
33
Screw WPL-WPY706189
...
34
Screw WPL-WPW10254050

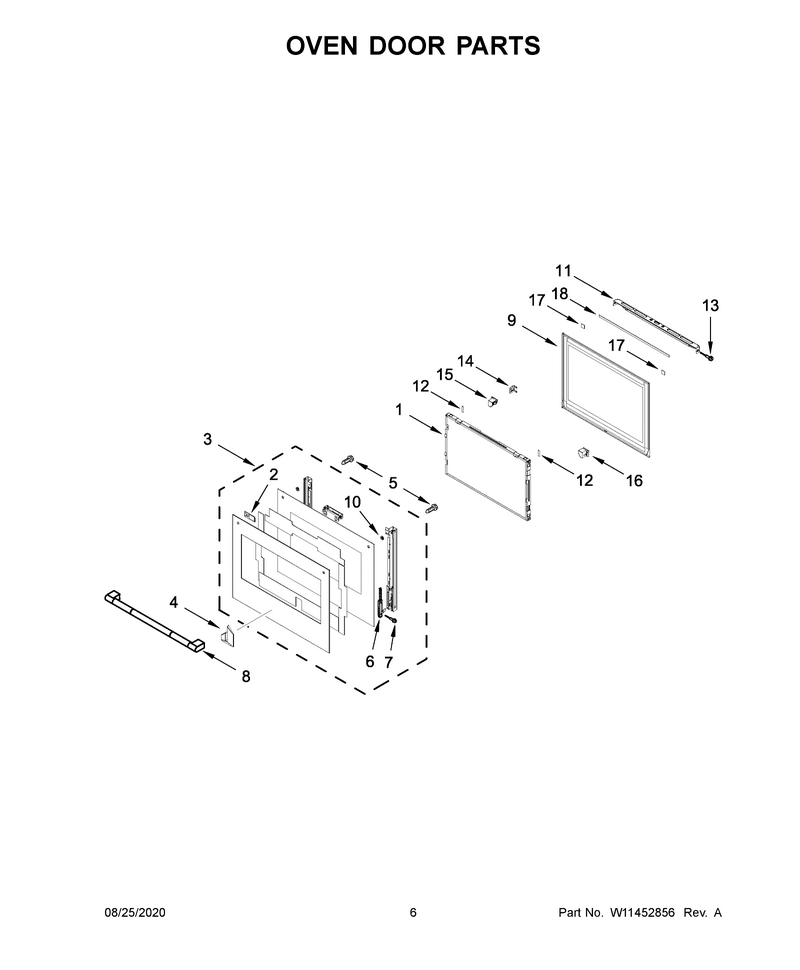

04 - Oven Door Parts

...
...
1
Glass-Door WPL-W11349268
...
2
Spacer, Handle WPL-W10650497
...
3
Glass-Door WPL-W11349395
...
4
Nameplate WPL-W11320231
...
5
Screw WPL-W10831019
...
6
Hinge, Door WPL-W11318032
...
7
Screw WPL-WP3196183
...
8
Hndle-Door WPL-W11349396
...
9
Glass-Door WPL-W11349273
...
10
Washer WPL-W11676355
...
11
Vent, Top Metal WPL-W11280093
...
12
Spacer WPL-W10840861
...
13
Screw WPL-W11690596
...
14
Clip WPL-WPW10549747
...
15
Brkt-Suprt WPL-WPW10581831
...
16
Brkt-Suprt WPL-WPW10581826
...
17
Spacer WPL-WPW10517428
...
18
Pad, Vent WPL-W10489274

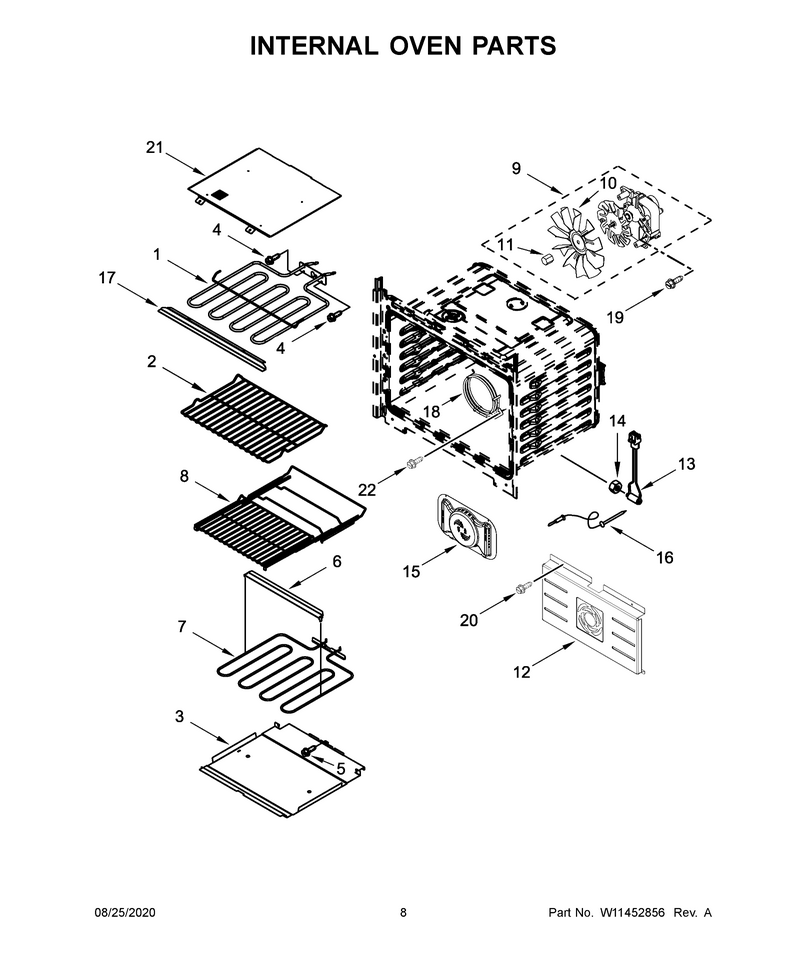

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W10804429
...
2
Rack, 27 In Oven WPL-W11242909
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Rack, 27 In Sliding WPL-W11256306
...
9
Motor-Fan WPL-W10860984
...
10
Fan-Convct WPL-W10819914
...
11
Nut WPL-W10794042
...
12
Cover, Baffle WPL-W10521808
...
13
Jack, Meat Probe WPL-W11252826
...
14
Locknut WPL-W11231343
...
15
Baffl-Conv WPL-W11241587
...
16
Probe-Meat WPL-WP9755542
...
17
Shield, Broil Front WPL-W10588738
...
18
Element WPL-W11678579
...
19
Screw WPL-W10850807
...
20
Screw WPL-W10739592
...
21
Shield-Ht WPL-W11290999
...
22
Screw WPL-W11347848

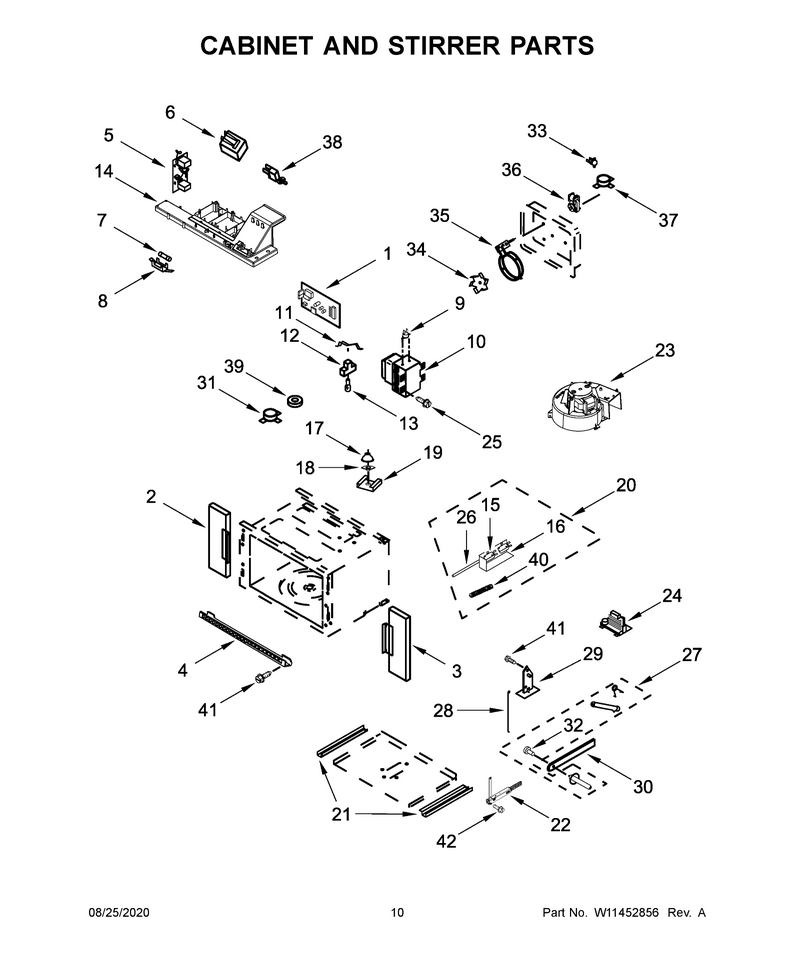

06 - Cabinet And Stirrer Parts

...
...
1
Cntrl-Elec WPL-W11325784
...
2
Trim, Side (Left) WPL-461967017511
...
3
Trim, Side (Right) WPL-W11044584
...
4
Vent, Top WPL-461968973251
...
5
Filter WPL-W11398764
...
6
Transformr WPL-W11238401
...
7
Fuse WPL-W11188752
...
8
Holder, Fuse WPL-W10245194
...
9
Sensor WPL-W11233913
...
10
Magnetron WPL-W11346197
...
11
Spring, Lamp WPL-W10465869
...
12
Housng-Lmp WPL-WPW10490593
...
13
Lmp-Basles WPL-W10886919
...
14
Duct, Magnetron WPL-461967754821
...
15
Switch, Micro V15t16-Cz200 WPL-W10211972
...
16
Interlock WPL-W11214928
...
17
Reflector WPL-423107022541
...
18
Lens-Lamp WPL-W11193483
...
19
Clip, Spring WPL-W10120231
...
20
Harns-Wire WPL-W11449277
...
21
Support, Bottom WPL-8205707
...
22
Hinge-Door WPL-W10874474
...
23
Motor-Fan WPL-W11344874
...
24
Inverter WPL-W11325604
...
25
Screw WPL-461967825971
...
26
Rod-Rel WPL-WPW10120235
...
27
Arm WPL-WPW10128850
...
28
Spring WPL-W11700292
...
29
Support WPL-W11684510
...
30
Arm WPL-W11214480
...
31
Sensor WPL-W11699906
...
32
Arm WPL-WPW10128850
...
33
Thrmst-Fix WPL-W11607085
...
34
Fan WPL-W11512064
...
35
Heater WPL-WPW10493735
...
36
Mtr-Convct WPL-W11534564
...
37
Sensor WPL-W11208292
...
38
Thermoactuator WPL-461967842541
...
39
Sealing, Lamp WPL-W10769147
...
40
Spring WPL-W11715912
...
41
Screw WPL-461967825321
...
42
Screw WPL-W11690594

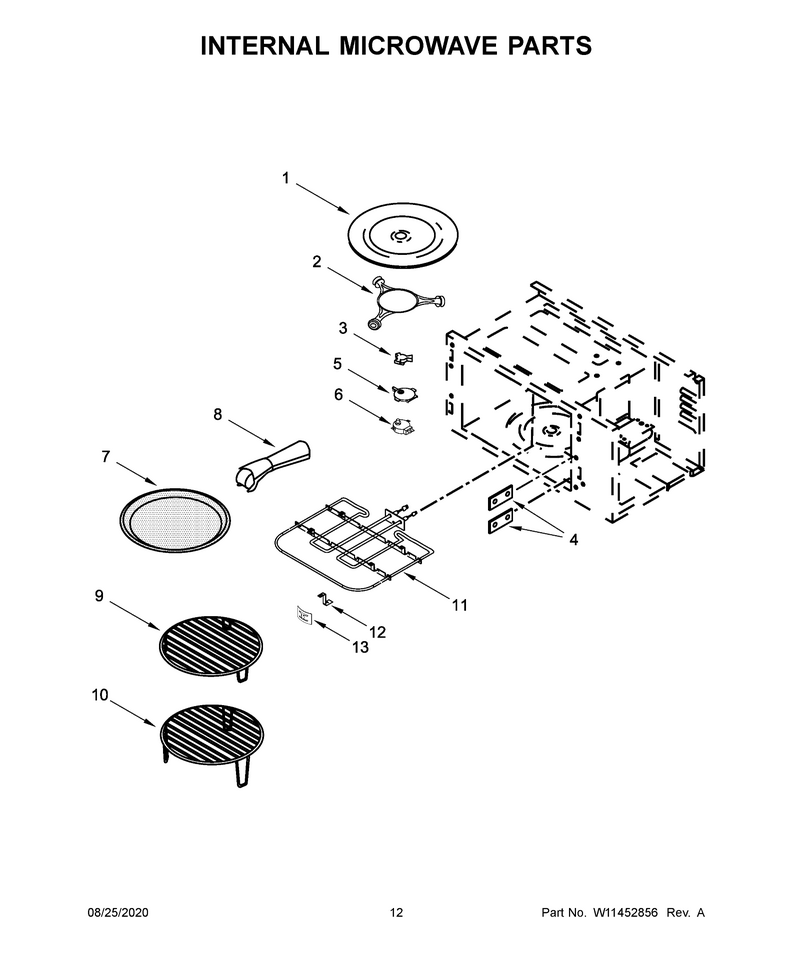

07 - Internal Microwave Parts

...
...
1
Tray-Cook WPL-W11373838
...
2
Ring-Turn WPL-W11110134
...
3
Shaft-Turn WPL-W11179756
...
4
Cover-Plt WPL-W10915651
...
5
Covr-Motor WPL-W11676353
...
6
Motor-Turn WPL-W10911403
...
7
Pan-Crisp WPL-W11755098
...
8
Handle-Pan WPL-W11218702
...
9
Rack WPL-W11175831
...
10
Rack, High Convection WPL-W10748280
...
11
Element WPL-WPW10387651
...
12
Support WPL-W11724411
...
13
Support WPL-W11724411

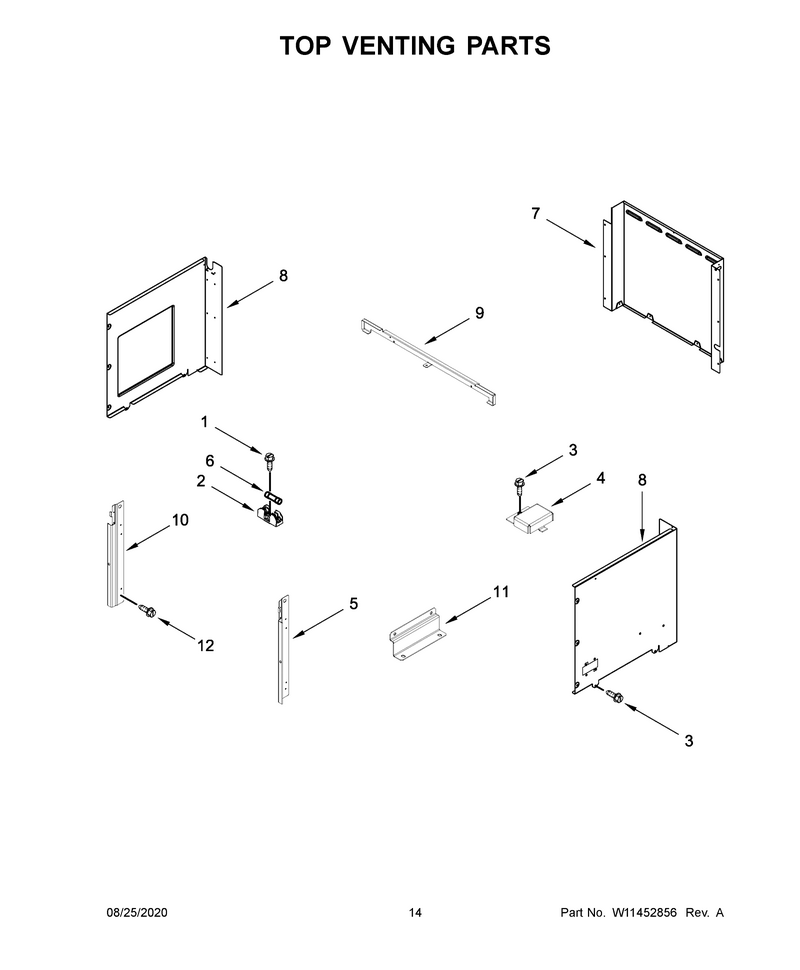

08 - Top Venting Parts

...
...
1
Screw WPL-W11684512
...
2
Holder, Fuse WPL-4454949
...
3
Screw WPL-WP90767
...
4
Cover, Connector WPL-8285593
...
5
Rail, Side (Right) WPL-W10710309
...
6
Fuse WPL-WPW10017410
...
7
Cover, Back Duct WPL-W10519707
...
8
Chassis, Combo Side (Left) WPL-W10655466
...
8A
Chassis, Combo Side (Right) WPL-W10283029
...
9
Support, Crossbar WPL-W10283023
...
10
Rail, Side (Left) WPL-W10710302
...
11
Side, Bracket WPL-W10283025
...
12
Screw WPL-WP98008545

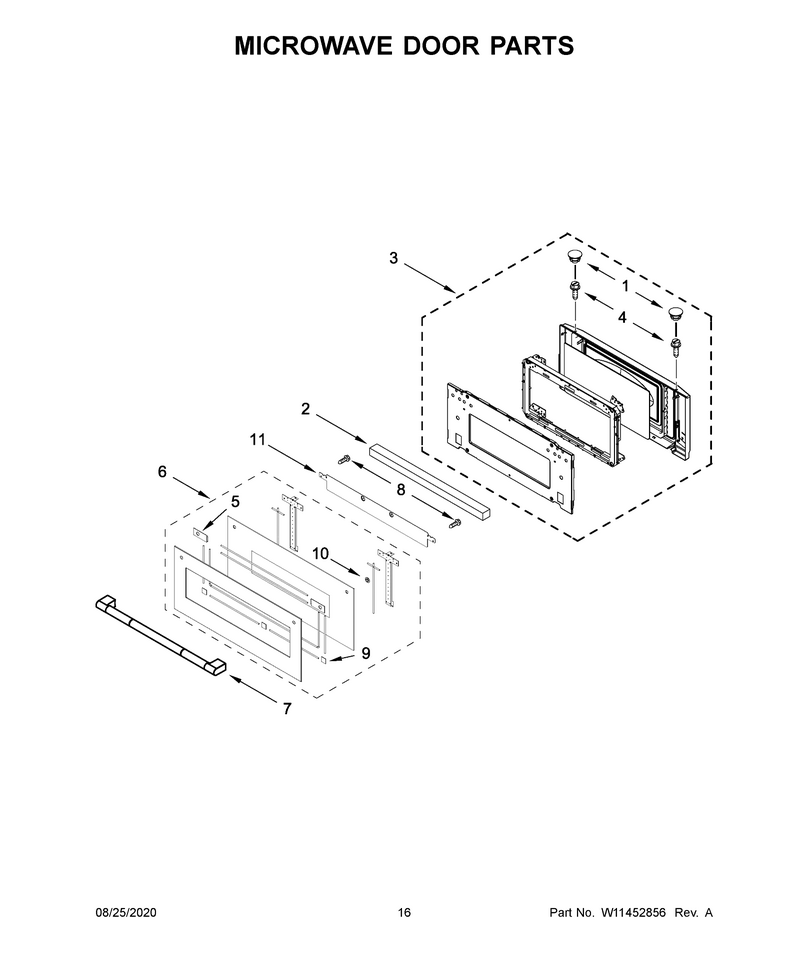

09 - Microwave Door Parts

...
...
1
Cap, Screw WPL-8304588BL
...
2
Foam, Door Handle WPL-W10359769
...
3
Assembly, Inner Door WPL-W10737653
...
4
Screw WPL-W11233072
...
5
Spacer, Handle WPL-W10650497
...
6
Glass-Door WPL-W11362191
...
7
Hndle-Door WPL-W11349396
...
8
Screw WPL-W10831019
...
9
Spacer WPL-WPW10517428
...
10
Washer WPL-W11676355
...
11
Bracket, Mwo Balancing WPL-W11316564

...
...
NI
Paint, Touch-Up (1/2oz. White) WPL-72017
